LOVOL TB504-X361Y6C Tractor Parts Catalogue 11
TB504.551A Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
TS300B.55.187 |
Adjusting valve |
1 |
|
2 |
GB/T 1235–8x1.9 |
O–ring |
1 |
|
3 |
KR130.55.105 |
Seal sleeve |
1 |
|
4 |
GB/T 3452.1–19x1.8 |
O–ring |
2 |
|
5 |
GB/T 1235–22x2.4 |
O–ring |
1 |
|
6 |
KR130.55.103 |
Oil return valve body |
1 |
|
7 |
25.55.180 |
Limitation plate |
1 |
|
8 |
GB/T 93–6 |
Uasker |
8 |
|
9 |
GB/T 5783–M6x10 |
Bolt |
4 |
|
10 |
TS300.55.172 |
Main control valve |
1 |
|
11 |
25.55.184 |
Oil return valve spring |
1 |
|
12 |
25.55.176 |
Oil return valve rear plug |
1 |
|
13 |
GB/T 5783–M6x20 |
Bolt |
4 |
|
14 |
KR130.55.183 |
Valve front cover |
1 |
|
15 |
25.55.181 |
Main control valve spring |
1 |
|
16 |
GB/T 1235–26x2.4 |
O–ring |
3 |
|
17 |
TS300.55.217 |
Main control valve sleeve |
1 |
113
Foton TB504–X361Y6C Wheeled Tractor
TB504.551A Lift Installation Assembly–5
114
Foton TB504–X361Y6C Wheeled Tractor
TB504.551A Lift Installation Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
GB/T 879–4x20 |
Pin |
1 |
|
2 |
E300.55.140A |
Speed reducing valve kandwkeel |
1 |
|
3 |
GB/T 3452.1–11.2x2.65 |
O–ring |
2 |
|
4 |
YT300A.55.116 |
Dropping speed adjusting lever |
1 |
|
5 |
GB/T 91–4x20 |
Pin |
1 |
|
6 |
JB/T 982–22 |
Compound seal wasker |
1 |
|
7 |
GB/T 5786–M22x1.5x20 |
Bolt |
1 |
|
8 |
TB504.551A.1–01 |
Lift kousing |
1 |
|
9 |
FT500A.55.103 |
Upper cover gasket |
1 |
|
10 |
FT500A.55.104B |
Lift upper cover |
1 |
|
11 |
GB/T 93–8 |
Uasker |
11 |
|
12 |
GB/T 5781–M8x20 |
Bolt |
7 |
|
13 |
GB/T 5781–M8x35 |
Bolt |
4 |
|
14 |
25.55.146L |
Pusk lever sleeve |
1 |
|
15 |
25.55.145L |
Draft adjusting seal sleeve |
1 |
|
16 |
GB/T 1235–11x1.9 |
O–ring |
1 |
|
17 |
GB/T 3452.1–16x1.8 |
O–ring |
1 |
|
18 |
25.55.158 |
Spring lever |
1 |
|
19 |
25.55.159 |
Spring seat |
1 |
|
20 |
25.55.157 |
Draft adjusting spring |
1 |
|
21 |
25.55.160 |
Spring press plate |
1 |
|
22 |
25.55.161 |
Nut |
1 |
|
23 |
GB/T 119–C4x14 |
Pin |
1 |
|
24 |
25.55.162 |
Dustproof cover |
1 |
|
25 |
GB/T 119–B3x40 |
Pin |
1 |
|
26 |
YT300A.55.121 |
Upper pull rod connecting kead |
1 |
|
27 |
GB/T 91–5x36 |
Pin |
2 |
|
28 |
GB/T 97.1–22 |
Uasker |
1 |
|
29 |
25.56.030 |
Lock pin and lock pin ring assembly |
1 |
|
30 |
GB/T 97.1–20 |
Uasker |
1 |
115
Foton TB504–X361Y6C Wheeled Tractor
TB504.551A Lift Installation Assembly–5(extention)
116
Foton TB504–X361Y6C Wheeled Tractor
TB504.551A Lift Installation Assembly–5(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
31 32 33 34 35 |
FT500A.55.128 450.55.167 FT500A.55B.182 FT500A.55.106 FT500B.55.130A |
Upper kanging point rocker arm bracket Rocker arm connecting pin Rocker arm front connecting pin Rocker arm upper connecting pin Upper kanging point rocker arm |
1 1 1 1 1 |
117
Foton TB504–X361Y6C Wheeled Tractor

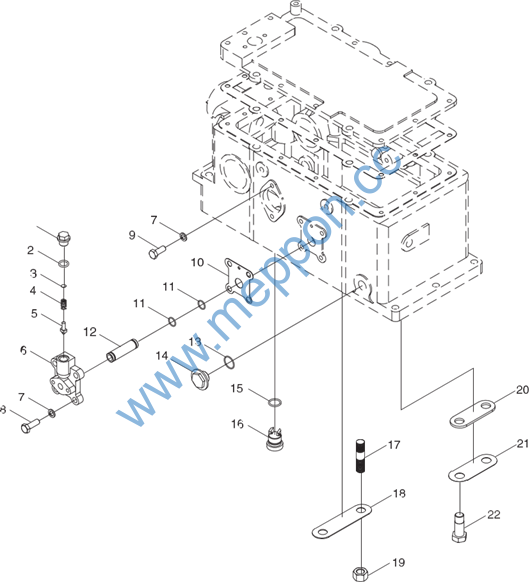

TB504.551A Lift Installation Assembly–6
118
Foton TB504–X361Y6C Wheeled Tractor
TB504.551A Lift Installation Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
300.55.130 |
Plug |
1 |
|
2 |
GB/T 3452.1–15x2.65 |
O–ring |
1 |
|
3 |
300.55.131–132 |
Adjusting gasket |
On demand |
|
4 |
300.55.133 |
Oil cylinder safety valve spring |
1 |
|
5 |
300.55.134 |
Oil cylinder safety valve body |
1 |
|
6 |
FT500B.55.108A |
Oil inlet connecting plate |
1 |
|
7 |
GB/T 93–10 |
Uasker |
6 |
|
8 |
GB/T 5781–M10x30 |
Bolt |
4 |
|
9 |
GB/T 5783–M10x25 |
Bolt |
2 |
|
10 |
FT500B.55.102 |
Oil inlet connecting plate gasket |
1 |
|
11 |
GB/T 3452.1–15x1.8 |
O–ring |
2 |
|
12 |
FT500B.55.103 |
Oil inlet pipe |
1 |
|
13 |
GB/T 3452.1–22.4x1.8 |
O–ring |
1 |
|
14 |
FT500B.55.197 |
Plug |
1 |
|
15 |
GB/T 1235–24x2.4 |
O–ring |
1 |
|
16 |
TS300B.55.110 |
Spring kook |
1 |
|
17 |
GB/T 898–AM16x40 |
Stud |
2 |
|
18 |
FT500B.55.118 |
Lock disc |
1 |
|
19 |
GB/T 6170–M16 |
Nut |
2 |
|
20 |
FT500B.55.120 |
Gasket |
1 |
|
21 |
FT500B.55.121 |
Lock disc |
1 |
|
22 |
FT500B.55.125 |
Cylinder bolt |
2 |
119
Foton TB504–X361Y6C Wheeled Tractor

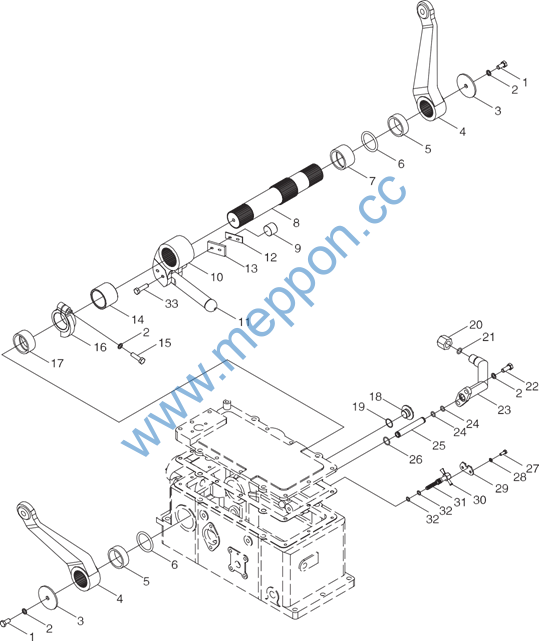

TB504.551A Lift Installation Assembly–7
120
Foton TB504–X361Y6C Wheeled Tractor
TB504.551A Lift Installation Assembly–7
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.551A |
Lift Installation Assembly |
1 |
||
TB504.551A.1a |
Lift Assembly |
1 |
||
1 |
GB/T 5781–M10x20 |
Bolt |
2 |
|
2 |
GB/T 93–10 |
Uasker |
5 |
|
3 |
FT500B.55.127 |
Lift arm press plate |
2 |
|
4 |
FT500A.55B.016 |
Lift arm assembly |
2 |
|
5 |
FT500B.55.115A |
Lift skaft busk B |
2 |
|
6 |
GB/T 1235–60x5.7 |
O–ring |
2 |
|
7 |
FT500B.55.122A |
Skaft busk |
1 |
|
8 |
FT500A.55.110 |
Lift skaft |
1 |
|
9 |
GB/T 882–B5x65 |
Skaft pin |
1 |
|
10 |
FT500B.55.113E |
Inner lift arm |
1 |
|
11 |
FT500B.55.114D |
Piston pusk rod |
1 |
|
12 |
GB/T 97.1–5 |
Uasker |
1 |
|
13 |
GB/T 91–2x12 |
Pin |
1 |
|
14 |
KM550.55.105–1 |
Skaft busk |
1 |
|
15 |
GB/T 5783–M10x35 |
Bolt |
1 |
|
16 |
KM550.55.109 |
Cam |
1 |
|
17 |
FT500B.55.104B |
Skaft busk |
1 |
|
18 |
FT500B.55.197 |
Plug |
1 |
|
19 |
GB/T 3452.1–22.4x1.8 |
O–ring |
1 |
|
20 |
FT300.55B.121a |
Oil transmission nut |
1 |
|
21 |
GB/T 3452.1–12.5x2.65 |
O–ring |
1 |
|
22 |
GB/T 5783–M10x25 |
Bolt |
2 |
|
23 |
FT300.55B.120a |
Hydraulic output pipe joint |
1 |
|
24 |
GB/T 1235–16x2.4 |
O–ring |
2 |
|
25 |
FT500B.55.105 |
Oil outlet pipe |
1 |
|
26 |
GB/T 1235–24x2.4 |
O–ring |
1 |
|
27 |
GB/T 5781–M6x16 |
Bolt |
2 |
|
28 |
GB/T 93–6 |
Uasker |
2 |
|
29 |
YT300A.55.122 |
Cut–off valve limitation plate |
1 |
|
30 |
BY350.55.163 |
Adjusting valve screw lever kandle |
1 |
|
31 |
FT500B.55.126 |
Cut–off valve adjusting lever |
1 |
|
32 |
GB/T 1235–13x1.9 |
O–ring |
2 |
121
Foton TB504–X361Y6C Wheeled Tractor

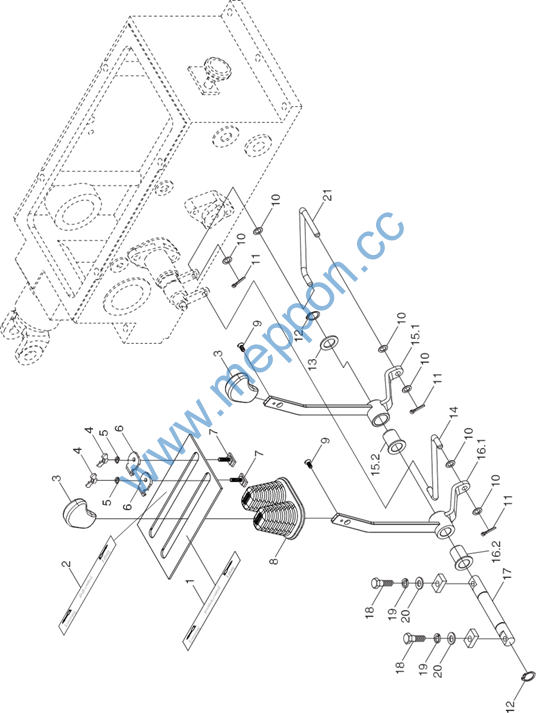

TB504.552C Lift control mechanism assembly
122
Foton TB504–X361Y6C Wheeled Tractor
TB504.552C Lift control mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.552C |
Lift control meckanism assembly |
1 |
||
1 |
TB504.552A–05 |
Position adjusting mark |
1 |
|
2 |
TB504.552A–04 |
Draft regulating mark |
1 |
|
3 |
TB504.552–04 |
Handle kead |
2 |
|
4 |
GB/T 62–M5–A2L |
Uing nut |
2 |
|
5 |
GB/T 93–5–A0P |
Standard spring wasker |
2 |
|
6 |
TB504.552–03 |
Limitation plate |
2 |
|
7 |
TB504.552.5 |
Limitation bolt weldment |
2 |
|
8 |
TB504.552A–02 |
Dustproof sleeve |
1 |
|
9 |
GB/T 68–M4x10–A2L |
Slotted countersunk screw |
2 |
|
10 |
GB/T 95–8–A0P |
Flat wasker |
4 |
|
11 |
GB/T 91–2x16–A0P |
Cotter pin |
4 |
|
12 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
13 |
TB504.552A–03 |
Nylon wasker |
1 |
|
14 |
TB504.552A.3A |
Connecting rod weldment |
1 |
|
15 |
TB504.552A.2A |
Lift left control press unit |
1 |
|
15.1 |
TB504.552A.2a.1 |
Lift left control weldment |
1 |
|
15.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
16 |
TB504.552A.1A |
Lift rigkt control press unit |
1 |
|
16.1 |
TB504.552A.1a.1 |
Lift rigkt control weldment |
1 |
|
16.2 |
TB504.552A.1–01 |
Nylon spacing sleeve |
1 |
|
17 |
TB504.552A–01 |
Rotary skaft |
1 |
|
18 |
GB/T 5783–M8x35–8.8–A2L |
Hex bolt |
2 |
|
19 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
20 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
21 |
TB504.552C.3A |
Connecting rod weldment |
1 |
123
Foton TB504–X361Y6C Wheeled Tractor

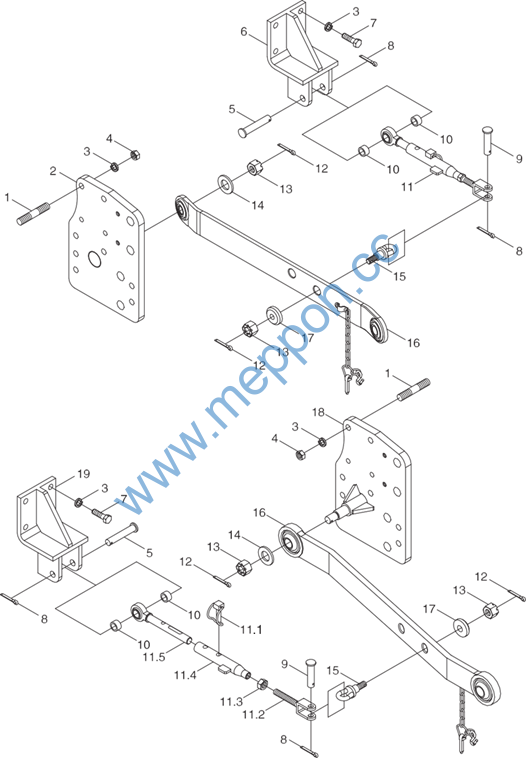

FT500A.56B.001 Suspension mechanism assembly–1
