LOVOL TB504-X161Y6K Tractor Parts Catalogue 21
FT404.74A.002 74-前配重总成 74-FRONT BALLAST ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT6170-M16-8-A3L |
1型六角螺母 |
NUT |
2 |
2012-09_ |
|
10 |
FT650.74.108 |
牵引螺母 |
TOWING NUT |
2 |
2011-11_ |
|
11 |
FT404.74A.108 |
连接螺栓 |
CONNECTING BOLT |
1 |
2011-11_ |
|
2 |
GBT93-16-Zn.D |
标准型弹簧垫圈 |
WASHER |
6 |
2011-11_ |
|
3 |
GBT97.1-16 |
垫圈 |
WASHER |
6 |
2011-11_ |
|
4 |
GBT5783-M16X35-Zn.D |
六角头螺栓 |
BOLT |
4 |
2011-11_ |
|
5 |
FT300.74A.107 |
固定架 |
FIXING BRACKET |
1 |
2011-11_ |
|
6 |
FT404.74A.010 |
前配重小总成 |
FRONT BALLAST ASSEMBLY |
1 |
2012-01_ |
|
6.1 |
FT300.74A.106 |
配重块 |
BALLAST |
6 |
2011-11_ |
|
6.2 |
FT300.74A.105 |
配重块 |
BALLAST |
2 |
|
|
7 |
GBT5785-M20X1.5X80-8.8-A3L |
六角头螺栓 |
BOLT |
2 |
|
|
8 |
GBT97.1-20 |
垫圈 |
WASHER |
2 |
2011-11_ |
|
9 |
FT300.74A.110 |
牵引耳 |
TOWING LUG |
1 |
2011-11_ |

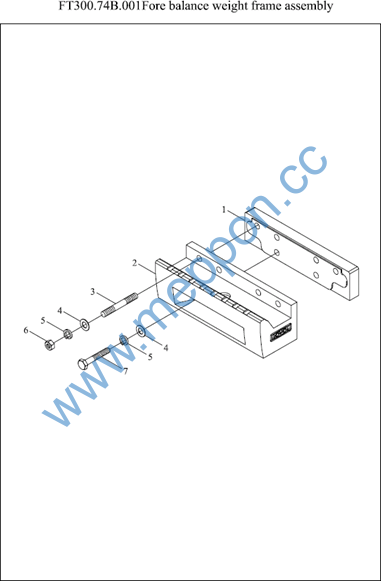

FT300.74B.001 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT300.74B.102 |
前配重架垫块 |
FRONT BALLAST BRACKET MAT BLOCK |
1 |
2011-11_ |
|
2 |
FT300.74B.101 |
配重架 |
BALLAST BRACKET |
1 |
2009-11_ |
|
2 |
FT300.74A.101 |
配重架 |
BALLAST BRACKET |
1 |
2004-01_ |
|
3 |
GBT898-AM16-M16X70-Zn.D |
双头螺柱 |
8.8-A3L STUD |
4 |
2011-11_ |
|
4 |
GBT97.1-16 |
垫圈 |
WASHER |
6 |
2011-11_ |
|
5 |
GBT93-16-Zn.D |
标准型弹簧垫圈 |
WASHER |
6 |
2011-11_ |
|
6 |
GBT6170-M16-A3L |
螺母 M16-A3L |
NUT |
4 |
|
|
7 |
GBT5780-M16X90-A2L |
六角头螺栓 |
BOLT |
2 |
|

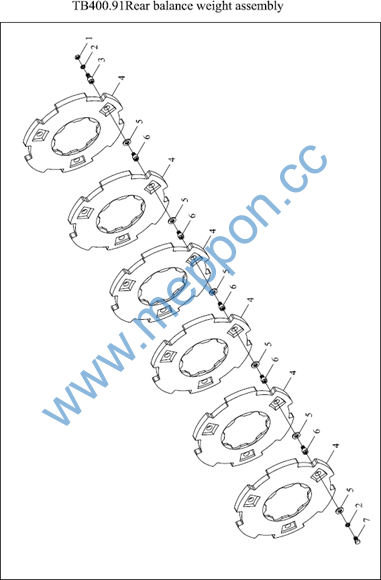

TB400.91 91-后配重总成 91-REAR BALLAST ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT6171-M16X1.5-A3L |
1型六角螺母 |
NUT |
3 |
2011-11_ |
|
2 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
6 |
2011-11_ |
|
3 |
TB400.91-02 |
后配重螺钉Ⅰ |
REAR BALLAST SCREW I |
3 |
2011-11_ |
|
4 |
TB400.91-01 |
后配重 |
REAR BALLAST |
6 |
2011-11_ |
|
5 |
TB400.91-04 |
垫圈 |
WASHER |
18 |
2004-01_ |
|
5 |
FT650.34.104 |
垫圈 |
WASHER |
18 |
2009-09_ |
|
6 |
TB400.91-03 |
后配重螺钉Ⅱ |
REAR BALLAST SCREW Ⅱ |
15 |
2011-11_ |
|
6 |
TB400.91-03 |
后配重螺钉Ⅱ |
REAR BALLAST SCREW Ⅱ |
15 |
2011-11_ |
|
7 |
TB400.91-05 |
螺栓 |
BOLT |
3 |
2011-11_ |

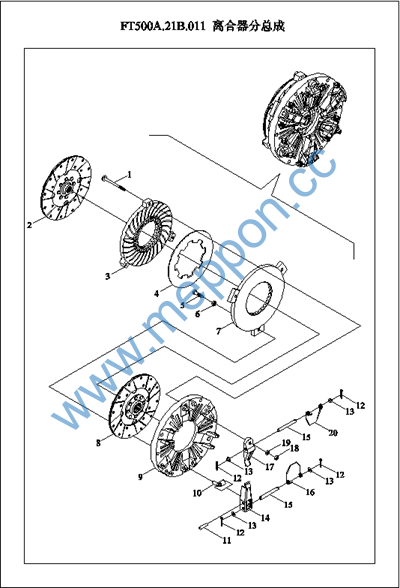

FT500A.21B.011 离合器分总成 CLUTCH SUBASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT400.21B.104 |
副离合器拉杆 |
AUXILIARY CLUTCH PULL ROD |
3 |
2013-01_ |
|
10 |
FT400.21B.110 |
顶杆 |
TOP ROD |
3 |
2013-01_ |
|
11 |
FT300.21B.109 |
销轴 |
PIN |
3 |
2013-01_ |
|
12 |
GBT91-3.2X16-A0P |
开口销 |
PIN |
10 |
2013-01_ |
|
13 |
GBT848-10-A0P |
小垫圈 |
WASHER |
12 |
2013-01_ |
|
14 |
FT400.21B.107 |
主离合器分离杠杆 |
MAIN CLUTCH RELEASE LEVER |
3 |
2013-01_ |
|
15 |
FT300.21B.111 |
长销 |
LONG PIN |
6 |
2013-01_ |
|
16 |
FT400.21B.108 |
主分离杠杆弹簧 |
MAIN RELEASE LEVER SPRING |
3 |
2013-01_ |
|
17 |
FT400.21B.106 |
副离合器分离杠杆 |
AUXILIARY CLUTCH RELEASE LEVER |
3 |
2013-01_ |
|
18 |
GBT6171-M8X1-8-A2L |
I型六角螺母 |
HEXAGON NUT |
3 |
2013-01_ |
|
19 |
FT300.21B.105 |
球头螺母 |
BALL NUT |
3 |
2013-01_ |
|
19 |
FT300.21B.105 |
球头螺母 |
BALL NUT |
3 |
2013-01_ |
|
2 |
FT500.21B.015 |
副离合器从动盘总成 |
AUXILIARY CLUTCH DRIVEN PLATE ASSEMBLY |
1 |
2013-01_ |
|
20 |
FT300.21B.120 |
副分离杠杆弹簧 |
AUXILIARY RELEASE LEVER SPRING |
3 |
2013-01_ |
|
3 |
FT400.21B.102 |
副离合器压盘 |
AUXILIARY CLUTCH PRESSURE PLATE |
1 |
2013-01_ |
|
4 |
FT400.21B.103 |
碟形弹簧 |
DISC SPRING |
1 |
2013-01_ |
|
5 |
FT300.21B.114 |
主离合器调整螺钉 |
MAIN CLUTCH ADJUSTING SCREW |
3 |
2013-01_ |
|
6 |
GBT6171-M10X1-8-A2L |
1型六角螺母 |
NUT |
3 |
2013-01_ |
|
7 |
FT400.21B.113 |
主离合器压盘 |
MAIN CLUTCH PRESSURE PLATE |
1 |
2013-01_ |
|
8 |
FT500A.21B.014 |
主离合器磨擦片总成 |
MAIN CLUTCH FRICTION PLATE ASSEMBLY |
1 |
2013-01_ |
|
9 |
FT400.21B.112 |
离合器盖 |
CLUTCH COVER |
1 |
2013-01_ |
