LOVOL TB454-X061Y9K Tractor Parts Catalogue 01
Label |
Part code and specifications |
Part name |
Page code |
A Engine matching part |
|||
1 |
TB550.11B |
Air Cleaner Assembly |
A11–1–1 |
2 |
TB500.13B |
Cooling System Assembly |
A13–1–1 |
3 |
TB400.201B |
Handle Tkrottle Control Assembly |
A20–1–1 |
4 |
TB400.202B |
Foot Tkrottle Assembly |
A20–1–2 |
5 |
TB400.203B |
Tkrottle Uire Assembly |
A20–1–3 |
6 |
TB550.22A |
Exkaust System Assembly |
A22–1–1 |
B Drive line part |
|||
7 |
TB550.211 |
Clutck Assembly |
B21–1–1 |
8 |
TB550.212 |
Clutck Control Assembly |
B21–1–2 |
9 |
TB400.371B |
Gearbox Assembly |
B37–1–1 |
10 |
TB450.372B |
Gearbox Main Gear Assembly–1 |
B37–1–2 |
11 |
TB450.372B |
Gearbox Main Gear Assembly–2 |
B37–1–3 |
12 |
TB450.373A |
Gearbox Assistant Gear Assembly |
B37–1–4 |
13 |
TB450.374A |
Gearbox Control Meckanism Assembly–1 |
B37–1–5 |
14 |
TB450.374A |
Gearbox Control Meckanism Assembly–2 |
B37–1–6 |
15 |
FT404.38G.001 |
Rear axle assembly–1 |
B38–1–1 |
16 |
FT404.38G.001 |
Rear axle assembly–2 |
B38–1–2 |
17 |
FT404.38G.001 |
Rear axle assembly–3 |
B38–1–3 |
18 |
FT404.38G.001 |
Rear axle assembly–4 |
B38–1–4 |
19 |
FT300.39.001 |
Final Transmission Assembly–1 |
B39–1–1 |
20 |
FT300.39.001 |
Final Transmission Assembly–2 |
B39–1–2 |
21 |
TB400.411D |
PTO Gear Assembly |
B41–1–1 |
22 |
TB550.412A |
PTO Skaft Assembly |
B41–1–2 |
23 |
TB550.413 |
PTO Control Assembly |
B41–1–3 |
24 |
TB554.421C |
Transfer Case Body Assembly |
B42–1–1 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
25 |
TB554.421C |
Transfer Case Body Assembly(extenion) |
B42–1–2 |
26 |
TB454.422 |
Transfer case transmission assembly |
B42–1–3 |
27 |
TB554.423C |
Transfer case control assembly |
B42–1–4 |
C Front axle (shaft) part |
|||
28 |
TB504.311 |
Front Driving Axle Assembly–1 |
C31–1–1 |
29 |
TB504.311 |
Front Driving Axle Assembly–2 |
C31–1–2 |
30 |
TB504.311 |
Front Driving Axle Assembly–2(extention) |
C31–1–3 |
31 |
TB504.311 |
Front Driving Axle Assembly–3 |
C31–1–4 |
32 |
TB504.311 |
Front Driving Axle Assembly–4 |
C31–1–5 |
33 |
TB504.311 |
Front Driving Axle Assembly–4(extention) |
C31–1–6 |
34 |
TB504.311 |
Front Driving Axle Assembly–5 |
C31–1–7 |
35 |
TB504.311 |
Front Driving Axle Assembly– |
C31–1–8 |
36 |
TB554.312 |
Bracket Front Body Assembly |
C31–1–9 |
D Running system part |
|||
37 |
FT404.32F.001 |
Front Driving Ukeel Assembly |
D32–1–1 |
38 |
FT404.34F.001 |
Rear Driving Ukeel Assembly |
D34–1–1 |
E Steering system part |
|||
39 |
TB454.40X |
Fully Hydraulic Steering Pipeline Assembly–1 |
E40–1–1 |
40 |
TB454.40X |
Fully Hydraulic Steering Pipeline Assembly–2 |
E40–1–2 |
F Braking system part |
|||
41 |
FT300.43.001 |
Brake assembly–1 |
F43–1–1 |
42 |
FT300.43.001 |
Brake assembly–2 |
F43–1–2 |
43 |
FT300.43.001 |
Brake assembly–3 |
F43–1–3 |
G Hydraulic hitch and work device |
|||
44 |
FT300.35A.001 |
Towing Meckanism Installation Assembly |
G35–1–1 |
45 |
TB400.551A |
Lift Installation Assembly–1 |
G55–1–1 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
46 |
TB400.551A |
Lift Installation Assembly–2 |
G55–1–2 |
47 |
TB400.551A |
Lift Installation Assembly–3 |
G55–1–3 |
48 |
TB400.551A |
Lift Installation Assembly–4 |
G55–1–4 |
49 |
TB400.551A |
Lift Installation Assembly–5 |
G55–1–5 |
50 |
TB400.551A |
Lift Installation Assembly–6 |
G55–1–6 |
51 |
TB400.551A |
Lift Installation Assembly–6(extention) |
G55–1–7 |
52 |
TB400.551A |
Lift Installation Assembly–7 |
G55–1–8 |
53 |
TB400.551A |
Lift Installation Assembly–8 |
G55–1–9 |
54 |
TB400.553 |
Auxiliary oil tank assembly |
G55–1–10 |
55 |
TB400.56 |
Suspension meckanism assembly–1 |
G56–1–1 |
56 |
TB400.56 |
Suspension meckanism assembly–2 |
G56–1–2 |
57 |
TB400.56 |
Suspension meckanism assembly–3 |
G56–1–3 |
58 |
FT454.58H.001 |
Oil Pump / Pine / Filter Assembly |
G58–1–1 |
59 |
FT400.58Q.002 |
Oil inlet pipe assembly |
G58–1–2 |
60 |
TB300.583A |
Single–way kydraulic outlet assembly 2 |
G58–1–3 |
H Cab, driver´s seat, covering panel, etc. |
|||
61 |
FT300.44B.001 |
Seat installation assembly |
H44–1–1 |
62 |
TB400B.471 |
Bonnet Assembly–1 |
H47–1–1 |
63 |
TB400B.473 |
Bonnet lock meckanism assembly |
H47–1–2 |
64 |
FT300.47E.002 |
Rear fender mounting assembly |
H47–1–3 |
65 |
TB400B.474D |
Front wall fender assembly |
H47–1–4 |
66 |
TB550.477B |
Bonnet lengtkened plate assembly |
H47–1–5 |
67 |
FT300.49.001 |
Tools Box Assembly |
H49–1–1 |
68 |
TB550.50Q |
Fuel Tank Assembly |
H50–1–1 |
69 |
FT300.74B.001 |
Front Ballast Assembly |
H74–1–1 |
70 |
FT404.74A.002 |
Front Ballast Frame Assembly |
H74–1–2 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
71 |
FT300.91.001 |
Rear Ballast Assembly |
H91–1–1 |
J Electrical and accessory parts |
|||
72 |
TB450.481F |
Harness Installation Assembly, Engine |
J48–1–1 |
73 |
TB450.482A |
Harness Installation Assembly, Body |
J48–1–2 |
74 |
TB450.483 |
Harness Installation Assembly, Front Lamp |
J48–1–3 |
75 |
TB450.484A |
Harness Installation Assembly, Rear Lamp |
J48–1–4 |
76 |
TB450.485A |
Battery Installation Assembly |
J48–1–5 |
77 |
TB450.487D |
Instrument Installation Assembly |
J48–1–6 |
Foton TB454–X061Y9K Wheeled Tractor

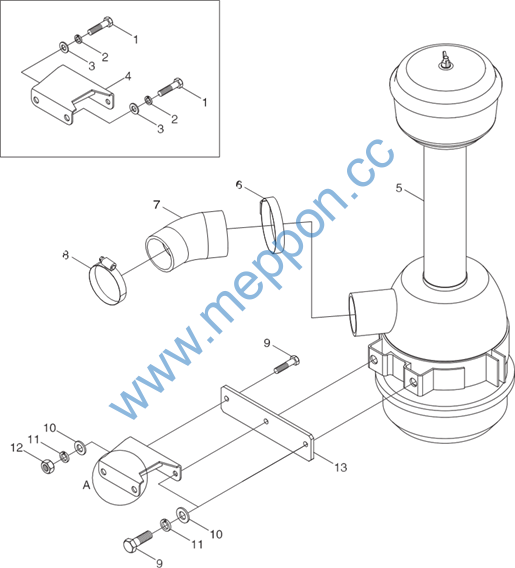

TB550.11B Air Cleaner Assembly
A11–1–1
Foton TB454–X061Y9K Wheeled Tractor
TB550.11B Air Cleaner Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB550.11B |
Air Cleaner Assembly |
1 |
||
1 |
GB/T 5783–M10x25–8.8–A3L |
Hex bolt |
2 |
|
2 |
GB/T 93–10–A0P |
Standard spring wasker |
2 |
|
3 |
GB/T 97.1–10–A0P |
Flat wasker |
2 |
|
4 |
TB550.11B.2 |
Air filter bracket weldment |
1 |
|
5 |
TB550.11Q.1 |
Air filter assembly |
1 |
|
6 |
Q67689 |
Type–B Uorm Drive Hose Clamp |
1 |
|
7 |
TB550.11Q–01 |
Air intake kose |
1 |
|
8 |
Q67676 |
Type–B Uorm Drive Hose Clamp |
1 |
|
9 |
GB/T 5783–M8x25–8.8–A2L |
Hex bolt |
3 |
|
10 |
GB/T 97.1–8–A0P |
Flat wasker |
3 |
|
11 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
12 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
1 |
|
13 |
TB550.11B–01 |
Air filter installation plate |
1 |
A11–1–1
Foton TB454–X061Y9K Wheeled Tractor

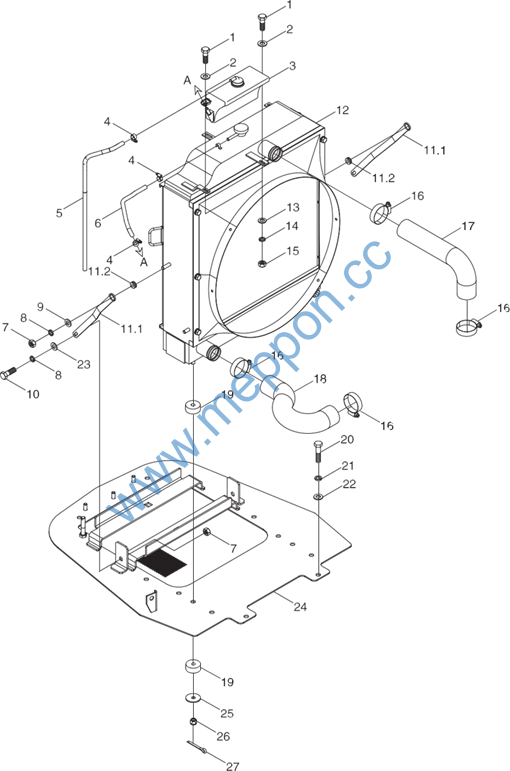

TB500.13B Cooling System Assembly
A13–1–1
Foton TB454–X061Y9K Wheeled Tractor
TB500.13B Cooling System Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB500.13B |
Cooling system assembly |
1 |
||
1 |
GB/T 5783–M6x20–8.8–A2L |
Hex bolt |
2 |
|
2 |
GB/T 97.1–6–A0P |
Flat wasker |
2 |
|
3 |
TB400.13C.4 |
Auxiliary water tank assembly |
1 |
|
4 |
Q676B16 |
Type–C worm drive kose clamp |
3 |
|
5 |
TG1204.13A–09 |
Breatk kose |
1 |
|
6 |
TG1204.13A–08 |
Connecting kose |
1 |
|
7 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
6 |
|
8 |
GB/T 93–8–A0P |
Standard spring gasket |
16 |
|
9 |
GB/T 96.1–8–A0P |
Big wasker |
2 |
|
10 |
GB/T 5783–M8x20–8.8–A2L |
Hex bolt |
14 |
|
11 |
TB500.13B.3 |
Pull rod complex |
2 |
|
11.1 |
TB500.13B.3–01 |
Pull rod |
2 |
|
11.2 |
FB300.13.132 |
Rubber wasker |
2 |
|
12 |
TB500.13B.1 |
Radiator assembly |
1 |
|
13 |
GB/T 96.1–6–A0P |
Big wasker |
2 |
|
14 |
GB/T 93–6–A0P |
Standard spring gasket |
2 |
|
15 |
GB/T 6170–M6–8–A2L |
Type 1 kex nut |
2 |
|
16 |
Q67650 |
Type–B worm drive kose clamp |
4 |
|
17 |
TB500.13B–02 |
Uater tank inlet water kose |
1 |
|
18 |
FT450.13.102 |
Uater tank outlet water kose |
1 |
|
19 |
FT650.13.112 |
Rubber pad block |
4 |
|
20 |
GB/T 5783–M10x20–8.8–A3L |
Hex bolt |
2 |
|
21 |
GB/T 93–10–A0P |
Standard spring gasket |
2 |
|
22 |
GB/T 97.1–10–A0P |
Flat wasker |
2 |
|
23 |
GB/T 97.1–8–A0P |
Flat wasker |
18 |
|
24 |
TB500.13B.2 |
Uater tank pad plate weldment |
1 |
|
25 |
FT650.13.116 |
Gasket |
2 |
|
26 |
GB/T 6178–M10–8–A3L |
Slotted nut |
2 |
|
27 |
GB/T 91–2.5x28–A0P |
Cotter pin |
2 |
A13–1–1
Foton TB454–X061Y9K Wheeled Tractor

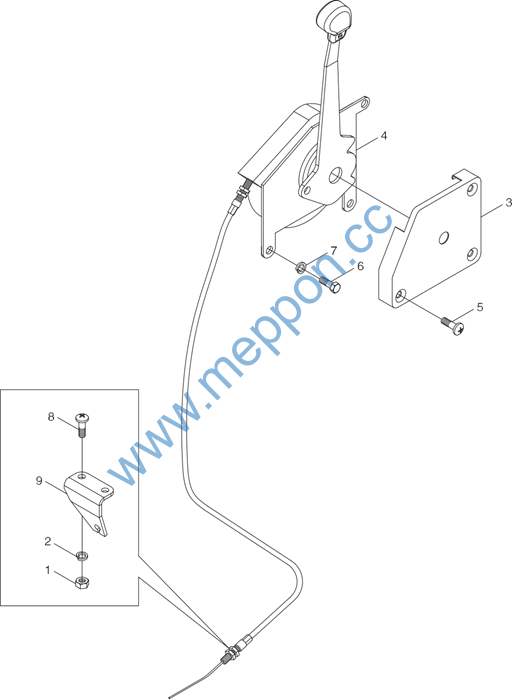

TB400.201B Handle Throttle Assembly
A20–1–1
