TB450.485A 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M8-A2L

螺母

NUT

2

2011-11_

10

TB450.485.1

蓄电池减震垫

BATTERY SHOCK ABSORPTION MAT

2

2010-08_

10

FT450.48.102

蓄电池减震垫

BATTERY SHOCK ABSORPTION MAT

1

2004-01_

2

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

3

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

4

TG1204.485-02

电瓶压板

BATTERY PRESS PLATE

1

2011-11_

5

TG1204.485-01

电瓶U型拉杆

U-TYPE PULL ROD OF BATTERY

2



6

TB400.485A.2

电瓶搭铁线

BATTERY IRON WIRE

1

2011-11_

7

FT450.48.010

蓄电池

BATTERY

1

2011-11_

8

TB400.485A.1

电源线总成

POWER WIRE ASSEMBLY

1

2011-11_

9

FT65.48.095

线束紧固夹（一）

HARNESS TIGHTEN CLIP (1)

1

2011-11_








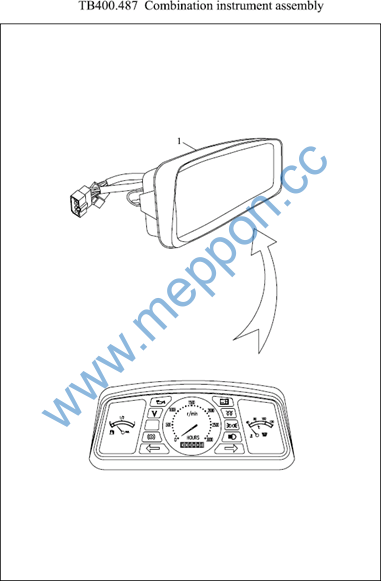

TB400.487 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

FT300.48.061 FT300.48.061a

组合仪表总成组合仪表总成

COMBINED INSTRUMENT ASSEMBLY COMBINED INSTRUMENT ASSEMBLY

1

1

2004-01_

2009-05_








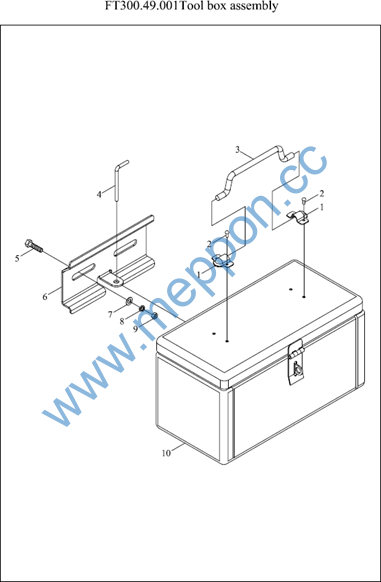

FT300.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M12X25-A3L

六角头螺栓

BOLT

2

2011-11_

1

FT65.49.101

提手座

HANDLE SEAT

2

2003-11_

10

FT300.49.012

工具箱焊合总成

TOOL BOX WELDMENT ASSEMBLY

1

2003-11_

2

GBT 867-4X8

半圆头铆钉

RIVET

2

2003-11_

3

FT65.49.115

提手

HANDLE

1

2003-11_

4

FT65.49.102

插销

CROSS PIN

1

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

6

FT65.49.103

固定支板

FIXING SUPPORT PLATE

1

2003-11_

7

GBT97.1-12-A0P

平垫圈

WASHER

2

2003-11_

8

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

2

2003-11_

9

GBT6170-M12-A3L

螺母

NUT

2

2003-11_

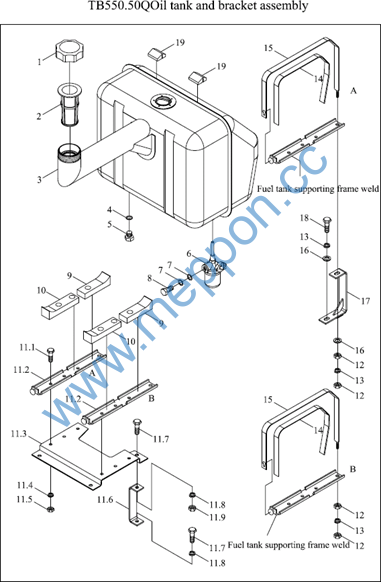

TB550.50Q 50-油箱与支架总成



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA650.502.3

油箱盖总成

OIL TANK COVER ASSEMBLY

1

2011-11_

10

FT300.50.110

前橡胶垫

FRONT RUBBER WASHER

2

2011-11_

11

FT300.50B.020

油箱支架总成

OIL TANK BRACKET ASSEMBLY

1



11

TB550.50Q.2

油箱支架总成

OIL TANK BRACKET ASSEMBLY

1

2006-11_

11.1

GBT5783-M8X20-A2L

螺栓

BOLT

6

2013-08_

11.2

TB550.50Q.2.1

油箱支撑架焊合

OIL TANK SUPPORT FRAME WELDMENT

2

2011-11_

11.3

FT300.50B.124

油箱垫板

OIL TANK GASKET PLATE

1

2011-11_

11.3

FT300.50B.124

油箱垫板

OIL TANK GASKET PLATE

1

2011-11_

11.4

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

11.5

GBT6170-M8-A2L

螺母

NUT

6

2011-11_

11.6

FT300.50.123

U型支架

U-BRACKET

1

2011-11_

11.7

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

11.8

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

11.9

GBT6170-M10-A3L

螺母

NUT

1

2011-11_

12

GBT6170-M10-A3L

螺母

NUT

8

2011-11_

13

GBT93-10-A0P

标准型弹簧垫圈

WASHER

5

2011-11_

14

FT404.50.114

主油箱扎带橡胶垫

MAIN OIL TANK BELT RUBBER WASHER

2

2011-11_

15

TB550.50Q.3

油箱扎带焊合

OIL TANK BAND WELDMENT

2

2011-11_

16

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

17

FT300.50B.016

U形板焊合

U-PLATE WELDMENT

1

2011-11_

18

GBT5783-M10X20-A3L

螺栓

BOLT

1

2011-11_

19

FT300.50.112

橡胶垫块

RUBBER PAD BLOCK

2

2011-11_

2

FT300.50.015

滤网总成

FILTER MESH ASSEMBLY

1

2011-11_

3

TB550.50Q.1

油箱焊合

FUEL TANK WELDMENT

1

2011-11_

4

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_








TB550.50Q 50-油箱与支架总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

FT65.50.226

放油螺塞

OIL DISCHARGING SCREW PLUG

1

2011-11_

6

FT404.50.034

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1



6

FT65.50.033

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1

2006-11_

6

FT65.50.033

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1

2006-11_

7

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

7

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

8

FT65.50.106

空心螺栓

HOLLOW BOLT

1

2011-11_

9

FT300.50.111

后橡胶垫

REAR RUBBER CUSHION

2

2011-11_

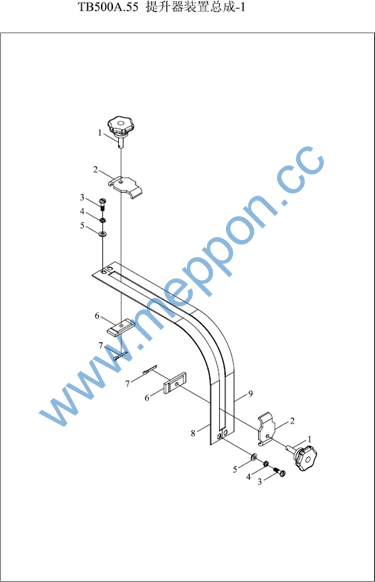

TB500A.55-1 55.1-提升器装置总成-1 LIFT INSTALLATION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT300.55B.023

操纵手柄定位总成

CONTROL HANDLE LOCATING ASSEMBLY

1

2011-11_

0

TB-B02223

TB提升器维修包

TOOL KIT

1

2014-01_

1

FT65.57.014

调节手柄头总成

ADJUSTING HANDLE HEAD ASSEMBLY

2

2011-11_

2

FT300.55B.133

定位弯板

LOCATING BENDING PLATE

2

2011-11_

3

GBT818-M5X16

十字槽盘头螺钉

SCREW

4

2004-01_

4

GBT93-5

垫圈

WASHER

4

2011-11_

5

FT300.55B.131

垫圈

WASHER

4

2011-11_

6

FT300.55B.132

定位螺母

LOCATING NUT

2

2011-11_

7

GBT91-1.6X12-A0P

开口销

PIN

1



8

FT300.55B.135

力调节位牌

FORCE ADJUSTING POSITION MARK

1

2011-11_

9

FT300.55B.134

位调节位牌

POSITION ADJUSTING POSITION MARK

1

2011-11_

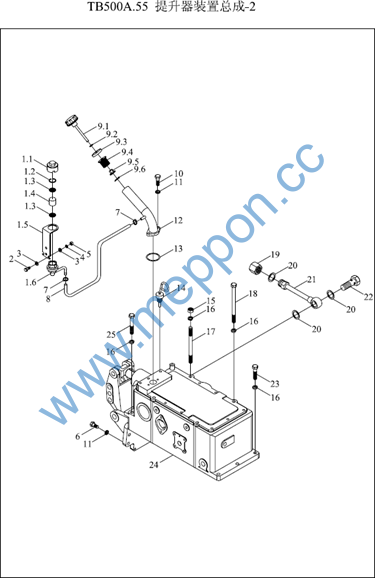

TB500A.55-2 55.2-提升器装置总成-2 LIFT INSTALLATION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.55B.016c

呼吸器总成



1

2011-11_

1.1

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

1.1

FT700.55D.136

呼吸器盖

RESPIRATOR COVER

1

2011-11_

1.2

GBT893.1-26

孔用弹性挡圈

SNAP RING

1

2011-11_

1.3

FT650.40.167

座板

SEAT PLATE

2

2011-11_

1.4

FT700.55D.109

呼吸器滤芯

BREATH FILTER ELEMENT

1

2011-11_

1.5

FT300.55B.164

呼吸器支架

BREATHER BRACKET

1

2011-11_

1.6

FT300.55B.027A

呼吸器连接管焊合

BREATHER CONNECTING PIPE WELDMENT

1

2011-11_

10

GBT5783-M8X25-A2L

螺栓

BOLT

2

2011-11_

11

GBT93-8-AOP

弹簧垫圈

SPRING WASHER

4

2011-11_

12

FT300.55B.026

加油管焊合

OIL FILLING PIPE WELDMENT

1

2011-11_

13

GBT3452.1-32.5X1.8G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

14

FT300.55B.022a

油尺组合件

OIL DIPSTICK UNIT

1

2011-11_

15

GBT6170-M12-A3L

螺母

NUT

2

2011-11_

16

GBT93-12-AOP

垫圈

WASHER

9

2011-11_

17

TB300.55-01

双头螺柱

8.8-A3L STUD

2

2011-11_

18

FT500A.55.104

螺栓

BOLT

2

2011-11_

19

FT300.55B.121a

输油管螺母

OIL CONVEYING PIPE NUT

1

2011-11_

2

GBT5783-M10X20-A3L

螺栓

BOLT

3



20

JBT982-22

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

21

FT300.55B.024

放油管焊接总成

OIL DISCHARGING PIPE WELDMENT ASSEMBLY

1

2011-11_

22

FT300.58.101

空心螺栓

HOLLOW BOLT

1

2011-11_

23

GBT5783-M12X40-A3L

螺栓

BOLT

3

2011-11_

24

FT500A.55.010

提升器及操纵总成

LIFTER AND OPERATION ASSEMBLY

1

2011-11_

24

FT500A.55.010

提升器及操纵总成

LIFTER AND OPERATION ASSEMBLY

1

2011-11_
