TB500A.55-8 55.8-提升器装置总成-8(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

FT500B.55.127

提升臂压板

LIFTING ARM PRESSURE PLATE

1

2011-11_

30

BY350.55.163

调节阀螺杆手柄

ADJUSTING VALVE SOLENOID HANDLE

1

2011-11_

31

FT500B.55.126

截断阀调节杆

INTERCEPTING VALVE ADJUSTING ROD

1

2011-11_

32

GBT1235-13X1.9

O形圈

O-RING

2

2011-11_

4

FT500A.55B.016

提升臂总成

LIFTING ARM ASSEMBLY

2

2011-11_

5

FT500B.55.115A

提升轴套B

LIFTING SHAFT SLEEVE B

2

2011-11_

6

GBT1235-60X5.7

O形圈

O-RING

2

2011-11_

7

FT500B.55.122A

轴套

SHAFT SLEEVE

1

2011-11_

8

FT500A.55.110

提升轴

LIFTING SHAFT

1

2011-11_

9

GBT882-B5X65

销轴

PIN

1

2011-11_

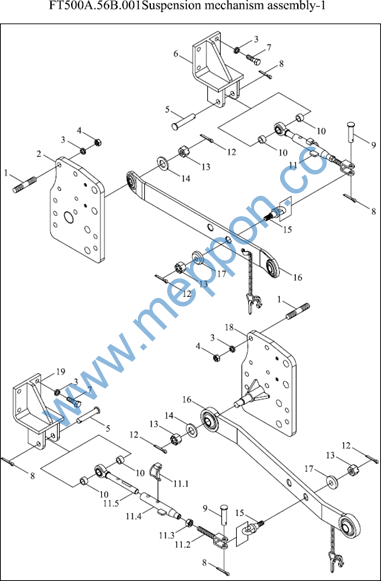

FT500A.56B.001-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT899-AM16-M16X1.5X45-A3L

双头螺柱

8.8-A3L STUD

8

2011-11_

10

FT300.56A.103

套

COVER

4

2011-11_

11

FT300.56A.016a

限位杆总成

LIMIT ROD ASSEMBLY

2

2011-11_

11.1

FT300.56A.023

限位杆锁销组合

LIMITING ROD LOCK PIN ASSEMBLY

1

2011-11_

11.2

FT300.56A.161

限位杆调节螺杆

LIMITING ROD ADJUSTING SCREW

1

2011-11_

11.3

GBT6170-M22-A3L

1型六角螺母

NUT

1

2011-11_

11.4

FT300.56A.022a

伸缩导管焊合件

EXTENSIBLE GUIDE PIPE WELDMENT

1

2011-11_

11.5

FT300.56A.021a

伸缩杆球头总成

EXTENSIBLE ROD BALL ASSEMBLY

1

2011-11_

12

GBT91-4X36-A0P

开口销

PIN

4

2011-11_

13

GBT6178-M20-A3L

1型六角开槽螺母

NUT (PAGE81)

4

2011-11_

14

GBT97.1-20-A0P

垫圈

WASHER

2



14

GBT97.1-20-A0P

垫圈

WASHER

2



15

FT300.56A.110a

限位杆后联接销

LIMITING ROD REAR CONNECTING PIN

2

2011-11_

16

FT500A.56.012

下拉杆总成

LOWER PULL ROD ASSEMBLY

2

2011-11_

16

FT500A.56.012

下拉杆总成

LOWER PULL ROD ASSEMBLY

2

2011-11_

17

FT300.56A.111a

圆板

ROUND BOARD

2

2011-11_

18

FT300.56B.015

左下拉杆支座焊合件

LEFT LOWER PULL ROD SEAT WELDMENT

1

2011-11_

19

FT300.56A.017

左限位杆支架焊合件

LEFT LIMITING ROD BRACKET WELDMENT

1

2011-11_

2

FT300.56B.014

右下拉杆支座焊合件

RIGHT LOWER PULL ROD SEAT WELDMENT

1

2011-11_

3

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

16

2011-11_

4

GBT6171-M16X1.5-A3L

1型六角螺母

NUT

8

2011-11_

5

FT300.56A.102

限位杆联接销

LIMITING ROD CONNECTING PIN

2

2011-11_

5

FT300.56A.102

限位杆联接销

LIMITING ROD CONNECTING PIN

2

2011-11_

6

FT300.56A.019

右限位杆支架焊合件

RIGHT LIMITING ROD BRACKET WELDMENT

1

2011-11_

7

GBT5783-M16X40-A3L

六角头螺栓

BOLT

8

2011-11_








FT500A.56B.001-1 56.1-悬挂机构总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

9

GBT91-5X32-A0P GBT882-B18X55-A0P

开口销销轴

PIN PIN

4

2

2011-11_

2011-11_

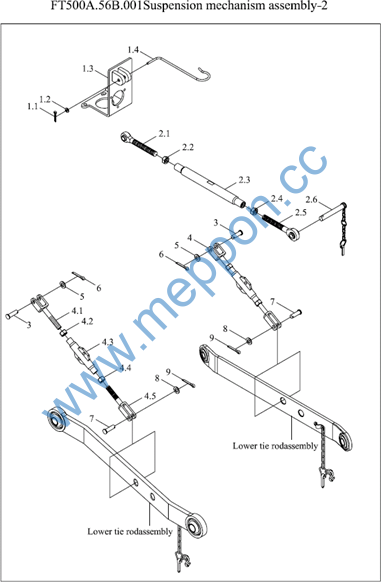

FT500A.56B.001-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.1

GBT91-2X10-A0P

开口销

PIN

1

2011-11_

1.2

GBT97.1-6-A0P

平垫圈

WASHER

1

2011-11_

1.3

FT300.56A.020b

座板焊合件

SEAT PLATE WELDMENT

1

2009-09_

1.3

FT300.56A.020a

座板焊合件

SEAT PLATE WELDMENT

1

2001-01_

1.4

FT300.56A.216

固定卡

LOCKING CLAMP

1

2011-11_

2.1

FT500A.56.026

上拉杆前调节杆总成

UPPER PULL ROD FRONT ADJUSTING ROD

1

2011-11_

2.2

GBT6173-M27X2-A3L

六角薄螺母

ASSEMBLY

1

2011-11_

2.3

FT500A.56.130

调节螺管

NUT

1

2011-11_

2.4

GBT6173-M27X2-LH-A3L

六角薄螺母

ADJUSTING SOLENOID

1

2011-11_

2.5

FT500A.56.024

上拉杆后调节杆总成

NUT

1

2011-11_


UPPER PULL ROD REAR ADJUSTING ROD



2.6

FT65.56.015

上拉杆锁销总成

ASSEMBLY

1

2011-11_

3

FT500A.56.101

提升杆上联连接销



2

2011-11_

4.1

FT500A.56.107

提升杆上联接叉

UPPER PULL ROD LOCK PIN ASSEMBLY

1

2011-11_

4.2

GBT6171-M27X2-Zn.D

1型六角螺母

LIFTING ROD UPPER CONNECTING PIN

1

2011-11_

4.3

FT500A.56.033

提升杆螺管焊合

LIFTING ROD UPPER CONNECTING FORK

1

2011-11_


NUT



4.4

GBT6171-M27×2-A3L

螺母

LIFTING ROD SOLENOID WELDMENT

1

2011-11_

4.5

FT500A.56.108

提升杆下联接叉



1

2011-11_

4.5

FT500A.56.108

提升杆下联接叉

NUT

1

2011-11_

5

FT500A.56.118

垫圈

LIFTING ROD LOWER CONNECTING FORK

2

2011-11_

6

GBT91-5X40-A0P

开口销

LIFTING ROD LOWER CONNECTING FORK

2

2011-11_


WASHER



7

FT300.56A.112

提升杆下联接销

PIN

2

2011-11_

8

GBT97.1-24-A0P

垫圈



2011-11_

8

GBT97.1-24-A0P

垫圈

LIFTING ROD LOWER CONNECTING PIN



2011-11_

9

GBT91-5X32-A0P

开口销

WASHER

2

2011-11_


WASHER

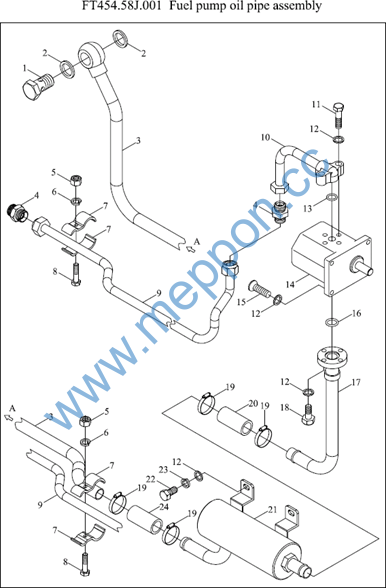

FT454.58J.001 58-油泵油管总成



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT450.58.040-5

吸油滤芯

OIL SUCTION FILTER ELEMENT

1

2011-11_

1

FT300.58.101

空心螺栓

HOLLOW BOLT

1

2011-11_

10

FT404.58X.011

压力油管总成-1

PRESSURE OIL PIPE ASSEMBLY-1

1

2011-11_

12

GBT93-8-A0P

垫圈

WASHER

10

2011-11_

13

GB3452.1-15*2.65

O形圈15*2.65

O-RING

1



14

FT304.58L.010

齿轮泵

GEAR PUMP

1

2011-11_

15

GBT70.1-M8X40-A2L

内六角圆柱头螺钉

SCREW

4

2011-11_

17

FT400.58X.015

吸油短管焊合

OIL SUCTION SHORT PIPE WELDMENT

1

2011-11_

18

GBT5783-M8X25-A2L

螺栓

BOLT

2

2011-11_

19

QC67632

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

4

2011-11_

2

JBT982-22

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

20

FT450.58.103

吸油软管

OIL SUCTION HOSE

1

2009-09_

21

FT450.58.040

滤油器总成

OIL FILTER ASSEMBLY

1

2011-11_

22

GBT5783-M8X16-A2L

螺栓

BOLT

2

2011-11_

23

GBT95-8-A0P

平垫圈

WASHER

2

2011-11_

24

FT450.58.103

吸油软管

OIL SUCTION HOSE

1

2009-09_

24

FT300.58A.104

吸油胶管

OIL SUCTION HOSE

1

2004-01_

3

FT450.58X.011

吸油管焊合

OIL SUCTION PIPE WELDMENT

1

2011-11_

4

FT700.58A.101

卡套式直通接头体

JOINT

2

2011-11_

5

GBT6170-M6-A2L

螺母

NUT

3

2011-11_

6

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

3

2011-11_

7

FT300.58.013

油管夹与胶垫胶合

OIL PIPE CLAMP AND RUBBER WASHER

6

2011-11_

8

GBT5783-M6X30-A2L

螺栓

BOLT

3

2011-11_

9

FT450.58.012

压力油管总成

PRESSURE OIL PIPE ASSEMBLY

1

2011-11_

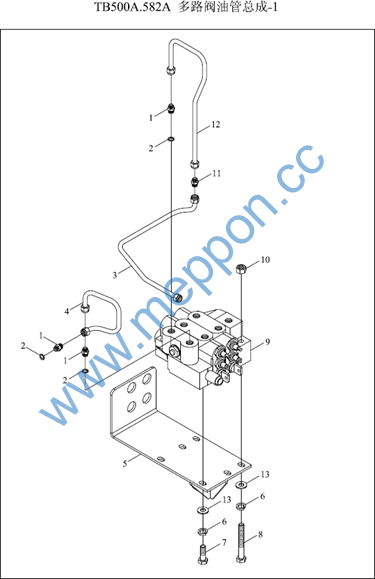

TB500A.582A 58.2-多路阀油管总成 58.2-MULTI-WAY VALVE OIL PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TB500A.582A-1

58.2.1-多路阀油管总成-1

MULTI-WAY VALVE OIL PIPE ASSEMBLY-1

0

2011-11_

0

TB500A.582A-2

58.2.2-多路阀油管总成-2

MULTI-WAY VALVE OIL PIPE ASSEMBLY-2

0

2011-11_

1

FT354.58A.018b

多路阀进油管总成

MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY

1

2014-06_

1

FT354.58C.019b

多路阀进油管总成-2

MULTI-WAY VALVE OIL INLET PIPE

1

2014-06_

1

FT354.58C.017a

多路阀进油管总成-1

ASSEMBLY-2

1

2014-06_


MULTI-WAY VALVE OIL INLET PIPE



1

FT354.58C.015b

多路阀输出油管总成-4

ASSEMBLY-1

1

2014-06_

23

GBT882-B6×26

销轴



4

2007-11_


MULTI-WAY VALVE OIL OUTPUT PIPE




ASSEMBLY-4




PIN
