TB450.485A 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M8-A2L

螺母

NUT

2

2011-11_

10

TB450.485.1

蓄电池减震垫

BATTERY SHOCK ABSORPTION MAT

2

2010-08_

10

FT450.48.102

蓄电池减震垫

BATTERY SHOCK ABSORPTION MAT

1

2004-01_

2

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

3

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

4

TG1204.485-02

电瓶压板

BATTERY PRESS PLATE

1

2011-11_

5

TG1204.485-01

电瓶U型拉杆

U-TYPE PULL ROD OF BATTERY

2



6

TB400.485A.2

电瓶搭铁线

BATTERY IRON WIRE

1

2011-11_

7

FT450.48.010

蓄电池

BATTERY

1

2011-11_

8

TB400.485A.1

电源线总成

POWER WIRE ASSEMBLY

1

2011-11_

9

FT65.48.095

线束紧固夹（一）

HARNESS TIGHTEN CLIP (1)

1

2011-11_

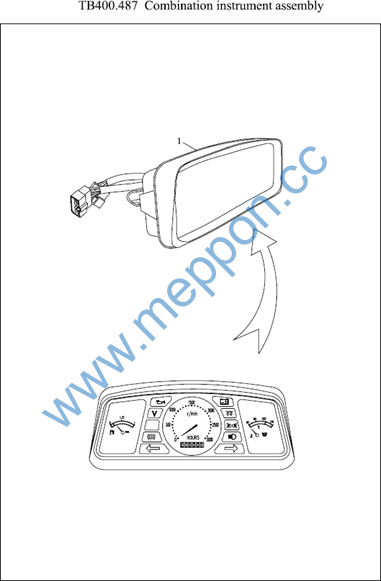

TB400.487 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

FT300.48.061 FT300.48.061a

组合仪表总成组合仪表总成

COMBINED INSTRUMENT ASSEMBLY COMBINED INSTRUMENT ASSEMBLY

1

1

2004-01_

2009-05_

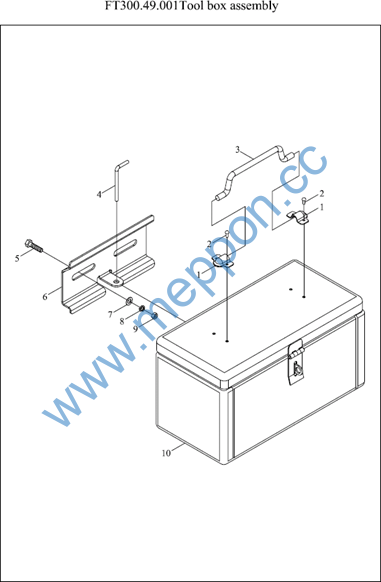

FT300.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M12X25-A3L

六角头螺栓

BOLT

2

2011-11_

1

FT65.49.101

提手座

HANDLE SEAT

2

2003-11_

10

FT300.49.012

工具箱焊合总成

TOOL BOX WELDMENT ASSEMBLY

1

2003-11_

2

GBT 867-4X8

半圆头铆钉

RIVET

2

2003-11_

3

FT65.49.115

提手

HANDLE

1

2003-11_

4

FT65.49.102

插销

CROSS PIN

1

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

5

GBT5783-M12X35-A3L

螺栓

BOLT

2

2003-11_

6

FT65.49.103

固定支板

FIXING SUPPORT PLATE

1

2003-11_

7

GBT97.1-12-A0P

平垫圈

WASHER

2

2003-11_

8

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

2

2003-11_

9

GBT6170-M12-A3L

螺母

NUT

2

2003-11_

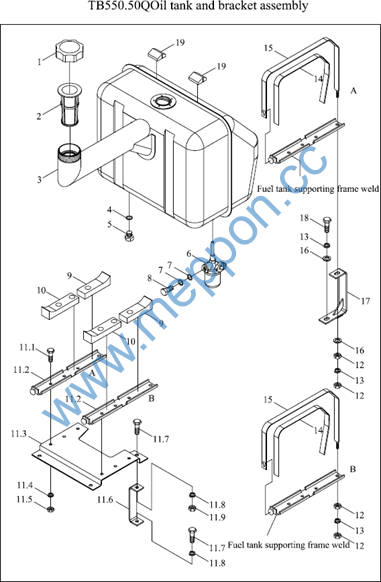

TB550.50Q 50-油箱与支架总成



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA650.502.3

油箱盖总成

OIL TANK COVER ASSEMBLY

1

2011-11_

10

FT300.50.110

前橡胶垫

FRONT RUBBER WASHER

2

2011-11_

11

FT300.50B.020

油箱支架总成

OIL TANK BRACKET ASSEMBLY

1



11

TB550.50Q.2

油箱支架总成

OIL TANK BRACKET ASSEMBLY

1

2006-11_

11.1

GBT5783-M8X20-A2L

螺栓

BOLT

6

2013-08_

11.2

TB550.50Q.2.1

油箱支撑架焊合

OIL TANK SUPPORT FRAME WELDMENT

2

2011-11_

11.3

FT300.50B.124

油箱垫板

OIL TANK GASKET PLATE

1

2011-11_

11.3

FT300.50B.124

油箱垫板

OIL TANK GASKET PLATE

1

2011-11_

11.4

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

11.5

GBT6170-M8-A2L

螺母

NUT

6

2011-11_

11.6

FT300.50.123

U型支架

U-BRACKET

1

2011-11_

11.7

GBT5783-M10X20-A3L

螺栓

BOLT

4

2011-11_

11.8

GBT93-8-A0P

垫圈

WASHER

4

2011-11_

11.9

GBT6170-M10-A3L

螺母

NUT

1

2011-11_

12

GBT6170-M10-A3L

螺母

NUT

8

2011-11_

13

GBT93-10-A0P

标准型弹簧垫圈

WASHER

5

2011-11_

14

FT404.50.114

主油箱扎带橡胶垫

MAIN OIL TANK BELT RUBBER WASHER

2

2011-11_

15

TB550.50Q.3

油箱扎带焊合

OIL TANK BAND WELDMENT

2

2011-11_

16

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

17

FT300.50B.016

U形板焊合

U-PLATE WELDMENT

1

2011-11_

18

GBT5783-M10X20-A3L

螺栓

BOLT

1

2011-11_

19

FT300.50.112

橡胶垫块

RUBBER PAD BLOCK

2

2011-11_

2

FT300.50.015

滤网总成

FILTER MESH ASSEMBLY

1

2011-11_

3

TB550.50Q.1

油箱焊合

FUEL TANK WELDMENT

1

2011-11_

4

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_








TB550.50Q 50-油箱与支架总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

FT65.50.226

放油螺塞

OIL DISCHARGING SCREW PLUG

1

2011-11_

6

FT404.50.034

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1



6

FT65.50.033

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1

2006-11_

6

FT65.50.033

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1

2006-11_

7

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

7

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

8

FT65.50.106

空心螺栓

HOLLOW BOLT

1

2011-11_

9

FT300.50.111

后橡胶垫

REAR RUBBER CUSHION

2

2011-11_

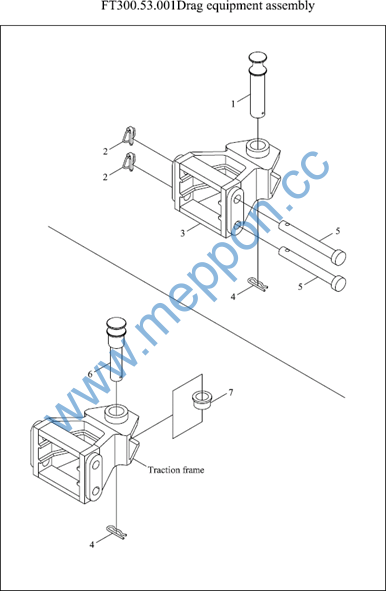

FT300.53.001 53-拖挂装置总成 53-TOW EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT300.53.106

拖挂销

TOW PIN

1

2011-11_

2

FT300.56.029

锁销链总成

LOCKING PIN CHAIN ASSEMBLY

2

2011-11_

3

FT300.53.108a

牵引架

TRACTION FRAME

1

2011-11_

4

FT65.53.103

弹性锁销

SPRING LOCK PIN

2

2011-11_

5

FT300.53.101a

连接销

CONNECTING PIN

2

2011-08_

5

FT300.53C.101

连接销

CONNECTING PIN

2

2011-11_

6

FT300.53.102

牵引销

HITCH PIN

1

2011-11_

7

FT300.53.103

支撑套

SUPPORTING SLEEVE

1

2011-11_
