LOVOL TB450-Q161A4K Tractor Parts Catalogue 17

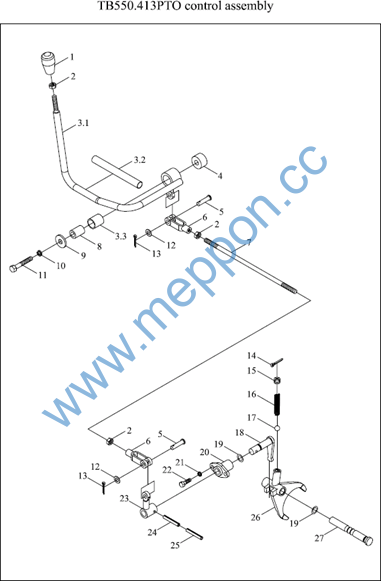

TB550.413 41.3-动力输出操纵总成 41.3-PTO CONTROL ASSEMBLY

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	FT300.41.015	动力输出操纵手柄总成	PTO CONTROL HANDLE ASSEMBLY	1	2011-11_
10	GBT93-12	垫圈	WASHER	1	2011-11_
11	TB550.413-02	螺栓	BOLT	1	2011-11_
12	GBT97.1-10-A0P	平垫圈	WASHER	2	2011-11_
13	GBT91-3.2X16-A0P	开口销	PIN	2	2011-11_
14	GBT91-2.5X32-A0P	开口销	PIN	1	2011-11_
15	TB550.413-03	螺钉	SCREW	1	2011-11_
16	FT704.42B.163	拨叉轴定位弹簧	FORK SHAFT LOCATING SPRING	1	2007-01_
16	FT300.41.123	拨叉轴定位弹簧	FORK SHAFT LOCATING SPRING	1	2004-01_
17	GBT308-9.5-G100-b	钢球	BALL	1	2011-11_
18	FT300.41E.011	指形拨杆焊合件	FINGER LEVER WELDMENT	1	2004-01_
18	TB550.413-04	指形拨杆焊合件	FINGER LEVER WELDMENT	1	2012-05_
19	GBT3452.1-16.0X2.65G	液压气动用O形橡胶密封圈	O-SEAL RING	1	2012-08_
19	GBT3452.1-11.2X2.65G	液压气动用O形橡胶密封圈	O-SEAL RING	1	2012-08_
2	GBT6170-M10-A3L	螺母	NUT	3	2011-11_
20	FT300.41E.109	拨杆轴套	LEVER SHAFT SLEEVE	1	2011-11_
21	GBT93-8-AOP	弹簧垫圈	SPRING WASHER	2	2011-11_
22	GBT5783-M8X20-A2L	螺栓	BOLT	2	2011-11_
23	FT300.41.012	动力输出变速杆焊合件	PTO GEARSHIFT LEVER WELDMENT	1	2011-11_
24	GBT879.1-6X26	弹性圆柱销	PIN	1	2011-11_
25	GBT879.1-3.5X26	弹性圆柱销	PIN	1	2011-11_
26	TB550.413-01a	动力输出变速拨叉	PTO GEARSHIFT FORK	1	2007-01_
27	FT300.41C.107a	动力输出拨叉轴	PTO FORK SHAFT	1	2007-01_
3	FT300.41.013	动力输出操纵杆总成	PTO CONTROL ROD ASSEMBLY	1	2011-11_
3.1	FT300.41.014	动力输出操纵杆焊合	PTO CONTROL ROD WELDMENT	1	2011-11_

TB550.413 41.3-动力输出操纵总成(续)

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3.2

3.3

FT300.41.145 FT300.41.127 FT300.41.128 GBT882-B10X30 FT300.43.108

FT300.41E.112 FT300.41.130 FT300.41.129

操纵杆减震套管衬套

隔套销轴

拉杆前叉

操纵杆轴套垫圈

CONTROL ROD DAMPING PIPE SLEEVE

SPACER BUSH PIN

PULL ROD FRONT FORK

CONTROL ROD SHAFT SLEEVE WASHER

2011-11_

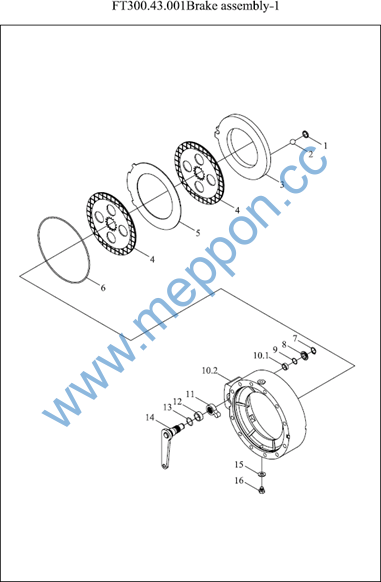

FT300.43.001-1 43.1-制动器总成-1 43BRAKER ASSEMBLY-1

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	FT300.43.102	碗形塞	BOWL PLUG	6	2011-11_
10	FT300.43.012	左制动器壳总成	LEFT BRAKE HOUSING ASSEMBLY	1	2011-11_
10.1	FT300.43.114	曲柄轴衬套	CRANK SHAFT BUSH	1	2011-11_
10.2	FT300.43.121	左制动器壳	LEFT BRAKE HOUSING	1	2011-11_
11	FT300.43.106	拨块	SHIFTING BLOCK	1	2011-11_
12	FT300.43.107	隔套	SPACER BUSH	1	2011-11_
13	GBT3452.1-20.0X2.65	o型圈	O.RING	1	2004-01_
14	FT300.43.014	左曲柄合件	LEFT CRANK UNIT	1	2011-11_
15	FT300.43.153	最终传动放油口垫圈	FINAL TRANSMISSION OIL DRAINING PORT	1	2011-11_
16	FT300.43.154	螺塞	WASHER	1	2011-11_
			SCREW PLUG
2	GBT308-18.000-G100-b	钢球		6	2011-11_
3	FT300.43.103	左制动器压盘	BALL	1	2011-11_
4	FT300.43.011	制动器摩擦盘总成	LEFT BRAKE PRESSURE PLATE	2	2011-11_
5	FT300.43.105	隔板	BRAKE FRICTION PLATE ASSEMBLY	1	2011-11_
6	FT300.43.101	O形圈	SPACER PLATE	1	2011-11_
			O-RING
7	GBT894.1-18	挡圈		1	2011-11_
8	FT300.43.109a	垫圈	RETAINER RING	1	2011-11_
9	GBT3452.1-18.0X2.65G	液压气动用O形橡胶密封圈	WASHER	1	2004-01_
			O-SEAL RING

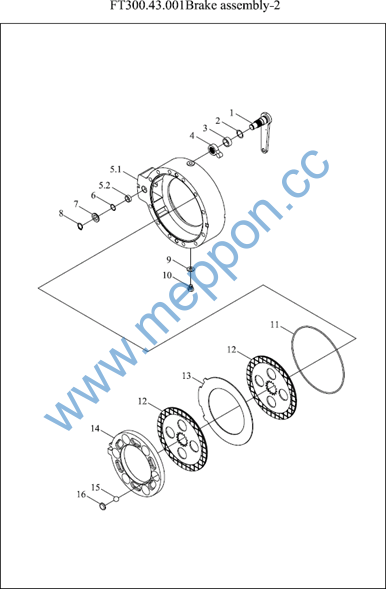

FT300.43.001-2 43.2-制动器总成-2 43BRAKER ASSEMBLY-2

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	FT300.43.022	右曲柄合件	RIGHT CRANK UNIT	1	2011-11_
10	FT300.43.154	螺塞	SCREW PLUG	1	2011-11_
11	FT300.43.101	O形圈	O-RING	1	2011-11_
12	FT300.43.011	制动器摩擦盘总成	BRAKE FRICTION PLATE ASSEMBLY	2	2011-11_
13	FT300.43.105	隔板	SPACER PLATE	1	2011-11_
14	FT300.43.104	右制动器压盘	RIGHT BRAKE PLATEN	1	2011-11_
15	GBT308-18.000-G100-b	钢球	BALL	6	2011-11_
16	FT300.43.102	碗形塞	BOWL PLUG	6	2011-11_
2	GBT3452.1-20.0X2.65	o型圈	O.RING	1	2004-01_
3	FT300.43.107	隔套	SPACER BUSH	1	2011-11_
4	FT300.43.106	拨块	SHIFTING BLOCK	1	2011-11_
5	FT300.43.013	右制动器壳总成	RIGHT BRAKE HOUSING ASSEMBLY	1	2011-11_
5.1	FT300.43.122	右制动器壳	RIGHT BRAKE HOUSING	1	2011-11_
5.2	FT300.43.114	曲柄轴衬套	CRANK SHAFT BUSH	1	2011-11_
6	GBT3452.1-18.0X2.65G	液压气动用O形橡胶密封圈	O-SEAL RING	1	2004-01_
7	FT300.43.109a	垫圈	WASHER	1	2011-11_
8	GBT894.1-18	挡圈	RETAINER RING	1	2011-11_
9	FT300.43.153	最终传动放油口垫圈	FINAL TRANSMISSION OIL DRAINING PORT	1	2011-11_
9	JBT982-12	组合密封垫圈	WASHER	1	2013-04_
			COMBINED SEAL GASKET

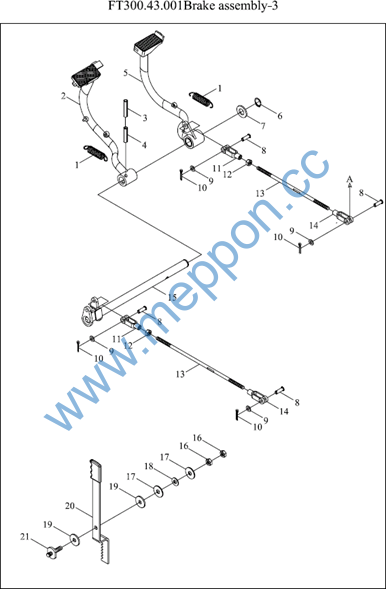

FT300.43.001-3 43.3-制动器总成-3 43BRAKER ASSEMBLY-3

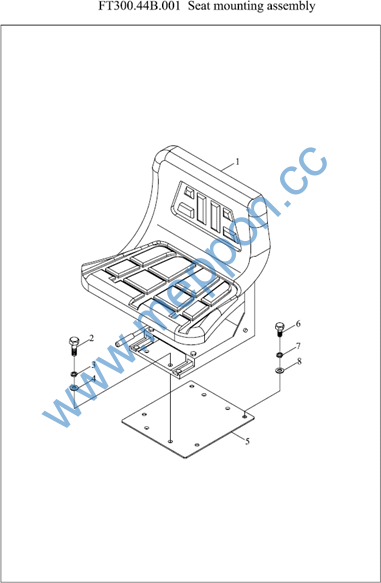

FT300.44B.001 44-座椅安装总成 44SEAT INSTALLATION ASSEMBLY
