TB450.40Q-1 40.1-全液压转向总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

FT354.40C.109 TB450.40X.7 JBT8870-d32 FT354.40C.107

GBT5783-M10X25-A3L

长接管

回油出口管焊合件喉箍

回油软管螺栓

LONG CONNECTING PIPE

OIL RETURN OUTLET PIPE WELDMENT HOOP

OIL RETURN HOSE BOLT

2

1

4

1

2

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








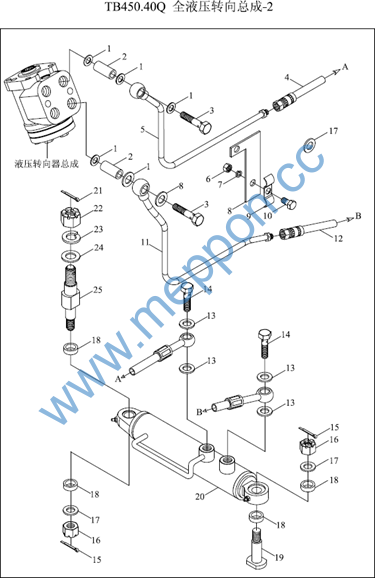

TB450.40Q-2 40.2-全液压转向总成-2 40FULL HYDRAULIC STEERING ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

6

2011-11_

10

GBT5783-M6X25-A2L

六角头螺栓

BOLT

1

2011-11_

10

GBT5783-M6X25-A2L

六角头螺栓

BOLT

1

2011-11_

11

FT400.40X.018

右输油管焊合件

RIGHT OIL PIPE WELDMENT

1

2004-01_

11

FT400.40X.018a

右输油管焊合件

RIGHT OIL PIPE WELDMENT

1

2009-11_

11

FT400.40X.018a

右输油管焊合件

RIGHT OIL PIPE WELDMENT

1

2009-11_

12

FT400.40C.024a

油缸左出油软管总成

OIL CYLINDER LEFT OUTPUT HOSE ASSEMBLY

1

2009-11_

12

FT400.40C.024

油缸左出油软管总成

OIL CYLINDER LEFT OUTPUT HOSE ASSEMBLY

1

2004-01_

13

JBT982-16

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

15

GBT91-4X28-A0P

开口销

PIN

2

2011-11_

16

GBT9459-M16X1.5-A3L

六角开槽薄螺母

NUT

2

2011-11_

17

GBT97.1-16-A0P

垫圈

WASHER

3

2011-11_

18

FT400.40C.101

支承套

SUPPORTING BUSH

4

2011-11_

19

FT400.40C.103

油缸销轴（2）

OIL CYLINDER PIN SHAFT (2)

1

2011-11_

2

FT354.40C.108

短接管

SHORT CONNECTING PIPE

2

2011-11_

20

TB550.40Q.1a

转向油缸总成

STEERING OIL CYLINDER ASSEMBLY

1

2011-11_

21

GBT91-4X36-A0P

开口销

PIN

1

2011-11_

22

GBT6181-M20-A9L

螺母

NUT

1

2011-11_

22

GBT6181-M20-A9L

螺母

NUT

1

2011-11_

23

GBT93-20-A0P

垫圈

WASHER

1

2011-11_

24

GBT97.1-20-A0P

垫圈

WASHER

1

2011-11_

24

GBT97.1-20-A0P

垫圈

WASHER

1

2011-11_

25

FT400.40C.102

油缸销轴（1）

OIL CYLINDER PIN SHAFT (1)

1

2011-11_

3

FT354.40C.119

空心短螺栓

HOLLOW SHORT BOLT

2

2011-11_

4

FT400.40X.017

左输油管焊合件

LEFT OIL PIPE WELDMENT

1

2004-01_








TB450.40Q-2 40.2-全液压转向总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

FT400.40X.017

左输油管焊合件

LEFT OIL PIPE WELDMENT

1

2004-01_

4

FT400.40X.017a

左输油管焊合件

LEFT OIL PIPE WELDMENT

1

2009-11_

5

FT400.40C.019a

油缸右出油软管总成

OIL OUTLET HOSE ASSEMBLY OF CYLINDER 、

1

2009-11_

5

FT400.40C.019

油缸右出油软管总成

RIGHT

1

2004-01_

6

GBT6170-M6-A2L

螺母

OIL OUTLET HOSE ASSEMBLY OF CYLINDER 、

1

2011-11_


RIGHT



7

GBT93-6-A0P

弹簧垫圈

NUT

1

2011-11_

8

FT304.40L.122

油管支架



1

2011-11_

9

FT304.40L.121

双孔管夹

SPRING WASHER

1

2011-11_


OIL PIPE BRACKET




DOUBLE-HOLE PIPE CLIP

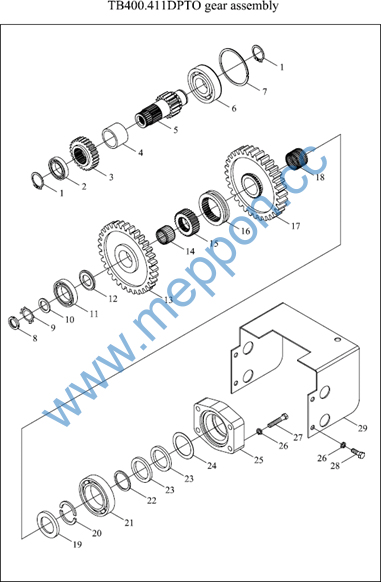

TB400.411D 41.1-动力输出齿轮总成 41.1-PTO GEAR ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT894.1-40

挡圈40

WASHER 40

2

2011-11_

10

FT300.41.122

垫圈

WASHER

1

2011-11_

11

GBT276-6306

深沟球轴承

BEARING

1

2011-11_

12

FT300.41C.118

输出轴前挡环

OUTPUT SHAFT FRONT RETAINER RING

1

2011-11_

13

FT300.41E.105

动力输出被动小齿轮

PTO DRIVEN SMALL GEAR

1

2011-11_

14

JBT7918-K35X40X27

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

15

FT300.41C.117

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

15

FT300.41C.117

动力输出啮合座

PTO MESHING SEAT

1

2011-11_

16

FT300.41C.116

动力输出啮合套

PTO SHIFT COLLAR

1

2011-11_

17

FT300.41E.103

动力输出被动大齿轮

PTO DRIVEN BIG GEAR

1

2011-11_

19

FT300.41E.114

后挡环

REAR RETAINER RING

1

2011-11_

2

GBT276-6208

深沟球轴承

BEARING

1

2011-11_

20

FT300.41E.119

输出轴半挡环

OUTPUT SHAFT HALF RETAINER RING

2

2011-04_

21

GBT276-6309

深沟球轴承

BEARING

1

2011-11_

22

FT300.41E.113

输出轴轴承垫圈

OUTPUT SHAFT BEARING WASHER

1

2011-11_

23

GBT9877.1-FB50X72X8D

内包骨架旋转轴唇形密封

O RING

2

2011-11_

24

FT300.41E.115

油封挡圈

OIL SEAL RETAINER RING

1

2011-11_

25

FT300.41E.101

后端盖Ⅰ

REAR END COVER I

1

2011-11_

26

GBT93-12-AOP

垫圈

WASHER

8

2011-11_

27

GBT5782-M12X55

六角头螺栓

BOLT

4

2004-01_

28

GBT5781-M12X25-A3L

六角头螺栓

BOLT

4

2011-11_

29

FT300.41.131a

安全防护罩

SAFTY BONNET

1

2011-11_

3

FT300.41E.120

动力输出高档主动齿轮

PTO HIGH GEAR DRIVING GEAR

1

2011-11_

3

FT300.41E.120

动力输出高档主动齿轮

PTO HIGH GEAR DRIVING GEAR

1

2011-11_

4

FT300.41E.121

隔套

SPACER BUSH

1

2011-11_








TB400.411D 41.1-动力输出齿轮总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

5

6

7

8



9

FT300.41E.106 FT300.41E.106 GBT276-6308N GBT305-90-96.5 GBT812-M25X1.5



GBT858-25

动力输出低档主动齿轮动力输出低档主动齿轮深沟球轴承

止动环圆螺母



止退垫圈

PTO LOW GEAR DRIVING GEAR PTO LOW GEAR DRIVING GEAR BEARING

THRUST RING ROUND NUT



WASHER LOCK

1

1

1

1

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

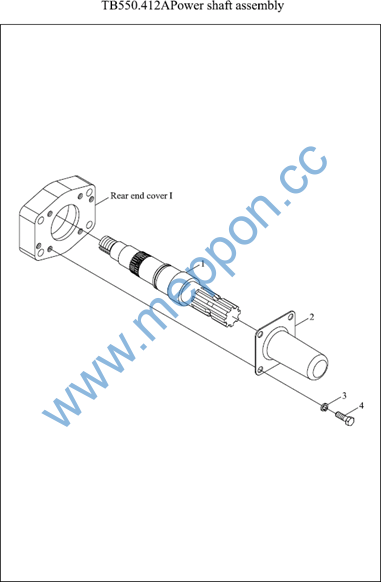

TB550.412A 41.2-动力输出轴总成 41.2-PTO SHAFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

2

2

3



4

TB550.412A-01 TB550.412A-01 TE250.411C-02 FT300.41E.102 GBT93-10



GBT5783-10X20-A3L

Ⅰ35型动力输出轴 Ⅰ35型动力输出轴动力输出轴护罩 动力输出轴盖

垫圈10



六角头螺栓

TYPE-I 35 PTO SHAFT TYPE-I 35 PTO SHAFT PTO SHAFT HOOD PTO SHAFT COVER WASHER 10



BOLT

1

1

1

1

4



4

2011-11_

2011-11_

2008-11_

2004-01_

2011-11_



2011-11_
