LOVOL TB2SA604-002K Tractor Parts Catalogue 03
Lovol TB2SA604-002K Wheeled Tractor
TS04212060000K Clutch Control Assembly(001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04212060000K |
Clutch Control Assembly |
1 |
||
1 |
GBT276-6204-2RS |
Deep Groove Ball Bearing |
1 |
|
2 |
TA800.212-02 |
Release Bearing 996713 |
1 |
|
3 |
FT400.21B.101 |
Release Bearing Seat |
1 |
|
4 |
TB604.212-03 |
Thrust Bearing Seat Return Spring |
2 |
|
5 |
FT300.21.103 |
Release Fork |
1 |
|
6 |
FT300.21.113 |
Thrust Screw |
1 |
|
7 |
TA800.212B-02 |
Low Carton Steel Wire Sz-1.4 |
1 |
|
8 |
TB604.212.1 |
Clutch Pedal Unit |
1 |
|
8.1 |
TB604.212.1.1 |
Clutch Pedal Weldment |
1 |
|
8.2 |
FT300.37.159 |
Release Fork Shaft Bush |
2 |
|
9 |
TD800.43-01 |
Pedal Return Spring |
1 |
|
10 |
TB604.212.3 |
Clutch Rocker Shaft Weldment |
1 |
|
11 |
GBT882-B10X32-A3L |
Pin Shaft |
2 |
|
12 |
JBT7940.1-M8X1 |
Straight Forced Filling Oil Cup |
1 |
|
13 |
GBT97.1-10-A3L |
Flat Washer |
2 |
|
14 |
GBT91-3.2X20-A3L |
Split Pin |
2 |
|
15 |
GBT6171-M12X1.5-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
16 |
TB604.212A.5 |
Upper Pull Rod Weldment |
1 |
|
17 |
GBT6171-M12X1.5-LH-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
18 |
JBT7940.2-90dM8X1 |
Joint Fill Oil Cup |
2 |
|
19 |
TE354.433-03 |
Connecting Rod |
1 |
|
20 |
TB604.212.6 |
Lower Pull Rod Weldment |
1 |
|
21 |
GBT894.1-25 |
Circlip For Shaft |
1 |
|
22 |
TE250.433C-02 |
Washer |
2 |
|
23 |
GBT5783-M10X40-8.8-A3L |
Hexagon Bolt |
6 |
|
24 |
GBT93-10-A3L |
Standard Spring Washer |
7 |
|
25 |
GBT5783-M10X70-8.8-A2L |
Hexagon Bolt |
1 |
|
26 |
GBT6170-M10-8-A3L |
Hexagon Nut, Type-1 |
1 |
|
27 |
GBT5783-M8X30-8.8-A2L |
Hexagon Bolt |
1 |
|
28 |
GBT93-8-A3L |
Standard Spring Washer |
1 |
|
29 |
GBT6172.1-M8-04-A2L |
Hexagon Thin Nut |
1 |
|
30 |
TB604.212-02 |
Dustproof Sleeve |
1 |
19
Lovol TB2SA604-002K Wheeled Tractor

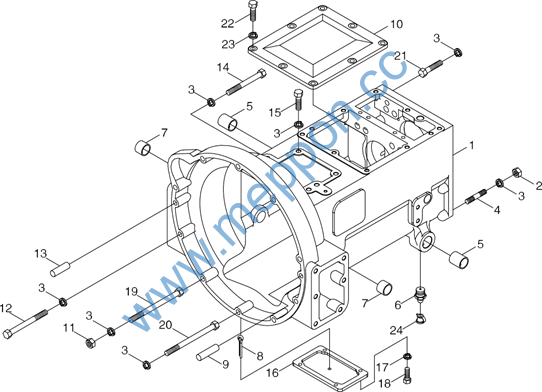

TB604.371 Gearbox Housing Assembly
20
Lovol TB2SA604-002K Wheeled Tractor
TB604.371 Gearbox Housing Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.371 |
Gearbox housing assembly |
1 |
||
1 |
TB604.371-01 |
Gearbox housing |
1 |
|
2 |
GBT6171-M12×1.5-A3L |
Nut |
10 |
|
3 |
GBT93-12-A0P |
Washer |
24 |
|
4 |
GBT899-AM12-M12×1.5×35-8.8-A3L |
Stud |
10 |
|
5 |
FT300.37.158 |
Pedal shaft liner |
2 |
|
6 |
JBT7940.1-M10×1 |
Oil cup |
2 |
|
7 |
FT300.37.159 |
Release fork shaft bushing |
2 |
|
8 |
GBT91-5×32-A0P |
Split pin |
1 |
|
9 |
GBT119.1-12m6×30-A0P |
Pin |
3 |
|
10 |
TB604.371-02 |
Gearbox upper cover |
1 |
|
11 |
GBT6170-M12-8-A3L |
Nut |
3 |
|
12 |
GBT5782-M12×110-8.8-A2L |
Bolt |
1 |
|
13 |
GBT119.1-12m6×22-A0P |
Pin |
1 |
|
14 |
GBT5782-M12×70-8.8-A2L |
Bolt |
2 |
|
15 |
GBT5783-M12×35-8.8-A3L |
Bolt |
4 |
|
16 |
TB400.371E-03 |
Lower plug cover |
1 |
|
17 |
GBT93-10-A0P |
Washer |
4 |
|
18 |
GBT5783-M10×25-8.8-A3L |
Bolt |
4 |
|
19 |
TB550.371-01 |
Bolt M12×160 |
3 |
|
20 |
TB550.371-02 |
Bolt M12×125 |
1 |
|
21 |
GBT5785-M12×1.5×55-8.8-A3L |
Hex bolt |
2 |
|
22 |
GBT5783-M8×20-8.8-A2L |
Hex bolt |
8 |
|
23 |
GBT93-8-A0P |
Standard spring washer |
8 |
|
24 |
TD800.311C.1-01 |
Oil cup dustproof cap |
2 |
21
Lovol TB2SA604-002K Wheeled Tractor

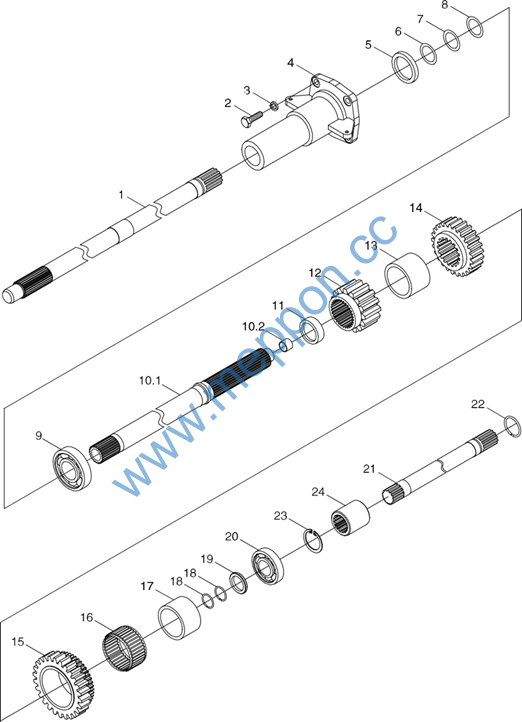

TB604.372T Main Transmission Assembly-1
22
Lovol TB2SA604-002K Wheeled Tractor
TB604.372T Main Transmission Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.372T |
Main transmission assembly |
1 |
||
1 |
FT400.37B.201 |
Auxiliary clutch shaft |
1 |
|
2 |
GBT5783-M8X25-8.8-A2L |
Hex head bolt |
4 |
|
3 |
GBT93-8-A0P |
Washer |
4 |
|
4 |
FT300.37B.124 |
Ⅰ shaft bearing cap |
1 |
|
5 |
GBT9877.1-FB40X62X8D |
Inner skeleton rotary shaft lip seal |
1 |
|
6 |
TB604.372T-12 |
Adjusting gasket, Ⅰ shaft |
As required |
|
7 |
TB604.372T-13 |
Adjusting gasket, Ⅰ shaft |
As required |
|
8 |
TB604.372T-14 |
Adjusting gasket, Ⅰ shaft |
As required |
|
9 |
GBT276-6208 |
Bearing |
1 |
|
10 |
TB604.372T.1 |
Ⅰ shaft cluster |
1 |
|
10.1 |
TB604.372T.1-01 |
Ⅰ shaft |
1 |
|
10.2 |
FT300.37.170 |
Bush |
1 |
|
11 |
TB604.372T-15 |
Gear spacer bush, Ⅰ gear |
1 |
|
12 |
TB604.372T-01 |
Driving gear, Ⅰ gear |
1 |
|
13 |
TB604.372T-02 |
Gear spacer bush, Ⅰ – Ⅱ gear |
1 |
|
14 |
TB604.372T-03 |
Driving gear, Ⅱ gear |
1 |
|
15 |
TB604.372T-05 |
Driving gear, Ⅲ gear |
1 |
|
16 |
TB604.372T-17 |
Needle bearing K47X52X28 |
1 |
|
17 |
TB604.372T-16 |
Gear bush, Ⅲ gear |
1 |
|
18 |
GBT3452.1-23.6X1.80G |
O-ring |
2 |
|
19 |
TB604.372T-04 |
Retainer ring |
1 |
|
20 |
GBT276-6007 |
Bearing |
1 |
|
21 |
FT300.37J.137 |
PTO connecting shaft |
1 |
|
22 |
GBT895.2-24 |
Retainer ring |
1 |
|
23 |
GBT893.1-21 |
Hole circlip |
1 |
|
24 |
FT300.37.136 |
Connecting sleeve |
1 |
23
Lovol TB2SA604-002K Wheeled Tractor

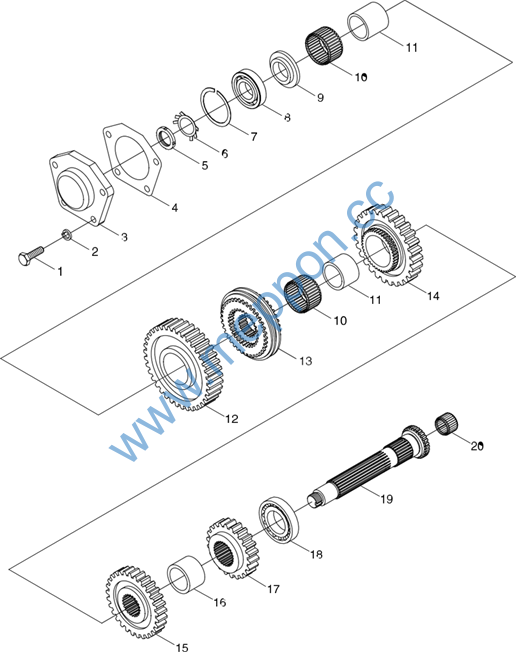

TB604.372T Main Transmission Assembly-2
24
Lovol TB2SA604-002K Wheeled Tractor
TB604.372T Main Transmission Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.372T |
Main transmission assembly |
1 |
||
1 |
GBT5783-M8X25-8.8-A2L |
Hex head bolt |
4 |
|
2 |
GBT93-8-A0P |
Washer |
4 |
|
3 |
FT300.37.120 |
Ⅱ shaft bearing cap |
1 |
|
4 |
FT300.37.119 |
Paper pad, Ⅱ shaft bearing cap |
1 |
|
5 |
GBT812-M24X1.5 |
Nut |
1 |
|
6 |
GBT858-24 |
Washer |
1 |
|
7 |
GBT305-72-78.6 |
Stop ring |
1 |
|
8 |
GBT276-6306N |
Bearing |
1 |
|
9 |
TB604.372T-11 |
Shaft end ring, Ⅱ shaft |
1 |
|
10 |
TB550.372-05 |
Needle bearing K43X49X30 |
2 |
|
11 |
FT300.37M.114 |
Gear bush, Ⅰ – Ⅱ gear |
2 |
|
12 |
TB604.372T-10 |
Driven gear, Ⅰ gear |
1 |
|
13 |
TE354.361T.3 |
Synchronizer assembly |
1 |
|
14 |
TB604.372T-09 |
Driven gear, Ⅱ gear |
1 |
|
15 |
TB604.372T-07 |
Driven gear, Ⅲ gear |
1 |
|
16 |
FT300.37.110 |
Gear spacer bush, Ⅲ – Ⅳ gear |
1 |
|
17 |
TB604.372T-06 |
Driven gear, Ⅳ gear |
1 |
|
18 |
GBT283-NUP208E |
Bearing |
1 |
|
19 |
TB604.372T-08 |
Ⅱ shaft |
1 |
|
20 |
TB550.372-17 |
Bearing K22X28X20 |
1 |
25
Lovol TB2SA604-002K Wheeled Tractor

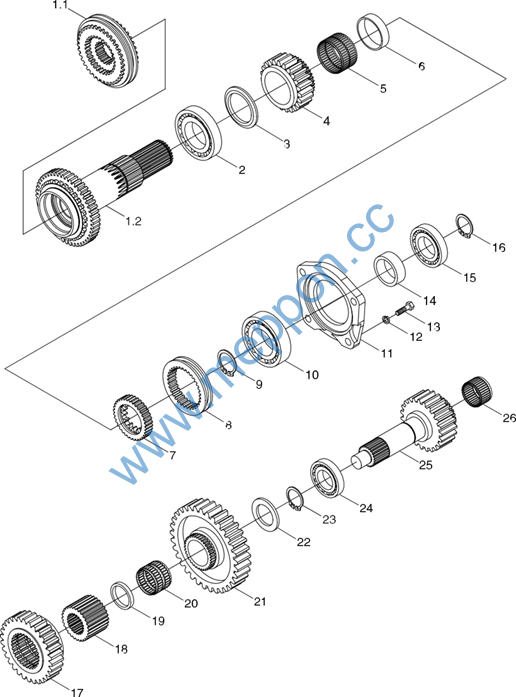

TB604.373T Gearbox Assistant Gear Assembly
26
Lovol TB2SA604-002K Wheeled Tractor
TB604.373T Gearbox Assistant Gear Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB604.373T |
Assistant gear assembly |
1 |
||
1 |
TB604.373T.2 |
Synchronizer installation assembly |
1 |
|
1.1 |
TB604.372T.2 |
Synchronizer assembly |
1 |
|
1.2 |
TB604.373T.1 |
4th gear synchronous cone ring weldment |
1 |
|
2 |
GBT283-NUP210E |
Bearing |
1 |
|
3 |
TB550.373-02 |
Circlip |
1 |
|
4 |
TB550.373-03b |
Middle gear driving gear |
1 |
|
5 |
TB550.373-12 |
Roller bearing |
1 |
|
6 |
TB550.373-04b |
Spacing sleeve |
1 |
|
7 |
TB550.373-05b |
Middle gear meshing gear seat |
1 |
|
8 |
TB550.373-06a |
Middle gear meshing sleeve |
1 |
|
9 |
GBT894.1-50 |
Circlip |
1 |
|
10 |
GBT283-NUP308E |
Bearing |
1 |
|
11 |
FT300.37.139 |
Assistant gear bearing cover |
1 |
|
12 |
GBT93-10-A0P |
Washer |
4 |
|
13 |
GBT5783-M10X30-8.8-A3L |
Hex bolt |
4 |
|
14 |
FT300.37J.180 |
Spacing sleeve |
1 |
|
15 |
GBT283-NF208 |
Bearing |
1 |
|
16 |
GBT894.1-40 |
Circlip |
1 |
|
17 |
TB550.373-08 |
Middle gear driven gear |
1 |
|
18 |
TB550.373-09 |
Reverse gear meshing seat |
1 |
|
19 |
FT300.37.111 |
Spacing sleeve |
1 |
|
20 |
QLWZB120-K35X43X34ZW |
Needle bearing |
1 |
|
21 |
FT450.37.103 |
Assistant gear driven gear |
1 |
|
22 |
TB550.373-11a |
Limiting circlip |
1 |
|
23 |
GBT894.1-35 |
Circlip |
1 |
|
24 |
GBT283-NUP307E |
Bearing |
1 |
|
25 |
TB550.373-10 |
Assistant gear driven shaft |
1 |
|
26 |
JBT7918-K25X31X20 |
Roller bearing |
1 |
27
Lovol TB2SA604-002K Wheeled Tractor

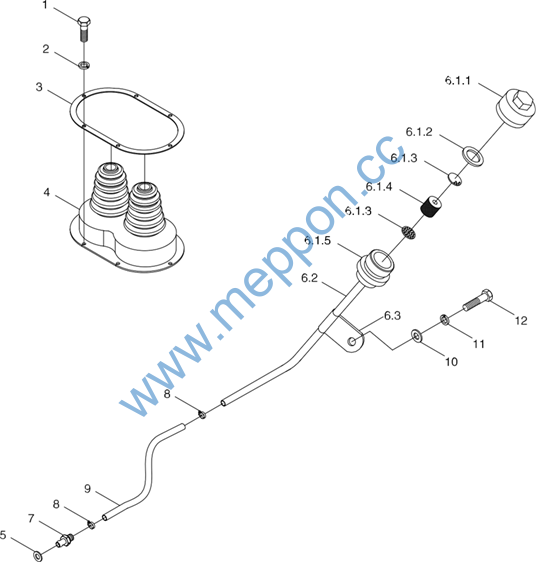

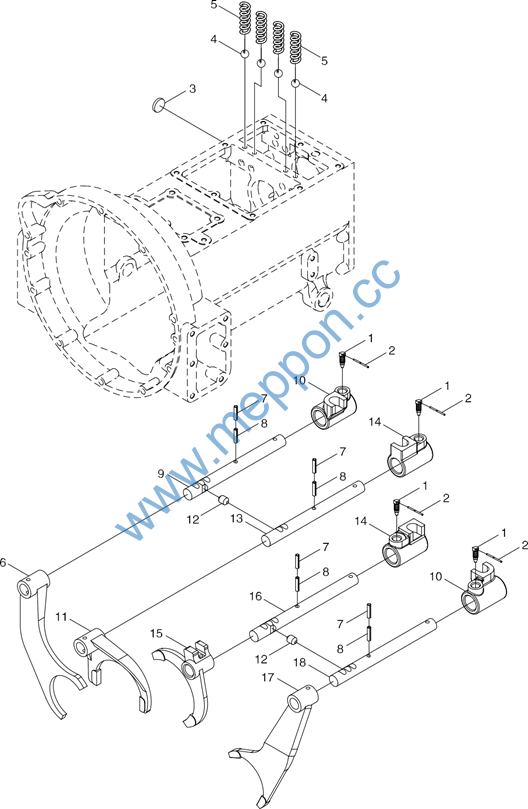

TS04374010000 Gearbox Control Mechanism Assembly-1
28
Lovol TB2SA604-002K Wheeled Tractor
TS04374010000 Gearbox Control Mechanism Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04374010000 |
Gearbox control mechanism assembly |
1 |
||
1 |
TB504.374-01 |
Fastening screw |
4 |
|
2 |
TF1004.374-02 |
Low-carbon steel wire SZ-1.4X250 |
4 |
|
3 |
Q72214 |
Bowl type expansion plug |
2 |
|
4 |
GBT308-8-G100-b |
Steel ball |
4 |
|
5 |
FT300.37.135 |
Shift fork shaft locating spring |
4 |
|
6 |
TB550.374-03a |
High-low gear shift fork |
1 |
|
7 |
GBT879.1-3X24 |
Spring-type straight pin |
4 |
|
8 |
GBT879.1-5X24 |
Spring-type straight pin |
4 |
|
9 |
TB604.374B-03 |
High-low gear shift fork fork |
1 |
|
10 |
TB604.374B-05 |
I/II speed shifting block |
2 |
|
11 |
TB550.374-04a |
Intermediate gear shift fork |
1 |
|
12 |
FT300.37.151 |
Interlock pin |
2 |
|
13 |
TB604.374B-04 |
Intermediate gear shift fork shaft |
1 |
|
14 |
TB604.374B-06 |
III/IV speed shifting block |
2 |
|
15 |
TB604.374A-01 |
III/IV speed shift fork |
1 |
|
16 |
TB604.374B-02 |
III/IV speed shift fork shaft |
1 |
|
17 |
TB604.374A-04 |
I/II speed shift fork |
1 |
|
18 |
TB604.374B-01 |
I/II speed shift fork shaft |
1 |
29
Lovol TB2SA604-002K Wheeled Tractor
TS04374010000 Gearbox Control Mechanism Assembly-2
30
