LOVOL TB2SA604-002K Tractor Parts Catalogue 01
Label |
Part code and specifications |
Part name |
Page code |
A Engine matching part |
|||
1 |
TS04110080000K |
Air Filter System Assembly(002) |
2 |
2 |
TS04131090000K |
Cooling System Assembly(002) |
4 |
3 |
TS04132010000 |
Water Tank Base Plate Mounting Assembly |
6 |
4 |
TS04201010000 |
Hand Throttle Control Assembly |
8 |
5 |
TS04202010000 |
Foot Throttle Control Assembly |
10 |
6 |
TS04203010000 |
Throttle Wire Assembly |
12 |
7 |
TS04220020000 |
Exhaust System Assembly |
14 |
B Drive line part |
|||
8 |
TB550.211B |
Clutch Assembly |
16 |
9 |
TS04212060000K |
Clutch Control Assembly(001) |
18 |
10 |
TB604.371 |
Gearbox Housing Assembly |
20 |
11 |
TB604.372T |
Main Transmission Assembly-1 |
22 |
12 |
TB604.372T |
Main Transmission Assembly-2 |
24 |
13 |
TB604.373T |
Gearbox Assistant Gear Assembly |
26 |
14 |
TS04374010000 |
Gearbox Control Mechanism Assembly-1 |
28 |
15 |
TS04374010000 |
Gearbox Control Mechanism Assembly-2 |
30 |
16 |
TS04374010000 |
Gearbox Control Mechanism Assembly-3 |
32 |
17 |
TS04374010000 |
Gearbox Control Mechanism Assembly-4 |
34 |
18 |
TB604.375B |
Breather assembly |
36 |
19 |
TB554.381 |
Shuttle Shift Assembly(005) |
38 |
20 |
TB554.382 |
Rear Axle Central Transmission Assembly-1(005) |
40 |
21 |
TB554.382 |
Rear Axle Central Transmission Assembly-2(005) |
42 |
22 |
TS04383010000 |
Differential Lock Control Mechanism Assembly |
44 |
23 |
TC02384040000K |
Rear Axle Housing Assembly |
46 |
24 |
TS04385010000 |
Shuttle Shift Control Mechanism Assembly |
48 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
25 |
TB550.391 |
Left Final Transmission Assembly(007) |
50 |
26 |
TB550.392 |
Right Final Transmission Assembly(006) |
52 |
27 |
TC02411020000K |
PTO Gear Assembly |
54 |
28 |
TB550.412A |
PTO Shaft Assembly(004) |
56 |
29 |
TS04413010000 |
PTO Control Assembly |
58 |
30 |
TB554.421B |
Transfer Case Housing Assembly (006) |
60 |
31 |
TB554.421B |
Transfer Case Body Assembly (006) (extension) |
62 |
32 |
TB554.422 |
Transfer Case Transmission Assembly(005) |
64 |
33 |
TS04423010000 |
Transfer Case Control Assembly |
66 |
C Front axle (shaft) part |
|||
34 |
TC02311210000 |
Front Driving Axle Assembly (001) |
68 |
35 |
TB554.312 |
Front Bracket Assembly(005) |
70 |
D Running system part |
|||
36 |
FT404.32F.001 |
Front Drive Wheel Assembly(005) |
72 |
37 |
FT550.34F.001 |
Rear Driving Wheel Assembly (005) |
74 |
E Steering system part |
|||
38 |
TC04401080000 |
Steering Gear and Steering Column Assembly |
76 |
39 |
TS04402070000K |
Fully Hydraulic Steering Assembly-1 |
78 |
40 |
TS04402070000K |
Fully Hydraulic Steering Assembly-2 |
80 |
F Braking system part |
|||
41 |
TB704.431 |
Left Brake Assembly |
82 |
42 |
TB704.432 |
Right Brake Assembly |
84 |
43 |
TS04433010000 |
Braking System Control Mechanism Assembly-1 |
86 |
44 |
TS04433010000 |
Braking System Control Mechanism Assembly-2 |
88 |
45 |
TS04433010000 |
Braking System Control Mechanism Assembly-3 |
90 |
46 |
TS04801010000K |
Air valve brake assembly |
92 |
47 |
TS04802010000K |
Gas Holder Installation Assembly |
94 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
48 |
TS04803050000K |
Air Conveying Pipeline Assembly(001) |
96 |
G Hydraulic hitch and work device |
|||
49 |
TB400.35C |
Towing Mechanism Installation Assembly(002) |
98 |
50 |
TC02530010000K |
Up-down Adjustable Traction Connector |
100 |
51 |
TC02551230000K |
Lifter Installation Assembly-1(003) |
102 |
52 |
TC02551230000K |
Lifter Installation Assembly-2(003) |
104 |
53 |
TC02551230000K |
Lifter Installation Assembly-3(003) |
106 |
54 |
TS04552010000 |
Raiser Control Assembly |
108 |
55 |
TC02553070000K |
Hydraulic Auxiliary Oil Tank Assembly (003) |
110 |
56 |
TC02561060000K |
Hitch Assembly-1 |
112 |
57 |
TC02561060000K |
Hitch Assembly-2 |
114 |
58 |
TS04581070000K |
Oil Pump/Pipe/Filter Assembly(001) |
116 |
59 |
TC02582090000K |
Multi-way Valve Oil Pipe Assembly (001) |
118 |
60 |
TB300.583A |
Single-way Hydraulic Outlet Assembly 2(003) |
120 |
H Cab, driver’s seat, covering panel, etc |
|||
61 |
TC02440090000K |
Seat Installation Assembly(001) |
122 |
62 |
TS04452010000 |
Floor Assembly-1 |
124 |
63 |
TS04452010000 |
Floor Assembly-2 |
126 |
64 |
TS04452010000 |
Floor Assembly-3 |
128 |
65 |
TS04453020000K |
Upholstery Assembly(001) |
130 |
66 |
TS04454010000 |
Control Cover Assembly |
132 |
67 |
TS04455020000 |
Rear Mudguard Trimming Assembly |
134 |
68 |
TB1S456020000K |
Dashboard Assembly(001) |
136 |
69 |
TS04457010000 |
Front Connection Assembly |
138 |
70 |
TS04458010000 |
Rear Connection Assembly |
140 |
71 |
TS04461010000K |
Safety Frame Assembly (002) |
142 |
72 |
TS04471030000K |
Bonnet Assembly(002)-1 |
144 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
73 |
TS04471030000K |
Bonnet Assembly(002)-2 |
146 |
74 |
TS04471030000K |
Bonnet Assembly(002)-3 |
148 |
75 |
TS04473010000 |
Bonnet Locking Device Assembly(006) |
150 |
76 |
TB400.475A |
Left Front Mud Gaurd Assembly |
152 |
77 |
TS04475080000K |
Bonnet Seal Installation Assembly(002) |
154 |
78 |
TB400.476A |
Right Front Mud Guard Assembly |
156 |
79 |
TS04490010000 |
Tool Kit Assembly |
158 |
80 |
TB1S501020000K |
Oil Tank Installation Assembly-1(001) |
160 |
81 |
TB1S501020000K |
Oil Tank Installation Assembly-2(001) |
162 |
82 |
TS04503010000 |
Fuel Tank Fitting Assembly |
164 |
83 |
TB1S620010000K |
Safety Belt Installation Assembly (001) |
166 |
84 |
TS04741010000K |
Front Ballast Frame Assembly |
168 |
85 |
TC02740010000K |
Front Ballast Assembly |
170 |
86 |
FT600.91.001 |
Rear Ballast Assembly(007) |
172 |
J Electrical and accessory parts |
|||
87 |
TS04481080000K |
Harness Installation Assembly, Engine(001) |
174 |
88 |
TS04482010000K |
Body Harness Installation Assembly |
176 |
89 |
TS04483020000K |
Front Lamp Harness Installation Assembly(004) |
178 |
90 |
TS04484040000K |
Harness Installation Assembly, Rear Lamp (002) |
180 |
91 |
TS04484040000K |
Harness Installation Assembly, Rear Lamp (002)(extension) |
182 |
92 |
TS04485010000 |
Battery Installation Assembly |
184 |
93 |
TS04487010000 |
Combination Instrument Assembly |
186 |
94 |
TB550.489B |
Preheating Device Assembly |
188 |
Lovol TB2SA604-002K Wheeled Tractor

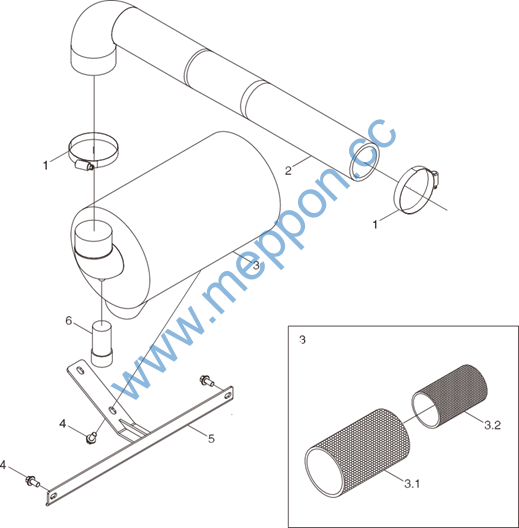

TS04110080000K Air Filter System Assembly(002)
2
Lovol TB2SA604-002K Wheeled Tractor
TS04110080000K Air Filter System Assembly(002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04110080000K |
Air Filter System Assembly |
1 |
||
1 |
Q67683 |
B-Type Worm Transmission Hose Clamp |
2 |
|
2 |
TS04110080004K |
Air Filter Connecting Hose |
1 |
|
3 |
TS04110080005K |
Air Filter Assembly |
1 |
|
3.1 |
TS04110080007K |
Security Filter Element |
1 |
|
3.2 |
TS04110080006K |
Main Filter Element |
1 |
|
4 |
GBT16674.1-M8X16-8.8-A2L |
Hexagon Flange Nut |
4 |
|
5 |
TS04110080001K |
Air Filter Bracket Weldment |
1 |
|
6 |
TD900.11A-01 |
Air Filter Maintenance Indicator |
1 |
3
Lovol TB2SA604-002K Wheeled Tractor

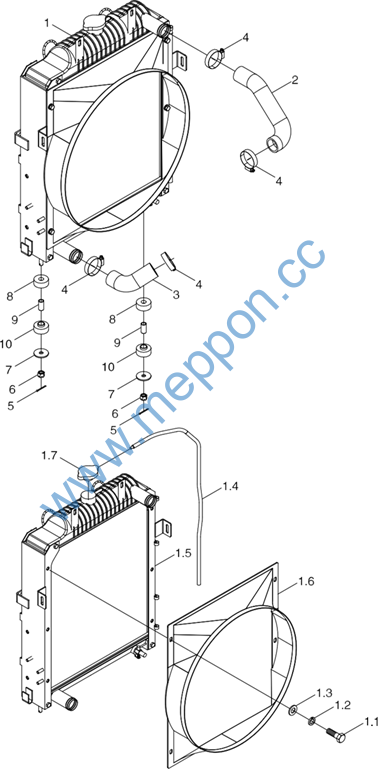

TS04131090000K Cooling System Assembly(002)
4
Lovol TB2SA604-002K Wheeled Tractor
TS04131090000K Cooling System Assembly(002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04131090000K |
Cooling System Assembly |
1 |
||
1 |
TS04131090001K |
Radiator Assembly |
1 |
|
1.1 |
GBT5783-M8X16-8.8-A2L |
Hexagon Bolt |
6 |
|
1.2 |
GBT93-8-A3L |
Standard Spring Washer |
6 |
|
1.3 |
GBT97.1-8-A3L |
Flat Washer |
6 |
|
1.4 |
TH400.13.1-03 |
Overflow Pipe |
1 |
|
1.5 |
TS04131090002K |
Water Cooling Radiator Assembly |
1 |
|
1.6 |
TS04131090003K |
Wind Guide Cover |
1 |
|
1.7 |
TB400.13.1 |
I-type Radiator Cap-Pressure Mark 0.5 |
1 |
|
2 |
TS04131090004K |
Water Tank Inlet Hose |
1 |
|
3 |
TB550.13Q-02 |
Water Tank Outlet Hose |
1 |
|
4 |
Q67657 |
B-Type Worm Transmission Hose Clamp |
4 |
|
5 |
GBT91-2.5X28-A3L |
Split Pin |
2 |
|
6 |
GBT6178-M10-8-A3L |
Hexagon Slotted Nut, Style 1 |
2 |
|
7 |
FT650.13.116 |
Washer |
2 |
|
8 |
TA700.131-01 |
Rubber Pad |
2 |
|
9 |
TA700.131-02 |
Sleeve |
2 |
|
10 |
TD800.131-11 |
Rubber Washer |
2 |
5
Lovol TB2SA604-002K Wheeled Tractor

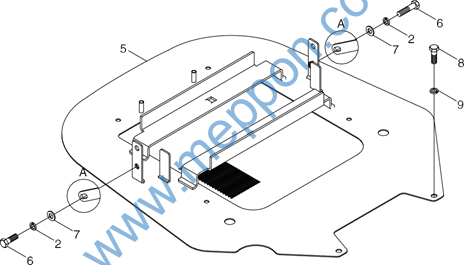

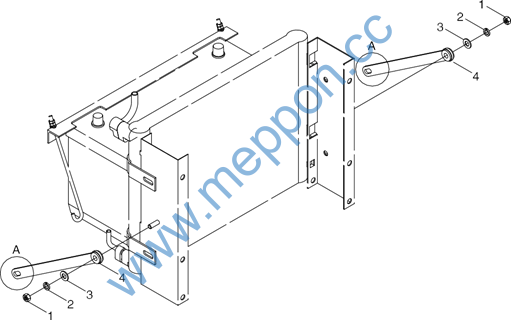

TS04132010000 Water Tank Base Plate Mounting Assembly
6
