LOVOL TA754-1F161H2K Tractor Parts Catalogue 24
TA600.62ZC 62-安全带 62-SAFETY BELT
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 |
TA600.62 |
SAFETY BELT INSTALLATION ASSEMBLY |
1 |
2012-01_ |

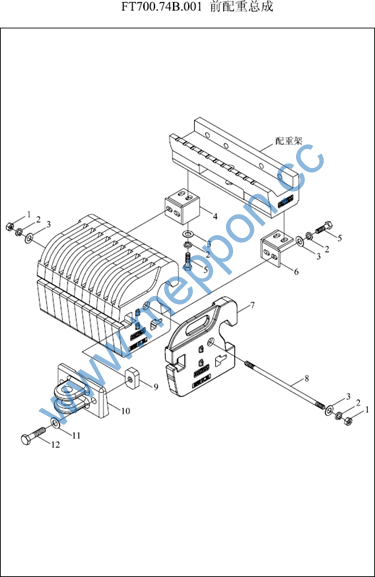

FT700.74B.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 |
GBT6170-M16-A3L |
NUT M16-A3L |
2 |
2011-11_ |
|
10 |
FT650.74.107 |
TOWING LUG |
1 |
2011-11_ |
|
11 |
GBT97.1-20-A0P |
WASHER |
2 |
2011-11_ |
|
11 |
GBT97.1-20-A0P |
WASHER |
2 |
2011-11_ |
|
12 |
GBT5785-M20X1.5X80-A3L |
BOLT |
2 |
2011-11_ |
|
2 |
GBT93-16-A0P |
SPRING WASHER |
10 |
2011-11_ |
|
3 |
GBT97.1-16-A0P |
WASHER |
10 |
2011-11_ |
|
4 |
FT700.74B.010 |
RIGHT FIXING BLOCK WELDMENT ASSEMBLY |
1 |
2011-11_ |
|
5 |
GBT5783-M16X35-A3L |
BOLT |
8 |
2011-11_ |
|
6 |
FT700.74B.011 |
LEFT FIXING BLOCK WELDMENT ASSEMBLY |
1 |
2011-11_ |
|
7 |
FT700.74B.106a |
BALLAST |
11 |
2011-11_ |
|
8 |
F700.74B.107 |
CONNECTING BOLT |
1 |
2011-11_ |
|
9 |
TA700.741-02 |
TOWING PLATE |
2 |
2009-12_ |
|
9 |
FT650.74.108 |
TOWING NUT |
2 |
2004-01_ |

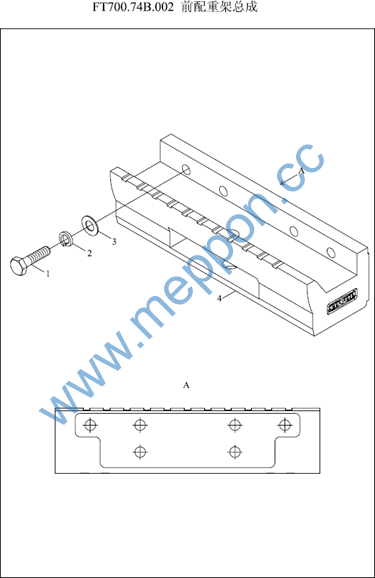

FT700.74B.002 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 2 3 4 |
GBT5785-M18X1.5X70-10.9-A3L GBT93-18-AOP GBT97.1-18-A0P FT700.74B.105a |
BOLT SPRING WASHER WASHER BALLAST BRACKET |
6 6 6 1 |
2004-01_ 2004-01_ 2004-01_ 2011-11_ |

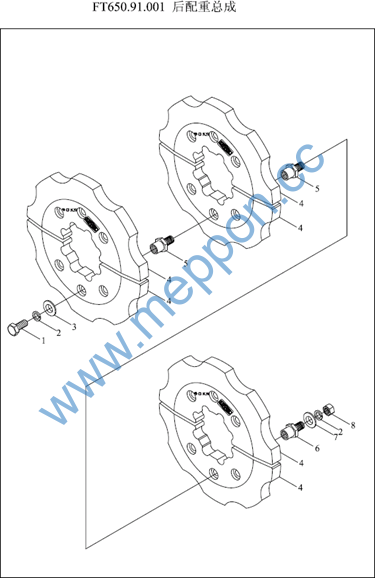

FT650.91.001 91-后配重总成 91-REAR BALLAST ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 2 3 4 5
6 7 8 |
GBT5783-M16X40-A3L GBT93-16-A0P FT650.34.104 FT650.34.101 FT650.34.103
FT650.34.102 GBT97.1-16-140HV GBT6170-M16-A3L |
BOLT SPRING WASHER WASHER REAR BALLAST REAR BALANCE WEIGHT SCREW
REAR BALLAST SCREW 1 WASHER NUT M16-A3L |
6 6 6 6 12
6 6 6 |
2011-11_ 2012-09_ 2011-11_ 2011-11_ 2011-11_
2011-11_
2011-11_ |
