TA600.487E 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

1

1

FT65.48.610c FT700.48G.063 FT700.48G.063b FT700.48G.063A

COMBINED INSTRUMENT ASSEMBLY COMBINED INSTRUMENT ASSEMBLY INSTRUMENT

INSTRUMENT

1

1

1

1

2011-01_



2009-05_

2006-08_








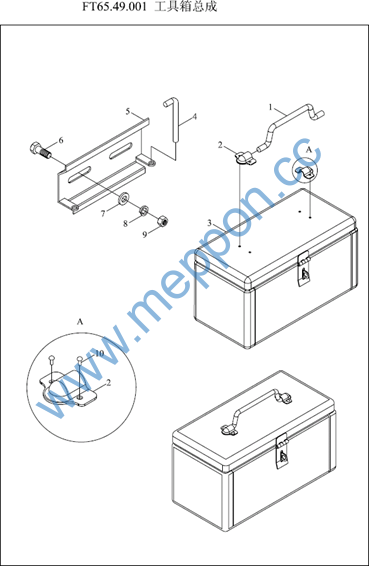

FT65.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.49.115

HANDLE

1

2011-11_

10

GBT867-4X8

RIVET

4

2011-11_

2

FT65.49.101

HANDLE SEAT

2

2011-11_

3

FT65.49.012

TOOL BOX WELDMENT ASSEMBLY

1

2011-11_

4

FT65.49.102

CROSS PIN

1

2011-11_

5

FT65.49.103

FIXING SUPPORT PLATE

1

2011-11_

6

GBT5783-M12X25-A3L

BOLT

2

2011-11_

7

GBT97.1-12-A0P

WASHER

2

2011-11_

8

GBT93-12-A0P

SPRING WASHER

2

2011-11_

9

GBT6170-M12-A3L

NUT

2

2011-11_








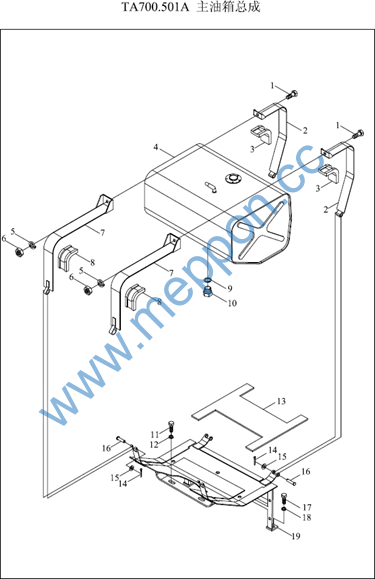

TA700.501A 50.1-主油箱总成 50.1-MAIN OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X40-A3L

BOLT

2



10

FT65.50.226

OIL DISCHARGING SCREW PLUG

1

2011-11_

11

GBT5783-M14X25-A2L

BOLT

2

2011-11_

12

GBT93-14-A0P

SPRING WASHER

2

2011-11_

12

GBT93-14-A0P

SPRING WASHER

2

2011-11_

13

FT65.50.104a

MAIN OIL TANK LOWER RUBBER STRIP

1

2011-11_

14

GBT91-2X12-A0P

PIN

4

2011-11_

15

GBT97.1-6-A0P

WASHER

4

2011-11_

16

GBT882-B6X48-A0P

PIN

4

2011-11_

17

GBT5783-M12X25-A3L

BOLT

2

2011-11_

18

GBT93-12-A0P

SPRING WASHER

2

2011-11_

19

FT65.50.032

MAIN OIL TANK BRACKET WELDMENT

1

2011-11_

2

FT65.50.036

FASTENING TIE (1) COMBINATION

2

2011-11_

3

FT65.50.209a

OIL TANK UPPER RUBBER STRIP

2

2011-11_

4

TA700.501A.1

MAIN OIL TANK WELDMENT

1

2011-11_

5

GBT93-8-A0P

WASHER

2

2011-11_

6

GBT6170-M10-A3L

NUT

2



7

FT65.50.037

FASTENING TIE (2) COMBINATION

2

2011-11_

8

FT65.50.103a

MAIN OIL TANK UPPER RUBBER STRIP

2

2011-11_

9

JBT982-16

COMBINED SEAL GASKET

1

2011-11_








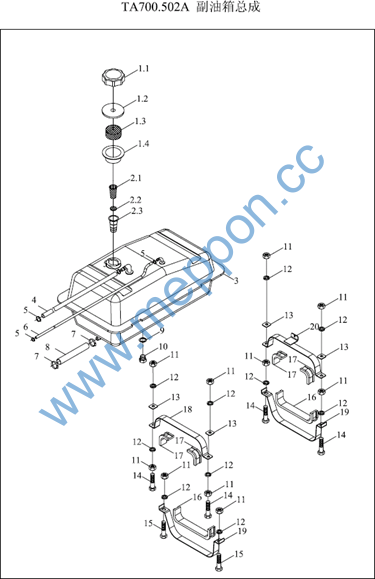

TA700.502A 50.2-副油箱总成 50.2-AUXILIARY OIL TANK ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA650.502.3

OIL TANK COVER ASSEMBLY

1

2011-11_

1.1

TA650.502.3-01

FILLING CAP COVER HOUSING

1

2011-11_

1.2

TA650.502.3-02

SPACER RING OF OIL FILLING CAP COVER

1

2011-11_

1.3

TA650.502.3-04

SPONGE

1

2011-11_

1.4

TA650.502.3-03

RUBBER GASKET OF OIL FILLING CAP

1

2011-11_

10

FT65.50.226

OIL DISCHARGING SCREW PLUG

1

2011-11_

11

GBT6170-M8-A2L

NUT

10

2011-11_

12

GBT93-8-A0P

WASHER

10

2011-11_

13

TA650.502-03

PAD BOARD

4



14

GBT5783-M8X60-A2L

BOLT

4



15

GBT5783-M8X25-A2L

BOLT

2

2011-11_

16

FT65.50.207a

ASSISTANT OIL TANK LOWER RUBBER PIECE

2

2011-11_

17

FT65.50.209a

OIL TANK UPPER RUBBER STRIP

4

2011-11_

18

FT65.50.201

ASSISTANT OIL TANK REAR FASTENING STEEL BAND

1

2011-11_

19

FT65.50.208

ASSISTANT OIL TANK SPLINT

2

2011-11_

2

FT300.50.015

FILTER MESH ASSEMBLY

1

2011-11_

2.1

FT65.50.272

SCREEN

1

2011-11_

2.2

FT65.50.273

FILTER MESH (1)

1

2011-11_

2.3

FT65.50.271

FILTER MESH FRAMEWORK

1

2011-11_

20

FT65.50.028

ASSISTANT OIL TANK FRONT FASTENING STEEL BAND

1

2011-11_

3

TA700.502A.1a

AUXILIARY OIL TANK WELDMENT

1

2011-11_

4

TA650.502-01

EXHAUST PIPE

2

2011-11_

5

Q673B13

CLAMP

4

2011-11_

6

FT700.50G.121

OIL RETURN PIPE

1

2011-11_

7

Q67650

B-TYPE WORM TRANSMISSION HOSE CLAMP

2

2011-11_








TA700.502A 50.2-副油箱总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

8

9

TA700.502A-01 JBT982-16

FABRIC OIL RUBBER PIPE COMBINED SEAL GASKET

1

1

2011-11_

2011-11_








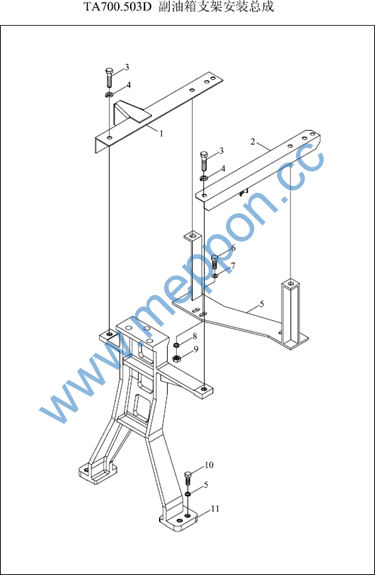

TA700.503D 50.3-副油箱安装总成 50.3-AUXILIARY OIL TANK INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA700.503C.1

LEFT BRACKET WELDMENT OF PNEUMATIC SPRING

1



1

TA700.503D.1a

LEFT BRACKET WELDMENT OF PNEUMATIC SPRING

1

2005-12_

10

FT700.50G.024

AUXILIARY OIL TANK FRONT BRACKET WELDMENT

1

2011-11_

11

FT65.50.204

BONNET BRACKET

1

2011-11_

2

FT700.50G.027

RIGHT BRACKET WELDMENT OF PNEUMATIC SPRING

1

2011-11_

2

FT700.50G.027

RIGHT BRACKET WELDMENT OF PNEUMATIC SPRING

1

2011-11_

3

GBT5783-M12X25-A3L

BOLT

2

2011-11_

4

GBT93-12-A0P

SPRING WASHER

6

2011-11_

5

TA550.503.1

RIGHT FRONT BRACKET OF AUXILIARY OIL TANK

1

2011-11_

6

GBT5783-M10X20-A3L

BOLT

3

2011-11_

7

GBT97.1-10-A0P

WASHER

3

2011-11_

8

GBT93-10-A0P

WASHER

3

2011-11_

9

GBT6170-M10-A3L

NUT

3

2011-11_








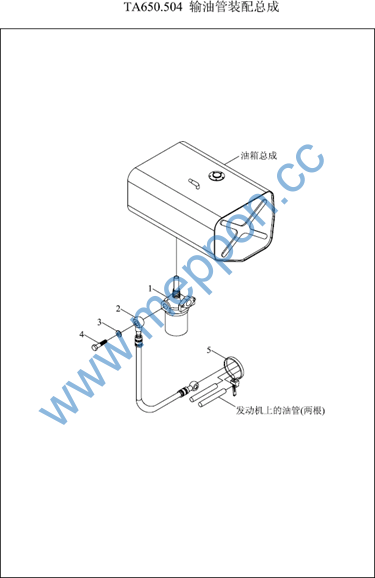

TA650.504 50.4-输油管装配总成 50.4-OIL CONVEYING PIPE INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.50.033

SEDIMENT CUP ASSEMBLY

1

2011-11_

1

FT65.50.033

SEDIMENT CUP ASSEMBLY

1

2011-11_

2

FT65.50.034

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

2

FT65.50.034

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

3

JBT982-14

COMBINED SEAL GASKET

1

2011-11_

3

JBT982-14

COMBINED SEAL GASKET

1

2011-11_

4

FT65.50.106

HOLLOW BOLT

1

2011-11_

5

Q67407200

PLASTIC FASTEN STRIP

1

2011-11_
