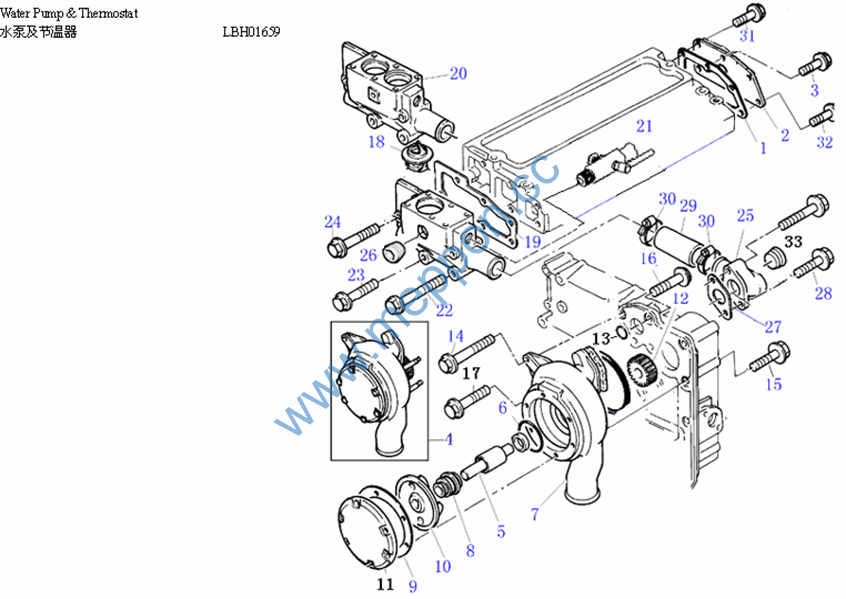

1004-4TRT70N04-17 10.17-水泵及节温器-17 WATER PUMP & THERMOSTAT



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

T3685R005A

WASHER

1

2011-11_

10

T3746X055

IMPELLER

1

2011-11_

11

T3755E001

COVER PLATE

1

2011-11_

12

T3117A032

GEAR

1

2011-11_

13

T2415H494

O-RING

1

2011-11_

14

T2314H015

BOLT

1

2011-11_

15

T2314N043

BOLT

3

2011-11_

16

T2314H006

BOLT

1

2011-11_

17

T2314H006

BOLT

1

2011-11_

18

T74405005

THERMOSTAT

2

2011-11_

19

T3685F005A

WASHER

1

2011-11_

19

T3685F005A

RIND JOINT

1

2011-11_

2

T3623K007

COVER PLATE

1

2011-11_

20

T3771K121E

THERMOSTAT HOUSING

1

2011-11_

21

T62204004

SWITCH

1

2011-11_

22

T2314J013

BOLT

2

2011-11_

23

T2314H015

BOLT

1

2011-11_

24

T2314H008

BOLT

2

2011-11_

25

T3764E061

CONNECTING JOINT

1

2011-11_

25

T3764E061

CONNECTING JOINT

1

2011-11_

26

T2431154

PLUG

1

2011-11_

27

T3683N004A

WASHER

1

2011-11_

28

T2314H004

BOLT

2

2011-11_

29

T33854114

RUBBER HOSE

1

2011-11_

3

T2314J002

BOLT

2

2011-11_








1004-4TRT70N04-17 10.17-水泵及节温器-17(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

30

31

32

33



4

5

6

6

7



8

9

T0180067B T0180067A T2314H002 T2314H003 T2431154



T4131E018 T2538624 T2415B155 T2415B155 T3771D035



T2418M006 T2418F405

CLAMP HOOP CLAMP HOOP BOLT

BOLT PLUG



WATER PUMP SHAFT

O-RING O-RING





SEAL RING OIL SEAL

1

1

2

1

1



1

1

1

1

1



1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

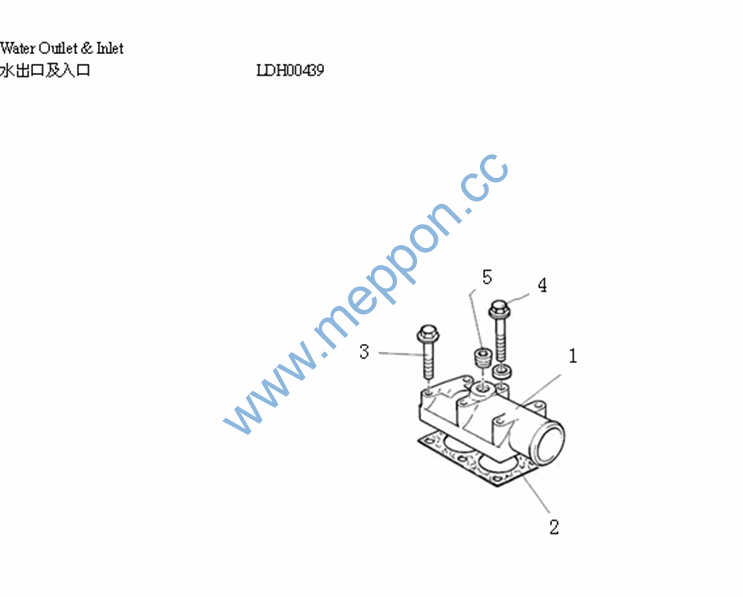

1004-4TRT70N04-18 10.18-水出口及入口-18 WATER OUTLET & INLET



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



5

T3776E002 T3684A004A T2314H010 T2314H008 T0650593



T0650593

Water outlet WASHER BOLT BOLT PLUG



PLUG

1

1

1

1

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

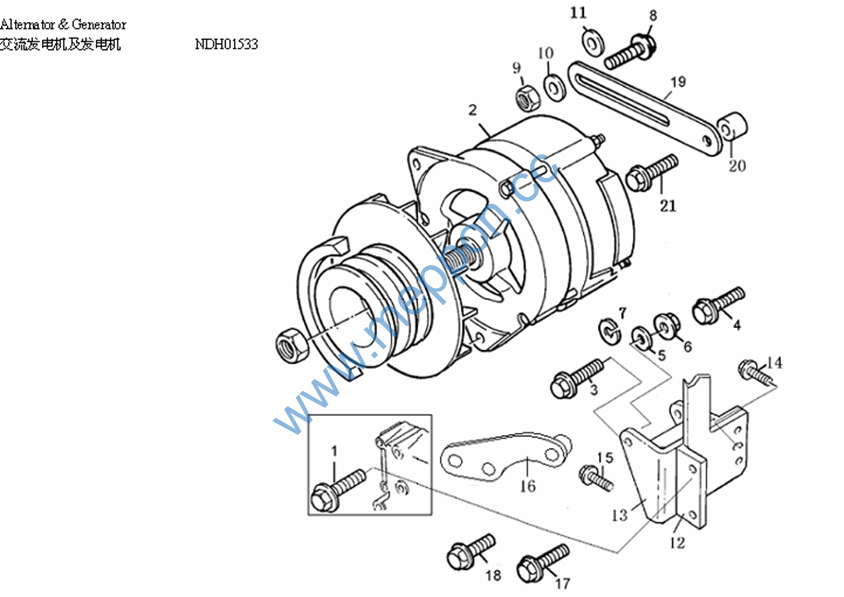

1004-4TRT70N04-19 10.19-交流发电机及发电机 ALTERNATOR & GENERATOR



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

T64505017

CARBON BRUSH

1

2011-11_

0

T64503054

BELT WHEEL

1

2011-11_

0

T74501036-1

ADJUSTER

1

2011-11_

1

T2314H013

BOLT

2

2011-11_

10

T2131A010

WASHER 10

1

2011-11_

11

T2131A010

WASHER 10

1

2011-11_

12

T74502204

SUPPOT BRACKET

1

2011-11_

12

T74502204

SUPPOT BRACKET

1

2011-11_

13

T3827H025B

GENERATOR BRACKET

1

2011-11_

14

T2314J003

BOLT

1

2011-11_

15

T2314H002

BOLT

4

2011-11_

16

T3753V016

SUPPOT BRACKET

1

2011-11_

17

T2314H018

BOLT

1

2011-11_

17

T2314H018

BOLT

1

2011-11_

18

T2314H008

BOLT

1

2011-11_

19

T3753V014A

ADJUSTING ROD

1

2011-11_

2

T74501036

GENERATOR

1

2011-11_

20

T64502110



1

2011-11_

21

T2314J004

BOLT

1

2011-11_

3

T2314H007

BOLT

1

2011-11_

4

T2314H008

BOLT

1

2011-11_

5

T0920497

WASHER

3

2011-11_

6

GBT6170-M8

NUT M8

2

2011-11_

7

GB93-87D8

SPRING WASHER

2

2008-03_

8

T2314J006

BOLT

1

2011-11_








1004-4TRT70N04-19 10.19-交流发电机及发电机(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

9

T2318A634

NUT

1

2011-11_

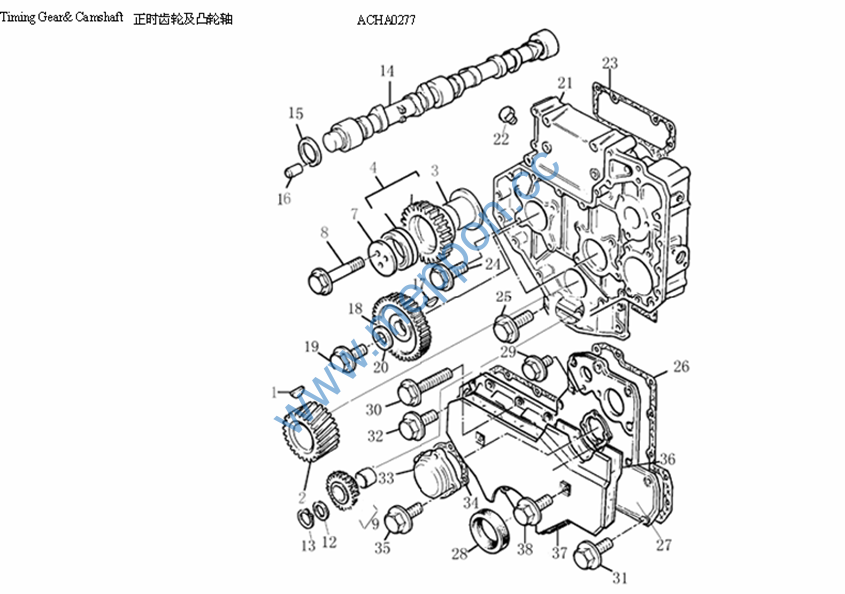

1004-4TRT70N04-2 10.2-正时齿轮及凸轮轴 TIMING GEAR& CAMSHAFT



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

12

T33123125

WASHER

1

2011-11_

13

T2722A206

CIRCLIP

1

2011-11_

13

T2722A206

CIRCLIP

1

2011-11_

14

T31415364

CAMSHAFT

1

2011-11_

15

T33153121

PLATE;THRUST

1

2011-11_

16

T2116053

PIN

1

2011-11_

17

T0500012

KEY

1

2011-11_

18

T3117L023

GEAR

1

2011-11_

19

T2314J606

BOLT

1

2011-11_

2

T3117C061

GEAR

1

2008-03_

20

T3321A003

WASHER

1

2011-11_

20

T3321A003

WASHER

1

2011-11_

21

T3716C133A

TIMING CASE

1

2011-11_

22

T0650586

SCREW PLUG

1

2011-11_

22

T0650586

SCREW PLUG

1

2011-11_

23

T3681P009

WASHER

1

2011-11_

24

T2314H003

BOLT

8

2011-11_

25

T2314H004

BOLT

4

2011-11_

26

T3681P034

FRONT COVER JOINT

1

2011-11_

27

T3716M091B

FRONT COVER

1

2011-11_

28

T2418F436

OIL SEAL

1

2011-11_

29

T2314H005

BOLT

9

2011-11_

3

T33426161

HUB

1

2011-11_

30

T2314H004

BOLT

1

2011-11_

31

T2314H004

BOLT

3

2011-11_
