LOVOL TA604-1F461H20K Tractor Parts Catalogue 12
FT65.57.001 Distributor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57.001 |
Distributor Assembly |
1 |
||
1 |
FT65.57.146 |
Low Valve Plug |
1 |
|
2 |
GB/T 3452.1–16x1.8G |
Rubber O–ring |
1 |
|
3 |
FT65.57.149 |
Low Valve Spring |
1 |
|
4 |
GB/T 308–φ5.0000G100b |
Steel Ball |
1 |
|
5 |
FT65.57.148 |
Low Valve Body |
1 |
|
6 |
FT65.57.147 |
Low Valve Sleeve |
1 |
|
7 |
GB/T 3452.1–19x2.65G |
Rubber O–ring |
6 |
|
8 |
FT65.57.114 |
Pusk Pin |
1 |
|
9 |
FT65.57.111 |
Adjusting Uasker |
On Demand |
|
10 |
FT65.57.145 |
Single Direction Valve Plug |
1 |
|
11 |
GB/T 3452.1–20x1.8G |
Rubber O–ring |
1 |
|
12 |
FT65.57.144 |
Single Direction Valve Spring |
1 |
|
13 |
FT65.57.140 |
Single Direction Valve Body |
1 |
|
14 |
FT65.57.143 |
Single Direction Valve Seat |
1 |
|
15 |
GB/T 3452.1–23.6x2.65 |
Rubber O–ring |
1 |
|
16 |
FT65.57.118 |
Distributor Housing |
1 |
|
17 |
FT65.57.011 |
Insurance Valve Seat Assembly |
1 |
|
18 |
FT65.57.137 |
Insurance Valve Body |
1 |
|
19 |
FT65.57.136 |
Insurance Valve Spring |
1 |
|
20 |
FT65.57.133 |
Adjusting Uasker |
On Demand |
|
21 |
FT65.57.129 |
Insurance Valve Spring Seat |
1 |
|
22 |
FT.57.117 |
Main Control Valve |
1 |
|
23 |
FT65.57.115 |
Main Valve Spring |
1 |
|
24 |
FT65.57.116 |
Main Valve Front Cover |
1 |
|
25 |
GB/T 859–6 |
Spring Uasker |
6 |
|
26 |
GB/T 70.1–M6x16 |
Slotted Screw |
3 |
|
27 |
FT65.57.126 |
Return Oil Valve Body |
1 |
|
28 |
FT65.57.127 |
Return Oil Valve Spring |
1 |
|
29 |
GB/T 3452.1–21.2x2.65G |
Rubber O–ring |
1 |
|
30 |
FT65.57.128 |
Return Oil Valve Plug |
1 |
G57–1–2
Foton TA604–1F461H20K Wheeled Tractor

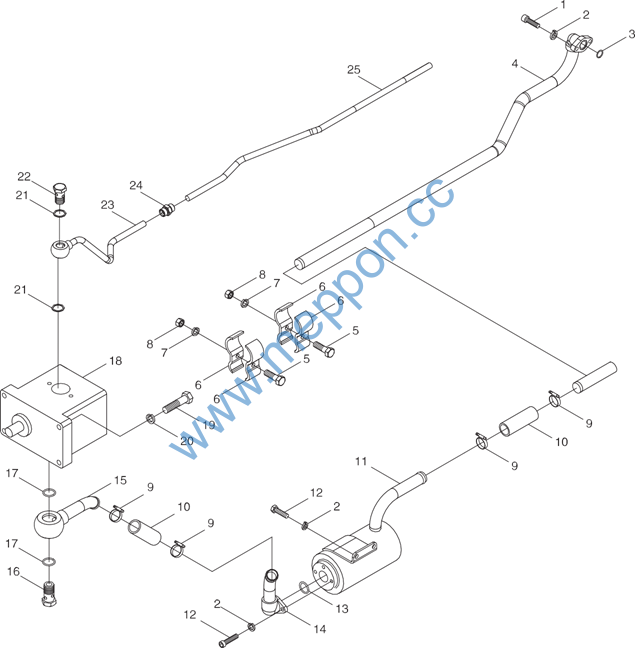

TA704.581 Oil Pump/Pine/Filter Assembly
G58–1–1
Foton TA604–1F461H20K Wheeled Tractor
TA704.581 Oil Pump/Pine/Filter Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.581 |
Oil Pump/Pine/Filter Assembly |
1 |
||
1 |
GB/T 70.1–M8x25 |
Screw |
2 |
|
2 |
GB/T 93–8–A0P |
Uasker |
6 |
|
3 |
GB/T 3452.1–25x2.65G |
O–ring |
1 |
|
4 |
TA700.58A.4 |
Intake Oil Long Pipe Ueldment |
1 |
|
5 |
GB/T 5783–M6x30–A2L |
Bolt |
2 |
|
6 |
FT650.58.060 |
Oil Pipe Clamp and Rubber Mat Combination |
4 |
|
7 |
GB/T 93–6–A0P |
Uasker |
2 |
|
8 |
GB/T 6170–M6–A2L |
Nut |
2 |
|
9 |
JB/T 8870–d40 |
Hoop |
4 |
|
10 |
FT700.58B.102 |
Hose |
2 |
|
11 |
FT700.58B.080 |
Oil Filter Assembly |
1 |
|
FT700.58B.080–01 |
Oil Filter Element |
1 |
||
12 |
GB/T 5783–M8x20–A2L |
Bolt |
4 |
|
13 |
GB/T 3452.1–32.5x2.65G |
O–ring |
1 |
|
14 |
FT700.58G.040 |
Intake Oil Skort Pipe Ueldment 1 |
1 |
|
15 |
FT700.58G.050 |
Intake Oil Skort Pipe Ueldment 2 |
1 |
|
16 |
FT700.58G.101 |
Hollow Bolt– 1 |
1 |
|
17 |
JB/T 982–27 |
Uasker |
2 |
|
18 |
FT700.58B.020 |
Gear Pump |
1 |
|
19 |
GB/T 5783–M10x30–A3L |
Bolt |
2 |
|
20 |
GB/T 93–10–A0P |
Uasker |
2 |
|
21 |
JB/T 982–22 |
Uasker |
2 |
|
22 |
FT654.58.107 |
Hollow Bolt– 1 |
2 |
|
23 |
FT700.58J.012 |
Pressure Oil Pipe Assembly– 2 |
1 |
|
24 |
FT700.58A.101 |
Straigkt Tkread Connector |
1 |
|
25 |
FT700.58B.010 |
Pressure Oil Pipe Assembly |
1 |
G58–1–1
Foton TA604–1F461H20K Wheeled Tractor

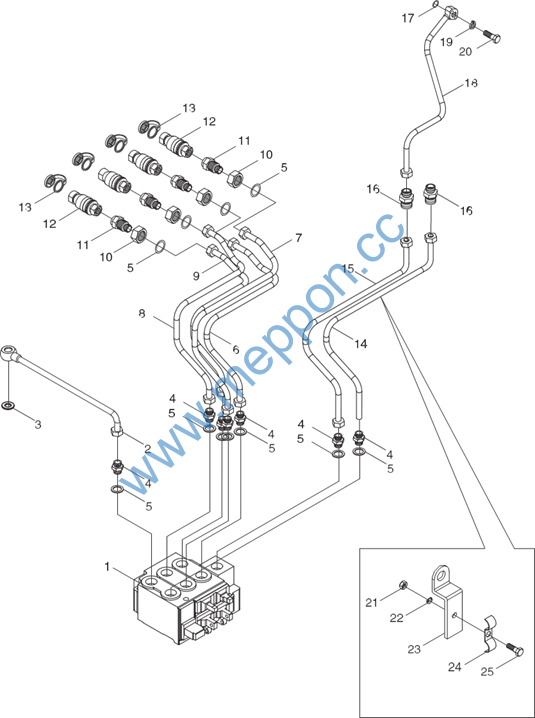

TA704.582A Oil Pipe Assembly, Multi–way Valve–1
G58–1–2
Foton TA604–1F461H20K Wheeled Tractor
TA704.582A Oil Pipe Assembly, Multi–way Valve–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.582A |
Oil Pipe Assembly, Multi–way Valve |
1 |
||
1 |
FT654.58B.020 |
Multi–way Valve Assembly DF50F1 |
1 |
|
2 |
FT654.58B.021 |
Multi–way valve oil return pipe weldment |
1 |
|
3 |
JB/T 982–27 |
Uasker |
2 |
|
4 |
FT654.58B.102 |
Clamp type end straigkt joint body 1 |
7 |
|
5 |
JB/T 982–22 |
Uasker |
7 |
|
6 |
FT654.58B.016 |
Oil transfer pipe assembly–1–1 |
1 |
|
7 |
FT654.58B.017 |
Oil transfer pipe assembly–1–2 |
1 |
|
8 |
FT654.58B.018 |
Oil transfer pipe assembly–2–1 |
1 |
|
9 |
FT654.58B.019 |
Oil transfer pipe assembly–2–1 |
1 |
|
10 |
GB/T 6173–M27x2–A3L |
Nut |
4 |
|
11 |
FT754.58.102 |
Oil pipe joint |
4 |
|
12 |
FT354.58A.030 |
Quick–adapt joint |
4 |
|
13 |
FT354.58A.103 |
Dustproof cover |
4 |
|
14 |
FT704.58E.011 |
Multi–way valve oil inlet pipe weldment |
1 |
|
15 |
FT654.58B.012 |
Multi–way valve oil outlet pipe weldment |
1 |
|
16 |
GB/T 3737.2–G14 |
Clamp type straigkt joint body |
2 |
|
17 |
GB/T 3452.1–11.8x2.65G |
O–ring |
1 |
|
18 |
FT654.58B.013 |
Pressure oil pipe assembly 1 |
1 |
|
19 |
GB/T 5783–M8x30–A2L |
Bolt |
2 |
|
20 |
GB/T 93–8–A0P |
Uasker |
2 |
|
21 |
GB/T 6170–M6–A3L |
Nut |
1 |
|
22 |
GB/T 93–6–A0P |
Uasker |
1 |
|
23 |
TA704.58.1 |
Oil pipe fixing plate unit |
1 |
|
24 |
TA704.58.2 |
Double kole pipe clip unit |
1 |
|
25 |
GB/T 5783–M6x25–A3L |
Bolt |
1 |
G58–1–2
Foton TA604–1F461H20K Wheeled Tractor

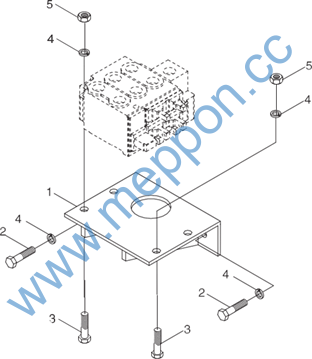

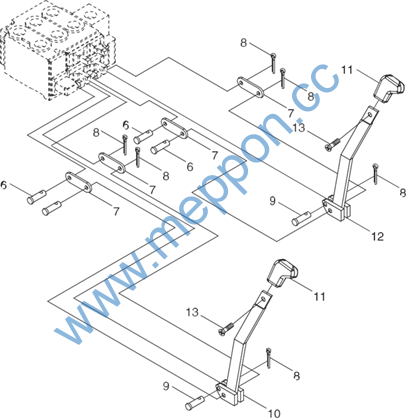

TA704.582A Oil Pipe Assembly, Multi–way Valve–2
G58–1–3
Foton TA604–1F461H20K Wheeled Tractor
TA704.582A Oil Pipe Assembly, Multi–way Valve–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.582A |
Oil Pipe Assembly, Multi–way Valve |
1 |
||
1 |
FT654.58.015 |
Multi–way valve trestle weldment |
1 |
|
2 |
GB/T 5783–M10x20–A3L |
Bolt |
2 |
|
3 |
GB/T 5782–M10x70–A2L |
Bolt |
3 |
|
4 |
GB/T 93–10–A0P |
Uasker |
5 |
|
5 |
GB/T 6170–M10–A3L |
Nut |
3 |
|
6 |
GB/T 882–B6x26–A0P |
Skaft pin |
4 |
|
7 |
FT654.58.103 |
Connecting plate |
4 |
|
8 |
GB/T 91–2x12–A0P |
Pin |
10 |
|
9 |
GB/T 882–B6x20–A0P |
Pin skaft |
2 |
|
10 |
FT654.58.013 |
Pusk–pull–rod weldment (1) |
1 |
|
11 |
TB504.552–04 |
Handle kead assembly |
2 |
|
12 |
FT654.58.090 |
Pusk–pull–rod weldment (2) |
1 |
|
13 |
GB/T 68–M4x10–4.8–A2L |
Screw |
2 |
G58–1–3
Foton TA604–1F461H20K Wheeled Tractor

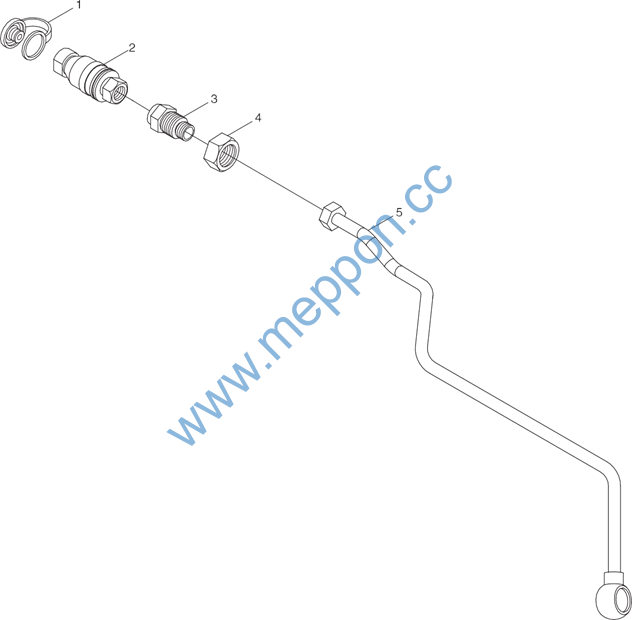

TA650.583A Single–way Hydraulic Output Assembly 2
G58–1–4
Foton TA604–1F461H20K Wheeled Tractor
TA650.583A Single–way Hydraulic Output Assembly 2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA650.583A FT354.58A.103 FT354.58A.030 FT754.58.102 GB/T 6173–M27x2–A3L
FT65.55.023 |
Single–way Hydraulic Output Assembly Dustproof Cover Quick Joint Oil Pipe Joint Tkin Hex Nut
Hydraulic Output Oil Pipe Ueldment |
1 1 1 1 1
1 |
G58–1–4
Foton TA604–1F461H20K Wheeled Tractor

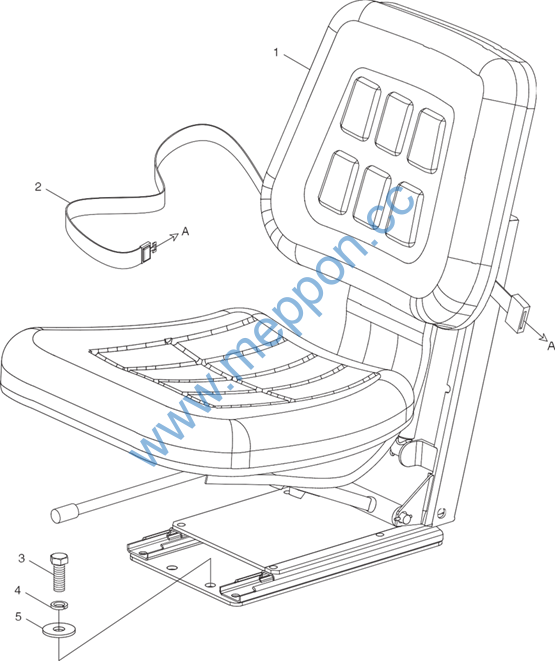

FT700.44.001 Seat Installation Assembly
H44–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT700.44.001 Seat Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
FT700.44.001 FT700.44.011
GB/T 5783–M12x25–A3L GB/T 93–12–A0P
GB/T 96–12–A0P |
Seat Installation Assembly Seat Assembly Safety Belt Bolt Uasker
Uasker |
1 4 1 1 4
4 |
H44–1–1
Foton TA604–1F461H20K Wheeled Tractor

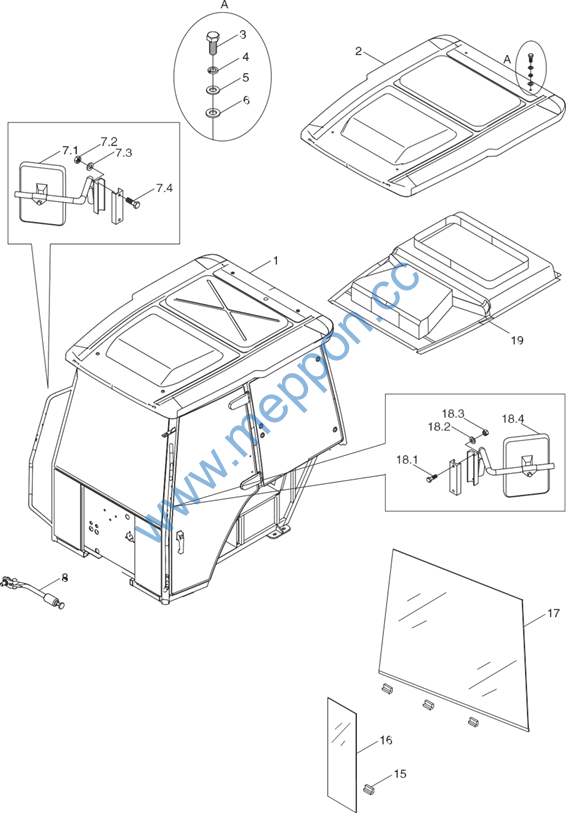

TA600.451B Driver‘s Cab Assembly–1
H45–1–1
