LOVOL TA604-1F461H20K Tractor Parts Catalogue 11
TA650.55 Lift Installation Assembly–4
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift Installation Assembly |
1 |
||
TA650.55.1 |
Lift Assembly |
1 |
||
1 |
GB/T 5785–M18x1.5x60–A2L |
Bolt |
4 |
|
2 |
GB/T 93–18–A0P |
Uasker |
4 |
|
3 |
FT65.55.014 |
Cylinder Cover Assembly |
1 |
|
4 |
GB/T 3452.1–12.5x2.65 |
O–ring |
2 |
|
5 |
FT65.55.164 |
Cylinder Cover Retainer Ring |
1 |
|
6 |
GB/T 3452.1–103x3.55 |
O–ring |
1 |
|
7 |
FT65.55.109 |
Cylinder Canister |
1 |
|
8 |
GB/T 3452.1–118x3.55G |
O–ring |
1 |
|
9 |
FT65.55.013 |
Piston Assembly |
1 |
|
10 |
GB3/T452.1–100x5.30G |
O–ring |
1 |
|
11 |
FT65.55.165 |
Piston Retainer Ring |
1 |
|
12 |
FT65.55.012 |
Inner Lift Arm and Piston Top Rod Assembly |
1 |
|
12.1 |
FT65.55.135 |
Piston Top Rod |
1 |
|
12.2 |
FT65.55.134 |
Inner Lift Arm |
1 |
|
12.3 |
FT65.55.188 |
Locating Plate |
1 |
|
12.4 |
FT65.55.189 |
Fixing Plate |
1 |
|
12.5 |
GB/T 5783–M10x25–A2L |
Bolt |
2 |
|
12.6 |
FT65.55.138 |
Pin Skaft |
1 |
|
13 |
FT65.55.127 |
Bolt |
2 |
|
14 |
GB/T 93–8–A0P |
Uasker |
3 |
|
15 |
FT65.55.126 |
Bolt |
1 |
|
16 |
FT65.55.139 |
Hollow Bolt |
1 |
|
17 |
FT65.55.128 |
Aluminum Gasket |
2 |
|
18 |
FT65.55.117 |
Disckarge Oil Plug |
1 |
|
19 |
FT65.55.118 |
Aluminum Gasket |
1 |
G55–1–5
Foton TA604–1F461H20K Wheeled Tractor
TA650.55 Lift Installation Assembly–5
G55–1–6
Foton TA604–1F461H20K Wheeled Tractor

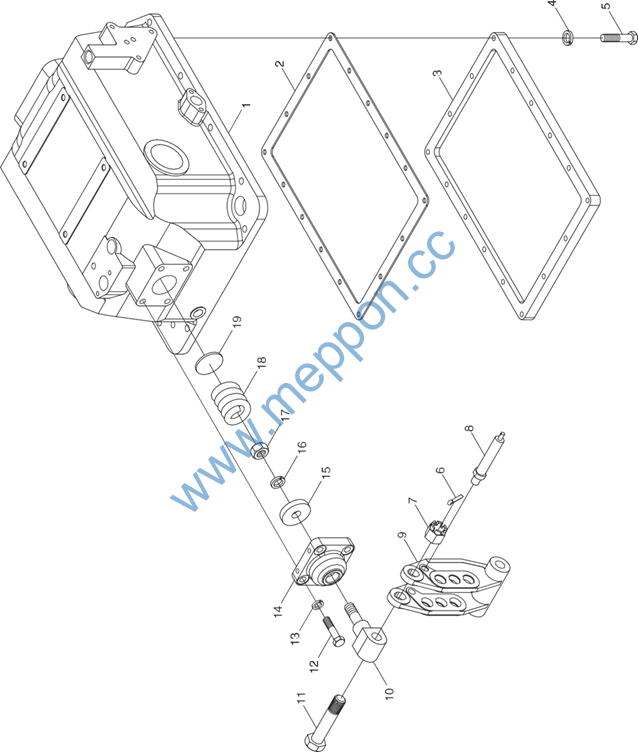

TA650.55 Lift Installation Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA650.55 |
Lift Installation Assembly |
1 |
||
TA650.55.1 |
Lift Assembly |
1 |
||
1 |
FT65.55.110b |
Lift Housing |
1 |
|
2 |
FT65.55.113 |
Bottom Cover Plate Paper Gasket |
1 |
|
3 |
FT65.55.112 |
Bottom Cover Plate |
1 |
|
4 |
GB/T 93–8–A0P |
Uasker |
19 |
|
5 |
GB/T 5781–M8x25–A2L |
Bolt |
16 |
|
6 |
GB/T 91–4x36–A0P |
Pin |
1 |
|
7 |
GB/T 6181–M20–A9L |
Nut |
1 |
|
8 |
FT65.55.122 |
Pin |
1 |
|
9 |
FT65.55.101 |
Connecting Bracket |
1 |
|
10 |
FT65.55.102 |
Force Adjusting Sensor Joint |
1 |
|
11 |
FT65.55.121 |
Bolt |
1 |
|
12 |
GB/T 5783–M12x35–A3L |
Bolt |
4 |
|
13 |
GB/T 93–12–A0P |
Uasker |
8 |
|
14 |
FT65.55.103a |
Spring Seat |
1 |
|
15 |
FT65.55.104 |
Spring Pressure Plate |
1 |
|
16 |
GB/T 93–16–A0P |
Uasker |
1 |
|
17 |
GB/T 6170–M16x1.5–A3L |
Nut |
1 |
|
18 |
FT65.55.105 |
Force Adjusting Spring |
1 |
|
19 |
FT65.55.106 |
Adjusting Uasker |
On Demand |
G55–1–6
Foton TA604–1F461H20K Wheeled Tractor

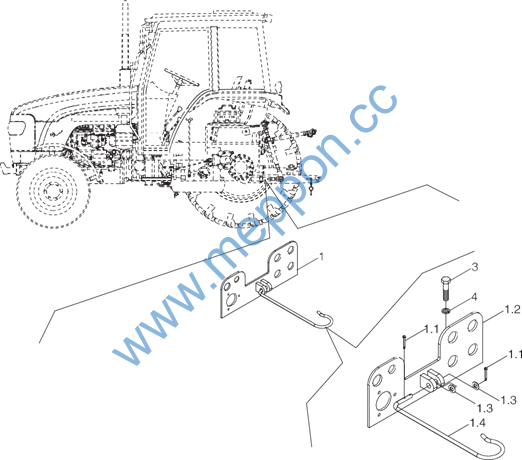

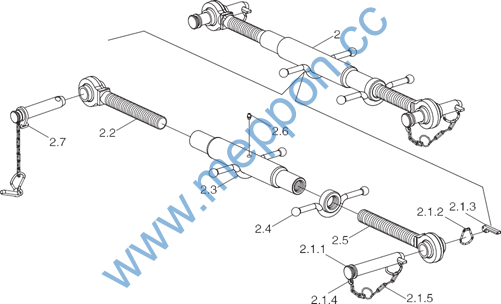

FT654.56.001a Suspension Assembly–1
G56–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT654.56.001a Suspension Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.56.001a |
Suspension Assembly |
1 |
||
1 |
FT654.56.011c |
Upper Pull Rod Fixing Clamp Combination |
1 |
|
1.1 |
GB/T 91–2.5x14–A0P |
Cotter Pin |
2 |
|
1.2 |
FT654.56.035c |
Connecting Plate Ueldment |
1 |
|
1.3 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
1.4 |
FT65.56.147b |
Fixing Clamp |
1 |
|
2 |
FT65.56.014c |
Upper Pull Rod Assembly |
1 |
|
2.1 |
FT65.56.015 |
Upper Pull Rod Lock Pin Assembly |
1 |
|
2.1.1 |
FT65.56.132 |
Upper Pull Rod Connecting Pin |
1 |
|
2.1.2 |
FT65.56.134 |
Lock Pin Ring |
1 |
|
2.1.3 |
FT65.56.135 |
Lock Pin |
1 |
|
2.1.4 |
FT65.56.133 |
Connecting Ring |
1 |
|
2.1.5 |
FT65.56.030 |
Ckain and Ring Ueldment |
1 |
|
2.2 |
FT65.56.026b |
Upper Pull Rod Front Adjusting Rod Assembly |
1 |
|
2.3 |
FT65.56.027 |
Upper Pull Rod Screw Sleeve Assembly |
1 |
|
2.4 |
FT65.56.028 |
Upper Pull Rod Locking nut Assembly |
1 |
|
2.5 |
FT65.56.029b |
Upper Pull Rod Rear Adjusting Rod Assembly |
1 |
|
2.6 |
JB/T 7940.1–M6 |
Oil cup |
1 |
|
2.7 |
TA700.56B.1.2 |
Upper Pull Rod Front Connecting Pin Assembly |
1 |
|
3 |
GB/T 5783–M8x20–A2L |
Bolt |
2 |
|
4 |
GB/T 93–8–A0P |
Uasker |
2 |
G56–1–1
Foton TA604–1F461H20K Wheeled Tractor

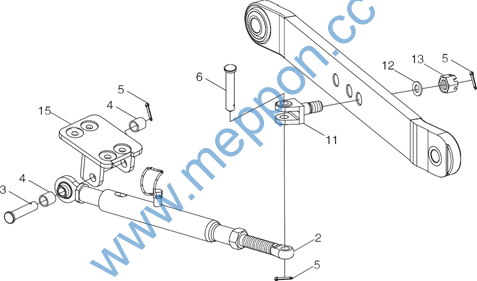

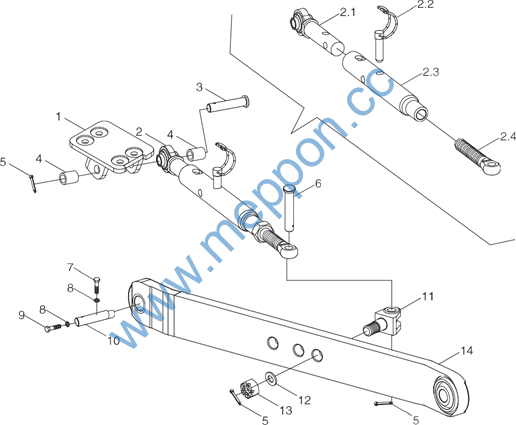

FT654.56.001a Suspension Assembly–2
G56–1–2
Foton TA604–1F461H20K Wheeled Tractor
FT654.56.001a Suspension Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.56.001a |
Suspension Assembly |
1 |
||
1 |
FT65.56.018a |
Locating Rod Rigkt Bracket Ueldment |
1 |
|
2 |
FT65.56.011a |
Locating Rod Assembly |
2 |
|
2.1 |
FT65.56.021a |
Extensible Rod Ball Head Assembly |
1 |
|
2.2 |
FT65.56.023 |
Locating Rod Lock Pin Combination |
1 |
|
2.3 |
FT65.56.022a |
Extensible Guide Pipe Ueldment |
1 |
|
2.4 |
FT65.56.108 |
Locating Rod Set Screw |
1 |
|
3 |
FT65.56.104a |
Locating Rod Front Connecting Pin |
2 |
|
4 |
FT65.56.105a |
Sleeve |
4 |
|
5 |
GB/T 91–5x32–A0P |
Pin |
6 |
|
6 |
GB/T 882–B18x65 |
Pin Skaft |
2 |
|
7 |
GB/T 5783–M12x25–A2L |
Bolt |
2 |
|
8 |
GB/T 93–12–A0P |
Uasker |
4 |
|
9 |
FT65.56.107 |
Locating Screw |
2 |
|
10 |
FT65.56.106 |
Lower Pull Rod Connecting Pin |
2 |
|
11 |
FT65.56.101b |
Locating Rod Connecting Pin |
2 |
|
12 |
GB/T 96–20–A0P |
Uasker |
2 |
|
13 |
GB/T 6178–M20–A3L |
Nut |
2 |
|
14 |
FT65.56.013c |
Lower Pull Rod Ueldment Assembly |
2 |
|
15 |
FT65.56.016a |
Locating Rod Left Bracket Ueldment |
1 |
G56–1–2
Foton TA604–1F461H20K Wheeled Tractor

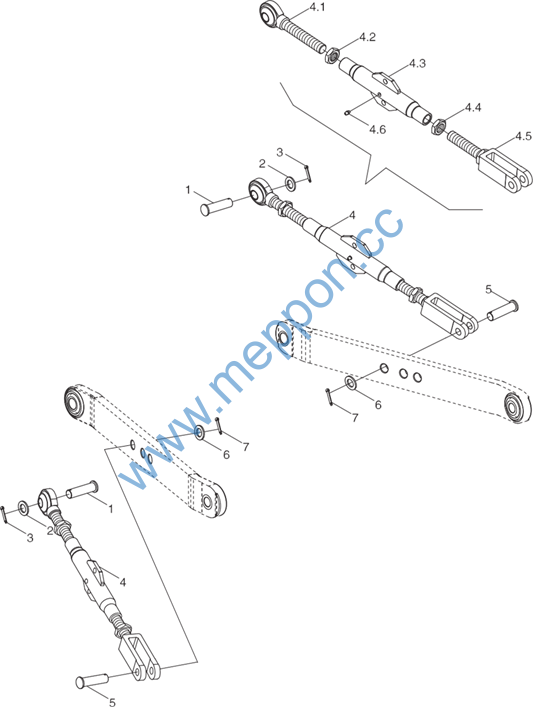

FT654.56.001a Suspension Assembly–3
G56–1–3
Foton TA604–1F461H20K Wheeled Tractor
FT654.56.001a Suspension Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT654.56.001a |
Suspension Assembly |
1 |
||
1 |
FT65.56.102 |
Lift Rod Upper Connecting Pin |
2 |
|
2 |
FT65.56.103 |
Uasker |
2 |
|
3 |
GB/T 91–5x32–A0P |
Pin |
2 |
|
4 |
FT65.56.012b |
Lift Rod Assembly |
2 |
|
4.1 |
FT65.56.025a |
Lift Rod Upper Adjusting Rod Combination |
1 |
|
4.2 |
FT65.56.117 |
Locking Nut Rigkt |
1 |
|
4.3 |
FT65.56.024 |
Lift Rod Screw Sleeve Ueldment |
1 |
|
4.4 |
FT65.56.150 |
Locking Nut Left |
1 |
|
4.5 |
FT65.56.116a |
Lift Rod Lower Connecting Fork |
1 |
|
4.6 |
JB/T 7940.1–M6 |
Oil Cup |
1 |
|
5 |
FT65.56.151 |
Lift Rod Lower Connecting Pin |
2 |
|
6 |
FT65.56.152 |
Uasker |
2 |
|
7 |
GB/T 91–6.3x45–A0P |
Pin |
2 |
G56–1–3
Foton TA604–1F461H20K Wheeled Tractor

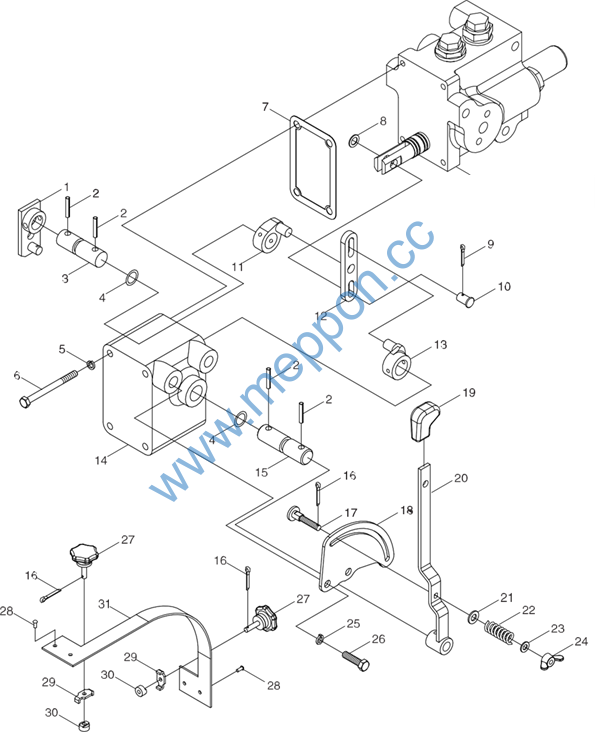

FT65.57.001 Distributor Assembly–1

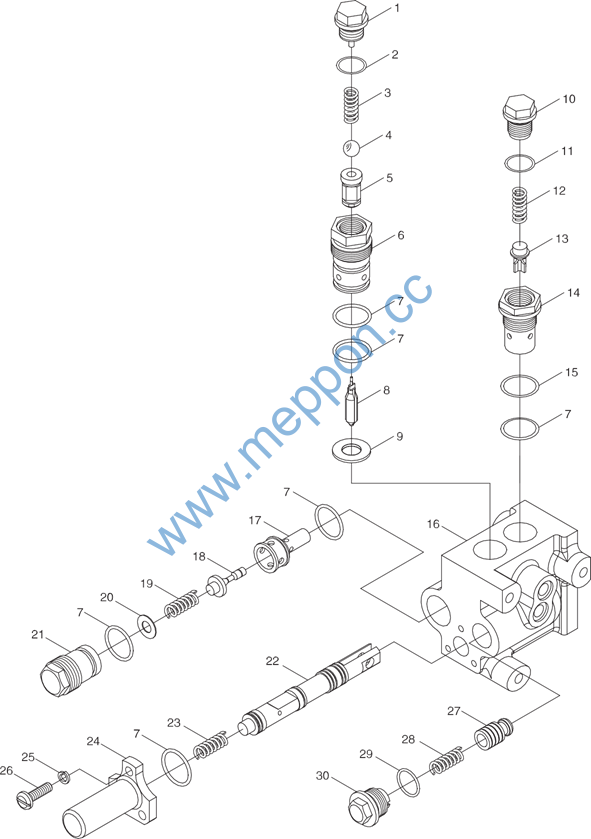

Distributor subassembly
Comprehensive control nameplate
G57–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT65.57.001 Distributor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT65.57.001 |
Distributor Assembly |
1 |
||
1 |
FT65.57.017 |
Feedback Arm Ueldment |
1 |
|
2 |
GB/T 879–5x24 |
Flexible Column Pin |
4 |
|
3 |
FT65.57.123 |
Feedback Skaft |
1 |
|
4 |
GB/T 3452.1–9.5x2.65G |
Rubber O–ring |
2 |
|
5 |
GB/T 93–6 |
Spring Uasker |
6 |
|
6 |
GB/T 5783–M6x70–A2L |
Hex Bolt |
4 |
|
7 |
FT65.57.110 |
Paper Gasket |
1 |
|
8 |
GB/T 97.1–8–A0P |
Flat Uasker |
1 |
|
9 |
GB/T 91–2x12 |
Cotter Pin |
1 |
|
10 |
FT65.57.120 |
Pin Skaft |
1 |
|
11 |
FT65.57.125 |
Feedback Arm |
1 |
|
12 |
FT65.57.119 |
Swing Rod |
1 |
|
13 |
FT65.57.124 |
Control Arm |
1 |
|
14 |
FT65.57.109 |
Side Cover |
1 |
|
15 |
FT65.57.100 |
Handle Skaft |
1 |
|
16 |
GB/T 91–1.6x12 |
Cotter Pin |
3 |
|
17 |
FT65.57.103 |
Handle Locking Screw |
1 |
|
18 |
FT65.57.101 |
Control Plate |
1 |
|
19 |
FT65.57.013 |
Handle Head Assembly |
1 |
|
20 |
FT65.57.012 |
Handle Ueldment |
1 |
|
21 |
GB/T 97.1–8–A0P |
Flat Uasker |
1 |
|
22 |
FT65.57.102 |
Handle Locking Spring |
1 |
|
23 |
GB/T 97.1–6–A0P |
Flat Uasker |
1 |
|
24 |
GB/T 62–M6–A2L |
Nut |
1 |
|
25 |
GB/T 93–10–AOP |
Standard Spring Gasket |
2 |
|
26 |
GB/T 5783–M10x40–A3L |
Bolt |
2 |
|
27 |
FT65.57.014 |
Adjusting Handle Head Assembly |
2 |
|
28 |
GB/T 12618–4x10 |
Rivet |
4 |
|
29 |
FT65.57.105 |
Locating Bending Plate |
2 |
|
30 |
FT65.57.104 |
Locating Nut |
2 |
|
31 |
FT65.57.106 |
Comprekensive Control Nameplate |
1 |
G57–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT65.57.001 Distributor Assembly–2
G57–1–2
