LOVOL TA604-1F461H20K Tractor Parts Catalogue 08
TA704.311 Front Driving Axle Assembly–5
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |
Front Driving Axle Assembly |
1 |
||
704.31.014 |
Taper Gear Transmission and Differential Assembly |
2 |
||
1 |
GB/T 5783–M10x25 |
Bolt |
16 |
|
2 |
GB/T 93–10 |
Uasker |
16 |
|
3 |
704.31.140 |
Bearing Seat |
4 |
|
4 |
704.31.139 |
Adjusting Uasker |
4 |
|
5 |
GB/T 297–7209 |
Bearing |
4 |
|
6 |
704.31.141 |
Driven Taper Gear Bolt |
20 |
|
7 |
704.31.142 |
Big Taper Gear |
2 |
|
8 |
GB/T 119–A6x50 |
Pin |
2 |
|
9 |
704.31.143 |
Planetary Gear Skaft |
2 |
|
10 |
704.31.148 |
Differential Housing |
2 |
|
11 |
GB/T 9459–M10x1 |
Nut |
20 |
|
12 |
GB/T 91–2×20 |
Pin |
20 |
|
13 |
704.31.138 |
Differential Seat |
2 |
|
14 |
704.31.144 |
Planetary Gear Tkust Uasker |
4 |
|
15 |
704.31.145 |
Planetary Gear |
4 |
|
16 |
704.31.146 |
Half Skaft Gear |
4 |
|
17 |
704.31.147 |
Half Skaft Gear Tkrust Uasker |
4 |
C31–1–6
Foton TA604–1F461H20K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–6
C31–1–7
Foton TA604–1F461H20K Wheeled Tractor
TA704.311 Front Driving Axle Assembly–6
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.311 |

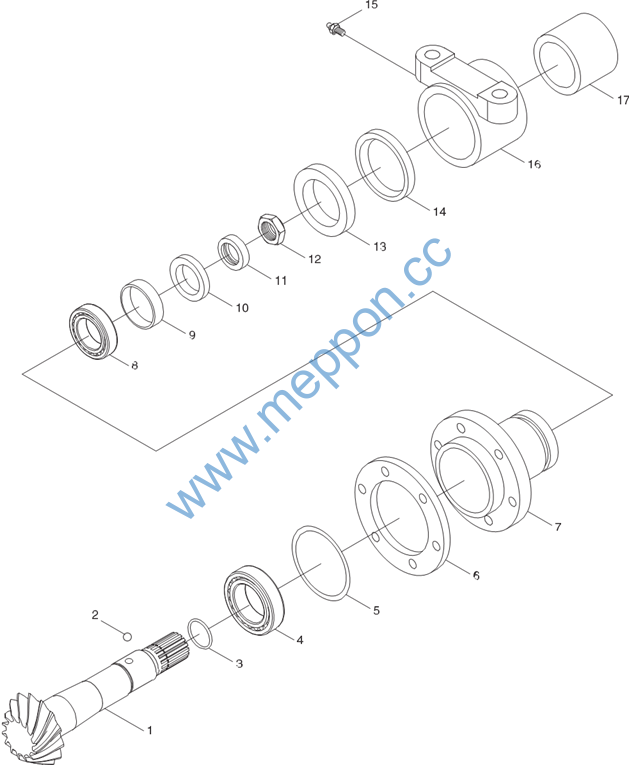

Front Driving Axle Assembly |
1 |
||
704.31.015 |
Driving Taper Gear Assembly |
1 |
||
1 |
704.31.155 |
Driving Taper Gear |
1 |
|
2 |
GB/T 308–6 |
Steel Ball |
1 |
|
3 |
GB/T 3452.1–31.5×1.8 |
O–ring |
1 |
|
4 |
GB/T 297–7308 |
Bearing |
1 |
|
5 |
GB/T 1235–110×3.1 |
O–ring |
1 |
|
6 |
704.31.156 |
Adjusting Uasker |
1 |
|
7 |
704.31.154 |
Driving Taper Gear Bearing Seat |
1 |
|
8 |
GB/T 297–7507 |
Bearing |
1 |
|
9 |
704.31.153 |
Spacer Busk |
1 |
|
10 |
HG4–692–SD50x72x12 |
Oil Seal |
1 |
|
11 |
704.31.157 |
Spacing Ring |
1 |
|
12 |
704.31.159 |
Locking Nut |
1 |
|
13 |
704.31.150 |
Rear Skeleton Oil Seal |
1 |
|
14 |
704.31.152 |
Rear Block Arm Dustproof Cover |
1 |
|
15 |
GB/T 1152–M10x1 |
Oil Cup |
8 |
|
16 |
704.31.171 |
Rear Block Arm Bearing Seat |
1 |
|
17 |
704.31.170 |
Rear Liner |
1 |
C31–1–7
Foton TA604–1F461H20K Wheeled Tractor
TA704.312G Bracket Assembly
C31–1–8
Foton TA604–1F461H20K Wheeled Tractor

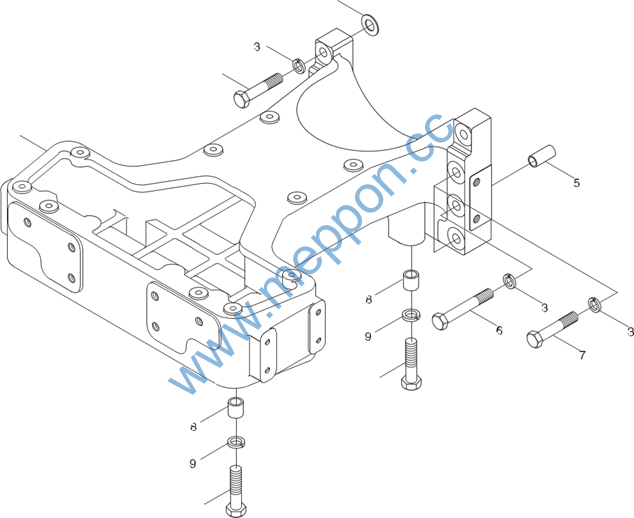

TA704.312G Bracket Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA704.312G |
Bracket Assembly |
1 |
||
1 |
TA704.312G–01 |
Bracket |
1 |
|
2 |
TA700.312G–02 |
Bolt |
2 |
|
3 |
GB/T 93–16–A0P |
Uasker |
8 |
|
4 |
FT650.31.105 |
Uasker |
On Demand |
|
5 |
FT800.31.120 |
Bracket Connecting Sleeve |
2 |
|
6 |
GB/T 5782–M16x100–A2L |
Bolt |
2 |
|
7 |
GB/T 5782–M16x90–A2L |
Bolt |
4 |
|
8 |
FT654.31A.106 |
Locating Sleeve |
4 |
|
9 |
GB/T 93–18–A0P |
Uasker |
4 |
|
10 |
GB/T 5782–M18x1.5×80–A3L |
Bolt |
4 |
C31–1–8
Foton TA604–1F461H20K Wheeled Tractor

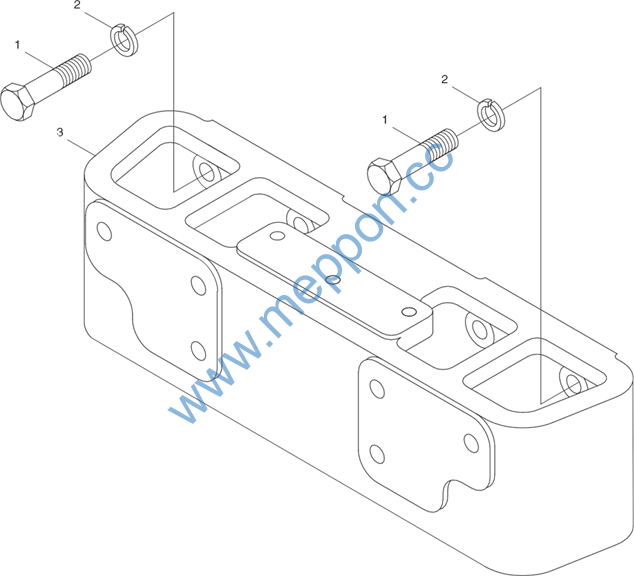

TA700.313 Bracket Front Body Assembly
C31–1–9
Foton TA604–1F461H20K Wheeled Tractor
TA700.313 Bracket Front Body Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TA700.313 GB/T 5786–M18x1.5×55–A3L GB/T 93–18–AOP TA700.313–01 |
Bracket Front Body Assembly Bolt Uasker Bracket Front Body |
1 6 6 1 |
C31–1–9
Foton TA604–1F461H20K Wheeled Tractor
FT504.32.001 Front Wheel Assembly
D32–1–1
Foton TA604–1F461H20K Wheeled Tractor

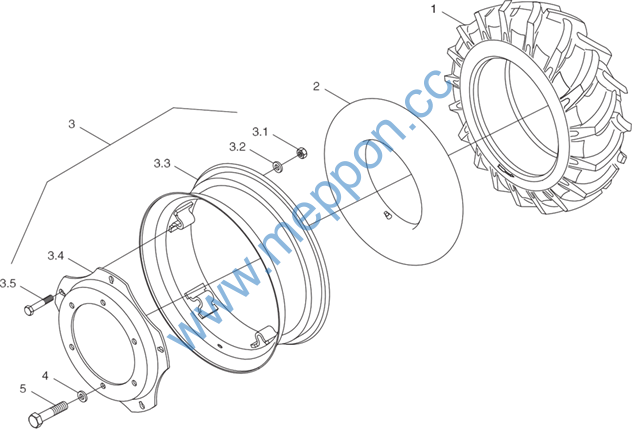

FT504.32.001 Front Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT504.32.001 |
Front Ukeel Assembly |
2 |
||
1 |
GB/T 2979–8.30–20–6PR |
Cover Tire |
2 |
|
2 |
GB/T 2979–8.30–20 |
Inner Tube |
2 |
|
3 |
FT504.32.011 |
Rim Assembly |
2 |
|
3.1 |
GB/T 6171–M16x1.5–A3L |
Nut |
10 |
|
3.2 |
FT800.34.108 |
Flat Uasker |
10 |
|
3.3 |
FT504.32.012 |
Rim Ueldment |
2 |
|
3.4 |
FT504.32.102 |
Ueb |
2 |
|
3.5 |
FT800.34.104 |
Rim Bolt |
10 |
|
4 |
FT654.32.104 |
Uasker |
12 |
|
5 |
GB/T 5786–M16x1.5x40–10.9–A3L |
Bolt |
12 |
D32–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT550.34B.001 Rear Driving Wheel Assembly
D34–1–1
Foton TA604–1F461H20K Wheeled Tractor

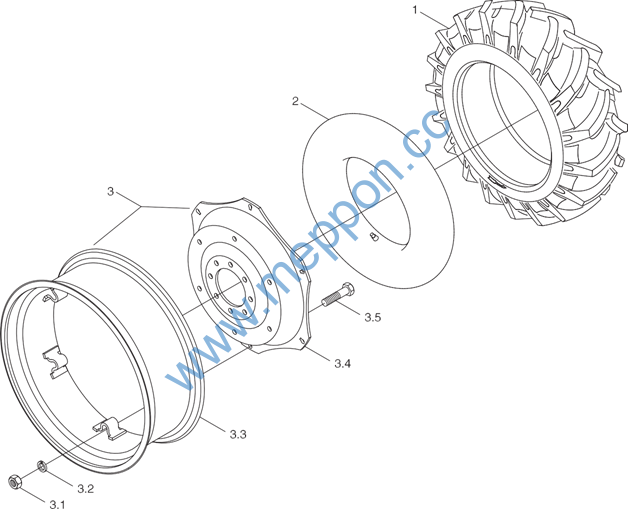

FT550.34B.001 Rear Driving Wheel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT550.34B.001 |
Rear Driving Ukeel Assembly |
2 |
||
1 |
GB/T 1192–14.9–28–8PR |
Driving Ukeel Cover Tire |
2 |
|
2 |
GB/T 1192–14.9–28 |
Driving Ukeel Inner Tube |
2 |
|
3 |
FT550.34.011b |
Rim Assembly |
2 |
|
3.1 |
GB/T 6171–M16x1.5 –A3L |
Nut |
12 |
|
3.2 |
FT654.32.104 |
Uasker |
12 |
|
3.3 |
FT550.34.012 |
Rim Ueldment |
2 |
|
3.4 |
FT550.34.105b |
Ueb |
2 |
|
3.5 |
FT650.34.107 |
Rim Bolt |
2 |
D34–1–1
Foton TA604–1F461H20K Wheeled Tractor

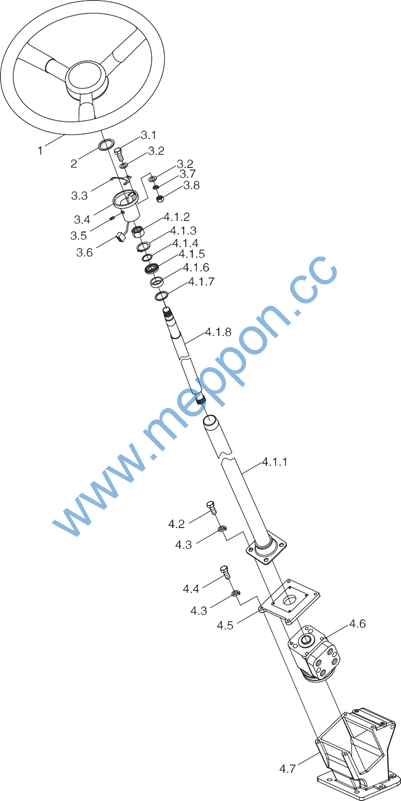

FT704.40G.001 Fully Hydraulic Steering Assembly–1
E40–1–1
