TD800.503C 50.3-进出油管总成 50.3-OIL INLET/OUTLET PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q673B155

钢带型弹性环箍

CLAMP

2

2011-11_

10

GBT6170-M8-A0P

1型六角螺母

NUT

2



11

TD800.503A-01

安装支架

INSTALLATION BRACKET

1

2011-11_

12

FT800A.50.061a

旋装柴滤器总成

FUEL FILTER ASSEMBLY

1

2011-11_

13

TD800.503A.1

出油管总成

OIL OUTLET PIPE ASSEMBLY

1

2011-11_

2

FT800A.50P.101a

回油管

OIL RETURN PIPE

1



2

FT700.50G.121

回油管

OIL RETURN PIPE

1

2008-08_

3

FT65.50.106

空心螺栓

HOLLOW BOLT

2

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

5

FT800A.50.162

油管接头

JOINT

1

2011-11_

6

TD800.503C.1

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

6

TD800.503C.1

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

8

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

9

GBT93-8-A0P

垫圈

WASHER

2

2011-11_








FT800.53.001 53-拖挂装置总成 53-TOW EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

FT800.53.101a FT800.53.102 FT800.53.111

GBT899-GM16-M16X75-8.8-A2L GBT93-16-AOP



GBT6170-M16-A2L

拖挂架 连接销轴弹簧锁销双头螺柱垫圈



螺母

TOW BRACKET CONNECTING PIN SHAFT SPRING LOCK PIN

8.8-A3L STUD WASHER



NUT

1

1

1

6

6



6

2011-11_

2011-11_

2011-11_

2011-11_

2004-01_



2011-11_







TD800.55 55-提升器总成 55-LIFTER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

0

12

19

TD800.55-1 TD800.55-2

GBT899-GM16-M16X80-8.8-A3L JBZQ4454-16X20

55.1-提升器总成-1

55.2-提升器总成-2双头螺柱

密封垫

LIFTER ASSEMBLY-1 LIFTER ASSEMBLY-2 8.8-A3L STUD

SEAL GASKET

0

0

12

1

2011-11_

2011-11_

2011-11_

2011-11_

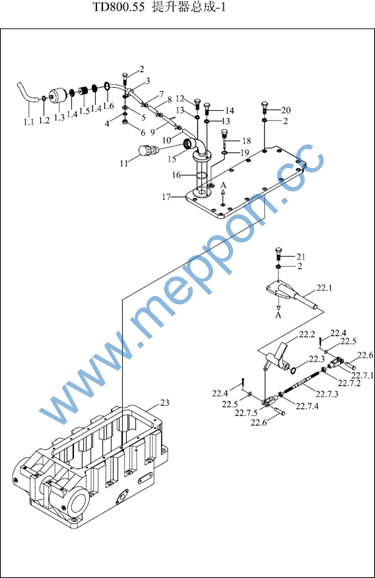

TD800.55-1 55.1-提升器总成-1 LIFTER ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.55.6a

呼吸器总成



1

2011-11_

1.1

FT800.55A.126

呼吸软管

BREATH HOSE

1

2011-11_

1.2

ZBJ15001-d16

卡箍

CLAMP HOOP

1

2011-11_

1.3

FT650.40.160

呼吸器体

BREATHER BODY

1

2011-11_

1.4

FT650.40.167

座板

SEAT PLATE

1

2011-11_

1.5

FT65.55.129

呼吸器滤芯

BREATH FILTER ELEMENT

1

2011-11_

1.6

GBT893.1-26

孔用弹性挡圈

SNAP RING

1

2011-11_

10

TD800.55.3-01

连接胶管

CONNECTING RUBBER PIPE

1

2011-11_

11

TA700.55A.7

螺塞总成

PLUG,THREADED

1

2012-06_

11

FT300.55B.029

油管塞总成

OIL PIPE PLUG ASSEMBLY

1

2011-11_

12

GBT5781-M8X25-A2L

六角头螺栓

BOLT

1

2004-01_

13

GBT93-8-AOP

垫圈

WASHER

15

2011-11_

14

GBT5781-M8X35-A3L

六角头螺栓

BOLT

1

2011-11_

15

FT800.55A.014

加油口总成

FILLING CAP ASSEMBLY

1

2011-11_

16

GBT3452.1-34.5X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

17

TD800.55-115

上盖板

UPPER COVER PLATE

1

2011-11_

18

FT800.55A.011

油位标尺总成

DIPSTICK ASSEMBLY

1

2011-11_

19

FT700.58.909

回油滤油器支架

OIL RETURN FILTER BRACKET

1

2010-05_

2

GBT5783-M6X25-8.8-A2L

六角头螺栓

BOLT

1

2004-01_

20

GBT5781-M8X30-A3L

六角头螺栓

BOLT

11

2011-11_

21

GBT5781-M8X40-A3L

六角头螺栓

BOLT

4

2011-11_

21

GBT5781-M8X40-A3L

六角头螺栓

BOLT

4

2011-11_

22

TD800.55.2a

反馈机构总成

FEEDBACK MECHANISM ASSEMBLY

1

2009-04_

22

TD800.55.2

反馈机构总成

FEEDBACK MECHANISM ASSEMBLY

1

2008-06_

22.1

TD800.55.2.3

支座总成

SEAT ASSEMBLY

1

2011-11_








TD800.55-1 55.1-提升器总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

22.2

TD800.55.2.1a

摇臂焊合

ROCKER WELDMENT

1

2009-11_

22.2

TD800.55.2.1

摇臂焊合

ROCKER WELDMENT

1



22.3

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

22.4

GBT91-3.2X16-A0P

开口销



1

2004-01_

22.5

GBT97.1-8

垫圈

WASHER

2

2011-11_

22.6

GBT882-B8X30-A3L

销轴

PIN

2

2011-11_

22.7

TD800.55.2.2

调节拉杆总成

ADJUSTING PULL ROD ASSEMBLY

1

2011-11_

22.71

TD800.55.2.2-01

右旋拉杆叉

RIGHT REVOLVING PULL ROD FORK

1

2011-11_

22.73

TD800.55.2.2-02

调节杆

ADJUSTING ROD

1

2011-11_

22.75

TD800.55.2.2-03

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

1

2011-11_

22.75

TD800.55.2.2-03

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

1

2011-11_

23

FT800.55A.015

提升器壳体压装总成

LIFTER HOUSING ASSEMBLY

1

2011-11_

3

TD800.55.7

管夹

PIPE CLAMP

2

2011-11_

3

TD800.55.7

管夹

PIPE CLAMP

2

2011-11_

4

GBT93-6-A0P

垫圈

WASHER

1

2011-11_

5

GBT97.1-6-A0P

平垫圈

WASHER

1

2011-11_

6

GBT6170-M6-A2L

螺母

NUT

1

2011-11_

7

Q67522

C型蜗杆传动式软管环箍

C-TYPE WORM TRANSMISSION HOSE CLAMP

4

2011-09_

7

Q67512

软管环箍

HOSE RING HOOP

4

2004-01_

8

TF1004.55-07

连接胶管

CONNECTING RUBBER PIPE

1

2011-11_

9

TF1004.55.7

3通

TEE

1

2011-11_

9

TF1004.55.7

3通

TEE

1

2011-11_

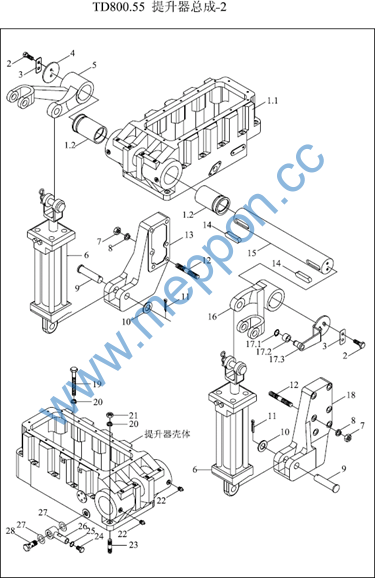

TD800.55-2 55.2-提升器总成-2 LIFTER ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.55A.015

提升器壳体压装总成

LIFTER HOUSING ASSEMBLY

1

2011-11_

1.1

FT800.55A.103

提升器壳体

LIFTER HOUSING

1

2011-11_

1.2

FT800.55A.111

铜轴套

COPPER SHAFT SLEEVE

2

2011-11_

10

FT800.55A.105

垫圈

WASHER

2

2011-11_

11

GBT91-6X40-A0P

开口销



2

2011-11_

11

GBT91-6X40-A0P

开口销



2

2011-11_

13

FT800.55A.104c

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2011-11_

13

FT800.55A.104

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2004-01_

13.1

FT800.55A.104b

左油缸支架

LEFT OIL CYLINDER BRACKET

1

2011-11_

14

GBT1096-20X80

平键

FLAT KEY

2

2011-11_

14

GBT1096-20X80

平键

FLAT KEY

2

2011-11_

15

FT800.55A.107

提升轴

LIFTING SHAFT

1

2011-11_

16

TD800.55.5

右提升臂

RIGHT LIFTING ARM

1

2011-11_

17

TD800.55.1

反馈臂总成

FEEDBACK ARM ASSEMBLY

1

2011-11_

17.1

GBT894.1-20

挡圈20

BLCOKING RING

1

2011-11_

17.2

TD800.55.1-01

滚轮



1

2011-11_

17.3

TD800.55.1.1

反馈臂焊合

FEEDBACK ARM WELDMENT

1

2011-11_

18

FT800.55A.114c

右油缸支架

RIGHT OIL CYLINDER BRACKET

1

2011-11_

18.1

FT800.55A.114b

右油缸支架

RIGHT OIL CYLINDER BRACKET

1

2011-11_

19

GBT5782-M12X140-A3L

六角头螺栓

BOLT

10

2011-11_

2

GBT5783-M10X20-A3L

螺栓



4

2011-11_

20

GBT93-12-AOP

垫圈

WASHER

13

2011-11_

21

GBT6170-M12-A3L

螺母

NUT

3

2011-11_

22

JBT7940.1-M10X1

直通式压注油杯

STRAIGHT PRESSURE FILLING OIL CUP

2

2011-11_

23

GBT899-GM12-M12X45-8.8-A3L

双头螺柱

8.8-A3L STUD

3

2011-11_
