TF1204.40-1 40.1-全液压转向总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

TF1004.40D.13

高压输油胶管长

HIGH PRESSURE OIL HOSE (LENGTH 550)

2

2011-11_

6

TF1204.40.3

转向油缸进油管总成1

STEERING CYLINDER OIL INLET PIPE ASSEMBLY

1

2011-11_

7

TF1204.40.4

转向油缸进油管总成2

(1)

1

2011-11_

8

TD804.40C.1

油缸右出油软管总成

STEERING CYLINDER OIL INLET PIPE ASSEMBLY

1

2011-11_

9

TF1004.40A.11

转向胶管总成

(2)

1

2011-11_


OIL OUTLET HOSE ASSEMBLY OF CYLINDER 、




RIGHT




STEERING RUBBER HOSE ASSEMBLY

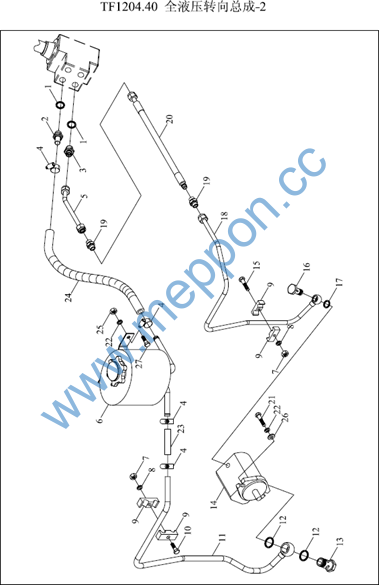

TF1204.40-2 40.2-全液压转向总成-2 40FULL HYDRAULIC STEERING ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

JBT982-20

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

10

GBT5783-M8X40-8.8-A2L

六角头螺栓

BOLT

1

2011-11_

11

TF1204.40.1

油泵进油钢管总成

OIL PUMP INLET STEEL PIPE ASSEMBLY

1

2011-11_

12

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

12

JBT982-27

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

13

TG1204.581-01

空心螺栓

HOLLOW BOLT

1

2011-11_

14

TG1204.402C.8

转向泵总成

STEERING PUMP ASSEMBLY

1

2011-11_

15

GBT5782-M8X40-8.8-A2L

六角头螺栓

BOLT

1

2011-11_

16

FT700.40G.109

空心螺栓

HOLLOW BOLT

1

2011-11_

17

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

17

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

1

2011-11_

18

TF1204.40.2

油泵出油钢管总成

OIL PUMP OUTLET STEEL PIPE ASSEMBLY

1

2011-11_

19

GBT3737.2-G12

直通接头体

STRAIGHT THREAD JOINT

2

2011-11_

2

TF1004.40A.8

回油钢管总成

OIL RETURNING TUBE ASSEMBLY

1

2011-11_

20

TF1204.40.9

转向器进油胶管

REDIRECTOR OIL INLET RUBBER PIPE

1

2011-11_

20

TF1204.40.9

转向器进油胶管

REDIRECTOR OIL INLET RUBBER PIPE

1

2011-11_

21

GBT5783-M10X30-8.8-A3L

六角头螺栓

BOLT

2

2011-11_

22

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

23

TF1204.40A-01

进油软管

OIL INLET HOSE

1

2013-04_

23

FT800A.40L.101

进油软管

OIL INLET HOSE

1

2011-11_

24

TF1204.40-01

转向器回油胶管

REDIRECTOR OIL RETURN RUBBER PIPE

1

2011-11_

25

GBT6170-M10-8-A3L

1型六角螺母

NUT

2

2011-11_

26

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

27

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2

2011-11_

27

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2

2011-11_








TF1204.40-2 40.2-全液压转向总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

TF1004.40A-07

卡套式端直通接头体

STRAIGHT PIPE JOINT BODY

1

2011-11_

4

Q67627

软管环箍27

HOSE HOOP 27

4

2011-11_

5

TF1004.40A.5

右进油短钢管总成

RIGHT OIL INLET SHORT STEEL PIPE ASSEMBLY

1

2011-11_

6

TF1204.40.8

转向油箱和呼吸器总成

STEERING OIL TANK AND BREATHER

1

2011-11_

7

GBT6170-M8-8-A2L

Ⅰ型六角螺母

ASSEMBLY

2

2011-11_


I-TYPE HEXAGON NUT



8

GBT93-8-A0P

垫圈



2

2011-11_

9

TG1204.402C-05

双孔管夹

WASHER

4

2011-11_


DOUBLE-HOLE PIPE CLIP

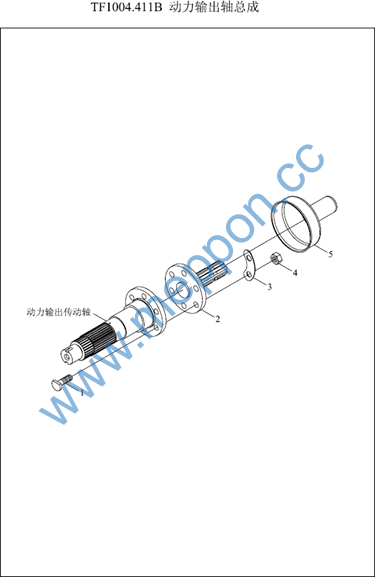

TF1004.411B 41.1-动力输出轴总成 41.1-PTO SHAFT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.143

动力输出轴连接螺栓

PTO SHAFT CONNECTING BOLT

6

2011-11_

2

FT800A.41D.107

Ⅱ35型动力输出轴

Ⅱ35 PTO SHAFT

1

2011-11_

3

FT800A.41.144

锁片

LOCK SHIM

3

2011-11_

4

GBT6176-M14X1.5-A3L

2型六角螺母

HEXAGON NUT, TYPE-2

6

2011-11_

5

TF1004.411B-01

动力输出轴头护罩

PTO SHAFT HOOD SHIELD

1

2006-03_

5

TD800.411A-02

动力输出轴头护罩

PTO SHAFT HOOD SHIELD

1

2009-02_

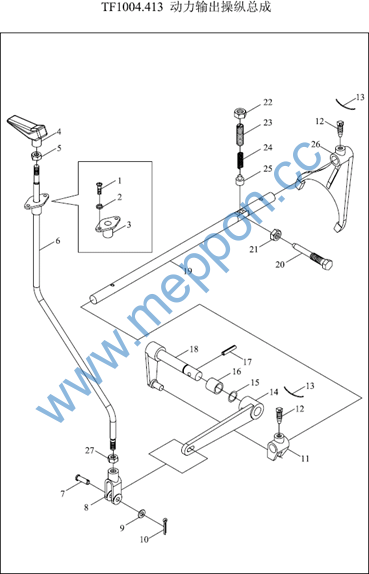

TF1004.413 41.3-动力输出操纵总成 41.3-PTO CONTROL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT818-M6X10-A2L

十字槽盘头螺钉

SCREW

2

2011-11_

10

GBT91-3.2X20-A0P

开口销

PIN

1

2011-11_

10

GBT91-3.2X20-A0P

开口销

PIN

1

2011-11_

11

FT800.41.240

拨头

FORK HEAD

1

2011-11_

12

FT800.37.194

紧定螺钉

LOCKING SCREW

2

2011-11_

13

TD904.421.2-04

锁紧钢丝

LOCKING STEEL WIRE

2

2011-09_

13

GBT3081-Ⅰ-1.4X100

热镀锌钢丝

ZINC-COATED STEEL WIRE

2

2011-11_

14

TF1004.413.2

动力输出摇臂焊合

PTO ROCKER WELDMENT

1

2011-11_

15

GBT3452.1-17.0X1.80G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

16

TF1004.413-05

隔套

SPACER BUSH

1

2011-11_

17

GBT879.1-8X35

弹性圆柱销

PIN

1

2011-11_

18

TF1004.413.1

动力输出内摇臂焊合

PTO INNER ROCKER WELDMENT

1

2011-11_

19

TF1004.413-01a

动力输出拨叉轴

PTO FORK SHAFT

1

2010-02_

19

TF1004.413-01

动力输出拨叉轴

PTO FORK SHAFT

1

2004-01_

2

GBT93-6-A0P

垫圈

WASHER

2

2011-11_

20

TF1004.413-04

拨叉轴调节螺栓

ADJUSTING BOLT OF FORK SHAFT

1

2004-01_

20

TF1004.413-04a

拨叉轴调节螺栓

ADJUSTING BOLT OF FORK SHAFT

1

2004-01_

20

TF1004.413-04b

拨叉轴调节螺栓

ADJUSTING BOLT OF FORK SHAFT

1

2011-05_

21

GBT6172.1-M14-A3L

六角薄螺母

NUT

1

2011-11_

22

GBT6172.1-M16-A3L

螺母

NUT

1

2011-11_

23

GBT71-M16X30-8.8-A3L

开槽锥端紧定螺钉

SCREW

1

2011-11_

24

FT800.41.246

锁定销弹簧

LOCKING PIN SPRING

1

2011-11_

24

FT800.41.246

锁定销弹簧

LOCKING PIN SPRING

1

2011-11_

25

FT800.41.245

锁定销

LOCKING PIN

1

2011-11_

26

TF1004.413-02

动力输出高低档拨叉

PTO HIGH AND LOW GEAR FORK

1

2011-11_








TF1004.413 41.3-动力输出操纵总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

27

GBT6170-M10-A3L

螺母

NUT

1

2011-11_

3

TF1004.413-06

密封衬座

SEAL LINER SEAT

1

2011-11_

4

TG1204.435.3

把手总成

HANDLE ASSEMBLY

1

2011-11_

5

GBT6171-M10X1-A2L

螺母

NUT

1

2011-11_

6

TF1004.413-03

动力输出操纵杆

PTO CONTROL ROD

1

2011-11_

7

GBT882-B8X26-A0P

销轴

PIN

1

2011-11_

8

FT804.42.150

拉杆前叉

PULL ROD FRONT FORK

1

2011-11_

9

GBT97.1-8-A0P

平垫圈

WASHER

1

2011-11_

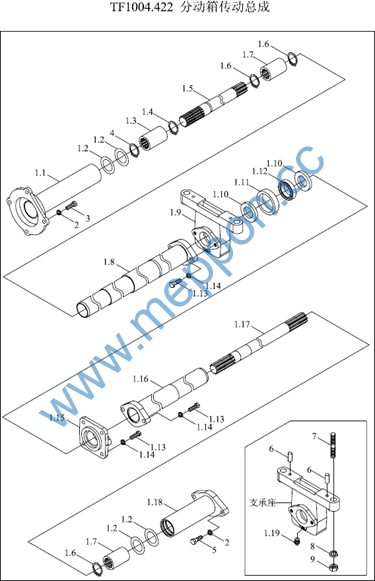

TF1004.422 42.2-分动箱传动总成 42.2-TRANSFER CASE TRANSMISSION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TF1004.422.1

分动箱传动轴装配

TRANSFER CASE TRANSMISSION SHAFT

1

2011-11_

1.1

TF1004.422.1.4

外护套焊合（二）

INSTALLATION

1

2011-11_

1.1

GBT9877.1-B30X52X7F

内包骨架旋转轴唇形密封

OUTER SLEEVE WELDMENT (2)

2

2011-11_

1.11

FT804.42.128

橡胶圈

O RING

1

2011-11_

1.12

GBT276-6006

轴承

RUBBER RING

1

2011-11_


BEARING



1.14

GBT93-10-A0P

标准型弹簧垫圈



8

2011-11_

1.15

FT804.42.127

支承座盖

WASHER

1

2011-11_

1.16

TF1004.422.1.2

内护套焊合（一）

SUPPORT SEAT COVER

1

2011-11_

1.17

TF1004.422.1-01

中间传动轴

INNER SLEEVE WELDMENT (1)

1

2011-11_

1.18

TF1004.422.1.1

外护套焊合（一）

MIDDLE TRANSMISSION SHAFT

1

2011-11_


OUTER SLEEVE WELDMENT (1)



1.19

JBT7940.1-M10X1

直通式压注油杯



1

2011-11_

1.2

GBT3452.1-45.0X3.55G

液压气动用O形橡胶密封圈

STRAIGHT PRESSURE FILLING OIL CUP

4

2011-11_

1.3

TF1004.422.1-03

花键套

O-SEAL RING

1

2011-11_

1.4

GBT894.1-32

轴用弹性挡圈

SPLINE BUSH

1

2011-11_

1.5

TF1004.422.1-02

前传动轴

SNAP RING

1

2011-11_


FRONT TRANSMISSION SHAFT



1.6

GBT894.1-30

挡圈



3

2011-11_

1.7

FT804.42.123a

花键套

RETAINER RING

2



1.7

FT804.42.123b

花键套

SPLINE BUSH

2

2008-12_

1.7

TF1004.422.1-05

花键套

SPLINE BUSH

2

2009-03_

1.8

TF1004.422.1.3

内护套焊合（二）

SPLINE BUSH

1

2011-11_


INNER SLEEVE WELDMENT (2)



1.9

TF1004.422.1-04

支承座



1

2011-11_

2

GBT93-10-A0P

标准型弹簧垫圈

SUPPORTING SEAT

6

2011-11_

3

GBT5781-M10X25-A3L

六角头螺栓

WASHER

4

2011-11_

4

GBT894.1-32

轴用弹性挡圈

BOLT

1

2011-11_

5

GBT5781-M10X30-A3L

六角头螺栓

SNAP RING

2

2004-01_
