LOVOL 554 604 Tractor Parts Catalogue 15

Meppon Parts Posted on by

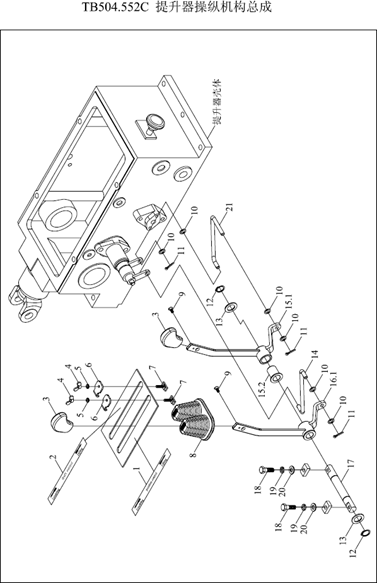

TB504.552C 55.2-提升器操纵机构总成 55.2-LIFTER CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB504.552A-05

位调节标识

POSITION ADJUSTING SIGN

1

2011-11_

10

GBT95-8-A0P

平垫圈

WASHER

4

2011-11_

11

GBT91-2X16-A0P

开口销

PIN

4

2011-11_

12

GBT894.1-18

挡圈

RETAINER RING

2

2011-11_

13

TB504.552A-03

尼龙垫圈

NYLON WASHER

1

2011-11_

14

TB504.552A.3

连杆焊合

CONNECTING ROD WELDMENT

1

2004-01_

14

TB504.552A.3a

连杆焊合

CONNECTING ROD WELDMENT

1

2010-04_

15

TB504.552A.2

提升器左操纵压合

LIFTER LEFT CONTROL PRESSURE UNIT

1

2004-01_

15

TB504.552A.2b

提升器左操纵压合

LIFTER LEFT CONTROL PRESSURE UNIT

1

2011-09_

15

TB504.552A.2a

提升器左操纵压合

LIFTER LEFT CONTROL PRESSURE UNIT

1

2010-04_

15.1

TB504.552A.2b.1

提升器左操纵焊合

LIFTER LEFT CONTROL WELDMENT

1

2011-09_

15.2

TB504.552A.1-01

尼龙隔套

NYLON SPACER BUSH

1

2011-11_

16

TB504.552A.1a

提升器右操纵压合

LIFTER RIGHT CONTROL PRESSURE UNIT

1

2010-04_

16

TB504.552A.1

提升器右操纵压合

LIFTER RIGHT CONTROL PRESSURE UNIT

1

2004-01_

16

TB504.552A.1b

提升器右操纵压合

LIFTER RIGHT CONTROL PRESSURE UNIT

1

2011-09_

16.1

TB504.552A.1b.1

提升器右操纵焊合

LIFTER RIGHT CONTROL WELDMENT

1

2011-09_

16.2

TB504.552A.1-01

尼龙隔套

NYLON SPACER BUSH

1

2011-11_

17

TB504.552A-01

转轴

ROTATING SHAFT

1

2011-11_

18

GBT5783-M8X35-8.8-A2L

六角头螺栓

BOLT

2

2011-11_

19

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

2

TB504.552A-04

力调节标识

FORCE ADJUSTING SIGN

1

2011-11_

20

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

21

TB504.552C.3

连杆焊合

CONNECTING ROD WELDMENT

1

2004-01_

21

TB504.552C.3a

连杆焊合

CONNECTING ROD WELDMENT

1

2010-04_

3

TB504.552-04

手柄头总成

HANDLE HEAD ASSEMBLY

2

2011-11_






TB504.552C 55.2-提升器操纵机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

4

5

6

7

8



8

9

GBT62-M5-A2L GBT93-5-A0P TB504.552-03 TB504.552.5 TB504.552A-02



TB504.552A-02a GBT68-M4X10-A2L

蝶形螺母

标准型弹簧垫圈限位板

限位螺栓焊合防尘套



防尘套

开槽双头螺钉

BUTTERFLY NUT WASHER

LIMIT PLATE

LIMITING BOLT WELDMENT DUST COVER



DUST COVER

2

2

2

2

1



1

2

2011-11_

2011-11_

2011-11_

2011-11_

2009-12_



2011-09_

2011-11_

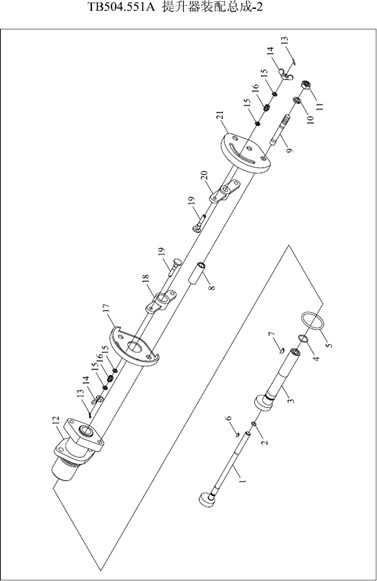

TB504.551A-2 55.2-提升器装配总成-2 LIFTER INSTALLATION ASSEMBLY-7-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

TB504.551A.1a

提升器总成

LIFTER ASSEMBLY

1

2011-11_

0.1

TB504.551B.1.1

分配器操纵机构总成

DISTRIBUTOR CONTROL MECHANISM ASSEMBLY

1

2011-11_

0.3

TB504.551A.1.1

分配器操纵机构总成

DISTRIBUTOR CONTROL MECHANISM ASSEMBLY

1

2010-04_

1

TB504.551.1.1.4

力调节偏心轮焊接总成

FORCE ADJUSTING ECCENTRIC WHEEL

1

2011-11_

10

GBT93-10-A0P

标准型弹簧垫圈

WELDMENT ASSEMBLY

2




WASHER



11

GBT6170-M10－A3L

1型六角螺母



2



12

TB504.551.1.1-01

支座

NUT

1

2011-11_

13

GBT91-2×12

销 2×12

RETAINER

2



14

GBT62-M6-A2L

蝶形螺母

PIN

2



15

GBT96-6-A0P

垫圈6-A0P

BUTTERFLY NUT

4




WASHER



16

25.55.131

手柄压紧弹簧



2

2011-11_

17

TB504.551B.1.1-02

位调节扇形板

HANDLE PRESSING SPRING

1

2011-11_

18

TB504.551.1.1.1

位调节摇臂焊合

POSITION ADJUSTING SECTOR PLATE

1

2011-11_

19

FT65.57.103

手柄压紧螺钉

POSITION ADJUSTING ROCKER WELDMENT

2

2011-11_

2

GBT3452.1-6.9X1.80G

液压气动用O形橡胶密封圈

HANDLE PRESSING SCREW

1




O-SEAL RING



20

TB504.551.1.1.2

力调节摇臂焊合



1

2011-11_

21

TB504.551B.1.1-01

力调节扇形板

FORCE ADJUSTING ROCKER WELDMENT

1

2011-11_

3

TB504.551.1.1.3

位调节偏心轮焊接总成

FORCE ADJUSTING SECTOR PLATE

1

2011-11_

4

GBT3452.1-17.0X1.80G

液压气动用O形橡胶密封圈

POSITION ADJUSTING ECCENTRIC WHEEL

1



5

GBT3452.1-41.2X3.55G

液压气动用O形橡胶密封圈

WELDMENT ASSEMBLY

1




O-SEAL RING



6

GBT1099.1-2.5X3.7X10

半圆键

O-SEAL RING

1



7

GBT1099.1-3X5X13

半圆键



1



8

TB504.551.1.1-04

隔套

SEMICIRCLE KEY

2

2011-11_

9

GBT898-M10X65-A2L

双头螺柱

SEMICIRCLE KEY

2



9

GBT898-M10X65-A2L

双头螺柱

SPACER BUSH

2

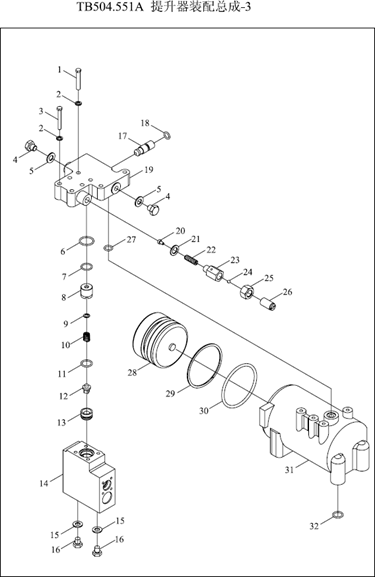

TB504.551A-3 55.3-提升器装配总成-3 LIFTER INSTALLATION ASSEMBLY-7-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.2

TB504.551A.1a

提升器总成

LIFTER ASSEMBLY

1

2011-11_

1

GBT5782-M8X45

六角头螺栓

BOLT

4

2011-11_

10

T30.57.144B

单向阀弹簧

ONE-WAY VALVE SPRING

1

2011-11_

11

GBT3452.1-19X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

12

T30.57.142B

单向阀体

ONE-WAY VALVE BODY

1

2011-11_

13

T30.57.143B

单向阀座

ONE-WAY VALVE SEAT

1

2011-11_

14

KM550.55.120E

分配器壳体

DISTRIBUTOR HOUSING

1

2011-11_

15

JBT982-10

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

15

JBT982-10

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

16

JBT1000-M10X1

六角螺塞

HEXAGON SCREW PLUG

2

2011-11_

17

FT500B.55.246

截断阀

INTERCEPTING VALVE

1

2011-11_

18

GBT3452.1-11.8X2.65

O形密封圈

O RING

1

2011-11_

18

GBT3452.1-11.8X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

19

FT500B.55.107

分配器支座

DISTRIBUTOR SUPPORT SEAT

1

2011-11_

2

GBT93-8

垫圈8

WASHER 8

8

2011-11_

20

TS300B.55.211

安全阀弹簧座

SPRING SEAT OF SAFETY VALVE

1

2011-11_

21

TS300B.55.210

铝垫片

ALUMINUM GASKET

1

2011-11_

22

12.55.218

安全阀弹簧

SAFETY VALVE SPRING

1

2011-11_

23

TS300B.55.209

安全阀体

SAFETY VALVE BODY

1

2011-11_

24

GBT308-φ6Ⅱ

钢球

BALL

1

2011-11_

25

GBT6173-M16X1.5

六角螺母

HEXAGON NUT

1

2011-11_

26

TS300B.55.251

调压螺柱

SCREW

1

2011-11_

27

GBT3452.1-13.2X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

28

KM550.55.023

活塞总成

PISTON

1

2011-11_

29

520.55.143

挡圈

RETAINER RING

1

2011-11_






TB504.551A-3 55.3-提升器装配总成-3(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

GBT5782-M8X50

六角头螺栓

BOLT

4

2011-11_

30

GBT3452.1-90X5.3

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

31

FT500B.55.106

油缸体

OIL CYLINDER BODY

1

2011-11_

32

GBT3452.1-17X2.65

O型圈

O-RING

4

2011-11_

4

JBT1000-M12X1.5

六角螺塞

HEXAGON SCREW PLUG

2

2011-11_

5

JBT982-12

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

6

GBT3452.1-25.7X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

6

GBT3452.1-25.7X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

7

GBT1235-24X2.4

O形圈

O-RING

1

2011-11_

8

YT300A.55.124

单向阀套

ONE-WAY VALVE SLEEVE

1

2011-11_

9

T30.57.164

单向阀体垫

ONE-WAY VALVE BODY GASKET

1

2011-11_

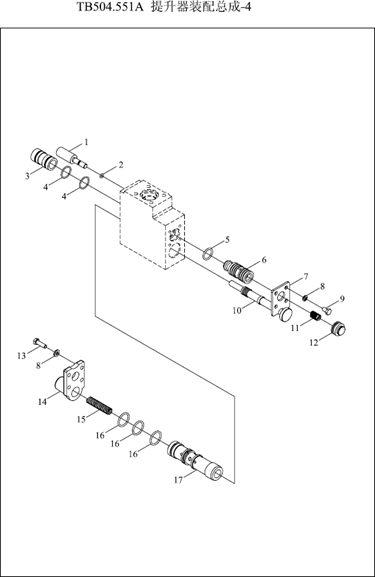

TB504.551A-4 55.4-提升器装配总成-4 LIFTER INSTALLATION ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.2

TB504.551A.1a

提升器总成

LIFTER ASSEMBLY

1

2011-11_

1

TS300B.55.187

调节阀

ADJUSTING VALVE

1

2011-11_

10

TS300.55.172

主控制阀

MAIN CONTROL VALVE

1

2011-11_

11

25.55.184

回油阀弹簧

SPRING

1

2011-11_

12

25.55.176

回油阀后堵塞

OIL RETURN VALVE REAR PLUG

1

2011-11_

13

GBT5783-M6X20

螺栓

BOLT

4

2011-11_

14

KR130.55.183

阀门前盖

VALVE FRONT COVER

1

2011-11_

15

25.55.181

主控制阀弹簧

MAIN CONTROL VALVE SPRING

1

2011-11_

16

GBT1235-26X2.4

O形圈

O-RING

3

2011-11_

17

TS300.55.217

主控制阀套

MAIN CONTROL VALVE SLEEVE

1

2011-11_

2

GBT1235-8X1.9

O形圈

O-RING

1

2011-11_

3

KR130.55.105

密封套

SEAL SLEEVE

1

2011-11_

4

GBT3452.1-19X1.8

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

5

GBT1235-22X2.4

O形圈

O-RING

1

2011-11_

6

KR130.55.103

回油阀体

OIL RETURN VALVE BODY

1

2011-11_

7

25.55.180

限位板

LIMIT PLATE

1

2011-11_

8

GBT93-6

垫圈

WASHER

8

2011-11_

9

GBT5783-M6X10

六角头螺栓

BOLT

4

2011-11_

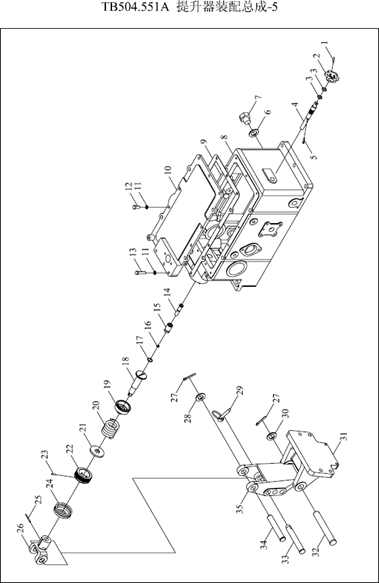

TB504.551A-5 55.5-提升器装配总成-5 LIFTER INSTALLATION ASSEMBLY-5



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.2

TB504.551A.1a

提升器总成

LIFTER ASSEMBLY

1

2011-11_

1

GBT879-4X20

销

PIN

1

2011-11_

10

FT500A.55.104B

提升器上盖

LIFTER UPPER COVER

1

2011-11_

11

GBT93-8

垫圈8

WASHER 8

11

2011-11_

12

GBT5781-M8X20

六角头螺栓全螺纹C级



7

2011-11_

13

GBT5781-M8X35

六角头螺栓全螺纹C级



4

2011-11_

14

25.55.146L

推杆套

PUSH ROD SLEEVE

1

2011-11_

15

25.55.145L

力调节密封套

FORCE ADJUSTING SEAL SLEEVE

1

2011-11_

16

GBT1235-11X1.9

O形圈

O-RING

1

2011-11_

17

GBT3452.1-16X1.8

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

18

25.55.158

弹簧杆

SPRING ROD

1

2011-11_

19

25.55.159

弹簧座

SPRING SEAT

1

2011-11_

2

E300.55.140A

速度下降阀手轮

SPEED DROP VALVE HAND WHEEL

1

2011-11_

2

E300.55.140A

速度下降阀手轮

SPEED DROP VALVE HAND WHEEL

1

2011-11_

20

25.55.157

力调节弹簧

FORCE ADJUSTING SPRING

1

2011-11_

21

25.55.160

弹簧压板

SPRING PRESSURE PLATE

1

2011-11_

22

25.55.161

螺母

NUT

1

2011-11_

23

GBT119-C4X14

圆柱销

PIN

1

2011-11_

24

25.55.162

防尘罩

DUSTPROOF COVER

1

2011-11_

25

GBT119-B3X40

销

PIN

1

2011-11_

26

YT300A.55.121

上拉杆连接头

UPPER PULL ROD CONNECTING JOINT

1

2011-11_

27

GBT91-5X36

销

PIN

2

2011-11_

28

GBT97.1-22

垫圈

WASHER

1

2011-11_

29

25.56.030

锁销及锁销环总成

LOCKING PIN AND RING ASSEMBLY

1

2011-11_

3

GBT3452.1-11.2X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_
