Description

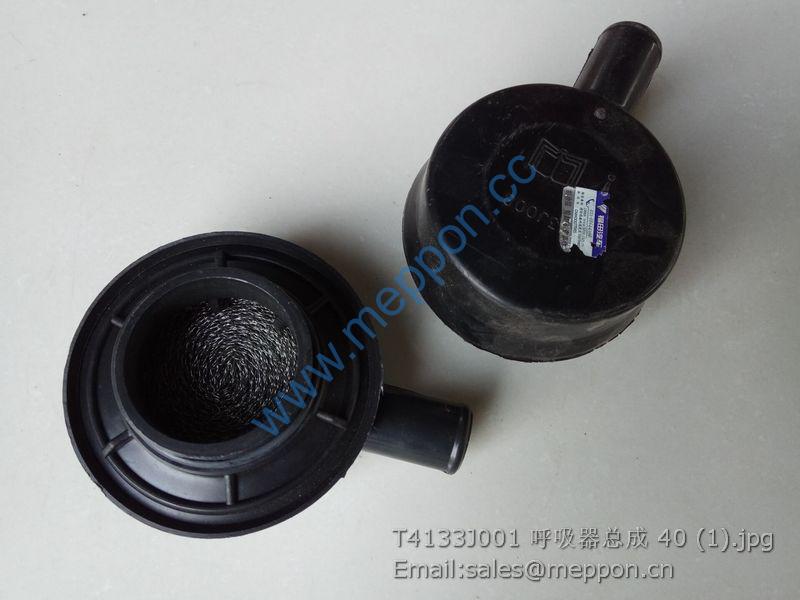

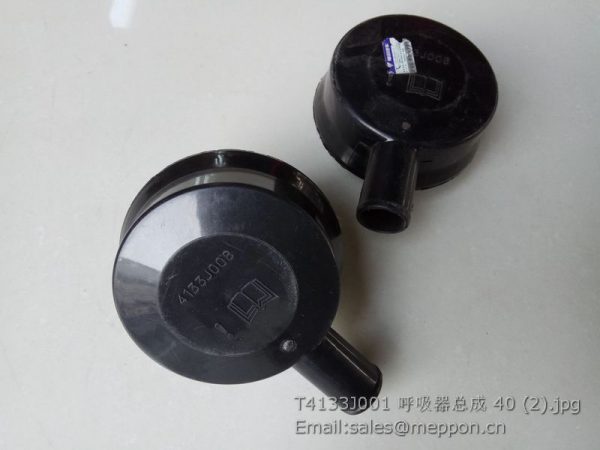

T4133J001 Breather

TS06212010000 Clutch Control Mechanism Assembly 1
1 TS06212010005 Auxiliary Clutch Control Handle Assembly 1
1.1 FT800A.21.045 Button Assembly 1
1.2 FT800A.21.319 Control Handle Sleeve 1
1.3 FT800.43.180 Spring 1
1.4 FT800A.21.315 Push Rod 1
1.5 FT800A.21.320 Guard 1
1.6 GBT 68-M4X10-4.8-A2L Slotted Countersunk Head Screw 4
1.7 FT800A.21.322 Small Pin 1
1.8 FT800A.21.044 Control Handle Assembly 1
1.9 FT800A.21.314 Pawl 1
1.10 GBT 894.1-6 Circlip 1
1.11 FT800A.21.323 Pin 1
1.12 FT800A.21.337a Auxiliary Clutch Pull Rod 1
1.13 FT800A.43.310 Ratchet 1
1.14 GBT 894.1-14 Circlip For Shaft 2
1.15 FT800A.21.321 Pivot 1
1.16 TS06212010003 Fixing Seat Weldment 1
1.17 GBT 97.1-14-A0P Washer 2
2 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 4
3 GBT 93-8-A0P Standard Spring Washer 4
4 GBT 97.1-8-A0P Washer 4
5 GBT 93-10-A0P Standard Spring Washer 4
6 GBT 6171-M10X1-8-A2L Hexagon Nut, Type 1 1
7 FT800.21.240 Front Fork Of Pull Rod 1
8 GBT 882-B10X30 Pivot 1
9 GBT 894.1-30 Circlip For Shaft 1
10 FT800A.21.070 Auxiliary Clutch Support Shaft Welding 1
11 GBT 97.1-10-A0P Plain Washer 1
12 GBT 91-3.2X20-A0P Split Pin 1
13 GBT 5783-M10X30-8.8-A3L Hexagon Head Bolt 4
14 FT800A.21.062a Auxiliary Clutch Hub Combination 1

14.1 TG1654.212B.1-01 Bushing 2
14.2 FT800A.21.338a Auxiliary Clutch Hub 1
15 GBT 97.1-30-A0P Plain Washer 1
16 TD800.452-09 Seal Sleeve 1

TS06212010000 Clutch Control Mechanism Assembly 1
1 GBT 882-B10X30 Pivot 3
2 FT800.21.241 Rear Fork Of Pull Rod 1
3 GBT 97.1-10-A0P Plain Washer 4
4 GBT 91-3.2X20-A0P Split Pin 4
5 FT800A.21.059a Auxiliary Clutch Pull Rod Welding 1
6 GBT 6171-M10X1-8-A2L Hexagon Nut, Type 1 1
7 FT800.21.028 Auxiliary Clutch Rocker Shaft Welding 1
8 FT800.21.240 Front Fork Of Pull Rod 2
9 JBT 7940.1-M8X1 Straight Hydraulic Grease Nozzle 4
10 GBT 5783-M10X60-8.8-A2L Hexagon Head Bolt 1
11 FT800.21.212 Limit Seat 1
12 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 2
13 GBT 93-10-A0P Standard Spring Washer 4
14 FT800.21.204 Main Clutch Fork 1
15 FT800.21.239 Fastening Screw 2
16 TA800.212B-02 Low-Carbon Steel Wire Sz-1.4 2
17 FT800.21.213 Cylindrical Pin 2
18 FT800.21C.205 Main Clutch Release Bearing Block 1
19 FT800.21.203 Auxiliary Clutch Yoke 1
20 FT800.21.215 Auxiliary Clutch Return Spring 2
21 FT800.21c.202a Auxiliary Clutch Bearing Block 1
22 JBT 982-8 Compound Seal Washer 8
23 TA820.213-10 Release Bearing Ntm8842 1
24 TD800.311C.1-01 Oil Cup Dust Cap 4
25 FT800A.21.388 Hollow Bolt 4
26 TA800.212-02 Thrust Bearing 996713 1
27 FT800A.21.058a Main Clutch Rocker Arm Shaft Welding 1
28 FT800A.21.080 Middle Lever Weldment 1
29 FT800A.21.383 Return Spring 1
30 FT800.21.207 Adjustment Screw 1
31 GBT 6170-M8-8-A2L Hexagon Nut, Type 1 3

32 GBT 6172.1-M12-04-A3L Hexagon Thin Nut 4
33 FT800A.21.387 Lubricating Oil Pipe 4
34 GBT 6170-M10-8-A3L Hexagon Nut, Type 1 1
35 TS07212010009 Return Spring Fixing Plate 1

TS06212010000 Clutch Control Mechanism Assembly 1
1 GBT 894.1-30 Circlip For Shaft 1
2 FT800A.21.373 Return Spring 1
3 TS06212010007 Clutch Rocker Arm Unit 1
3.1 TG1654.212B.1-01 Bushing 2
3.2 TS06212010001 Clutch Rocker Arm Weldment 1
4 GBT 6170-M8-8-A2L Hexagon Nut, Type 1 2
5 GBT 93-8-A0P Standard Spring Washer 8
6 GBT 97.1-8-A0P Plain Washer 1
7 FT800A.21.049 Clutch Pedal Support Shaft Weldment 1
8 GBT 5783-M8X55-8.8-A2L Hexagon Head Bolt 1
9 GBT 91-3.2X20-A0P Split Pin 2
10 GBT 97.1-10-A0P Plain Washer 1
11 FT800A.21.352 Short Pull Rod 1
12 GBT 6171-M10X1-8-A2L Hexagon Nut, Type 1 1
13 FT800A.21.353 Middle Lever 1
14 GBT 6171-M10X1-LH-8-A2L Hexagon Nut, Type 1 3
15 FT800A.21.060 Main Clutch Long Pull Rod Weldment 1
16 FT800A.21.072 Transit Lever Pressed Unit 1
16.1 FT800A.21.073 Transit Lever Weldment 1
16.2 FT800A.21.380 Supporting Shaft Bushing 2
17 FT800A.21.074 Transit Lever Supporting Shaft Weldment 1
18 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 1
19 FT800.43.030 Adjusting Screw Unit 1
20 GBT 6170-M10-8-A3L Hexagon Nut, Type 1 1
21 FT800A.43B.119 Left -Hand Pull Rod Fork 1
22 GBT 97.1-12-A0P Plain Washer 2
23 GBT 882-B12X30 Pivot 1
24 GBT 882-B10X30 Pivot 1
25 GBT 5782-M10X45-10.9-A3L Hexagon Head Bolt 6
26 GBT 119.1-10m6X26-A0P Cylindrical Pin 2
27 GBT 93-10-A0P Standard Spring Washer 1
28 GBT 97.1-30-A0P Plain Washer 2
29 JBT 7940.1-M8X1 Straight Hydraulic Grease Nozzle 2
30 TD800.311C.1-01 Oil Cup Dust Cap 2
