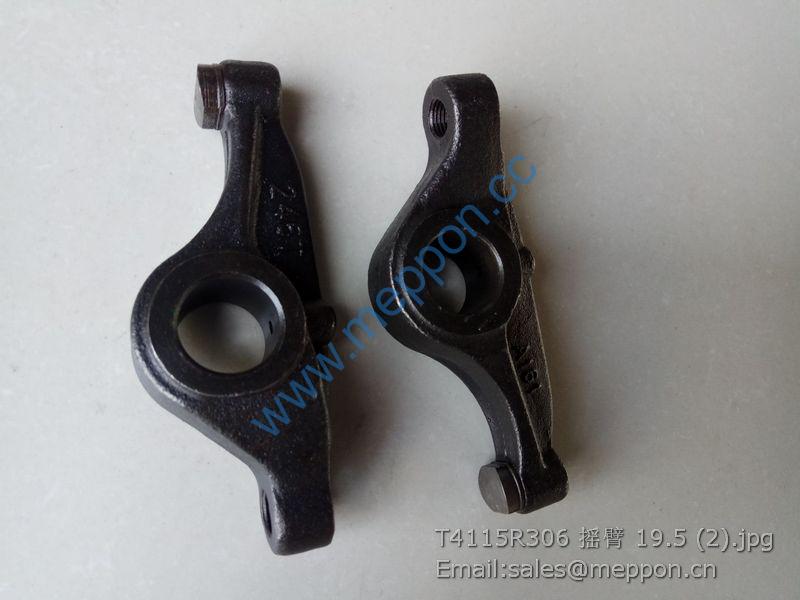

T4115R306 LEFT ROCKER LOVOL TRACTOR PARTS
TS06110070000 Air Filter System Assembly 1
1 TD820.11.1.2 Air Preheater 1
2 TD900.11B.2 Air Intake Pipe Clip Assembly 1
2.1 GBT6170-M10-8-A3L Hexagon Nut, Style 1 4
2.2 GBT93-10-A0P Standard Spring Washer 4
2.3 TD900.11A.2.1 Pipe Clip Weldment 1
2.4 TD900.11B.2.1 Pipe Clip And Installation Plate Weldment 1
2.5 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 5
2.6 GBT97.1-10-A0P Plain Washer 4
3 TS06110050009 Air Filter Intake Pipe Weldment 1
4 Q676108 Hoop, Worm Drive Hose, Type B 3
5 TS06110050008 Air Filter Intake Hose 1
6 TS06110050013 Oil Bath Type Air Filter Assembly 1
6.1 TD900.11B.1.1.1 Wet Air Filter 1
6.2 TD800.11H.2.1.2 Air Filter Bracket 1
6.3 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 2
6.4 GBT93-8-A0P Standard Spring Washer 2
6.5 GBT6170-M8-8-A2L Hexagon Nut, Style 1 2
7 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 1
8 GBT97.1-10-A0P Plain Washer 3
9 GBT93-10-A0P Standard Spring Washer 2
10 GBT6170-M10-8-A3L Hexagon Nut, Style 1 1
11 TS06110050003 Air Hose 1
12 Q676102 Hoop, Worm Drive Hose, Type B 1
13 TS06110070001 Air Intake Pipe Weldment 1
14 GBT5783-M10X20-8.8-A3L Hexagon Head Bolt 1
15 Q67683 Hoop, Worm Drive Hose, Type B 2
16 TS06110050004 Air Intake Hose 1
17 TD1100.11D.4 Support Frame Weldment 1
18 GBT93-16-A0P Standard Spring Washer 1
19 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 4
20 GBT93-8-A0P Standard Spring Washer 4
21 GBT97.1-8-A0P Plain Washer 4
22 GBT5783-M14X30-8.8-A3L Hexagon Head Bolt 2
23 GBT93-14-A0P Standard Spring Washer 2
24 GBT5783-M16X30-8.8-A3L Hexagon Head Bolt 1
25 Q67627 Hoop, Worm Drive Hose, Type B 1
TS06131020000 Cooling System Assembly 1
1 Q676B16 C-Type Worm Drive Type Hose Clamp 3
2 TD800.131J-01 Breathing Rubber Pipe 1
3 TK1300200002 Breathing Rubber Pipe 1
4 TD900.131.2 Assistant Water Tank Assembly 1
5 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 2
6 GBT97.1-8-A0P Plain Washer 10
7 GBT93-8-A0P Standard Spring Washer 10
8 GBT6170-M8-8-A2L Hexagon Nut, Style 1 4
9 TS06131020001 Radiator Assembly 1
10 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 6
11 TD800.131-12 Sleeve 2
12 GBT91-2.5X28-A0P Split Pin 2
13 GBT6178-M10-8-A3L Hexagon Slotted Nut, Style 1 2
14 FT650.13.116 Gasket 2
15 TD800.131-11 Rubber Gasket 4
16 Q67670 B-Type Worm Drive Type Hose Clamp 4
17 TD1000.131F-02 Water Tank Outlet Pipe 1
18 TD1000.131F-01 Water Return Pipe 1
19 TS06131010008 Left Protection Plate Weldment 1
20 TS06131010009 Right Protection Plate Weldment 1
21 TS06131010007 Installation Plate 1
22 TS06131010010 Installation Plate 1 1
TS06132010000 Water Tank Base Plate Mounting Assembly 1
1 GBT 5783-M12X25-8.8-A3L Hexagon Head Bolt 2
2 GBT 93-12-A0P Standard Spring Washer 2
3 TS06132010001 Water Tank Base Plate Welding 1
4 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 3
5 GBT 93-10-A0P Standard Spring Washer 3
6 TS06132010005 Pull Rod Unit 2
6.1 TS06132010004 Pull Rod 1
6.2 TS04132010003 Rubber Washer 1
7 GBT 97.1-8-A0P Plain Washer 2
8 GBT 93-8-A0P Standard Spring Washer 4
9 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 2
10 GBT 96.1-8-A0P Large Washer 2
11 GBT 6170-M8-8-A2L Hexagon Nut, Type 1 2
TS06201010000 Hand Throttle Control Assembly 1
1 TS06201010001 Hand Throttle Control Lever Assembly 1
2 GBT 5783-M8X16-8.8-A2L Hexagon Head Bolt 2
3 GBT 93-8-A0P Standard Spring Washer 1
4 TS06201010002 Rotary Shaft Guide Seat 1
5 GBT 5783-M6X20-8.8-A2L Hexagon Head Bolt 1
6 GBT 93-6-A0P Standard Spring Washer 1
7 TS06201010003 Hand Throttle Control Mechanism 1
7.1 TS06201010005 Hand Throttle Control Lever Weldment 1
7.2 TG1204.20A.2-01 Hand Throttle Support Plate 1
7.3 FT300.43.159 Hand Throttle Friction Disc 1
7.4 FT300.43.160 Large Washer 2
7.5 GBT 955-12 Spring Washer 1
7.6 GBT 6170-M12-8-A3L Hexagon Nut, Style 1 2
7.7 GBT 6184-M5-8 Prevailing Torque Type All-Metal Hexagon Nut，Style 1 1
7.8 TG1204.20A.2-02 Hand Throttle Rocker Arm 1
7.9 GBT 97.1-8-A0P Plain Washer 1
7.10 GBT 93-8-A0P Standard Spring Washer 1
7.11 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 1
8 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 2
9 GBT 97.1-10-A0P Plain Washer 4
10 GBT 93-10-A0P Standard Spring Washer 2
11 GBT 6170-M10-8-A3L Hexagon Nut, Style 1 2
