Description

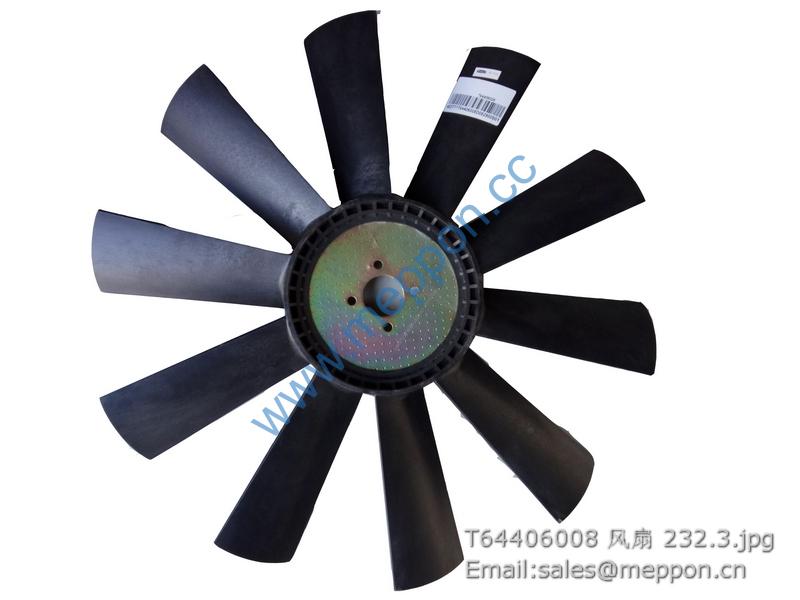

T64406008 fan

TS06435010000 Parking Brake Control Mechanism Assembly 1
1 GBT 119.1-8h8X16-A0P Cylindrical Pin 2
2 GBT 91-3.2X20-A0P Split Pin 2
3 GBT 97.1-10-A0P Plain Washer 4
5 GBT 3452.1-15X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 2
6 GBT 5783-M8X35-8.8-A2L Hexagon Head Bolt 4
6 FT800.43.169 Brake Camshaft 1
7 GBT 93-8 Standard Spring Washer 4
8 GBT 97.1-8-A0P Plain Washer 4
9 GBT 6171-M10X1-8-A2L Hexagon Nut, Style 1 1
10 FT800.21.240 Pull Rod Front Fork 1
11 GBT 879.1-8X30 Elastic Cylindrical Pin 1
12 GBT 879.1-5X30 Elastic Cylindrical Pin 1
13 FT800A.43.321 Revolving Rod 1
14 FT800.43.132 Cover Seat 1
15 FT800.43.194 Bolt 2
16 GBT 854-10 Tab Washer With Long Tab 2
17 FT800.43.131 Pressing Plate 1
18 FT800.43.023 Friction Disc Subassembly 2
19 FT800.43.024 Middle Friction Disc Subassembly 1
20 GBT 894.1-48 Circlip For Shaft 1
21 FT800.43.136 Spline Wheel 1
22 FT800.43.141 Steel Disc 2
23 FT800.43.142 Adjusting Gasket On Demand
24 GBT 882-B10X30 Pin Shaft 1
25 FT800.43.145 Adjusting Gasket On Demand
26 GBT 93-10 Standard Spring Washer 4
27 GBT 5783-M10X30-8.8-A3L Hexagon Head Bolt 4

TS06801010000 Brake Valve Assembly 1
1 GBT 91-3.2X20-A0P Cotter Pin 2
2 GBT 97.1-10-A0P Plain Washer 4
3 FT65.43.152 Left Fork 1
4 GBT 882-B10X35-A0P Pin Shaft 1
5 GBT 6170-M10-LH-8-A3L Hexagon Nut, Type 1 1
6 TS06801010002 Brake Valve Rod 1
7 TD800.801.1 Connecting Fork Weldment 1
8 GBT 882-B10X26-A0P Pin Shaft 1
9 FT800.80.014 Qfj10/0.63 Type Gas Brake Valve 1
10 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 2
11 GBT 93-10-A0P Standard Spring Washer 4
12 GBT 6170-M10-8-A3L Hexagon Nut, Type 1 2
13 TS06801010001 Brake Valve Bracket 1
14 GBT 5783-M10X35-8.8-A3L Hexagon Head Bolt 2
15 JBT 982-14 Compound Seal Washer 4
16 FT800.40.172 Hollow Bolt 2

TS06802010000 Air Holder Assembly 1
1 TS06802010005 The Left Cylinder Mounting Plate 1
2 GBT 93-10-A0P Standard Spring Washer 8
3 GBT 5783-M10X25-8.8-A3L Hex Bolt 4
4 TS06802010004 Air Holder Weldment 1
5 TD800.484B.7 Air Pressure Alarm 1
6 FT65.80.014 Safety Valve 1
7 GBT 6170-M10-8-A3L Type 1 Hex Nut 4
8 GBT 97.1-10-A0P Flat Washer 4
9 TS06802010006 Right Cylinder Mounting Plate 1
10 FT300.80.033 Water Drainage Valve Assembly 1
11 Q67516 A Type Worm Drive Hose Ring Hoop 1
12 TS06802010007 Pure Rubber Hose 1
13 FT304.48L.203 Wire Harness Fastening Clip 1

TS06803010000 Air Deliver Pipeline Assembly 1
1 FT65.80.018 Quick-Change Joint 1
2 FT65.80.213 Output Joint Body Seal Gasket 1
3 FT800.80L.212 Output Joint Body 1
4 GBT 6173-M18X1.5-05-A3L Hexagon Thin Nut 1
5 TD800.803.5 Hose Combined Unit (2) 1
6 Q67405200 Plastic Fastening Belt 3
7 GBT 5783-M10X20-8.8-A3L Hexagon Head Bolt 1
8 GBT 93-10-A0P Standard Spring Washer 1
9 GBT 97.1-10-A0P Plain Washer 1
10 TD800.803-07 Hose Fastening Clip 2
11 TS06803010004 Air Outlet Pipe Weldment 1
12 GBT 5783-M12X20-8.8-A3L Hexagon Head Bolt 1
13 GBT 93-12-A0P Standard Spring Washer 1
14 GBT 6170-M4-8-A2L Hexagon Nut, Style 1 2
15 TD800.803-01 Trestle 1
16 FT800A.80.201 Fixing Clip 1
17 GBT 93-4-A0P Standard Spring Washer 2
18 GBT 5783-M4X10-8.8-A2L Hexagon Head Bolt 2
19 FT700.80G.101 Pipe Joint 1
20 TD800.803.7 Air Outlet Pipe Assembly 1
21 TD800.803-06 Pipe Clip Trestle 2 1
22 GBT 5783-M8X35-8.8-A2L Hexagon Head Bolt 2
23 GBT 97.1-8-A0P Plain Washer 2
24 TD800.803-05 Pipe Clip Trestle 1
25 TB454.40X-01 Single-Hole Pipe Clip 4
26 GBT 93-8-A0P Standard Spring Washer 2
27 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 2
28 TS06803010002 Brake Valve Inlet Pipe Welding 1
29 TS06803010005 Air Intake Hose Assembly 1

FT800.35B.001 Towing Mechanism Assembly 1
1 FT800.35.112 Spring Lock Pin 2
2 GBT 899-GM16-M16X110-A2L Stud 6
3 FT800.35.012 Lower Link Seat Bottom Plate Weldment 1
4 FT300.35A.131 Lock Pin 2
5 GBT97.1-20-A0P Washer 2
6 FT800.35B.010 Towing Bracket Weldment 1
7 GBT 899-GM16-M16X40-A2L Stud 4
8 GBT 93-16-A0P Washer 12
9 GBT 6170-M16-A0P Nut 8
10 FT800.35.101 Oscillating Pin 1
11 GBT 6173-M16X1.5-A3L Nut 4
12 FT800.35B.103 Limiting Pin 2
13 FT800.35A.101 Swing Rod 1
14 FT800.35.109 Towing Pin 1
15 FT800.35.104 Connecting Swing Rod 1
16 GBT 5782-M16X90-A3L Bolt 2

FT800.53.001 Tow Equipment Assembly 1
1 FT800.53.101a Tow Bracket 1
2 FT800.53.102 Pothook Pin 1
3 FT800.53.111 Spring Lock Pin 1
4 GBT 899-GM16-M16X75-8.8-A2L Stud 6
5 GBT 93-16-AOP Washer 6
6 GBT 6170-M16-A2L Nut 6

TS06551030000 Lifter Assembly 1
1 TS06551030002 Breather Assembly 1
1.1 FT700.55D.136 Breather Cap 1
1.2 GBT 893.1-26 Circlip For Hole 1
1.3 FT650.40.167 Base Plate 2
1.4 FT700.55D.109 Breather Filter Element 1
1.5 TS06551030003 Breather Body Welding 1
2 GBT 3452.1-36.5X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
3 GBT 93-8-A0P Standard Spring Washer 2
4 GBT 5783-M8X16-8.8-A2L Hexagon Head Bolt 1
5 TA700.55A.7-01a Oil Filling Plug Assembly 1
6 Q67522 Hoop, Worm Drive Hose, Type A 2
7 TD800.55.3-01 Connection Hose 1
8 TD800.55J.1a Oil Filler Welding Assembly 1
9 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 1
10 JBT 982-33 Compound Seal Washer 1
11 TS06551030001 Lifter Assembly 1
