Description

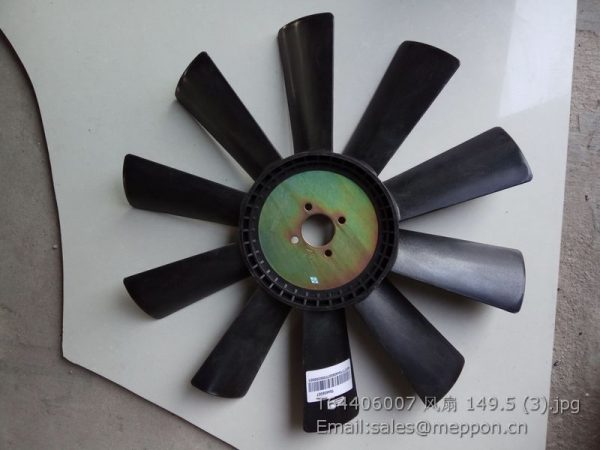

T64406007 FAN BLADE FOTON TRACTOR PARTS

TS06433010000 Service Brake Control Mechanism Assembly 1
1 TG1204.433.2 Brake Oil Tank Assembly 1
2 GBT 93-8-A0P Standard Spring Washer 1
3 GBT 5783-M8X16-8.8-A3L Hexagon Head Bolt – Full Thread 1
4 Q673B115 Steel-Band Spring Hoop 2
5 TS06433010005 Oil Delivery Hose 2
6 FT800.43.115 Oil Pipe Joint Screw 4
7 JBT 982-12 Compound Seal Washer 8
8 GBT 5783-M10X30-8.8-A3L Hexagon Head Bolt 3
9 GBT 93-10-A0P Standard Spring Washer 3
10 FT800A.43C.018 Brake Pump Assembly 1
11 TG1204.433-04 Snap Ring 2
12 GBT 97.1-10-A0P Plain Washer 3
13 TD800.43-01 Pedal Retraction Spring 2
14 GBT 6170-M10-8-A3L Hexagon Nut, Style 1 4
15 TS06433010008 Brake Pedal Support Shaft Weldment 1
16 FT800.43.103 Adjusting Screw 2
17 TS10433010006 Right Brake Rocker Subassembly 1
17.1 FT800A.43.065 Brake Interlock Lever Weldment 1
17.2 TS10433010005 Right Brake Rocker Weldment 1
17.3 GBT 879.1-5X16 Elastic Cylindrical Pin 1
17.4 TG1654.212B.1-01 Bushing 2
18 FT800A.43.401 Lock Pin 1
19 TS10433010004 Left Brake Rocker Subassembly 1
19.1 TS10433010003 Left Brake Rocker Weldment 1
19.2 TG1654.212B.1-01 Bushing 1
20 FT800.43.030 Adjusting Screw Subassembly 2
20.1 FT800.43.103 Adjusting Screw 1
20.2 FT800.43.210 Buffer Sleeve 1
21 TF1004.433-01 Nylon Spacing Sleeve 4
22 GBT 894.1-30 Circlip For Shaft 1
23 JBT 7940.1-M8X1 Straight Hydraulic Grease Nozzle 1
24 TD800.311C.1-01 Oil Cup Dustproof Cap 1

TS06433010000 Service Brake Control Mechanism Assembly 1
1 FT800A.43C.230 Seal Sleeve 2
2 FT800A.43C.012b Right Brake Short Oil Pipe Assembly 1
3 FT800A.43C.011b Left Brake Short Oil Pipe Assembly 1
4 FT800A.43.315 Straight Thread Connector, Body 2
5 GBT 5783-M8X40-8.8-A2L Hexagon Head Bolt 1
6 FT800A.43C.229 Double-Hole Pipe Clip 2
7 GBT 97.1-8-A0P Plain Washer 1
8 GBT 93-8-A0P Standard Spring Washer 1
9 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 1
10 TS06433010001 Right Brake Long Oil Pipe Assembly 1
11 TS06433010002 Left Brake Long Oil Pipe Assembly 1
12 F600190 Pipe Clip Combination (5) 2
12.1 GBT 6170-M8 Nut 1
12.2 GBT 93-8 Standard Spring Washer 1
12.3 GBT 95-8 Plain Washer 1
12.4 F600209 Single-Hole Pipe Clip (2) 2
12.5 GBT 5783-M8X40-8.8-A2L Hexagon Head Bolt 1
13 FT800A.43.335 Oil Pipe Fixing Plate 1
14 TS06433010009 Oil Pipe Fixing Plate 1
15 FT800.43.015 Brake Assembly 1

TS06435010000 Parking Brake Control Mechanism Assembly 1
TS06435010001 Handle Brake Control Handle Assembly 1
1 FT800A.21.045 Button Assembly 1
2 FT800A.21.319 Control Handle Rubber Grip 1
3 FT800.43.180 Spring 1
4 FT800A.21.315 Top Rod 1
5 GBT 68-M4X10-4.8-A2L Slotted Countersunk Head Screw 4
6 FT800A.21.320 Shield 1
7 GBT 894.1-6 Circlip For Shaft 1
8 FT800A.21.044 Control Handle Assembly 1
9 FT800A.21.314 Pawl 1
10 FT800A.21.322 Small Pin Shaft 1
11 GBT 97.1-14-A0P Plain Washer 2
12 FT800A.43.310 Ratchet 1
13 GBT 894.1-14 Circlip For Shaft 2
14 FT800A.21.321 Pin Shaft 1
15 TS06435010005 Fixing Seat Weldment 1
16 FT800A.21.323 Pin 1
17 FT800A.43.070 Handle Brake Short Pull Rod Weldment 1
18 GBT 6171-M10X1-8-A2L Hexagon Nut, Style 1 1
19 TG1204.435-01 Adjusting Sleeve 1
20 TS06435010002 Handle Brake Long Pull Rod Weldment 1
