Description

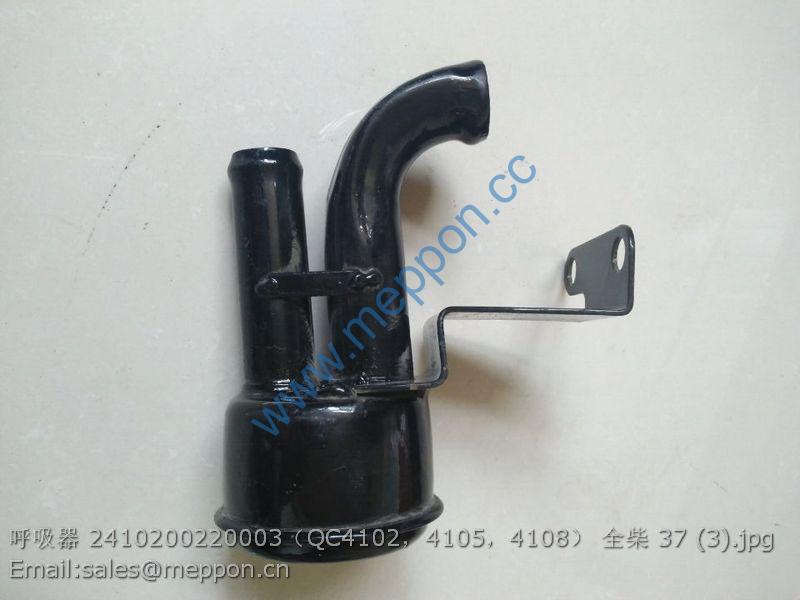

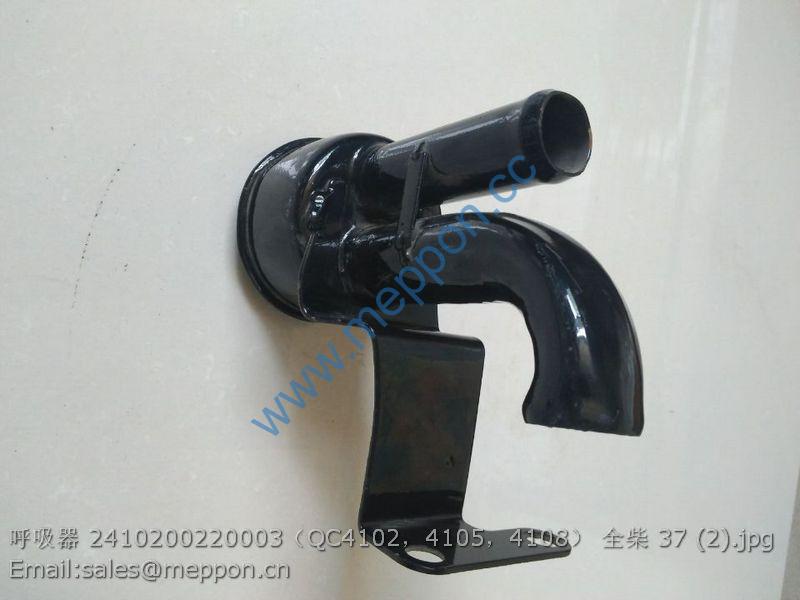

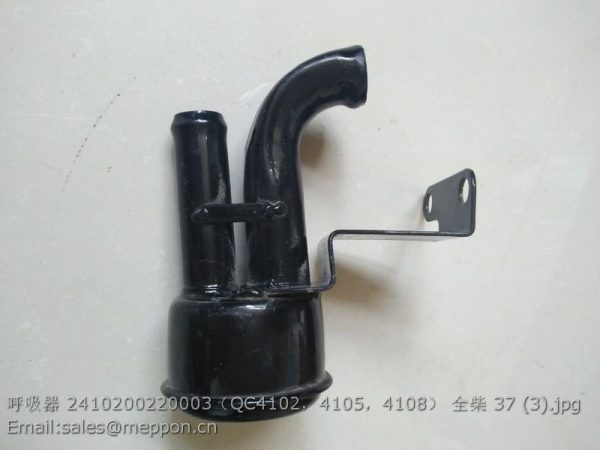

2410200220003 QC4102 qc4105 qc4108 BREATHER

TS04501010000K Oil Tank Installation Assembly 1
1 TS04501010001 Oil Tank Assembly 1
1.1 Q67516 A-Type Worm Transmission Hose Clamp 2
1.2 TS04501010006 Breath Assembly 1
1.3 TS04501010011 Oil Outlet Assembly 1
1.4 TS04501010005 Oil Tank Cover 1
1.5 TS04501010010 Filling Cap Assembly 1
1.6 TF1004.501.1-02 Filter Mesh 1
1.7 TS04501010002 Oil Tank Housing 1
1.8 JBT982-12 Combined Seal Gasket 1
1.9 Q617B12 Hexagon Plug 1
2 TS04501010001K Weldment Tank Protection 1
3 GBT96.1-10-A0P Big Washer 2
4 GBT93-10-A0P Standard Spring Washer 2
5 GBT5782-M10X55-8.8-A2L Hexagon Bolt 2

TS04503010000 Delivery Pipeline Assembly 1
1 GBT6170-M8-8-A2L Hexagon Nut , Style 1 2
2 GBT93-8-A0P Standard Spring Washer 2
3 TS04503010002 Bracket 1
4 TB604.504-03 Spin-On Diesel Filter Assembly 1
5 GBT95-8-A0P Plain Washer 2
6 GBT5783-M8X30-8.8-A2L Hexagon Head Bolt 2
7 JBT982-14 Compound Seal Washer 2
8 TA700.503A.2 Oil Outlet Pipe Assembly 1
9 FT65.50.106 Hollow Bolt 1

TA600.62 Safety Belt Assembly 1
1 TA600.62 Safety Belt 2

TC02740010000K Front Ballast Assembly 1
1 GBT5783-M16X35-8.8-A3L Hexagon Head Bolt 4
2 GBT93-16-A0P Standard Spring Washer 4
3 GBT97.1-16-A0P Flat Washer 4
4 TB404.74B-01 Fixing Frame 1
5 TC02740010001K Front Ballast Subassembly 1
5.1 GBT6170-M16-8-A3L Hexagon Nut, Style 1 2
5.2 GBT93-16-A0P Standard Spring Washer 2
5.3 GBT97.1-16-A0P Flat Washer 2
5.4 FT404.74A.108 Connecting Bolt 1
5.5 TC02740010002K Ballast Block 6
6 TB400.74A.2 Traction Pin And Lock Pin Assembly 1
7 GBT5785-M20X1.5X80-8.8-A3L Hexagon Head Bolt 2
8 GBT97.1-20-A0P Flat Washer 2
9 TB400.74A-04 Traction Lug 1
10 FT650.74.108 Traction Nut 2

TS04741010000K Front Ballast Frame Assembly 1
1 TB400.74D-01 Ballast Frame 1
2 TS04741010001K Backing Block 1
3 TS04741010002K Double-Headed Stud M16x145 4
4 GBT93-16-A0P Standard Spring Washer 6
5 GBT6170-M16-8-A3L Hexagon Nut, Style 1 6
6 TS04741010003K Double-Headed Stud M16x165 2

FT300.91.001 Rear Ballast Assembly 2
1 GBT5783-M16X45-A3L Bolt 3
2 GBT93-16-AOP Washer 6
3 FT650.34.104 Washer 3
4 FT300.91.101 Rear Ballast 3
5 FT650.34.103 Rear Ballast Screw Ⅱ 6
6 FT400.91.102 Rear Ballast Screw Ⅰ 3
7 GBT6170-M16-A3L Nut 3

TS04481030000K Harness Installation Assembly, Engine 1
1 GBT6170-M8-8-A2L Hexagon Nut, Style 1 3
2 TF1204.481B-01 Harness Fastener 2
3 GBT97.1-8-A0P Plain Washer 3
4 GBT93-8-A0P Standard Spring Washer 3
5 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 3
6 TS06482010005 Harness Fastener 2
7 TS04481030001K Engine Harness Assembly 1
8 Q67405400 Plastic Fastening Strap 2
9 GBT5783-M10X20-8.8-A3L Hexagon Head Bolt 2
10 GBT93-10-A0P Standard Spring Washer 2
11 GBT97.1-10-A0P Plain Washer 2
12 GBT818-M4X10-4.8-A2L Cross Recessed Pan Head Screw 5
13 GBT93-4-A0P Standard Spring Washer 5
14 TS04481010002 Oil Amount Sensor Assembly 1
15 TS10481010002 Rotating Speed Sensor 1
16 FT65.48.073a Oil Pressure Alarm 1
17 FT65.48.095 Harness Fastener (1) 3
18 Q67405100 Plastic Fastening Strap 1
19 FT65.48.072 Water Temperature Sensor 1
20 TS04481010003 Bonding Wire 1
21 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 1
