Description

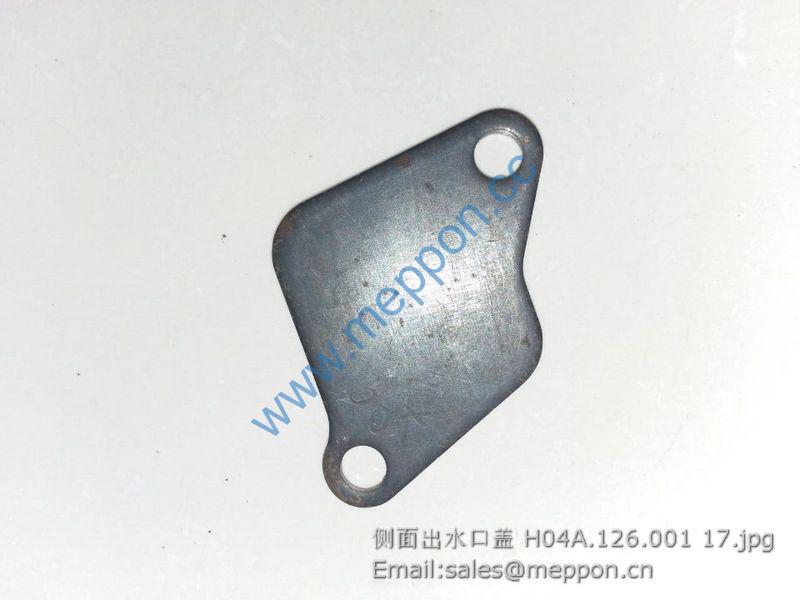

H04A.126.001 COVER FOTON LOVOL

TB300.583A Single-Way Hydraulic Outlet Assembly 2 1
1 FT354.58A.104 Oil Pipe Joint (British System) 1
2 FT354.58A.030 Quick-Adapt Joint 1

FT300.44B.001 Seat Installation Assembly 1
1 FT300.44B.010 Seat Assembly 1
2 GBT5783-M10X25-A3L Bolt 4
3 GBT93-10-A0P Washer 4
4 GBT93-8-A0P Washer 4
5 FT300.44B.011 Seat Cover Plate Weldment 1
6 GBT5783-M8X20-A2L Bolt 4

TB600.452 Floor Assembly 1
1 FT250.47.163 Armrest 2
2 TE250.45E.5 Armrest Washer Cluster 4
3 TB600.452.2 Right Fender Weldment 1
4 TB450.45A.2 Rear Riht Lamp Baffle Weldment 1
5 FT300.47.361 Control Lever Dust Cover 1
6 FT300.47.310 Rear U-Shaped Plate 1
7 TB550.452.5 Right Floor Weldment 1
8 GBT 96.1-12-A0P Big Gasket 4
9 GBT 93-12-A0P Standard Spring Washer 4
10 GBT 6170-M12-8-A3L Hexagon Nut , Style 1 4
11 TB550.452H-24 Rear Floor Cover 1
12 FT300.47.054b Seat Plate Assembly 1
13 GBT 5783-M6X16-8.8-A2L Hex Head Bolt 41
14 GBT 93-6-A0P Washer 41
15 GBT 97.1-6-A0P Flat Washer 41
16 TB550.452.1 Rear Backup Plate Weldment 1
17 GBT 93-10-A0P Washer 8
18 TB600.452.1 Left Fender Weldment 1
19 TB450.45A.1 Rear Left Lamp Baffle Weldment 1
20 TB550.452.4 Left Floor Weldment 1
21 FT400.45.039 Front U-Shaped Plate Weldment 1
22 GBT 5783-M10X25-8.8-A3L Hex Head Bolt 8
23 TB550.452H-25 U Cover Plate 1

TB600.46 Safety Frame Assembly 1
1 TB400.46C.3 Sunshade Assembly 1
1.1 GB/T 5783-M6×25-8.8-A2L Hex Head Bolt 12
1.2 GB/T 93-6-A0P Standard Spring Washer 12
1.3 GB/T 97.1-6-A0P Flat Washer 12
1.4 TE254.46.2.1-02 Rubber Washer 12
1.5 TB400.46C.3.1 Sunshade 1
1.6 GB/T 6170-M10-8-A3L Hexagon Nut , Style 1 4
1.7 GB/T 93-10-A0P Standard Spring Washer 4
1.8 FT400.46.021 Gasket Cluster 4
1.9 TB400.46C.3.3 Sunshade Fixed Mount Weldment 1
1.10 GB/T 818-M10×30-4.8-A3L Cross Recessed Pan Head Screw 4
1.11 TB400.46C.3-01 Sunshade Fixed Mount 2
1.12 GB/T 6170-M12-10-A3L Hexagon Nut , Style 1 4
1.13 GB/T 93-12-A0P Standard Spring Washer 4
1.14 GB/T 96.1-12-A3L Big Gasket 4
1.15 GB/T 97.1-12-A0P Flat Washer 4
1.16 GB/T 5782-M12×110-8.8-A2L Hex Head Bolt 4
1.17 GB/T 97.1-8-A0P Big Gasket 4
1.18 GB/T 93-8-A0P Standard Spring Washer 4
1.19 GB/T 5783-M8×20-10.9-A2L Hex Head Bolt 4
2 TB400.46C-01 Blanking Cap 8
3 TB600.46.1 Supporting Beam Mounting Assembly 1
3.1 FT400.46.022 Top Bar Weldment 1
3.2 TB600.46.1.1 Left Support Beam Weldment 1
3.3 GB/T 5782-M16×90-10.9-A2L Hex Head Bolt 6
3.4 GB/T 95-16-A0P Flat Washer 6
3.5 GB/T 93-16-A0P Standard Spring Washer 6
3.6 GB/T 802-M16-6 Combined Cap Nut 6
3.7 TB600.46.1.2 Right Support Beam Weldment 1
4 GB/T 5783-M14×40-8.8-A3L Hex Head Bolt 8
5 GB/T 93-14-A0P Standard Spring Washer 16
6 GB/T 6170-M14-8-A3L Hexagon Nut , Style 1 12
7 GB/T 97.1-14-A0P Flat Washer 20
8 FT400.46.350 U-Bolt 4

TB400B.473 Bonnet Lock Mechanism Assembly 1
1 GBT 6170-M8-8-A2L Type 1 Hex Nut 3
2 GBT 93-8-A0P Standard Spring Washer 3
3 GBT 97.1-8-A0P Flat Washer 3
4 GBT 5783-M6X20-8.8-A2L Hex Bolt 4
5 GBT 6170-M6-8-A2L Type 1 Hex Nut 5
6 GBT 93-6-A0P Standard Spring Washer 4
7 GBT 97.1-6-A0P Flat Washer 2
8 TG1204.474.4 Bonnet Lock Assembly 1
9 TB400B.473-01 Bonnet Lock Plate 1
10 GBT 91-1.6X16-A0P Cotter Pin 3
11 TB400B.473.2 Pull Rod Weldment 1
12 GBT 91-2.5X25-A0P Cotter Pin 1
13 TB400B.473.3 Rocker Arm Weldment 1
14 TB400B.473.4 Pull Rod Weldment (2) 1
15 FT800A.47.056 Handle Assembly 1
16 TB450.473-02 Rubber Ring 1
