Description

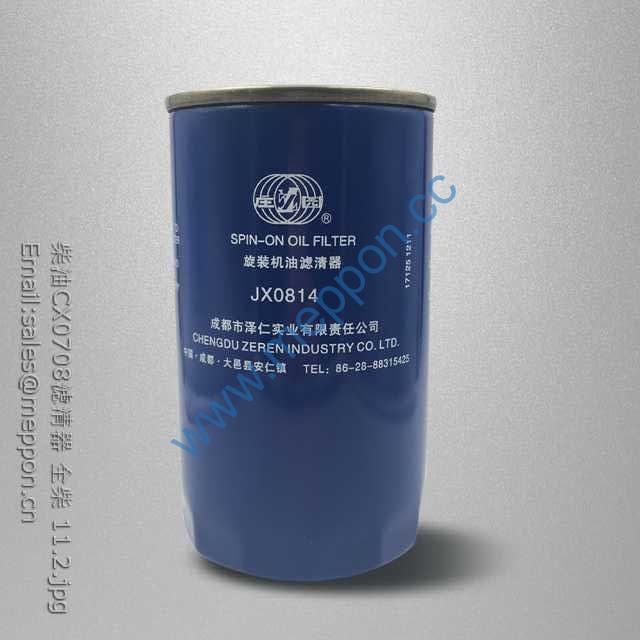

CX0708 QUANCHAI FILTER JX0814 JX0814Q 2410201120002 4102T-11200

TB550.503 Auxiliary Fuel Tank Trestle Assembly 1
1 GBT 6170-M10-A3L Nut 4
2 GBT 93-10-A0P Washer 4
3 TB550.503.2 Auxiliary Fuel Tank Right Trestle Assembly 1
4 TB550.503.3 Auxiliary Fuel Tank Backing Board Weldment 2
5 TB550.503.1 Auxiliary Fuel Tank Left Trestle Assembly 1
6 GBT 5783-M10X25-A2L Bolt 4

TA600.62 Safety Belt Assembly 1
1 TA600.62 Safety Belt 2

FT300.74A.001 Front Ballast Frame Assembly 1
1 GBT 5783-M16X70-8.8-A3L Bolt 2
2 GBT 93-16-AOP Washer 6
3 GBT 5783-M16X50-8.8-A3L Bolt 4
4 FT300.74A.101a Ballast Frame 1

FT404.74A.002 Front Ballast Assembly 1
1 GBT5783-M16X35-8.8-A3L Hexagon Head Bolt 4
2 GBT93-16-A0P Standard Spring Washer 4
3 GBT97.1-16-A0P Flat Washer 4
4 FT300.74A.107 Fixing Frame 1
5 FT404.74A.010 Front Ballast Subassembly 1
5.1 GBT6170-M16-8-A3L Hexagon Nut, Style 1 2
5.2 GBT93-16-A0P Standard Spring Washer 2
5.3 GBT97.1-16-A3L Flat Washer 2
5.4 FT404.74A.108 Connecting Bolt 1
5.5 FT300.74A.105 Ballast Block 2
5.6 FT300.74A.106 Ballast Block 6
6 FT650.74.108 Traction Nut 2
7 GBT5785-M20X1.5X80-8.8-A3L Hexagon Head Bolt 2
8 GBT97.1-20-A0P Flat Washer 2
9 FT300.74A.110 Traction Lug 1

FT600.91.001 Rear Ballast Assembly 1
1 GBT5783-M16X40-8.8-A3L Hex bolt 6
2 GBT6170-M16-8-A3L Style 1, hex nut 6
3 FT650.34.104 Washer 12
4 FT650.34.101 Rear Ballast 4
5 FT650.34.103 Rear Ballast Screw 2 6
6 FT650.34.102 Rear Ballast Screw 1 6
7 GBT97.1-16-A0P Flat washer 6
8 GBT95-18-A0P Flat washer 6

TB450.481D Harness Installation Assembly, Engine 1
1 FT300.48.202 Fastening clip 2
2 FT300.48.072 Water temperature sensor 1
3 FT800.48L.107 Grommet 2
4 TB554.481-01 Wire sleeve 1
5 TB554.481.1 Engine harness assembly 1
6 FT300.48.073a Oil pressure alarm 1
7 FT300.48.074 Rotating speed sensor 1
8 Q67407300 Plastic fastening belt 1
