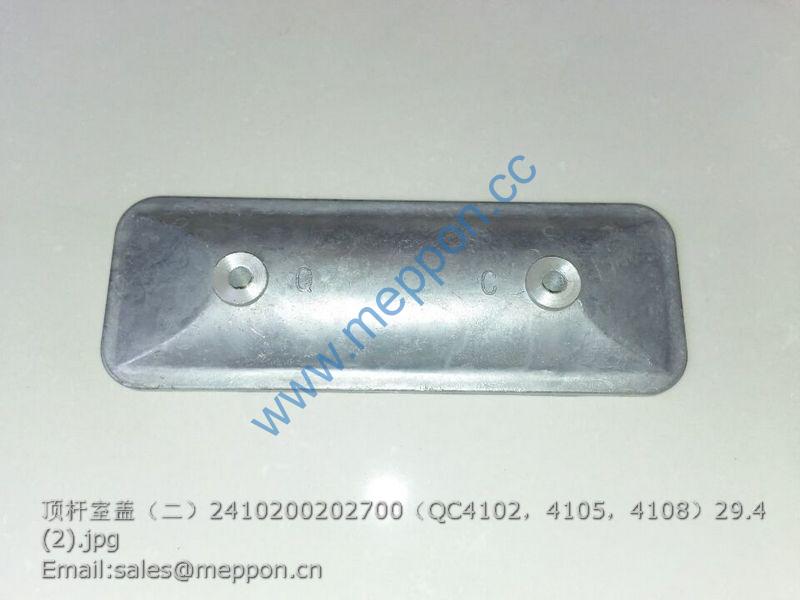

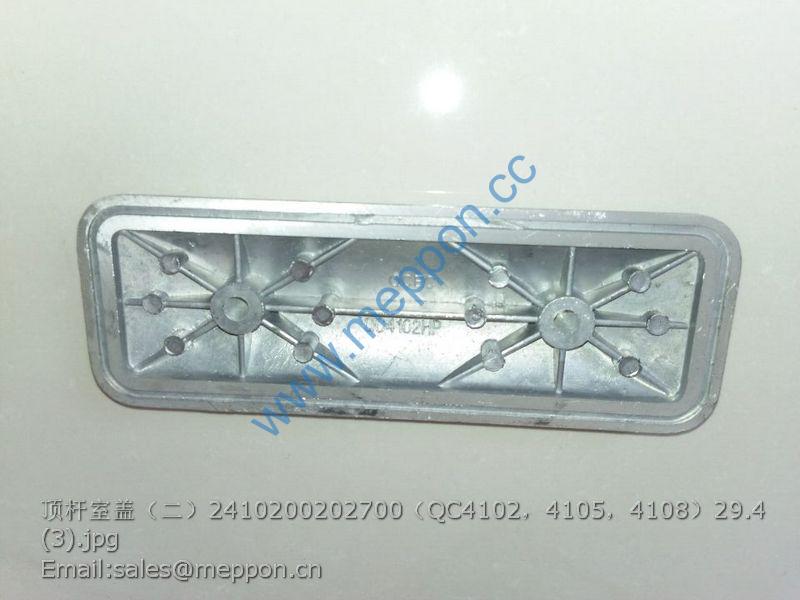

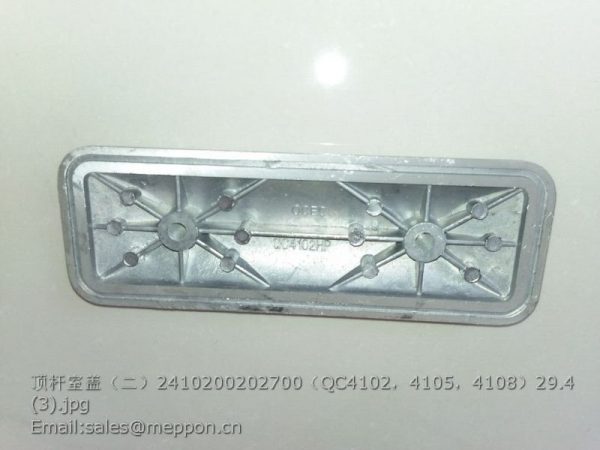

2410200202700 QUANCHAI QC4102 QC4105 QC4108 4102Q-02027 ROOM COVER

TC02471050000K Bonnet assembly 1
1 TB400B.471-11 Right rear lower grid 1
2 TB400B.471-15 Hinge chain upper seat 2
3 TB400B.471-18 Backing block 24
4 TB400B.471-14 Bonnet seal strip 1
5 TB400B.471.4 Bonnet welding assembly 1
6 TC02471040001K Front grid 1
7 TB400B.471-17 Front lower buffer strip 1
8 TB400B.471-02 Left front grid 1
9 TB400B.471-03 Right front grid 1
10 TB400B.471-04 Left rear decorative parts 1
11 TB400B.471-05 Right rear decorative parts 1
12 TB400B.471-06 Left front lower grid 1
13 TB400B.471-07 Right front lower grid 1
14 TB400B.471-08 Left middle lower grid 1
15 TB400B.471-09 Right middle lower grid 1
16 TB400B.471-10 Left rear lower grid 1

TB400B.473 Bonnet lock mechanism assembly 1
1 GBT 6170-M8-8-A2L Type 1 hex nut 3
2 GBT 93-8-A0P Standard spring washer 3
3 GBT 97.1-8-A0P Flat washer 3
4 GBT 5783-M6X20-8.8-A2L Hex bolt 4
5 GBT 6170-M6-8-A2L Type 1 hex nut 5
6 GBT 93-6-A0P Standard spring washer 4
7 GBT 97.1-6-A0P Flat washer 2
8 TG1204.474.4 Bonnet lock assembly 1
9 TB400B.473-01 Bonnet lock plate 1
10 GBT 91-1.6X16-A0P Cotter pin 3
11 TB400B.473.2 Pull rod weldment 1
12 GBT 91-2.5X25-A0P Cotter pin 1
13 TB400B.473.3 Rocker arm weldment 1
14 TB400B.473.4 Pull rod weldment (2) 1
15 FT800A.47.056 Handle assembly 1
16 TB450.473-02 Rubber ring 1

TB550.477E Bonnet lengthened plate assembly 1
1 TB550.477B-03 Bonnet seal strip 1
2 TB550.477E.1 Bonnet lengthened plate weldment 1
3 TB550.477D-02 Right decoration strip 1
4 GBT 6170-M8-A2L Nut 2
5 GBT 93-8-A0P Washer 3
6 GBT 97.1-8-A0P Washer 3
7 GBT 5781-M8X30-A2L Bolt 3
8 TB550.477D-01 Left decoration strip 1

TB400.49 Tool kit assembly 1
1 TB400.49.1 Tool kit supply assembly 1
1.1 TB400.49.1.1 Tool kit welding and riveting assembly 1
1.2 FT65.49.102 Plug pin 1
1.3 FT65.49.103 Fixed support plate 1
2 GBT 5783-M12X20-8.8-A3L Hex head bolt 2
3 GBT 93-12-A0P Standard spring washer 4
4 GBT 97.1-12-A0P Flat washer 2
5 GBT 5783-M12X25-8.8-A3L Hex head bolt 2
6 TB400.49-01 Transition mounting plate 1

TB400.50X Fuel tank assembly 1
1 TA650.502.3 Oil tank cover assembly 1
2 FT300.50.015 Filter screen assembly 1
3 TB550.50Q.1 Oil tank weldment 1
4 FT300.50.112 Rubber backing block 2
5 JBT 982-16 Compound seal washer 1
6 FT65.50.226 Oil drainage screw plug 1
7 FT65.50.033 Sediment bowl assembly 1
8 JBT 982-14 Compound seal washer 2
9 FT65.50.106 Hollow bolt 1
10 TB400.50X.2 Oil tank lock cable weldment 2
11 FT404.50.114 Main oil tank lock cable rubber gasket 2
12 FT300.50.110 Front rubber gasket 2
13 FT300.50.111 Rear rubber gasket 2
14 TB400.50X.1 Oil tank bracket weldment 2
15 GBT 5783-M8X20-A2L Hex bolt 4
16 GBT 93.1-8-A0P Washer 4
17 GBT 6170-M8-A2L Washer 4
18 GBT 93-10-A0P Standard spring washer 2
19 GBT 6170-M10-A3L Type 1 hex nut 4

TA600.62 Safety Belt Assembly 1
1 TA600.62 Safety Belt 2

FT300.74B.001 Front ballast frame assembly 1
1 GBT 899-AM16-M16X90-8.8-A3L Double-headed stud 4
2 GBT 93-16-AOP Washer 6
3 GBT 6170-M16-AOP Nut 6
4 GBT 899-AM16-M16X110-8.8-A3L Double-headed stud 2
5 FT300.74B.101 Ballast frame 1

FT404.74A.002 Front ballast assembly 1
1 GBT 5783-M16X35-8.8-A3L Hexagon head bolt 4
2 GBT 93-16-A0P Standard spring washer 4
3 GBT 97.1-16-A0P Flat washer 4
4 FT300.74A.107 Fixing frame 1
5 FT404.74A.010 Front ballast subassembly 1
5.1 GBT 6170-M16-8-A3L Hexagon nut, style 1 2
5.2 GBT 93-16-A0P Standard spring washer 2
5.3 GBT 97.1-16-A0P Flat washer 2
5.4 FT300.74A.108 Connecting bolt 1
5.5 FT300.74A.105 Ballast block 2
5.6 FT300.74A.106 Ballast block 4
6 FT650.74.108 Traction nut 2
7 GBT 5785-M20X1.5X80-8.8-A3L Hexagon head bolt 2
8 GBT 97.1-20-A0P Flat washer 2
9 FT300.74A.100 Traction lug 1
