Description

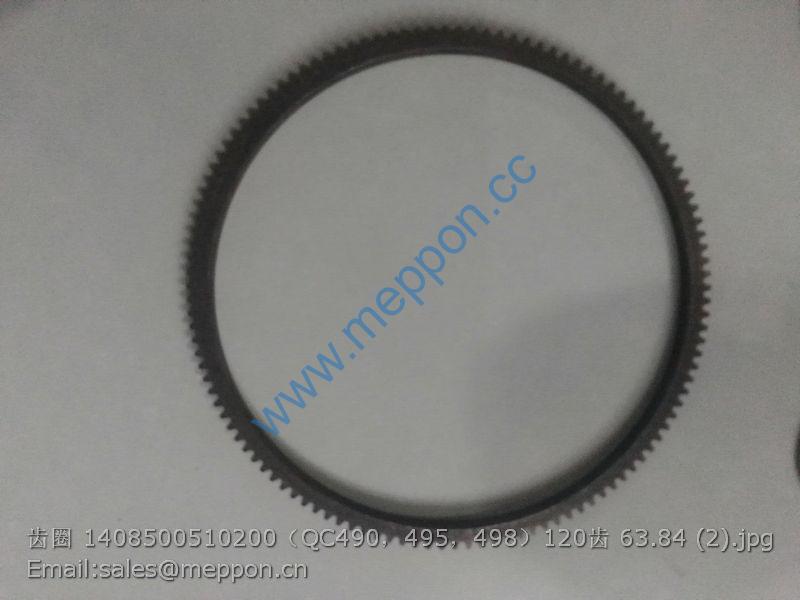

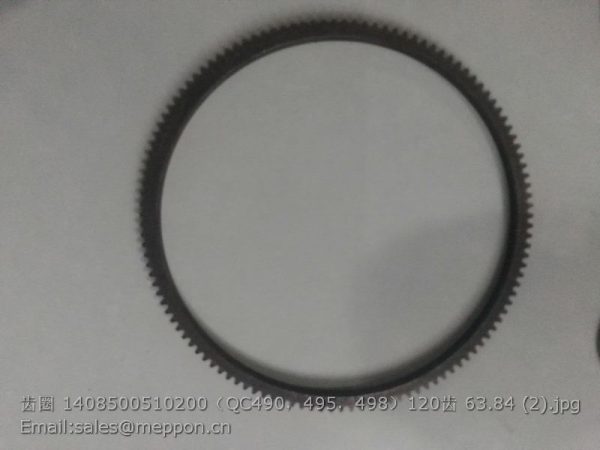

1408500510200 QC490 QC495 QC498 1408500610200 Gear ring of flywheel N485-06102

FT404.32F.001 Front drive wheel assembly 1
1 TB704.32B.2 Inner tube/tyre assembly 8.3-20 1
1.1 GBT 2979-8.3-20-6PR-R General section bias tyre of tractor drive wheel 1
1.2 GBT 2979-8.3-20-R Inner tube of tractor drive wheel 1
2 FT404.32F.011 Rim welding 1

FT400.34F.001 Rear driving wheel assembly 1
1 TB504.34.2 Tire and tube assembly 12.4-28 1
1.1 GBT 2979-12.4-28-8PR-R Diagonal tire with conventional section, tractor driving wheel 1
1.2 GBT 2979-12.4-28-R Tube, tractor driving wheel 1
2 FT400.34F.011 Rim assembly 1
2.1 GBT 6171-M16X1.5-8-A3L Hexagon nut, Style 1 6
2.2 FT300.34.106 Washer 6
2.3 FT400.34F.012 Rim weldment 1
2.4 FT400.34.103b Spoke 1
2.5 FT300.34.102 Rim bolt 6

TC04401030000 Steering gear and steering column assembly 1
1 FT400.40.016 Steering wheel assembly 1
2 TB504.401-01 Steering lever protection sleeve 1
3 FT354.40C.016a Steering column assembly 1
3.1 GBT 6173-M16X1.5-05-A3L Hexagon thin nut 1
3.2 FT354.40C.130a Steering lever 1
3.3 FT650.40.172 Bearing circlip 1
3.4 GBT 894.1-20 Circlip for shaft 1
3.5 GBT 276-61804-2LS Deep grooved ball bearing 1
3.6 FT650.40.173 Bearing circlip 2 1
3.7 GBT 893.1-32 Circlip for hole 1
3.8 FT354.40C.030 Steering sleeve weldment 1
4 GBT 5783-M10X30-8.8-A3L Hexagon head bolt 4
5 GBT 93-10-A0P Standard spring washer 4
6 TC04400010009 Hydraulic steering gear assembly 1

TC02402230000K Fully hydraulic steering pipeline assembly 1
1 GBT 6170-M10-8-A3L Hexagon nut, type 1 2
2 GBT 93-10-A0P Standard spring washer 2
3 TB504.402B.11 Steering oil tank bracket weldment 1
4 GBT 5783-M10X25-8.8-A3L Hexagon head bolt 2
5 FT354.40C.011 Steering oil tank and breather assembly 1
6 Q67627 Hoop, worm drive hose, type B 4
7 TB504.402B-02 Rubber pipe 1
8 TB504.402B-03 Oil suction hose 1
9 TG1204.402-01 Single-hole pipe clamp 2
10 GBT 5783-M8X35-8.8-A2L Hexagon head bolt 2
11 FT450.40Y.011 Oil suction steel pipe weldment of oil pump 1
12 TC04400120001 Constant-flow overflow pump 1
13 GBT 3452.1-17.0X2.65G O-ring sealant used for hydraulic or pneumatic parts 1
14 GBT 93-8-A0P Standard spring washer 10
15 GBT 5782-M8X45-8.8-A2L Hexagon head bolt 5
16 TC04402060005 Oil return pipe assembly 1
17 TC04402060001 Oil delivery rubber pipe assembly-02 1
18 GBT 5783-M8X40-8.8-A2L Hexagon head bolt 2
19 TG1654.402-07 Single-hole pipe clamp 2
20 TB504.402B-01a Pipe clamp bracket 1
21 GE20D18.24.93.5 Straight thread connector 20-18 2
22 TC04400020003 Adjustable joint M18-12 assembly 1
23 TG1654.402-04 Double-hole pipe clamp 2
24 TC04402060002 Oil delivery rubber pipe assembly-03 1
25 TC04402060008 Gear pump oil outlet pipe assembly 1
26 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 1
27 GBT 97.1-8-A0P Plain washer 1
28 TG1204.402E-03 Double-hole pipe clamp 2
29 GBT 6170-M8-8-A2L Hexagon nut, type 1 1
30 GBT 5782-M8X65-8.8-A2L Hexagon head bolt 2
31 GBT 5783-M8X30-8.8-A2L Hexagon head bolt 3

TC02402230000K Fully hydraulic steering pipeline assembly 1
1 GBT 5783-M10X20-8.8-A3L Hexagon head bolt 2
2 GBT 93-10-A0P Standard spring washer 2
3 GBT 97.1-10-A0P Plain washer 2
4 GBT 5782-M8X40-8.8-A2L Hexagon head bolt 2
5 TG1654.402-07 Single-hole pipe clamp 4
6 TB504.402-10 Oil pipe bracket Ⅲ 2
7 GBT 93-8-A0P Standard spring washer 3
8 GBT 6170-M8-8-A2L Hexagon nut, type 1 2
9 FT650.40.112 Hollow bolt 2
10 TC04402060015 Right steering oil delivery pipe assembly 1
11 JBT 982-16 Compound seal washer 4
12 TC04402060014 Left steering oil delivery pipe assembly 1
13 TC04402060010 Cylinder right steel pipe assembly 1
14 TC04402060012 Cylinder left steel pipe assembly 1
15 TC04402060004 Oil delivery rubber pipe assembly 6 1
16 TC04402110001 Oil delivery rubber pipe assembly 1 1
17 GE20D18.24.93.5 Straight thread connector 20-18 2

TB504.431 Left brake assembly 1
1 FT300.43.102 Bowl-shape plug 6
2 GBT 308-18.000-G100-b Steel ball 6
3 FT300.43.103 Left brake press disc 1
4 FT300.43.011 Brake friction disc assembly 2
5 FT300.43.105 Spacing plate 1
6 FT300.43.101 O-ring 1
7 GBT 894.1-18 Circlip for shaft 1
8 FT300.43.109a Washer 1
9 GBT 452.1-18.0X2.65 O-ring 1
10 FT300.43.012 Left brake housing assembly 1
10.1 FT300.43.114 Crankshaft lining 1
10.2 FT300.43.121 Left brake housing 1
11 FT300.43.106 Shift block 1
12 FT300.43.107 Spacing sleeve 1
13 GBT 3452.1-20.0X2.65 O-ring 1
14 TB504.431.1 Left crank unit 1
15 FT300.43.153 Final transmission oil drainage port washer 1
16 FT300.43.154 Screw plug 1

TB504.432 Right brake assembly 1
1 TB504.432.1 Right crank unit 1
2 GBT 3452.1-20.0X2.65 O-ring 1
3 FT300.43.107 Spacing sleeve 1
4 FT300.43.106 Shift block 1
5 FT300.43.013 Right brake housing assembly 1
5.1 FT300.43.122 Right brake housing 1
5.2 FT300.43.114 Crank shaft lining 1
6 GBT 3452.1-18.0X2.65 O-ring 1
7 FT300.43.109a Washer 1
8 GBT 894.1-18 Circlip for shaft 1
9 FT300.43.153 Final transmission oil drainage port washer 1
10 FT300.43.154 Screw plug 1
11 FT300.43.101 O-ring 1
12 FT300.43.011 Brake friction disc assembly 2
13 FT300.43.105 Spacing plate 1
14 FT300.43.104 Right brake press disc 1
15 GBT 308-18.000-G100-b Steel ball 6
16 FT300.43.102 Bowl-shape plug 6
