Description

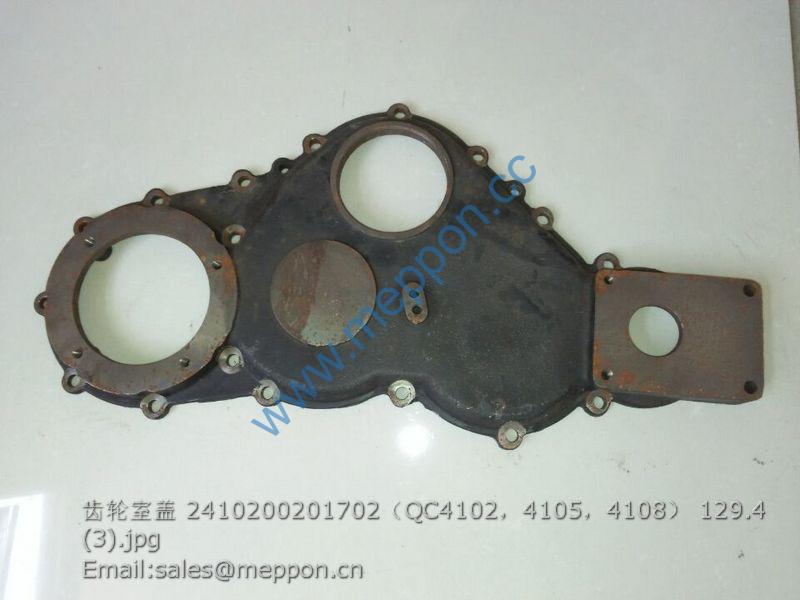

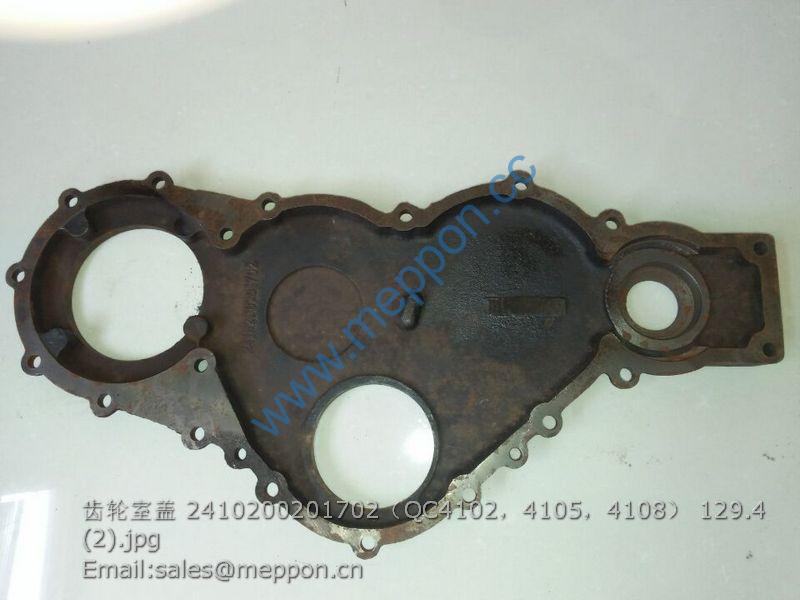

2410200201702 quanchai QC4102，4105，4108 Gear room cover 4102T-02004

TB504.384 Rear axle housing assembly 1
1 FT300.38J.101a Rear axle housing assembly 1
2 FT300.38.016a Oil filling vent plug assembly 1
3 JBT 982-36 Compound washer 1
4 GBT 5783-M8X20-A2L Bolt 4
5 GBT 93-8-A0P Washer 4
6 FT300.38J.124 Upper cover 1
7 FT300.38J.206 Reverse gear side cover 1
8 GBT 93-10-A0P Washer 6
9 GBT 5783-10X25-A3L Bolt 5
10 GBT 5782-10X60-A3L Bolt 1
11 GBT 899-AM12-M12X1.25X150-10.9-A2L Stud 22
12 GBT 93-12-A0P Washer 24
13 GBT 6171-M12X1.25-10-A2L Nut 24
14 GBT 119.1-12m6X28 Pin 2
15 FT65.38.026 Oil plug assembly 1
16 TB554.384-02 Pin 4
17 GBT 899-AM12-M12X1.25X160-10.9-A2L Stud 2

TB554.385 Shuttle shift mechanism assembly 1
1 FT300.41.015 PTO control handle assembly 1
2 GBT 6170-M10-8-A3L Hexagon nut , Style 1 1
3 TB554.385-04 Upside, shuttle shift control lever 1
4 FT300.38J.231b Rocker arm 1
5 TB554.385-02 Axis pin 1
6 GBT 848-10-A0P Small gasket 1
7 GBT 91-3.2X40-A0P Split pin 1
8 TB400.385-09 Bolt 2
9 GBT 93-10-A0P Standard spring washer 4
10 TB554.385.3a Shifting lever shaft sleeve weldment 1
11 GBT 3452.1-16.0X2.65G Hydraulic and pneumatic O-ring 1
12 GBT 879.1-6X28 Elastic cylindrical pin 2
13 GBT 879.2-3.5X28 Elastic cylindrical pin 2
14 TB554.385-01 Shifting lever rocker arm 1
15 GBT 91-4X32-A0P Split pin 1
16 FT704.42B.163 Retaining spring, fork shaft 1
17 GBT 308-9.5-G100-b Steel ball 1
18 FT300.38J.203 Fork shaft, reverse gear 1
19 FT300.38J.218 Shift fork, reverse gear 1
20 TB554.385-03 Washer 1
21 GBT 5783-M10X30-8.8-A3L Hex head bolt 2
22 JBT 7940.1-M8X1 Straight-through type forced filling oil cup 1
23 TD800.311C.1-01 Dust cap, oil cup 1
24 GBT 5783-M6X20-8.8-A2L Hex head bolt 2
25 GBT 93-6-A0P Standard spring washer 2
26 TB554.385.1c Shuttle shift control lever press-fit 1
26.1 TB554.385.1c.1 Shuttle shift control lever weldment 1
26.2 TB504.385.1-01b Bush 1

FT300.39.001 Final transmission assembly 1
1 FT300.39.109 Rolling needle outer spacing ring 6
2 FT300.39.103 Planetary gear 3
3 GBT 309-P5X23.8-G2 Rolling needle 132
4 FT300.39.105 Rolling needle inner spacing ring 3
5 GBT 879.1-5X24 Pin 3
6 GBT 879.1-8X24 Pin 3
7 FT300.39.106 Planetary gear shaft 3
8 FT300.39.107 Gear ring 1
9 FT300.39.101 Left half axle 1
10 FT300.39.110 Driving shaft lock piece 1
11 FT300.39.112 Driving shaft lock bolt 1
12 FT300.39.111 Stop block 1
13 FT300.39.104 Planetary bracket 1
14 FT300.39.123 Adjusting gasket On demand
15 FT300.39.122 Adjusting gasket On demand
16 FT300.39.121 Adjusting gasket On demand
17 FT300.39.113 Spacing sleeve 1
18 GBT 276-6211 Roller bearing 1
19 FT300.39.115 Left driving shaft housing 1
20 GBT 276-6212 Roller bearing 1
21 GBT 9877.1-FB70X95X10D Skeleton oil seal 2
22 GBT 3452.1-115X3.55G O-ring 1
23 FT300.39.116 Oil seal seat 1
24 GBT 93-12-AOP Washer 4
25 GBT 5783-M12X30-A2L Bolt 4
26 FT300.39.136 Rear hub bolt (left) 8
27 FT300.39.118 Driving shaft 1
28 FT300.39.137 Washer 8
29 GBT 6176-M16X1.5-LH-10-A3L Nut 8

FT300.39.001 Final transmission assembly 1
1 GBT 6176-M16X1.5-10-A3L Nut 8
2 FT300.39.137 Washer 8
3 FT300.39.118 Driving shaft 1
4 FT300.39.135 Rear hub bolt 8
5 GBT 5783-M12X30-A2L Bolt 4
6 GBT 93-12-AOP Washer 4
7 FT300.39.116 Oil seal seat 1
8 GBT 3452.1-115X3.55G O-ring 1
9 GBT 9877.1-FB70X95X10D Skeleton oil seal 2
10 GBT 276-6212 Roller bearing 1
11 FT300.39.114 Right driving shaft housing 1
12 GBT 276-6211 Roller bearing 1
13 FT300.39.113 Spacing sleeve 1
14 FT300.39.121 Adjusting gasket On demand
15 FT300.39.122 Adjusting gasket On demand
16 FT300.39.123 Adjusting gasket On demand
17 FT300.39.104 Planetary bracket 1
18 FT300.39.111 Stop block 1
19 FT300.39.112 Driving axle lock bolt 1
20 FT300.39.110 Driving axle lock disc 1
21 FT300.39.102 Right half axle 1
22 FT300.39.107 Gear ring 1
23 GBT 879.1-5X24 Pin 3
24 GBT 879.1-8X24 Pin 3
25 FT300.39.106 Planetary gear shaft 3
26 FT300.39.109 Rolling needle outer spacing ring 6
27 FT300.39.103 Planetary gear 3
28 GBT 309-P5X23.8-G2 Rolling needle 132
29 FT300.39.105 Rolling needle inner spacing ring 3
