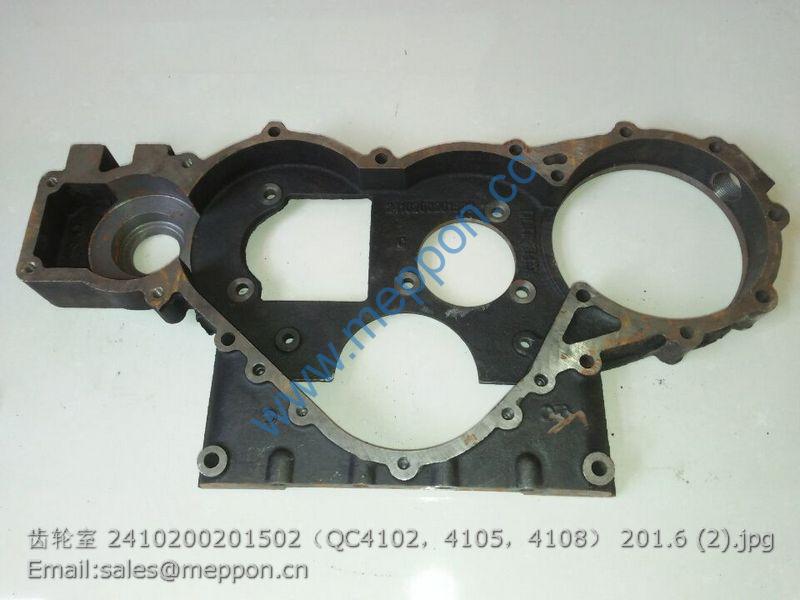

2410200201502 QC4102，4105，4108 QUANCHAI Room of gear 4102T-02001

TB550.211 Clutch assembly 1
1 FT400.21B.104 Auxiliary clutch tie rod 3
2 FT500A.21B.015 Auxiliary clutch friction disk assembly 1
3 FT400.21B.102 Auxiliary clutch platen 1
4 TB550.211-01 Dishing spring 1
5 FT300.21B.114 Main clutch adjusting screw 3
6 GBT 6171-M10X1-A2L Nut 3
7 FT400.21B.113 Main clutch platen 1
8 FT500A.21B.014 Main clutch friction plate assembly 1
9 FT400.21B.112 Clutch cover 1
10 FT400.21B.110 Top rod 3
11 FT300.21B.109 Pin shaft 3
12 GBT 91-3.2X16-A0P Split pin 10
13 GBT 848-10 Washer 12
14 FT400.21B.107 Main clutch seperate lever 3
15 FT300.21B.111 Long pin 6
16 FT400.21B.108 Main seperate lever spring 3
17 FT400.21B.106 Auxiliary clutch seperate lever 3
18 GBT 6171-M8X1-A2L Nut 3
19 FT300.21B.105 Ball nut 3
20 FT300.21B.120 Auxiliary seperate lever spring 3
21 GBT 5783-M10X40-A3L Bolt 6
22 GBT 93-10 Washer 6

TB504.212 Clutch control assembly 1
1 GBT 276-6204-2RS Bearing 1
2 TA800.212-02 Separate bearing 996713 1
3 FT400.21B.101 Release bearing seat 1
4 FT300.21.102 Bearing seat return spring 2
5 FT300.21.103 Clutch release fork 1
6 FT300.21.113 Stopper screw 1
7 TA800.212B-02 Low carbon steel wire SZ-1.4 1
8 TB504.21.1 Clutch pedal assembly 1
9 FT300.43.130 Pedal return spring 1
10 GBT 93-10-AOP Washer 6
11 GBT 882-B10X28 Pin shaft 2
12 FT300.43.110 Tie rod rear fork 1
13 GBT 97.1-10-A0P Gasket 2
14 GBT 91-3.2X16-AOP Pin 2
15 GBT 6170-M10-LH-A3L Nut 1
16 FT300.21.110 Tie rod 1
17 GBT 6170-M10-A3L Nut 2
18 FT300.43.108 Tie rod front fork 1
19 GBT 5783-M10X40-8.8-A3L Bolt 7
20 FT300.21.013 Clutch shifting fork shaft assembly 1
21 TB504.21-01 Clutch pedal 1
22 GBT 93-6-A0P Washer 2
23 GBT 5783-M6X16-A2L Bolt 2

TB400.371B Gearbox housing assembly 1
1 TB400.371E-01 Gearbox housing 1
2 GBT 6171-M12X1.5-A3L Nut 10
3 GBT 93-12-A0P Washer 24
4 GBT 899-AM12-M12X1.5X35-8.8-A3L Stud 10
5 FT300.37.158 Pedal shaft bushing 2
6 JBT 7940.1-M10X1 Oil cup 2
7 FT300.37.159 Release fork shaft liner 2
8 GBT 91-5X32-A0P Split pin 1
9 GBT 119.1-12m6X30-A0P Pin 3
10 TB550.371-01 Bolt M12X160 3
11 GBT 6170-M12-A3L Nut 3
12 GBT 5782-M12X110-A2L Bolt 2
13 GBT 119.1-12m6X22-A0P Pin 1
14 GBT 5783-M12X40-A3L Bolt 1
15 GBT 5782-M12X70-A2L Bolt 4
16 GBT 5783-M12X35-A3L Bolt 4
17 TB400.371E-03 Lower plug cover 1
18 GBT 5783-M10X25-8.8-A3L Bolt 4
19 GBT 93-10-A0P Washer 4

TB400.372D Main gear assembly 1
1 FT400.37B.201 Auxiliary clutch shaft 1
2 GBT 5783-M8X25-8.8-A2L Bolt 4
3 GBT 93-8-A0P Washer 4
4 FT300.37B.124 1st shaft bearing cover 1
5 FT300.37B.125 1st shaft bearing cover gasket 1
6 GBT 9877.1-FB40X62X8F Skeleton oil seal 1
7 GBT 276-6208 Bearing 1
8 FT300.37B.021a 1st shaft unit 1
8.1 FT300.37B.202a Shaft-1 1
8.2 FT300.37.170 Bush 1
9 GBT 3452.1-23.6X1.80G O-ring 2
10 TB550.372-18 1st gear spacing sleeve 1
11 FT300.37B.126a 1st gear driving gear 1
12 TB550.372-19 1st and 2nd gear spacing sleeve 1
13 FT300.37.128 2nd gear driving gear 1
14 FT300.37.130 3rd gear liner 1
15 FT300.37.131a 3rd gear driving gear 1
16 FT300.37.132 3rd and 4th gear seat 1
17 FT300.37.134a 3rd and 4th gear meshing sleeve 1
18 GBT 276-6007 Bearing 1
19 GBT 893.1-21 Circlip 1
20 FT300.37.136 Connecting sleeve 1
21 FT300.37J.137 PTO shaft connecting shaft 1
22 GBT 895.2-24 Circlip 1
