Description

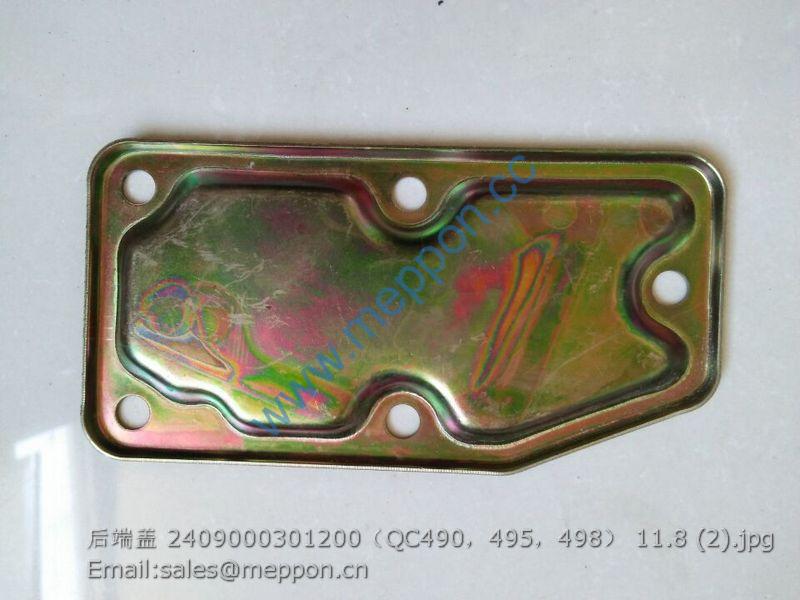

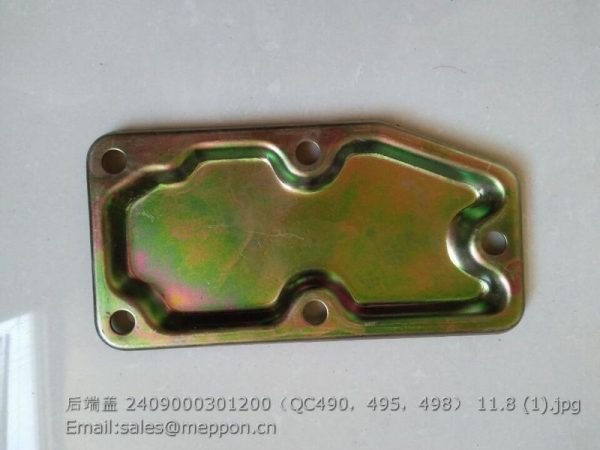

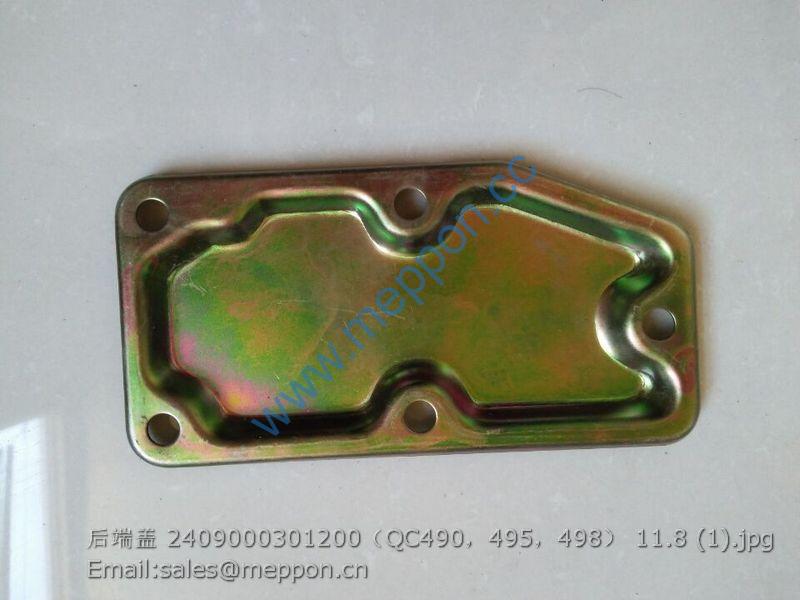

2409000301200 QC490 QC495 QC498 QC490Q(DI)-03012-1 REAR END COVER

TC02561060000k Hitch Assembly 1
1 GBT899-AM16-M16X1.5X45-10.9-A3L Double-Headed Stud 8
2 TC02561060004K Right Support Plate Weldment 1
3 FT500A.56.012 Lower Pull Rod Assembly 2
4 SPL-CO-M16X1.5-10-F3 Hexagon Flange Nut 8
5 FT300.56A.102 Limit Lever Connecting Pin 2
6 FT300.56A.019 Right Limit Lever Bracket Weldment 1
7 GBT16674.1-M16X40-10.9-A3L Hexagon Flange Bolt 8
8 GBT91-5X32-A0P Split Pin 4
9 GBT882-B18X55-A0P Pin Shaft 2
10 FT300.56A.103 Sleeve 4
11 FT300.56A.016a Limit Lever Assembly 2
11.1 FT300.56A.023 Limit Lever Lock Pin Combination 1
11.2 FT300.56A.161 Limit Lever Adjusting Screw Rod 1
11.3 GBT6170-M22-8-A9L Hexagon Nut, Style 1 1
11.4 FT300.56A.022a Telescopic Pipe Weldment 1
11.5 FT300.56A.021a Telescopic Lever Ball Head Assembly 1
12 GBT91-4X36-A0P Split Pin 2
13 GBT6178-M20-8-A9L Hexagon Slotted Nut, Style 1 2
14 GBT97.1-20-A0P Plain Washer 2
15 FT300.56A.110a Limit Lever Rear Connecting Pin 2
16 GBT6170-M20-8-A3L Hexagon Nut, Style 1 2
17 FT300.56A.111a Round Plate 2
18 TC02561060001K Left Support Plate Weldment 1
19 FT300.56A.017 Left Limit Lever Bracket Weldment 1
20 GBT93-20-A0P Standard Spring Washer 2

TC02561060000k Hitch Assembly 1
1 GBT91-5X32-A0P Pin 2
2 FT500A.56.011a Upper Pull Rod Assembly 1
2.1 FT500A.56.026 Front Adjusting Lever Assembly Of Upper Pull Rod 1
2.2 GBT6173-M27X2-05-A3L Hexagon Thin Nut 1
2.3 FT500A.56.027 Adjusting Screw Pipe Weldment 1
2.4 GBT6173-M27X2-LH-05-A3L Hexagon Thin Nut 1
2.5 FT500A.56.024 Rear Adjusting Lever Assembly Of Upper Pull Rod 1
2.6 FT65.56.015 Upper Pull Rod Lock Pin Assembly 1
3 FT500A.56.101 Upper Connecting Pin Of Lifting Rod 2
4 TB400.56E.1 Lifting Rod Assembly 2
4.1 TB400.56E.1-01 Upper Connecting Fork Of Lifting Rod 1
4.2 TB400.56E.1.1 Adjusting Screw Pipe Weldment 1
4.3 TB400.56E.1.2 Lifting Rod Adjusting Sleeve Weldment 1
4.4 TB400.56E.1.3 Lower Connecting Fork Weldment 1
5 FT500A.56.118 Washer 2
6 GBT91-5X40-A0P Split Pin 2
7 FT300.56A.112 Lower Connecting Pin Of Lifting Rod 2
8 GBT97.1-24-A0P Plain Washer 2
9 TB500.56B.6 Upper Pull Rod Fixing Clamp Combination 1
9.1 GBT91-2X14-A0P Split Pin 1
9.2 GBT96.1-6-A0P Large Washer 1
9.3 TE300.56.6-01 Fixing Seat 1
9.4 TB500.56B.6-01 Upper Pull Rod Fixing Hook 1
9.5 TE300.56.6-03 Nylon Bushing 1
10 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
11 GBT97.1-8-A0P Plain Washer 2
12 GBT93-8-A0P Standard Spring Washer 2
13 GBT6170-M8-8-A2L Hexagon Nut, Style 1 2

TC02581130000K Oil Pump/Pine/Filter Assembly 1
1 GBT70.1-M8X30-8.8-A2L Hexagon Socket Head Cap Screw 3
2 GBT93-8-A0P Standard Spring Washer 15
3 TC04581160001 Pressure Oil Pipe Assembly 1 1
4 GBT3452.1-18.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
5 TC02581060001K Gear Pump 1
6 TC02581130001K Oil Pump Outlet Steel Pipe Weldment 1
7 GBT70.1-M8X35-8.8-A2L Hexagon Socket Head Cap Screw 4
8 GBT3452.1-20.0X1.80G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
9 TB504.581E.3 Oil Suction Pipe Weldment 1
10 GBT70.1-M8X25-8.8-A2L Hexagon Socket Head Cap Screw 4
11 Q67638 B-Type Worm Drive Hose Clamp 4
12 TB504.581E-02 Oil Suction Rubber Pipe 1
13 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 4
14 GBT95-8-A0P Plain Washer 4
15 TC02581130006K Oil Filter Bracket Weldment 1
16 GBT70.1-M10X40-8.8 Hexagon Socket Head Cap Screw 2
17 GBT93-10-A0P Standard Spring Washer 2
18 TC02581130008K Oil Filter Shield Weldment 1
19 TB504.581E.2 Rotary Oil Suction Filter 1
20 TC02581130005K Oil Suction Bending Pipe 1
21 GBT5783-M6X30-8.8-A2L Hexagon Head Bolt 2
22 TB504.581E.1 Oil Pipe Clip And Rubber Pad Paste 4
23 GBT93-6-A0P Standard Spring Washer 2
24 GBT6170-M6-8-A2L Hexagon Nut, Style 1 2
25 TC02581130003K Oil Suction Steel Pipe Assembly 1
26 TC04581020005 Straight Thread Connector, Body M22-25 1
27 JBT982-22 Compound Seal Washer 1

TC02582090000K Multi-Way Valve Oil Pipe Assembly 1
1 TG1654.583C-01 Pin Shaft 2
2 TS04582010058 Multi-Way Valve Control Assembly 1
2.1 TS04582010059 Installation Seat Weldment 1
2.2 TS04582010043 Control Handle Press 2
2.3 GBT97.1-14-A0P Plain Washer 2
2.4 GBT894.1-14 Circlip For Shaft 2
3 GBT97.1-6-A0P Plain Washer 2
4 GBT91-2X14-A0P Split Pin 2
5 TS04582020001 Flexible Shaft Mechanism Assembly 2
6 TS04582010027 Rubber Ring 2
7 GBT6170-M6-8-A2L Hexagon Nut, Style 1 3
8 GBT93-6-A0P Standard Spring Washer 3
9 GBT5782-M6X60-8.8-A1L Hexagon Head Bolt 3
10 TC04582140010 Multi-Way Valve Assembly 1
11 GBT5783-M10X16-8.8-A3L Hexagon Head Bolt 1
12 TC02580010001K Quick-Change Connector 2
13 FT354.58A.030 Quick-Change Connector 2
14 TC04582140009 Straight Thread Connector, Body M18 Assembly 4
15 GBT93-10-A0P Standard Spring Washer 1
16 TC04582300012 Lifter Oil Inlet Pipe Assembly 1
17 GBT3452.1-20.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
18 TC04582300005 Lifter Oil Inlet Steel Pipe Weldment 1
19 GBT93-8-A0P Standard Spring Washer 6
20 GBT5783-M8X35-8.8-A2L Hexagon Head Bolt 2
21 TC04582300013 Multi-Way Valve Oil Return Rubber Pipe Assembly 1
22 TC04582140012 Adjustable Joint M18-15 Assembly 2
23 TC04582300001 Multi-Way Valve Oil Inlet Rubber Pipe Assembly 1
24 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 1
25 TD924.582-01 Pipe Clip 2
26 TS04582010025 Handle Head 2
27 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 3
28 TC04582300011 Adjustable Joint M18-15 Combination 1
29 Q67405200 Plastic Fastening Strap 1

TB300.583A Single-Way Hydraulic Outlet Assembly 2 1
1 FT354.58A.104 Oil Pipe Joint (British System) 1
2 FT354.58A.030 Quick-Adapt Joint 1

TS04441010000K Seat Installation Assembly 1
1 GBT5783-M12X30-8.8-A3L Hexagon Head Bolt 4
2 GBT93-12-A3L Standard Spring Washer 4
3 GBT95-12-A2L Plain Washer 4
4 TS04441010001K Seat Assembly 1
