LOVOL TC2A604-007K Tractor Parts Catalogue 01
Label |
Part code and specifications |
Part name |
Page code |
A Engine matching part |
|||
1 |
TB550.11B |
Air Cleaner Assembly |
2 |
2 |
TB550.13Q |
Cooling System Assembly |
4 |
3 |
TB400.201F |
Handle Throttle Assembly |
6 |
4 |
TB400.202G |
Foot Throttle Assembly |
8 |
5 |
TB400.203F |
Throttle Wire Assembly |
10 |
6 |
TB550.22A |
Exhaust System Assembly |
12 |
B Drive line part |
|||
7 |
TB550.211A |
Clutch Subassembly |
14 |
8 |
TB504.212 |
Clutch Control Mechanism Assembly |
16 |
9 |
TB400.371 |
Gearbox Housing Assembly |
18 |
10 |
TB550.372 |
Main Gear Assembly-1 |
20 |
11 |
TB550.372 |
Main Gear Assembly-2 |
22 |
12 |
TB550.373 |
Gearbox Assistant Gear Assembly |
24 |
13 |
TB550.374B |
Gearbox Control Mechanism Assembly-1 |
26 |
14 |
TB550.374B |
Gearbox Control Mechanism Assembly-2 |
28 |
15 |
TB554.381 |
Shuttle Gearshift Assembly |
30 |
16 |
TB554.382 |
Rear Axle Central Transmission Assembly-1 |
32 |
17 |
TB554.382 |
Rear Axle Central Transmission Assembly-2 |
34 |
18 |
TB554.383D |
|
36 |
19 |
TB554.384 |
Rear Axle Housing Assembly |
38 |
20 |
TB554.385 |
Shuttle Shift Mechanism Assembly |
40 |
21 |
TB550.391 |
Left Final Transmission Assembly |
42 |
22 |
TB550.392 |
Right Final Transmission Assembly |
44 |
23 |
TB550.411A |
PTO Gear Assembly |
46 |
24 |
TB550.412A |
PTO Shaft Assembly |
48 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
25 |
TB550.413D |
PTO Control Assembly |
50 |
26 |
TB554.421B |
Transfer Case Body Assembly |
52 |
27 |
TB554.421B |
Transfer Case Body Assembly(extension) |
54 |
28 |
TB554.422 |
Transfer Case Transmission Assembly |
56 |
29 |
TB554.423B |
Transfer Case Control Assembly |
58 |
C Front axle (shaft) part |
|||
30 |
TC02311020000 |
Front Driving Axle Assembly-1 |
60 |
31 |
TC02311020000 |
Front Driving Axle Assembly-2 |
62 |
32 |
TC02311020000 |
Front Driving Axle Assembly-3 |
64 |
33 |
TC02311020000 |
Front Driving Axle Assembly-4 |
66 |
34 |
TC02311020000 |
Front Driving Axle Assembly-5 |
68 |
35 |
TC02311020000 |
Front Driving Axle Assembly-6 |
70 |
36 |
TB554.312 |
Front Bracket Assembly |
72 |
D Running system part |
|||
37 |
FT404.32F.001 |
Front Drive Wheel Assembly |
74 |
38 |
FT550.34F.001 |
Rear Driving Wheel Assembly |
76 |
E Steering system part |
|||
39 |
TC04401030000 |
Steering Wheel and Steering Column Assembly |
78 |
40 |
TC02402360000K |
Fully Hydraulic Steering Pipeline Assembly-1 |
80 |
41 |
TC02402360000K |
Fully Hydraulic Steering Pipeline Assembly-2 |
82 |
F Braking system part |
|||
42 |
TB604.431 |
Left Brake Assembly |
84 |
43 |
TB604.432 |
Right Brake Assembly |
86 |
44 |
TB604.433 |
Brake Control Mechanism Assembly-1 |
88 |
45 |
TB604.433 |
Brake Control Mechanism Assembly-2 |
90 |
46 |
TB450.801A |
Pneumatic brake valve mounting assembly |
92 |
47 |
TB450.802A |
Gas holder installation assembly |
94 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
48 |
TB550.803Q |
Air transfer pipeline assembly |
96 |
G Hydraulic hitch and work device |
|||
49 |
FT300.53.001 |
Traction Equipment Assembly |
98 |
50 |
TB504.551A |
Lifter Device Fitting Assembly-1 |
100 |
51 |
TB504.551A |
Lifter Device Fitting Assembly-1(extension) |
102 |
52 |
TB504.551A |
Lifter Device Fitting Assembly-2 |
104 |
53 |
TB504.551A |
Lifter Device Fitting Assembly-2(extension) |
106 |
54 |
TB504.551A |
Lifter Device Fitting Assembly-2(extension) |
108 |
55 |
TB504.551A |
Lifter Device Fitting Assembly-3 |
110 |
56 |
TB504.551A |
Lifter Device Fitting Assembly-3(extension) |
112 |
57 |
TB504.551A |
Lifter Device Fitting Assembly-4 |
114 |
58 |
TB504.552C |
Lifter Control Mechanism Assembly |
116 |
59 |
FT500A.56B.001 |
Suspension Mechanism Assembly-1 |
118 |
60 |
FT500A.56B.001 |
Suspension Mechanism Assembly-2 |
120 |
61 |
TC02581200000K |
Oil Pipe Filter Assembly of Oil Pump |
122 |
62 |
TC04582200000 |
|
124 |
63 |
TC04582200000 |
|
126 |
64 |
TC04582200000 |
|
128 |
65 |
TB300.583A |
Single-way Hydraulic Outlet Assembly 2 |
130 |
H Cab, driver’s seat, covering panel, etc |
|||
66 |
TB400.44G |
Seat Mounting Assembly |
132 |
67 |
TC02451090000K |
Driver’s cab assembly-1 |
134 |
68 |
TC02451090000K |
Driver’s cab assembly-2 |
136 |
69 |
TC02451090000K |
Driver’s cab assembly-3 |
138 |
70 |
TC02451090000K |
Driver’s cab assembly-4 |
140 |
71 |
TC02451090000K |
Driver’s cab assembly-5 |
142 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
72 |
TC02451090000K |
Driver’s cab assembly-5(extension) |
144 |
73 |
TB550.452H |
Floor Assembly-1 |
146 |
74 |
TB550.452H |
Floor Assembly-2 |
148 |
75 |
TB400.457B |
Front Connection Assembly |
150 |
76 |
TB400.458B |
Rear Connection Assembly |
152 |
77 |
TC02471040000K |
Bonnet Assembly |
154 |
78 |
TB400B.473 |
Bonnet Lock Mechanism Assembly |
156 |
79 |
TB550.477D |
Bonnet Lengthened Plate Assembly |
158 |
80 |
TB400.49 |
Tool Kit Assembly |
160 |
81 |
TB400.50X |
Fuel Tank Assembly |
162 |
82 |
TA600.62 |
Safety Belt Assembly |
164 |
83 |
FT300.74A.001 |
Front Ballast Frame Assembly |
166 |
84 |
FT404.74A.002 |
Front Ballast Assembly |
168 |
85 |
FT600.91.001 |
Rear Ballast Assembly |
170 |
J Electrical and accessory parts |
|||
86 |
TC02481210000K |
Harness Installation Assembly, Engine |
172 |
87 |
TC02482150000K |
Harness Installation Assembly, Body |
174 |
88 |
TB550.483 |
Harness Installation Assembly, Front Lamp |
176 |
89 |
TC02484080000K |
Harness Installation Assembly, Rear Lamp |
178 |
90 |
TB450.485A |
Battery Installation Assembly |
180 |
91 |
TC02487010000K |
Combination Instrument Assembly |
182 |
92 |
TB550.489B |
Preheating Device Assembly |
184 |
93 |
TB400.81 |
Heater Installation Assembly |
186 |
Foton TC2A604-007K Wheeled Tractor
TB550.11B Air Cleaner Assembly
2

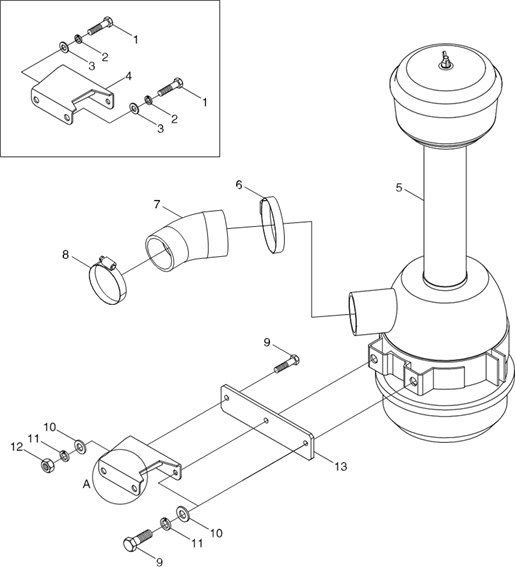

Foton TC2A604-007K Wheeled Tractor
TB550.11B Air Cleaner Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.11B |
Air Cleaner Assembly |
1 |
||
1 |
GB/T 5783-M10×25-8.8-A3L |
Hex bolt |
2 |
|
2 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
3 |
GB/T 97.1-10-A0P |
Flat washer |
2 |
|
4 |
TB550.11B.2 |
Air filter bracket weldment |
1 |
|
5 |
TB550.11Q.1 |
Air filter assembly |
1 |
|
6 |
Q67689 |
Type-B Worm Drive Hose Clamp |
1 |
|
7 |
TB550.11Q-01 |
Air intake hose |
1 |
|
8 |
Q67676 |
Type-B Worm Drive Hose Clamp |
1 |
|
9 |
GB/T 5783-M8×25-8.8-A2L |
Hex bolt |
3 |
|
10 |
GB/T 97.1-8-A0P |
Flat washer |
3 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
12 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
1 |
|
13 |
TB550.11B-01 |
Air filter installation plate |
1 |
3

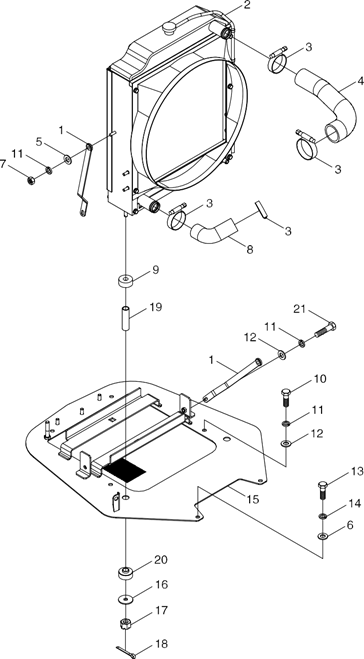

Foton TC2A604-007K Wheeled Tractor
TB550.13Q Cooling System Assembly
4
