LOVOL TC2A400-004K Tractor Parts Catalogue 08

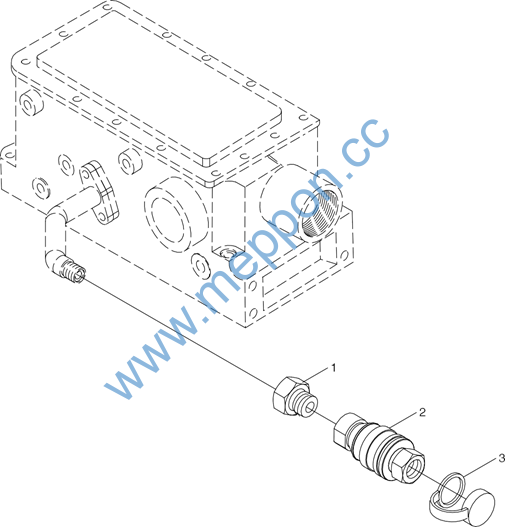

TB300.583A Single-way Hydraulic Outlet Assembly 2
86
Foton TC2A400-004K Wheeled Tractor
TB300.583A Single-way Hydraulic Outlet Assembly 2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB300.583A FT354.58A.104 FT354.58A.030 FT354.58A.103 |
Single-way hydraulic outlet assembly 2 Oil pipe joint Quick-adapt joint Dustproof cover |
1 1 1 1 |
87
Foton TC2A400-004K Wheeled Tractor

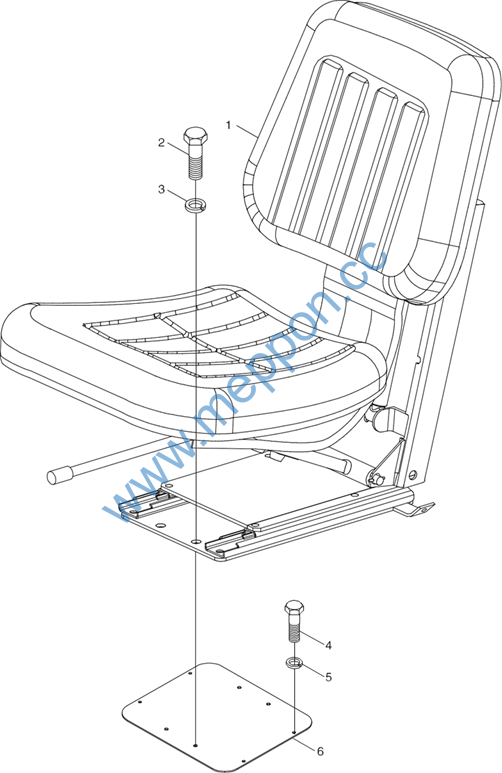

TB400.44J Seat Mounting Assembly
88
Foton TC2A400-004K Wheeled Tractor
TB400.44J Seat Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TB400.44J TB400.44J.1 GB/T 5783-M10×20-8.8-A3L GB/T 93-10-AOP GB/T 5783-M8×20-8.8-A2L
GB/T 93-8-A0P FT300.44B.011 |
Seat mounting assembly Seat assembly Bolt Washer Bolt
Washer Seat cover plate weldment |
1 1 4 4 4
4 1 |
89
Foton TC2A400-004K Wheeled Tractor

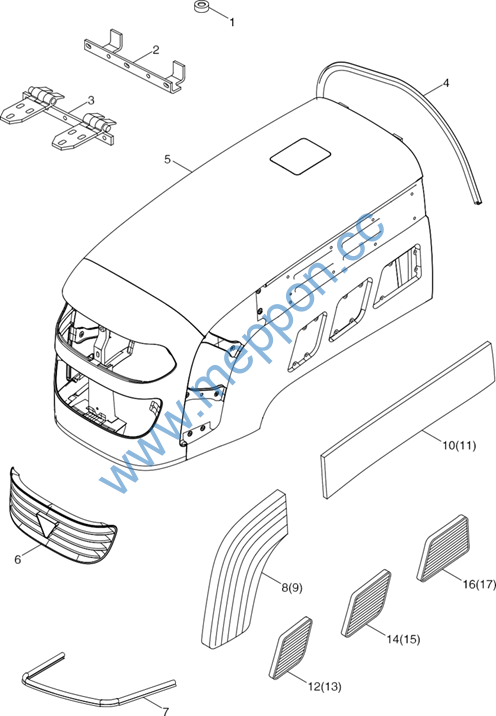

TC02471040000K Bonnet Assembly
90
Foton TC2A400-004K Wheeled Tractor
TC02471040000K Bonnet Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02471040000K |
Bonnet assembly |
1 |
||
1 |
TB400B.471-18 |
Backing block |
24 |
|
2 |
TB400B.471-15 |
Hinge chain upper seat |
2 |
|
3 |
TB400B.471-16 |
Hinge chain lower seat |
1 |
|
4 |
TB400B.471-14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.4 |
Bonnet welding assembly |
1 |
|
6 |
TC02471040001K |
Front grid |
1 |
|
7 |
TB400B.471-17 |
Front lower buffer strip |
1 |
|
8 |
TB400B.471-02 |
Left front grid |
1 |
|
9 |
TB400B.471-03 |
Right front grid |
1 |
|
10 |
TB400B.471-04 |
Left rear decorative parts |
1 |
|
11 |
TB400B.471-05 |
Right rear decorative parts |
1 |
|
12 |
TB400B.471-06 |
Left front lower grid |
1 |
|
13 |
TB400B.471-07 |
Right front lower grid |
1 |
|
14 |
TB400B.471-08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471-09 |
Right middle lower grid |
1 |
|
16 |
TB400B.471-10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471-11 |
Right rear lower grid |
1 |
91
Foton TC2A400-004K Wheeled Tractor

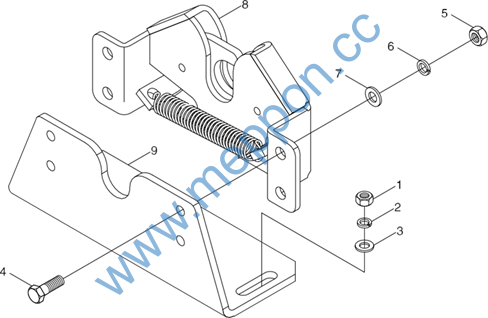

TB400B.473 Bonnet lock mechanism assembly
92
Foton TC2A400-004K Wheeled Tractor
TB400B.473 Bonnet lock mechanism assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock mechanism assembly |
1 |
||
1 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
3 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
3 |
GB/T 97.1-8-A0P |
Flat washer |
3 |
|
4 |
GB/T 5783-M6×20-8.8-A2L |
Hex bolt |
4 |
|
5 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
5 |
|
6 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
7 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
8 |
TG1204.474.4 |
Bonnet lock assembly |
1 |
|
9 |
TB400B.473-01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91-1.6×16-A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91-2.5×25-A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
TB400B.473.4 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473-02 |
Rubber ring |
1 |
93
Foton TC2A400-004K Wheeled Tractor

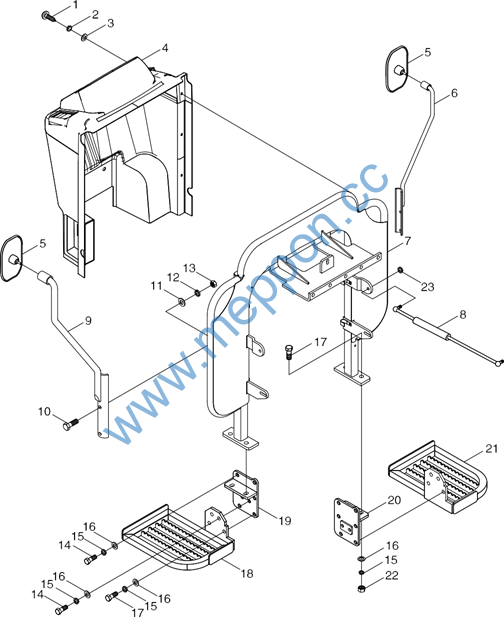

TB400B.474K Front wall fender assembly
94
Foton TC2A400-004K Wheeled Tractor
TB400B.474K Front wall fender assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.474K |
Front wall fender assembly |
1 |
||
1 |
GB/T 818-M5×20-4.8-A2L |
Screw |
6 |
|
2 |
GB/T 93-5-A0P |
Spring washer |
6 |
|
3 |
GB/T 96.1-5-A0P |
Flat washer |
6 |
|
4 |
TB400B.474F.1 |
Instrument panel assembly |
1 |
|
5 |
TB400.456A.3 |
Rear-view mirror assembly |
2 |
|
6 |
TB400B.474A.2 |
Left bracket weldment |
1 |
|
7 |
TB400B.474K.1 |
Front wall weldment |
1 |
|
8 |
TB400B.471-30 |
Bonnet air spring |
2 |
|
9 |
TB400B.474A.3 |
Right trestle weldment |
1 |
|
10 |
GB/T 5783-M8×50-A3L |
Bolt |
4 |
|
11 |
GB/T 97.1-8-A0P |
Washer |
4 |
|
12 |
GB/T 93-8-A0P |
Washer |
4 |
|
13 |
GB/T 6170-M8-A3L |
Nut |
4 |
|
14 |
GB/T 5783-M12×30-A3L |
Bolt |
8 |
|
15 |
GB/T 93-12-A0P |
Washer |
16 |
|
16 |
GB/T 97.1-12-A0P |
Washer |
16 |
|
17 |
GB/T 5783-M12×40-A3L |
Bolt |
8 |
|
18 |
FT300.47.038 |
Right pedal assembly |
1 |
|
19 |
FT300.47.015 |
Bonnet trestle base (right) |
1 |
|
20 |
FT300.47.014 |
Bonnet trestle base (left) |
1 |
|
21 |
FT300.47.037 |
Left pedal assembly |
1 |
|
22 |
GB/T 6170-M12-A3L |
Nut |
4 |
|
23 |
GB/T 93-10-A0P |
Washer |
4 |
95
Foton TC2A400-004K Wheeled Tractor

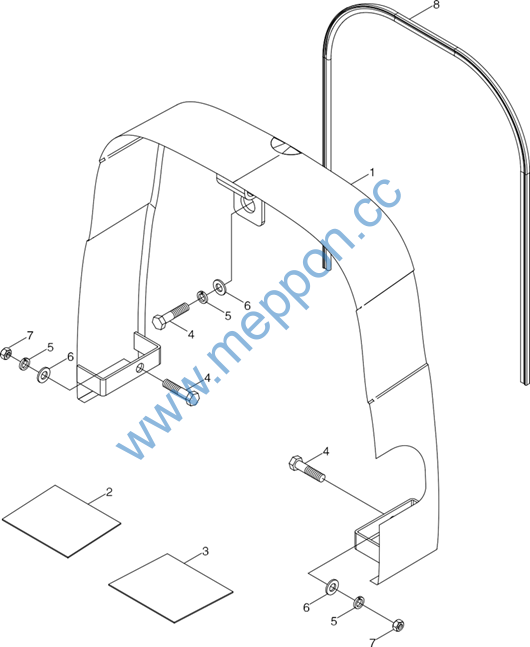

TB550.477B Bonnet Lengthened Plate Assembly
96
Foton TC2A400-004K Wheeled Tractor
TB550.477B Bonnet Lengthened Plate Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.477B |
Bonnet lengthened plate assembly |
1 |
||
1 |
TB550.477B.1 |
Bonnet lengthened plate weldment |
1 |
|
2 |
TB550.477B-01 |
Left decoration strip |
1 |
|
3 |
TB550.477B-02 |
Right decoration strip |
1 |
|
4 |
GB/T 5781-M8×30-A2L |
Bolt |
3 |
|
5 |
GB/T 93-8-A0P |
Washer |
3 |
|
6 |
GB/T 96-8-A0P |
Washer |
3 |
|
7 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
8 |
TB550.477B-03 |
Lengthened plate seal strip |
1 |
97
Foton TC2A400-004K Wheeled Tractor
FT300.47E.002 Rear fender fitting assembly
98
