No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

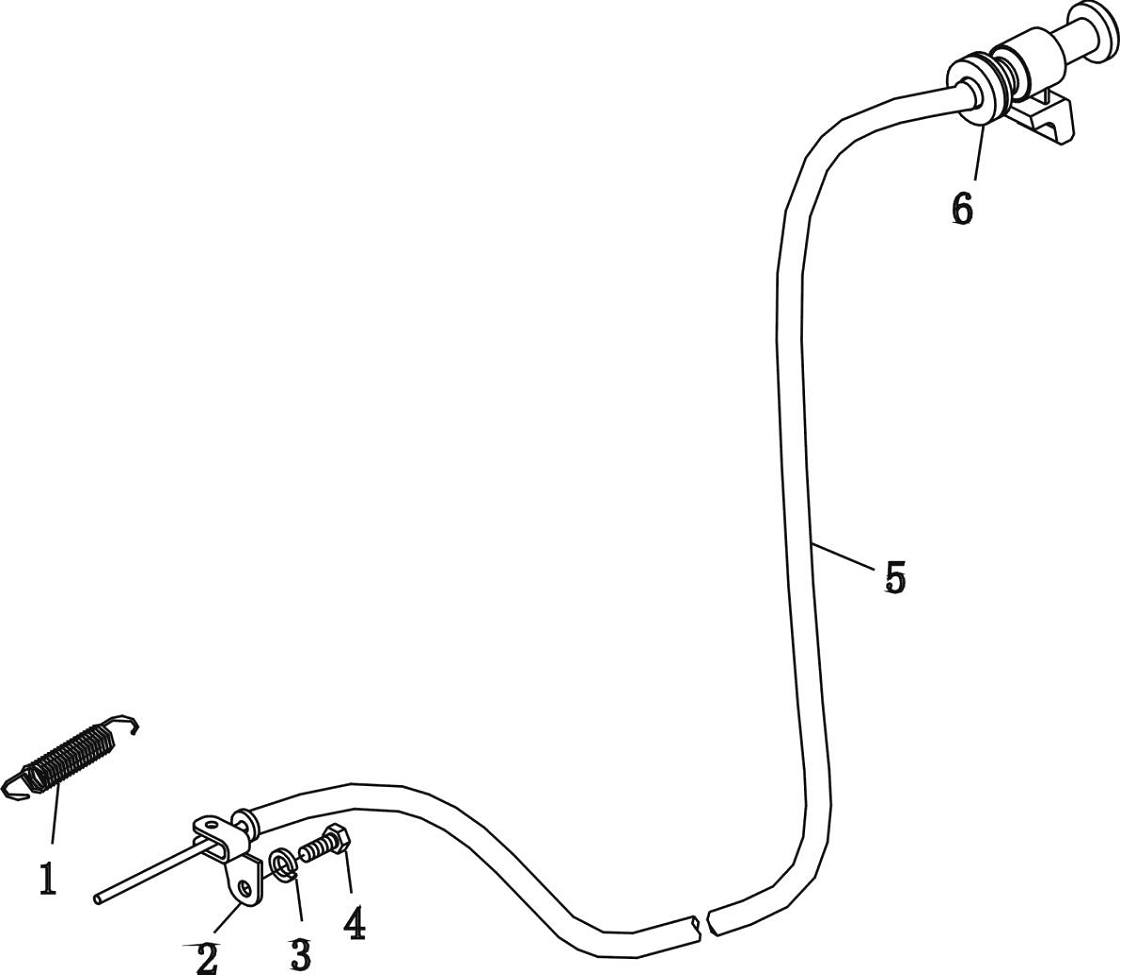

1

Tension spring, fuel cut-off cable

1.10.354A/5116803

1

2

Bracket, engine shut-off cable

1.10.359/885147284

1

3

Nut M4

10112/10794011

1

4

Screw M4×16

10312/10444814

1

5

Cable    assembly,    hand    fuel

cut-off(Core wire, stainless steel)

LX954.20.016A

1

6

Hexagon thin nut M12-Zn.D

GB/T 6172-2000

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

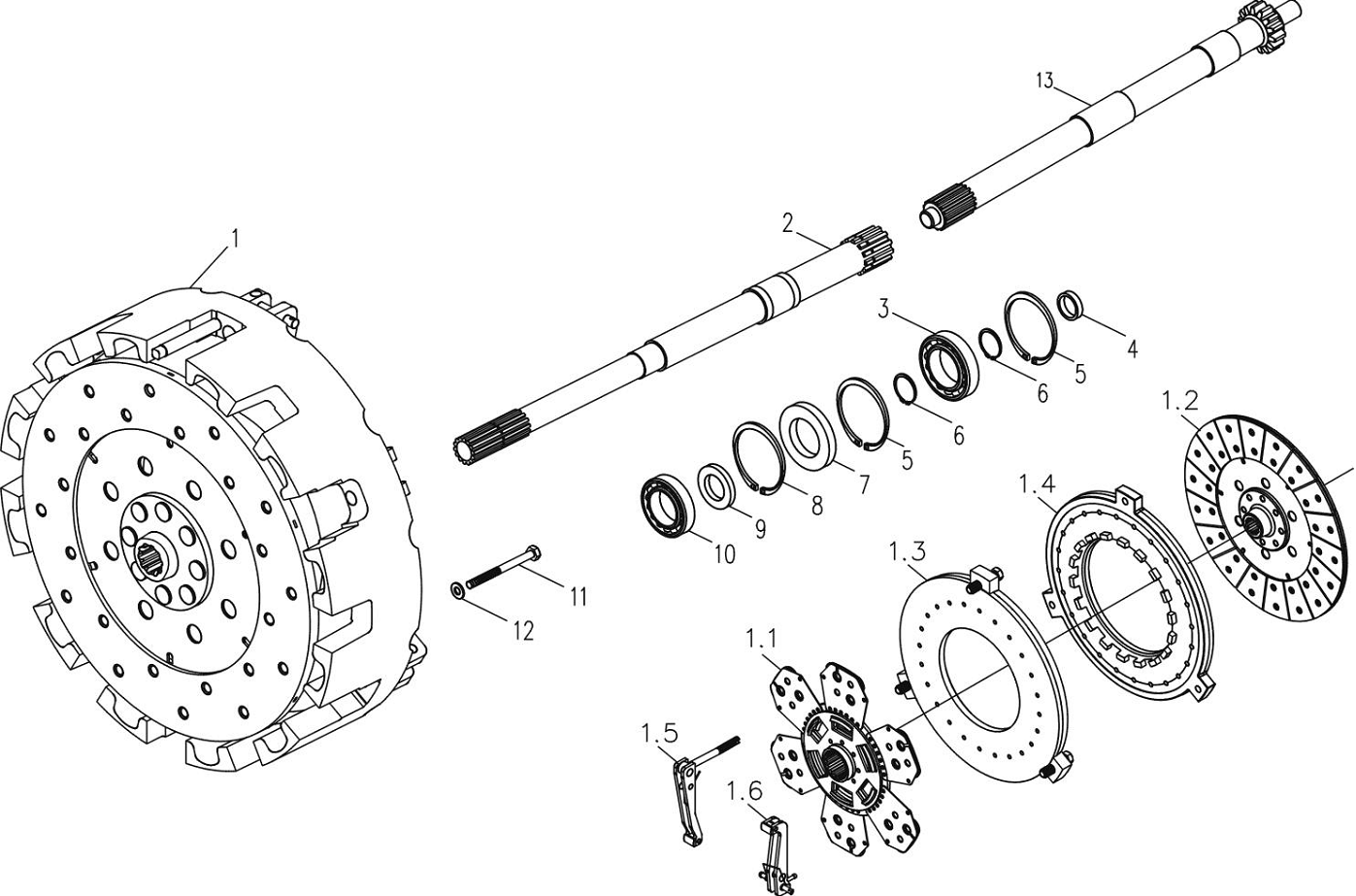

1

Clutch, 11″

SZ904.21.010

1

7

Oil seal 45×85×10

5144379/1.25.030

1

1.1

Driven disc assembly, main

clutch

L-03028-0100-07

1

8

Retainer ring 85

11062176/12246

1

1.2

Driven disc assembly, auxiliary

clutch

L-03028-0836-01

1

9

Bearing retainer 63×84.5×3

SZ804.21.702

1

1.3

Compressing disc, main clutch

L-02103-0730-60

1

10

Bearing 6008.2RS

GB/T276

1

1.4

Compressing disc, auxiliary

clutch

L-02103-0729-00

1

11

Bolt    M8×95-Zn.D

GB/T5782-2000

12

1.5

Auxiliary disengaging rod

assembly

L-02615-0050-02

1

12

Washer 8-Zn.D

GB/T7244-1987

12

1.6

Main disengaging rod assembly

L-02615-0049-01

1

13

Shaft, clutch, PTO

5137585/1.25.351

1

2

Shaft unit, main clutch

5125360/1.25.013A

1

3

Bearing 6209E（209）

GB/T276

1

4

Oil seal 25×31×7, shaft, main

clutch

4985295/1.28.174

1

5

Retainer ring 85

11062176/12246

2

6

Retainer ring 45

11069076/12245

2

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

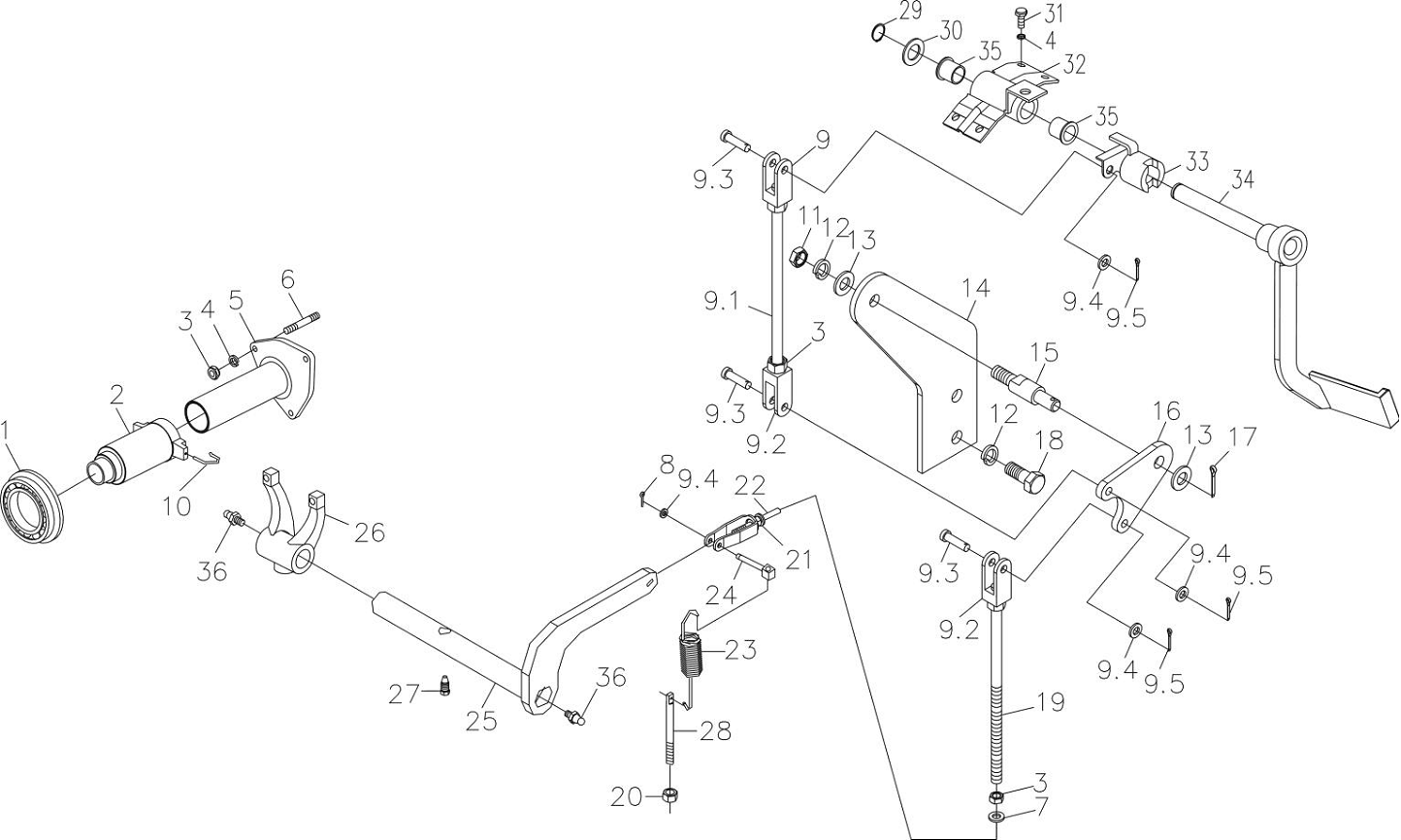

1

Release thrust bearing, clutch

5136682/1.26.215

1

14

Support plate

SZ804.21.305-1

1

2

Release sleeve, main clutch

5147787/1.26.214

1

15

Pin

SZ904.21.304

1

3

Nut    M8-Zn.D

GB/T6170-2000

3

16

Sector plate unit

SZ904.21.055

1

4

Washer 8-Zn.D

GB/T7244-1987

3

17

Split pin 3.2×16-Zn.D

GB/T97.1-2002

1

5

Sliding support, release sleeve

SZ804.21.701

1

18

Bolt    M10×1.25×25

GB/T5786-2000

2

6

Stud AM8-M8×28-8.8

GB/T899-1988

3

19

Rod unit (LWR)

SZ700.21.031

1

7

Plain washer 8-Zn.D

GB/T97.1-2002

1

20

Nut    M12-Zn.D

GB/T6170-2000

1

8

Split pin 2×12

GB/T91-2000

1

21

Adjusting nut, release cable

5104884SZ/1.26.206E

1

9

Rod unit (UPR)

SZ804.21.050

1

22

Clevis, release cable

adjustment

SZ804.21.507

1

9.1

Rod (UPR)

SZ804.21.501

1

23

Spring

5102356/1.26.522

1

9.2

Clevis

SZ804.21.306

3

24

Pin, coupling yoke

8808026003/1.26

1

9.3

Shaft, Pin B6×24

GB/T 882-86

3

25

Release fork unit

LY1054.21.014

1

9.4

Washer 6-Zn.D

GB/T97.1-85

3

26

Release fork, main clutch

4993814/1.26.213

1

9.5

Split pin 2×16

GB/T91-2000

3

27

Screw, release fork, clutch

4968813/1.26.225

1

10

Spring, release fork

44011615/1.26.224

2

28

Adjusting screw

SZ804.21.307

1

11

Nut    M10-Zn.D

GB/T6170-2000

1

29

Retainer ring 22

11067075/12245

1

12

Washer 10-Zn.D

GB/T93-1987

3

30

Washer 22.5×38×2.5

4997848/1.26.033

1

13

Washer 10-Zn.D

GB/T97.1-2002

2

31

Bolt    M8×18-Zn.D

GB/T5783-2000

4

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

32

Support unit, pedal, main

clutch

5120392/1.26.020

1

33

Drive link, pedal

5120396/1.26.037

1

34

Pedal unit

SZ804.21.040

1

35

Bushing, seat, pedal

5110544/1.26.035A

2

36

Oil cup M8×1

GB/T1152-1995

2

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

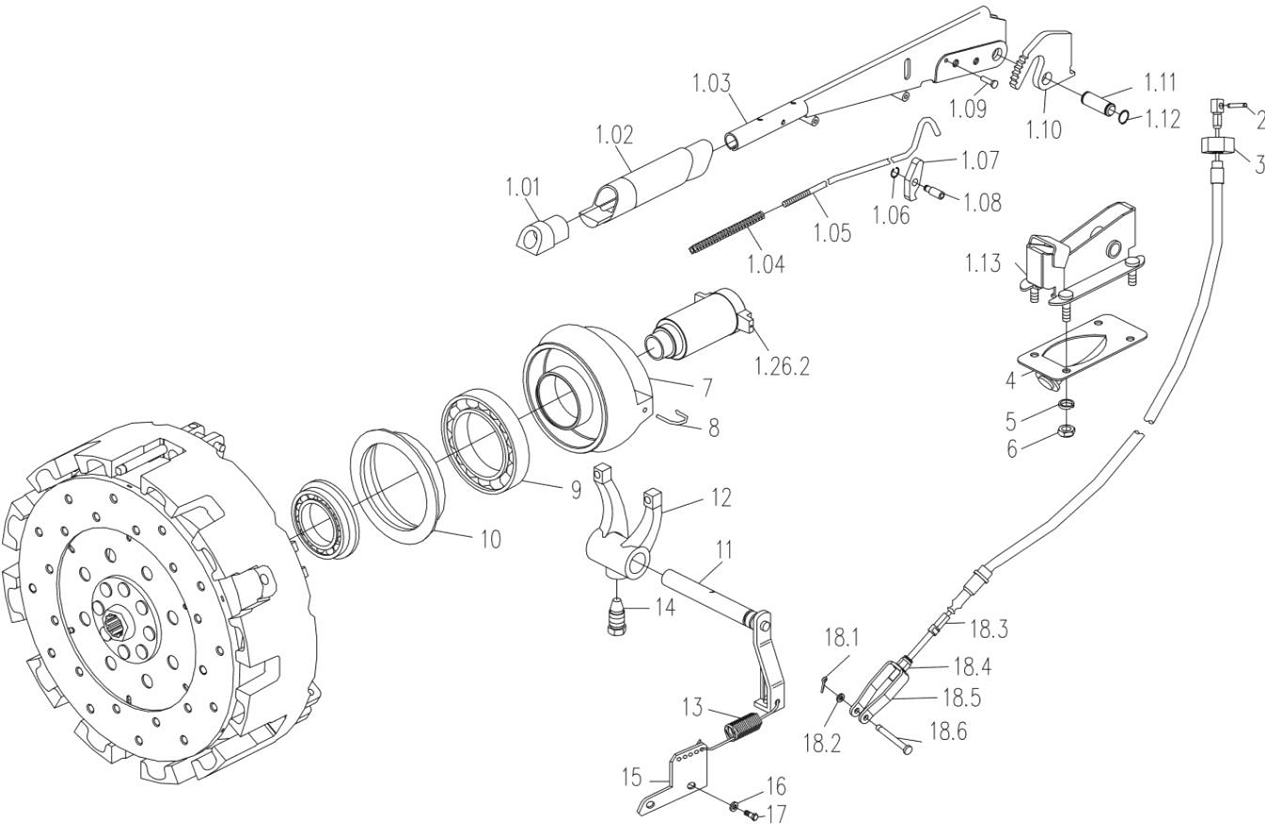

1

Control lever assembly, auxiliary clutch

5128770/1.26.506

1

8

Spring, release fork

44011615/1.26.224

2

1.01

Button assembly, handle, auxiliary clutch

5131448/1.26.521

1

9

Bearing 6014.2RS(GB278Bearing 80114)

GB/T276

1

1.02

Handle

885128431/1.67.220

1

10

Release pusher, auxiliary clutch

4993817/1.26.530

1.03

Control lever unit, auxiliary clutch

8A5128449/1.26.502

1

11

Fork shaft unit, auxiliary clutch

SZ804.21.060A

1

1.04

Spring, button, handle

5105729/1.67.253

1

12

Release fork, main clutch

4993814/1.26.213

1

1.05

Control lever, limit detent

5128713SZ/1.26.508

1

13

Return spring, cable, auxiliary clutch

5102356/1.26.522

1

1.06

Retainer ring 6

GB/T894.1-1986

1

14

Screw, release fork, clutch

4968813/1.26.225

1

1.07

Limit detent, parking

5110155/1.67.223

1

15

Adjusting plate, return spring, auxiliary clutch

5145535/1.26.581

1

1.08

Pin, limit detent

5131437/1.67.260

1

16

Washer 16-Zn.D

GB/T93-1987

1

1.09

Rivet, limit detent

4985127/1.67.227

1

17

Bolt    M16×1.5×35

GB/T5786-2000

2

1.1

Sector plate, lever, auxiliary clutch

SZ804.21.161

1

18

Split pin 2×12-Zn.D

GB/T91-2000

2

1.11

Shaft, pin, control lever, parking brake

4988275/1.67.208

1

19

Plain washer 6-Zn.D

GB/T97.1-2002

1

1.12

Retainer ring 14

GB/T894.1-1986

2

20

Release cable unit, auxiliary clutch

5126568/1.26.507B

1

1.13

Support, control lever, auxiliary clutch

8A5128809/1.26.542

1

21

Adjusting nut, release cable

5104884/1.26.206E

1

2

Pin, cable, auxiliary clutch

4998004/1.26.504

1

22

Clevis, release cable adjustment

SZ804.21.507

1

3

Cable ring nut

5126325/1.26.518

1

23

Shaft, Pin B6×20-Zn.D

GB/T882-1986

1

4

Bracket unit (RR), cable

5126322/1.26.512A

1

1

5

Washer 8-Zn.D

GB/T7244-1987

4

6

Nut    M8-Zn.D

GB/T6170-2000

4

7

Seat, release bearing, auxiliary clutch

4993816/1.26.514

1
