LOVOL TS8A1254-018K Tractor Parts Catalogue 18
Lovol TS8A1254-018K Wheeled Tractor
TG1854.501A Oil Tank Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1854.501A |
Oil tank installation assembly |
1 |
||
1 |
GBT5783-M14X45-10.9-A3L |
Hex bolt |
2 |
|
2 |
GBT93-14-A0P |
Standard spring washer |
2 |
|
3 |
TG1854.501.7 |
Oil tank front bracket weldment |
1 |
|
4 |
TG1854.501.4 |
Front limitation pipe weldment |
1 |
|
5 |
GBT95-10-A0P |
Flat washer |
3 |
|
6 |
GBT93-10-A0P |
Standard spring washer |
5 |
|
7 |
GBT5783-M10X55-8.8-A2L |
Hex bolt |
2 |
|
8 |
TG1854.501.5 |
Front lock cable ties weldment |
1 |
|
9 |
FT800A.50.209 |
Main oil tank ties rubber strip |
2 |
|
10 |
TG1854.501.3 |
Main oil tank bracket weldment |
1 |
|
11 |
TG1854.501-01 |
Shield plate |
1 |
|
12 |
GBT5783-M10X25-8.8-A3L |
Hex bolt |
1 |
|
13 |
GBT5783-M10X30-8.8-A3L |
Hex bolt |
2 |
|
14 |
GBT6170-M10-8-A3L |
Type 1 hex nut |
4 |
|
15 |
TG1854.501-02 |
Lock cable fastening frame |
1 |
|
16 |
GBT5783-M16X50-10.9-A3L |
Hex bolt |
4 |
|
17 |
GBT93-16-A0P |
Standard spring washer |
8 |
|
18 |
TG1854.501.6 |
Rear lock cable weldment |
1 |
|
19 |
TG1854.501.2 |
Rear bracket weldment |
1 |
|
20 |
GBT5783-M16X35-10.9-A3L |
Hex bolt |
4 |
|
21 |
TG1854.501.1 |
Oil tank assembly |
1 |
|
21.1 |
TG1854.501.1-02 |
Straight pipe joint |
1 |
|
21.2 |
JBT982-20 |
Compound seal washer |
3 |
|
21.3 |
Q617B20 |
Hex screw plug |
2 |
|
21.4 |
TG1854.501.1-01 |
Oil tank housing |
1 |
|
21.5 |
TF1004.501.1-02 |
Filter screen |
1 |
|
21.6 |
TD800.501A.1.1 |
Oil tank cover |
1 |
|
22 |
TG1854.501A.1 |
Oil tank front bracket weldment |
1 |
|
23 |
GBT93-20-A0P |
Standard spring washer |
4 |
|
24 |
GBT5783-M20X50-10.9-A4L |
Hex bolt |
4 |
197
Lovol TS8A1254-018K Wheeled Tractor

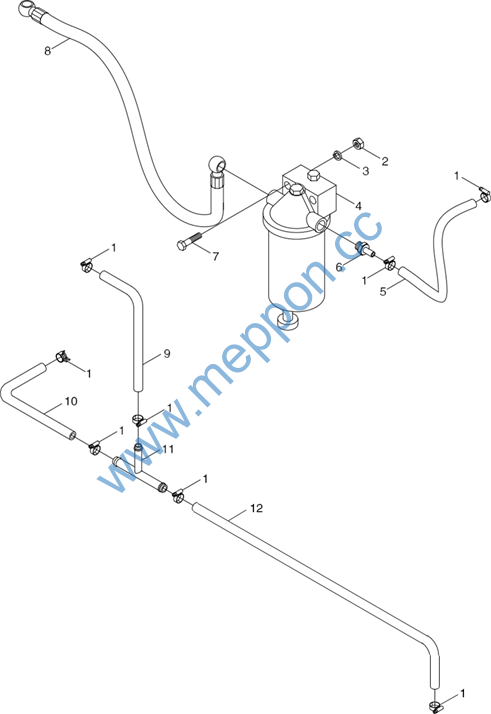

TG1854.502 Delivery Pipeline Assembly
198
Lovol TS8A1254-018K Wheeled Tractor
TG1854.502 Delivery Pipeline Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1854.502 |
Delivery pipeline assembly |
1 |
||
1 |
Q67522 |
Worm driven hose hoop, type A |
8 |
|
2 |
GBT6170-M10-LH-8-A3L |
Hexagon nut , Style 1 |
2 |
|
3 |
GBT93-10-A0P |
Standard spring washer |
2 |
|
4 |
TG1204.504.3 |
Spin-on diesel filter assembly |
1 |
|
5 |
TG1854.502-06 |
Fuel tank outlet pipe |
1 |
|
6 |
TG1854.502-01 |
Straight connector |
1 |
|
7 |
GBT5783-M10X60-8.8-A2L |
Hex head bolt |
2 |
|
8 |
TD800.503C.1 |
Delivery pipe assemble |
1 |
|
9 |
TG1854.502-04 |
Return pipe |
1 |
|
10 |
TG1854.502-03 |
3-way connecting pipe |
1 |
|
11 |
TG1854.502-05 |
3-way connector |
1 |
|
12 |
TG1854.502-02 |
Vent pipes before and after fuel tank |
1 |
199
Lovol TS8A1254-018K Wheeled Tractor

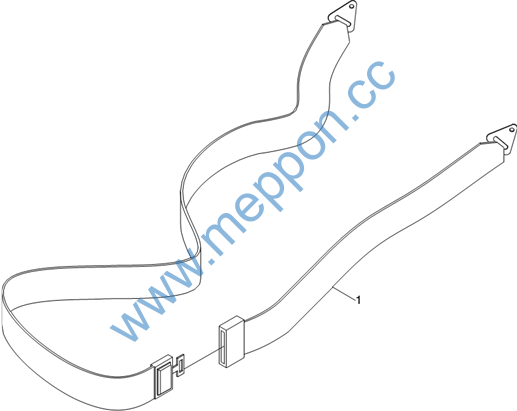

TA600.62 Safety Belt Assembly
200
Lovol TS8A1254-018K Wheeled Tractor
TA600.62 Safety Belt Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
201
Lovol TS8A1254-018K Wheeled Tractor

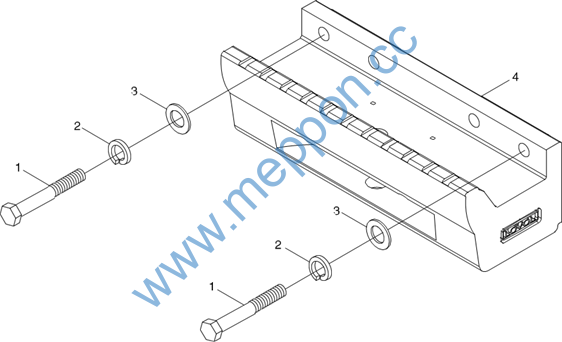

TG1204.741 Front ballast bracket assembly
202
Lovol TS8A1254-018K Wheeled Tractor
TG1204.741 Front ballast bracket assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TG1204.741 GBT5782-M20X80-A9L GBT93-20-A0P GBT97.1-20-A0P TG1204.741-01a
TG1654.741-01 |
Ballast bracket assembly Bolt Washer Washer Ballast bracket
Ballast Bracket |
1 6 6 6 1
1 |
203
Lovol TS8A1254-018K Wheeled Tractor

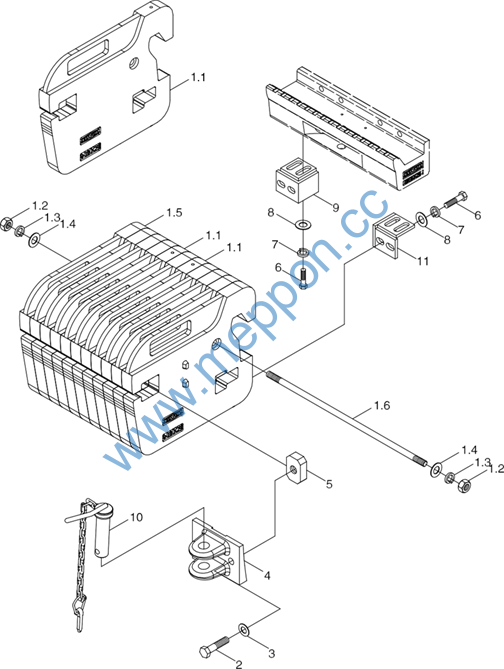

TG1204.742 Front Counterweight Assembly
204
Lovol TS8A1254-018K Wheeled Tractor
TG1204.742 Front Counterweight Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.742 |
Front counterweight assembly |
1 |
||
1 |
TG1204.742.1 |
Front counterweight subassembly |
1 |
|
1.1 |
TG1204.742-02 |
Counterweight block |
2 |
|
1.2 |
GBT6170-M16-8-A3L |
Hexagon nut , Style 1 |
2 |
|
1.3 |
GBT93-16-A0P |
Washer |
2 |
|
1.4 |
GBT97.1-16-A0P |
Washer |
2 |
|
1.5 |
TG1204.742-01a |
Counterweight block |
9 |
|
1.6 |
FT700.74B.107 |
Connecting bolt |
1 |
|
2 |
GBT5785-M20X1.5X80-8.8-A3L |
Hex head bolt |
2 |
|
3 |
GBT97.1-20-A0P |
Washer |
2 |
|
4 |
TD800.742-01 |
Traction lug |
1 |
|
5 |
FT650.74.108 |
Traction nut |
2 |
|
6 |
GBT5783-M16X35-8.8-A3L |
Hex head bolt |
8 |
|
7 |
GBT93-16-A0P |
Washer |
8 |
|
8 |
GBT97.1-16-A0P |
Washer |
8 |
|
9 |
FT700.74B.010 |
Right fixed block welding assembly |
1 |
|
10 |
TD800.742.1 |
Traction pin and lockpin assembly |
1 |
|
11 |
FT700.74B.011 |
Left fixed block welding assembly |
1 |
205
Lovol TS8A1254-018K Wheeled Tractor
TG1204.95 Rear ballast assembly
206
Lovol TS8A1254-018K Wheeled Tractor
TG1204.95 Rear ballast assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |

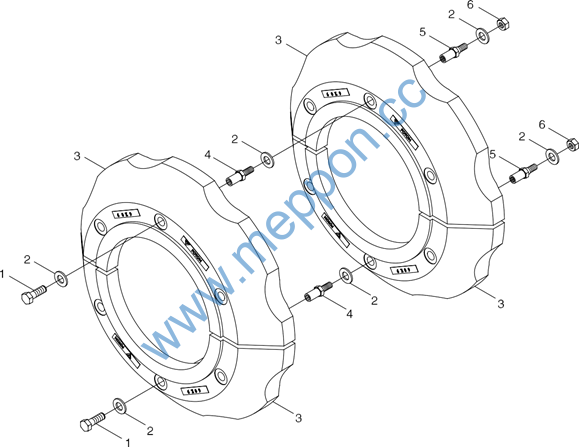

1 2 3 4
5 6 |
TG1204.95 GBT5786-M16X1.5X40-10.9-A3L FT650.34.104 TG1204.95-03 TG1204.95-02
TG1204.95-01 GBT6171-M16X1.5-10-A3L |
Rear ballast assembly Bolt Washer Rear ballast Ballast screw Ⅱ
Ballast screw Ⅰ Nut |
1 6 18 4 6
6 6 |
207
Lovol TS8A1254-018K Wheeled Tractor

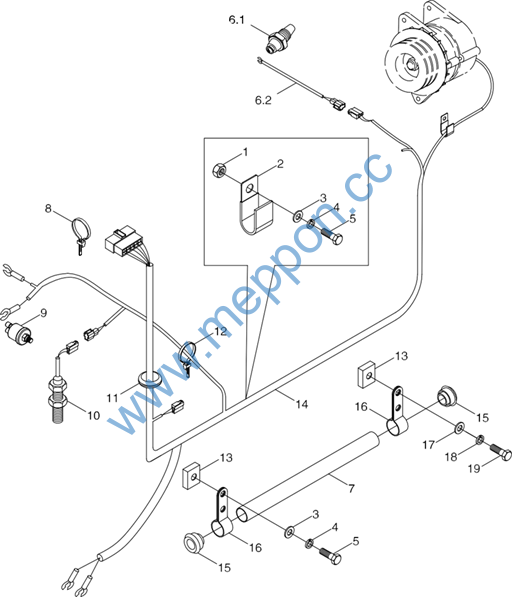

TS08481010000K Engine Harness Installation Assembly
