LOVOL TS8A1254-018K Tractor Parts Catalogue 10
Lovol TS8A1254-018K Wheeled Tractor

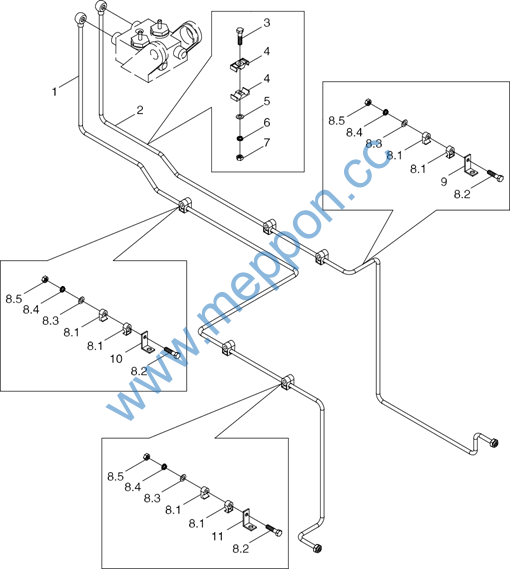

TS08402020000K Steering Pipe Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08402020000K |
Steering pipe assembly |
1 |
||
1 |
JBT982-20 |
Combined seal gasket |
2 |
|
2 |
TG1454.402G-04 |
End straight joint body |
2 |
|
3 |
TG1454.402G.15 |
Steering hose assembly |
2 |
|
4 |
GBT97.1-10-A0P |
Flat washer |
2 |
|
5 |
TG1454.402G.27 |
Steering steel pipe weldment, LH |
1 |
|
6 |
TG1454.402G.28 |
Steering steel pipe weldment, RH |
1 |
|
7 |
TG1454.402G.1 |
High-pressure hose assembly |
2 |
|
8 |
JBT982-14 |
Combined seal gasket |
4 |
|
9 |
TG1454.402G.20 |
Inlet steel pipe assembly, oil cylinder, RH |
1 |
|
10 |
TG1204.402D-01 |
Hollow bolt |
2 |
|
11 |
TG1454.402G.21 |
Inlet steel pipe assembly, oil cylinder, LH |
1 |
|
12 |
GBT5781-M8X40-4.8-A2L |
Hex head bolt |
4 |
|
13 |
GBT93-8-A0P |
Standard spring washer |
8 |
|
14 |
TG1854.402B-03 |
Oil pipe bracket 3 |
1 |
|
15 |
TG1654.402-04 |
Dual-hole pipe clamp |
6 |
|
16 |
GBT6170-M8-8-O |
Hexagon nut , Style 1 |
6 |
|
17 |
GBT5783-M8X20-8.8-A2L |
Hex head bolt |
4 |
|
18 |
GBT97.1-8-A0P |
Flat washer |
3 |
|
19 |
TG1854.402B-01 |
Pipe clamp bracket 1 |
1 |
|
20 |
F600169 |
Dual-hole pipe clamp (A) |
2 |
|
21 |
TG1854.402B-02 |
Oil pipe bracket 2 |
1 |
|
22 |
GBT5783-M10X20-8.8-A3L |
Hex head bolt |
2 |
|
23 |
GBT93-10-A0P |
Standard spring washer |
2 |
101
Lovol TS8A1254-018K Wheeled Tractor

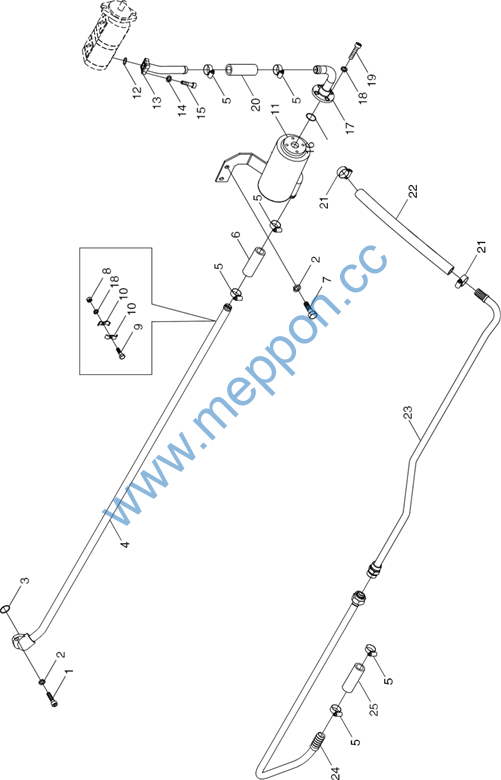

TS08402020000K Steering Pipe Assembly-3
102
Lovol TS8A1254-018K Wheeled Tractor
TS08402020000K Steering Pipe Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08402020000K |
Steering pipe assembly |
1 |
||
1 |
GBT70.1-M12X25-8.8 |
Hexagon socket head cap screw |
2 |
|
2 |
GBT93-12-A0P |
Standard spring washer |
4 |
|
3 |
GBT3452.1-38.7X2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
4 |
TG1454.402G.2 |
Oil absorption pipe weldment 1, radiator |
1 |
|
5 |
Q67638 |
Worm driven hose hoop, type B |
6 |
|
6 |
TG1854.581-12 |
Oil absorption hose 3 |
1 |
|
7 |
GBT5783-M10X20-8.8-A3L |
Hex head bolt |
2 |
|
8 |
GBT6170-M8-8-O |
Hexagon nut , Style 1 |
2 |
|
9 |
GBT5783-M8X30-8.8-A2L |
Hex head bolt |
1 |
|
10 |
TG1854.402F.17 |
Dual-hole pipe clamp combination |
2 |
|
11 |
TG1454.402G.7 |
Oil-absorption filter |
1 |
|
12 |
GBT3452.1-23.6X1.80G |
Hydraulic and pneumatic O-ring |
1 |
|
13 |
TG1454.402G.24 |
Oil absorption pipe weldment II |
1 |
|
14 |
GBT93-6-A0P |
Standard spring washer |
4 |
|
15 |
GBT70.1-M6X25-8.8 |
Hexagon socket head cap screw |
4 |
|
16 |
GBT3452.1-28.0X2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
17 |
TG1454.402G.23 |
Oil absorption pipe weldment I |
1 |
|
18 |
GBT93-8-A0P |
Standard spring washer |
6 |
|
19 |
GBT70.1-M8X25-8.8-A2L |
Hexagon socket head cap screw |
4 |
|
20 |
TG1454.402G-06 |
Oil absorption hose |
1 |
|
21 |
Q67632 |
Worm driven hose hoop, type B |
2 |
|
22 |
TS08402020015K |
Hose 1 |
1 |
|
23 |
TS08402020002K |
Hydraulic cooling oil return pipe assembly |
1 |
|
24 |
TS08402020005K |
Hydraulic cooling oil return pipe assembly 1 |
1 |
|
25 |
TG1854.582A-05 |
Oil return hose |
1 |
103
Lovol TS8A1254-018K Wheeled Tractor

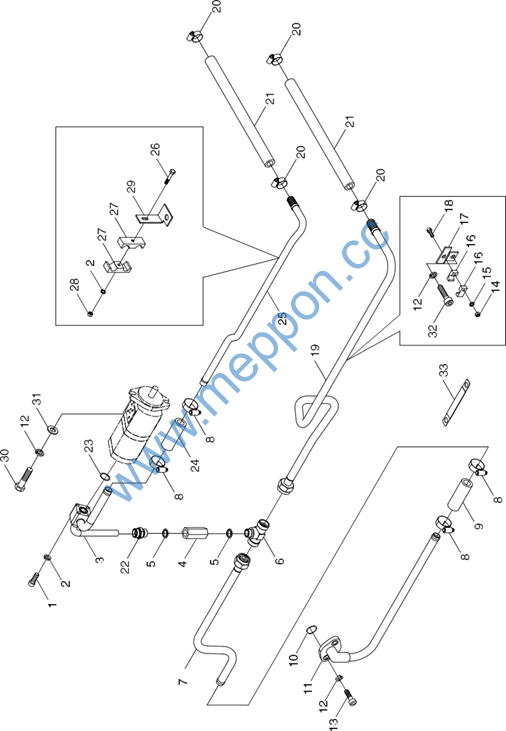

TS08402020000K Steering Pipe Assembly-4
104
Lovol TS8A1254-018K Wheeled Tractor
TS08402020000K Steering Pipe Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08402020000K |
Steering pipe assembly |
1 |
||
1 |
GBT70.1-M6X50-8.8-A2L |
Hexagon socket head cap screw |
4 |
|
2 |
GBT93-6-A0P |
Standard spring washer |
6 |
|
3 |
TS08402020017K |
Oil outlet pipe weldment |
1 |
|
4 |
TG1854.581.18 |
Bypass-valve assembly |
1 |
|
5 |
JBT982-22 |
Combined seal gasket |
2 |
|
6 |
TG1454.402G-01 |
T-junction body |
1 |
|
7 |
TG1454.402G.5 |
Steel pipe |
1 |
|
8 |
Q67638 |
Worm driven hose hoop, type B |
4 |
|
9 |
TG1854.402F-05 |
Hose |
1 |
|
10 |
GBT3452.1-33.5X2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
11 |
TG1454.402G.3 |
Oil return pipe weldment |
1 |
|
12 |
GBT93-10-A0P |
Standard spring washer |
5 |
|
13 |
GBT70.1-M10X25-8.8 |
Hexagon socket head cap screw |
2 |
|
14 |
GBT6170-M8-8-O |
Hexagon nut , Style 1 |
1 |
|
15 |
GBT93-8-A0P |
Standard spring washer |
1 |
|
16 |
TG1854.402F-04 |
Single-hole pipe clamp |
4 |
|
17 |
TG1454.402G-02 |
Bracket |
1 |
|
18 |
GBT5782-M8X45-8.8-A2L |
Hex head bolt |
1 |
|
19 |
TS08402020004K |
Oil return pipe assembly, radiator |
1 |
|
20 |
Q67632 |
Worm driven hose hoop, type B |
4 |
|
21 |
TS08402020016K |
Hose 2 |
1 |
|
22 |
TG1454.402G-03 |
Snap-fitting through-joint body |
1 |
|
23 |
GBT3452.1-19.0X2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
24 |
TG1454.402G-07 |
Hose |
1 |
|
25 |
TS08402020003K |
Oil inlet pipe assembly, radiator |
1 |
|
26 |
GBT5783-M6X40-8.8-A1L |
Hex head bolt |
1 |
|
27 |
TS08402020013K |
Pipe clamp |
2 |
|
28 |
GBT6170-M6-8-A2L |
Hexagon nut , Style 1 |
2 |
|
29 |
TS08402020006K |
Pipe clamp bracket weldment assembly |
1 |
|
30 |
GBT5783-M10X35-8.8-A3L |
Hex head bolt |
2 |
|
31 |
GBT97.1-10-A0P |
Flat washer |
2 |
|
32 |
GBT70.1-M10X20-8.8-A3L |
Hexagon socket head cap screw |
1 |
|
33 |
TD800.485A-03 |
Fixing clamp |
1 |
105
Lovol TS8A1254-018K Wheeled Tractor

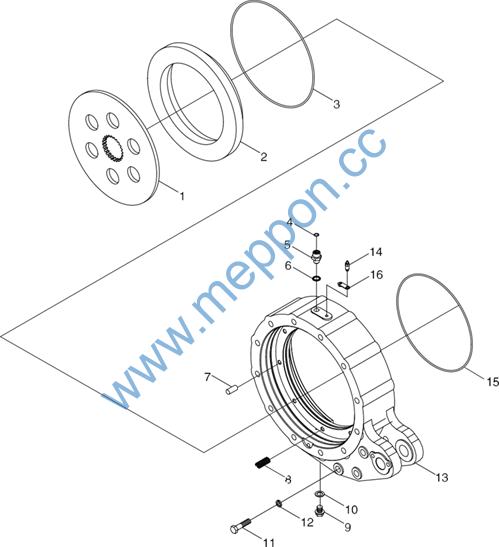

TG1204.431 Brake Assembly (LH)
106
Lovol TS8A1254-018K Wheeled Tractor
TG1204.431 Brake Assembly (LH)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.431 |
Brake assembly, LH |
1 |
||
1 |
TG1204.431.1 |
Friction lining cluster |
1 |
|
2 |
TG1204.431-04 |
Brake piston |
1 |
|
3 |
TG1204.431-03 |
O-ring seal |
1 |
|
4 |
GBT3452.1-10.0X1.80G |
O-ring |
1 |
|
5 |
FT800.43.130 |
Joint body |
1 |
|
6 |
JBT982-16 |
Combined seal gasket |
1 |
|
7 |
GBT119.1-10m6X22-A0P |
Pin |
3 |
|
8 |
FT800.43.173 |
Spring |
6 |
|
9 |
TG1204.431-08 |
Hexagon head plug screw M10X1 |
1 |
|
10 |
JBT982-10 |
Combined seal gasket |
1 |
|
11 |
TG1204.431-06 |
Bolt M18X170-A3L |
3 |
|
12 |
GBT93-18 |
Standard spring washer |
3 |
|
13 |
TG1204.431-01b |
Brake cylinder, LH |
1 |
|
14 |
TD950.43.5-04 |
Air bleed screw |
1 |
|
15 |
TG1204.431-02 |
O-ring seal |
1 |
|
16 |
TD950.43.5-05 |
Dust cover |
1 |
107
Lovol TS8A1254-018K Wheeled Tractor

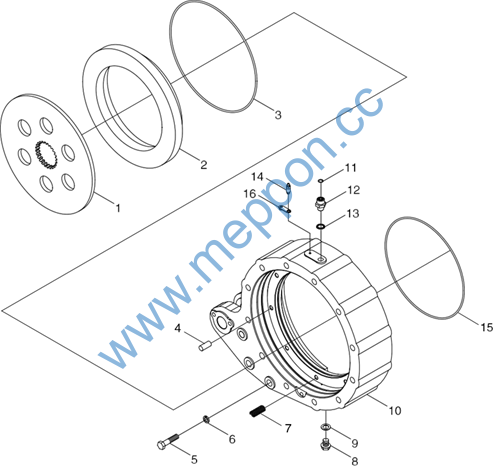

TG1204.432 Brake Assembly (RH)
108
Lovol TS8A1254-018K Wheeled Tractor
TG1204.432 Brake Assembly (RH)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TG1204.432 |
Brake assembly, RH |
1 |
||
1 |
TG1204.431.1 |
Brake lining cluster |
1 |
|
2 |
TG1204.431-04 |
Brake piston |
1 |
|
3 |
TG1204.431-03 |
Seal gasket (368) |
1 |
|
4 |
GBT119.1-10m6X22-A0P |
Cylindrical pin |
3 |
|
5 |
TG1204.431-06 |
Bolt M18X170-A3L |
3 |
|
6 |
GBT93-18 |
Standard spring washer |
3 |
|
7 |
FT800.43.173 |
Spring |
6 |
|
8 |
TG1204.431-08 |
Hexagon head plug screw M10X1 |
1 |
|
9 |
JBT982-10 |
Combined seal gasket |
1 |
|
10 |
TG1204.432-01b |
Brake cylinder, RH |
1 |
|
11 |
GBT3452.1-10.0X1.80G |
Hydraulic and pneumatic O-ring |
1 |
|
12 |
FT800.43.130 |
Joint body |
1 |
|
13 |
JBT982-16 |
Combined seal gasket |
1 |
|
14 |
TD950.43.5-04 |
Air bleed screw |
1 |
|
15 |
TG1204.431-02 |
Seal gasket (310) |
1 |
|
16 |
TD950.43.5-05 |
Dust cover |
1 |
109
Lovol TS8A1254-018K Wheeled Tractor

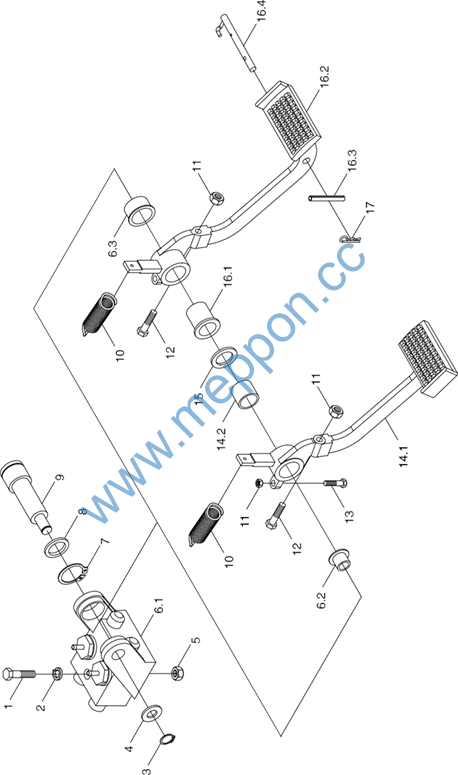

TS08433010000K Control Mechanism Assembly, Service Brake-1
110
Lovol TS8A1254-018K Wheeled Tractor
TS08433010000K Control Mechanism Assembly, Service Brake-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS08433010000K |
Control mechanism assembly, service brake |
1 |
||
1 |
GBT5782-M16X90-8.8-A2L |
Hex head bolt |
2 |
|
2 |
GBT93-16-A0P |
Standard spring washer |
2 |
|
3 |
GBT894.1-17 |
Circlip for shaft |
1 |
|
4 |
TG1204.433-02 |
Retainer ring |
1 |
|
5 |
GBT6170-M16-8-A3L |
Hexagon nut , Style 1 |
2 |
|
6 |
TG1654.433.3 |
Brake pump press-fit assembly |
1 |
|
6.1 |
TG1654.433.3.1 |
Brake pump assembly |
1 |
|
6.2 |
TG1204.433.6-02 |
Bush (B) |
1 |
|
6.3 |
TG1204.433.6-01 |
Bush (A) |
1 |
|
7 |
GBT894.1-40 |
Circlip for shaft |
1 |
|
8 |
TG1204.433-06 |
Big retainer ring |
1 |
|
9 |
TG1204.433-07 |
Revolving shaft |
1 |
|
10 |
TD800.43-01 |
Pedal return spring |
2 |
|
11 |
GBT6171-M10X1-8-A2L |
Hexagon nut , Style 1 |
4 |
|
12 |
TG1204.433-05 |
Adjusting screw |
2 |
|
13 |
TG1204.433-09 |
Limiting screw |
2 |
|
14 |
TG1204.433.3 |
Left brake pedal press-fit |
1 |
|
14.1 |
TG1204.433.3.1 |
Left brake pedal weldment |
1 |
|
14.2 |
TG1654.212B.1-01 |
Bush |
1 |
|
15 |
TF1004.433-01 |
Nylon sleeve |
1 |
|
16 |
TG1204.433.4 |
Right brake pedal press-fit |
1 |
|
16.1 |
TG1654.212B.1-01 |
Bush |
1 |
|
16.2 |
TG1204.433.4.1 |
Right brake pedal weldment |
1 |
|
16.3 |
GBT879.1-5X16 |
Elastic cylindrical pin |
1 |
|
16.4 |
FT800A.43.065 |
Brake interlocking lever weldment |
1 |
|
17 |
FT800A.43.401 |
Lockpin |
1 |
111
Lovol TS8A1254-018K Wheeled Tractor
TS08433010000K Control Mechanism Assembly, Service Brake-2
112
