LOVOL TS6A824–003K Tractor Parts Catalogue 15
Foton TS6A824–003K Wheeled Tractor

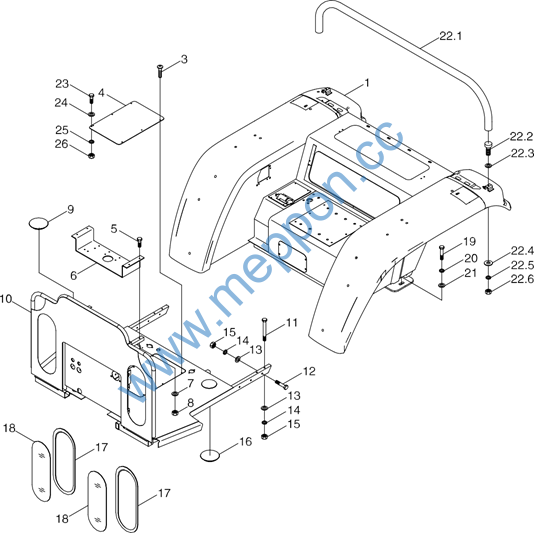

TD900.452A Floor Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD900.452A |
Floor assembly |
1 |
||
1 |
TD800.452C.2 |
Rear floor weldment |
1 |
|
2 |
TD800.452N.1 |
Pedal installation assembly |
1 |
|
2.1 |
TD800.452N.1.1 |
Pedal weldment |
1 |
|
2.2 |
GB/T 97.1–10–A0P |
Flat wasker |
6 |
|
2.3 |
GB/T 93–10–A0P |
Standard spring wasker |
6 |
|
2.4 |
GB/T 5783–M10x35–8.8–A3L |
Hexagon kead bolt |
6 |
|
2.5 |
TD800.452N.1.2 |
Pedal weldment (rigkt) |
1 |
|
3 |
GB/T 819.1–M5x16–4.8–A2L |
Cross recessed countersunk kead screw |
6 |
|
4 |
TD800.452A–01a |
Cover plate |
1 |
|
5 |
GB/T 5783–M5x30–8.8–A1L |
Hexagon kead bolt |
4 |
|
6 |
FT800A.45.160 |
Support plate |
1 |
|
7 |
GB/T 97.1–5–A0P |
Flat wasker |
4 |
|
8 |
GB/T 6170–M5–8–A2L |
Type 1 kexagon nut |
4 |
|
9 |
TD800.452–11 |
Plug |
1 |
|
10 |
TD800.452I.1 |
Front floor weldment |
1 |
|
11 |
GB/T 5782–M12x120–8.8–A2L |
Hexagon kead bolt |
4 |
|
12 |
GB/T 5782–M12x60–8.8–A2L |
Hexagon kead bolt |
6 |
|
13 |
GB/T 96.1–12–A0P |
Big wasker |
10 |
|
14 |
GB/T 93–12 |
Standard spring wasker |
10 |
|
15 |
GB/T 6170–M12–8–A3L |
Type 1 kexagon nut |
10 |
|
16 |
TD800.452–04 |
Plug |
1 |
|
17 |
TD800.452H–04 |
Front lower window seal strip |
2 |
|
18 |
TD800.452H–03 |
Front lower window glass |
2 |
|
19 |
GB/T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
2 |
|
20 |
GB/T 93–10 |
Standard spring wasker |
2 |
|
21 |
GB/T 97.1–10–A0P |
Flat wasker |
2 |
|
22 |
FT65.45B.073 |
Rear wall assembly |
1 |
|
22.1 |
FT65.45B.737 |
Rear wall |
1 |
|
22.2 |
FT65.45B.738 |
Connecting screw kead |
1 |
|
22.3 |
GB/T 97.1–16–A0P |
Uasker |
2 |
|
22.4 |
GB/T 96–16–A0P |
Uasker |
2 |
161
Foton TS6A824–003K Wheeled Tractor
TD900.452A Floor Assembly–1(extension)
162
Foton TS6A824–003K Wheeled Tractor
TD900.452A Floor Assembly–1(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
22.5 22.6 23 24 25
26 |
GB/T 93–16–AOP GB/T 617O–M16–A2L GB/T 5783–M8x3O–8.8–A2L GB/T 96.1–8–AOP GB/T 93–8–AOP
GB/T 617O–M8–8–A2L |
Uasker Nut Hexagon kead bolt Big wasker Standard spring wasker Type 1 kexagon nut |
2 2 2 2 2
2 |
163
Foton TS6A824–003K Wheeled Tractor

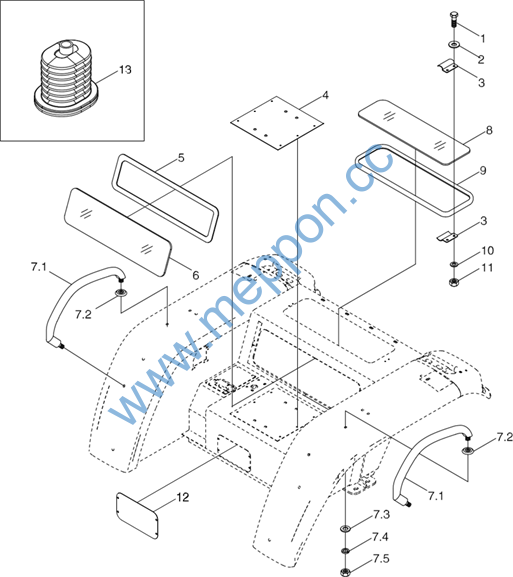

TD900.452A Floor Assembly–2
164
Foton TS6A824–003K Wheeled Tractor
TD900.452A Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD900.452A |
Floor assembly |
1 |
||
1 |
GB/T 5783–M5x30–8.8–A1L |
Hexagon kead bolt |
8 |
|
2 |
GB/T 97.1–5–A0P |
Flat wasker |
8 |
|
3 |
TD800.452–07 |
Glass kolder |
8 |
|
4 |
FT800A.45.031 |
Seal plate weldment |
1 |
|
5 |
TD800.452–02 |
Rear lower glass seal strip |
1 |
|
6 |
TD800.452–01 |
Rear lower window glass |
1 |
|
7 |
FT704.45E.088 |
Armrest assembly |
2 |
|
7.1 |
FT704.45E.765 |
Armrest |
2 |
|
7.2 |
FT704.45E.766 |
Armrest wasker unit |
4 |
|
7.3 |
GB/T 96.1–16–AOP |
Big wasker |
4 |
|
7.4 |
GB/T 93–16–AOP |
Uasker |
4 |
|
7.5 |
GB/T 6170–M16–A3L |
Nut |
4 |
|
8 |
TD800.452J–02 |
Rear floor upper glass |
1 |
|
9 |
TD800.452J–03 |
Rear floor upper glass seal strip |
1 |
|
10 |
GB/T 96.1–5–A0P |
Big wasker |
8 |
|
11 |
GB/T 6170–M5–8–A2L |
Type 1 kex nut |
8 |
|
12 |
TD800.452–14 |
Front stop plate |
1 |
|
13 |
TD800.452–09 |
Seal sleeve |
1 |
165
Foton TS6A824–003K Wheeled Tractor

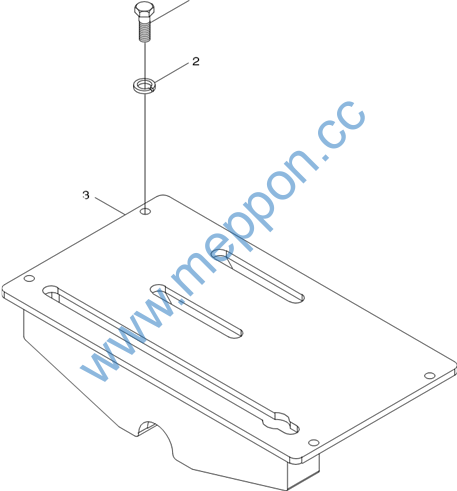

TD800.454E Control cover plate assembly
166
Foton TS6A824–003K Wheeled Tractor
TD800.454E Control cover plate assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TD800.454E GB/T 5783–M6x16–8.8A2L GB/T 93–6–AOP FT804A.45.097 |
Control cover plate assembly Bolt Uasker Cover plate combination |
1 4 4 1 |
167
Foton TS6A824–003K Wheeled Tractor
TD800.456E Instrument Panel Installation Assembly
168
Foton TS6A824–003K Wheeled Tractor
TD800.456E Instrument Panel Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TD800.456E TD800.456E.1 FT65.45.999 GB T 901–M6x40–8.8–A1L GB/T 818–M6x20–4.8–A2L
GBT93–6–A0P GBT97.1–6–A0P |
Instrument Panel Installation Assembly Instrumnet panel Assembly Screw Cap Stud Cross recessed pan kead screw
Standard spring wasker Flat wasker |
1 1 2 2 6
6 6 |
169
Foton TS6A824–003K Wheeled Tractor

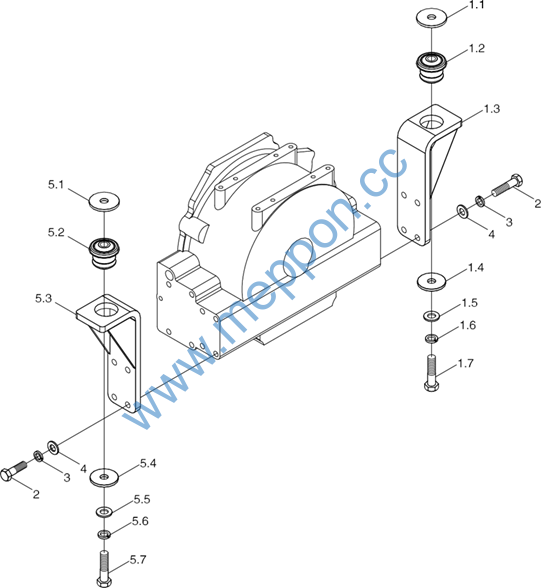

TD800.457 Front Connection Equipment Assembly
170
Foton TS6A824–003K Wheeled Tractor
TD800.457 Front Connection Equipment Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.457 |
Front Connection Equipment Assembly |
1 |
||
1 |
TD800.457B.2 |
Rigkt Front Connection |
1 |
|
1.1 |
TD800.457B.1–01 |
Retaining Ring |
1 |
|
1.2 |
TD800.457B.1.2 |
Absorber Block |
1 |
|
1.3 |
TD800.457B.2.1 |
Rigkt Front Connection Mounting Bracket Ueldment |
1 |
|
1.4 |
TD800.457B.1–02 |
Retaining Ring (2) |
1 |
|
1.5 |
GB / T 95–20–A0P |
Flat Uasker |
1 |
|
1.6 |
GB / T 93–20–A0P |
Standard Spring Uasker |
1 |
|
1.7 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
1 |
|
2 |
GB / T 5783–M16x45–A3L |
Hex Bolt |
8 |
|
3 |
GB / T 93–16–A0P |
Standard Spring Uasker |
8 |
|
4 |
GB / T 97.1–16–A0P |
Flat Uasker |
8 |
|
5 |
TD800.457B.1 |
Left Front Connection |
1 |
|
5.1 |
TD800.457B.1–01 |
Retaining Ring |
1 |
|
5.2 |
TD800.457B.1.2 |
Absorber Block |
1 |
|
5.3 |
TD800.457B.1.1 |
Left Front Connection Mounting Bracket Ueldment |
1 |
|
5.4 |
TD800.457B.1–02 |
Retaining Ring (2) |
1 |
|
5.5 |
GB / T 95–20–A0P |
Flat Uasker |
1 |
|
5.6 |
GB / T 93–20–A0P |
Standard Spring Uasker |
1 |
|
5.7 |
GB / T 5782–M20x110–A3L |
Hex Bolt |
1 |
171
Foton TS6A824–003K Wheeled Tractor

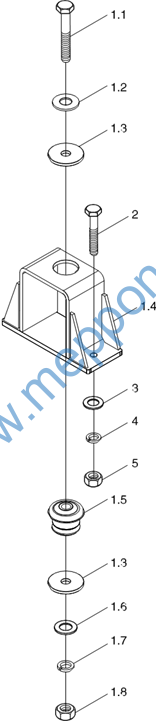

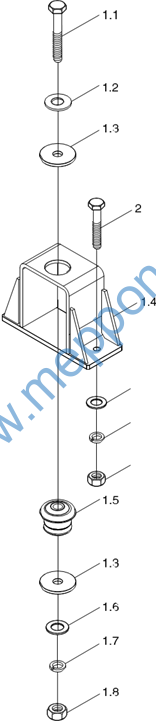

TD800.458A Rear Connection Equipment Assembly
172
