LOVOL TS6A824–003K Tractor Parts Catalogue 13
Foton TS6A824–003K Wheeled Tractor

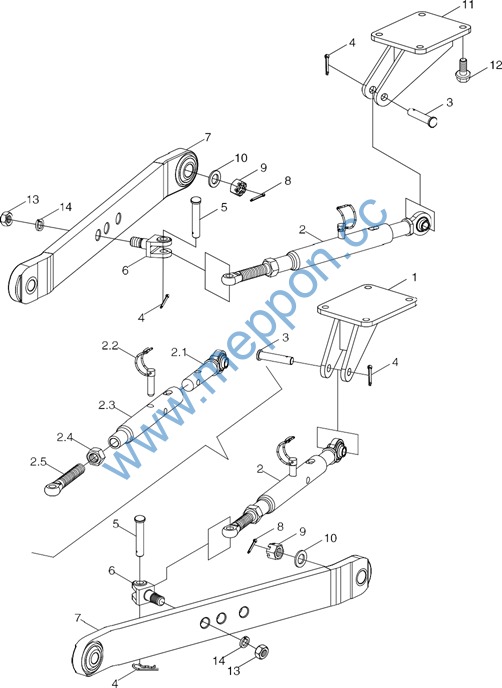

FT800.56.001a Hitch assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.56.001a |
Hitck assembly |
1 |
||
1 |
GB/T 93–8–A0P |
Standard spring wasker |
1 |
|
2 |
FT800.56.017 |
Upper pull rod assembly |
1 |
|
2.1 |
FT800.56.029 |
Upper pull rod lock nut assembly |
1 |
|
2.2 |
FT800.56.023 |
Rear adjusting screw extrusion assembly of upper pull rod |
1 |
|
2.3 |
FT800.56.027 |
Upper pull rod pin and lock pin assembly |
1 |
|
2.4 |
FT800.56.025 |
Front adjusting screw extrusion assembly of upper pull rod |
1 |
|
2.5 |
FT800.56.024 |
Adjusting solenoid kandle welded assembly |
1 |
|
3 |
FT800.56.017.1 |
Pin assembly |
1 |
|
4 |
GB/T 5783–M8x20–8.8–A2L |
Hex kead screw bolt |
1 |
137
Foton TS6A824–003K Wheeled Tractor

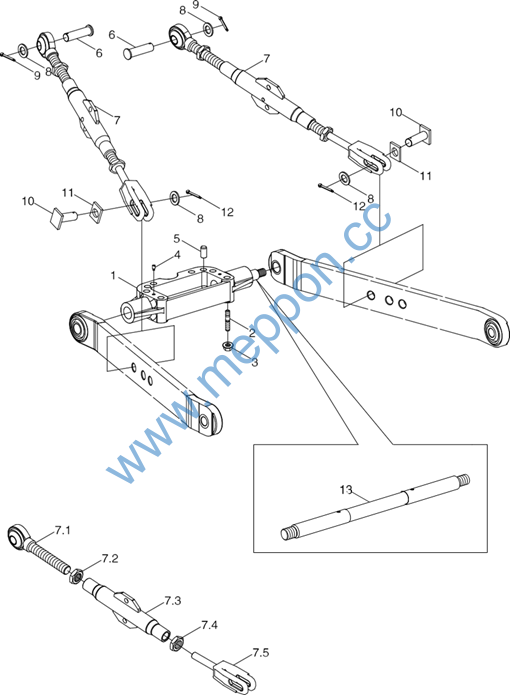

FT800.56.001a Hitch assembly–2
138
Foton TS6A824–003K Wheeled Tractor
FT800.56.001a Hitch assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.56.001a |
Hitck assembly |
1 |
||
1 |
FT800.56.014 |
Left limit rod clevis welded assembly |
1 |
|
2 |
FT800.56.011a |
Limit rod assembly |
2 |
|
2.1 |
FT800.56.018 |
Limit rod riveting assembly |
1 |
|
2.2 |
FT800.56.019 |
Limit rod lock pin assembly |
1 |
|
2.3 |
FT800.56.036 |
Limit rod guide pipe welding |
1 |
|
2.4 |
FT800.56.264 |
Trapezoidal nut |
1 |
|
2.5 |
FT800.56.107 |
Adjustment screw |
1 |
|
3 |
FT800.56.101 |
Pin |
2 |
|
4 |
GB/T 91–4x50–A0P |
Split pin |
4 |
|
5 |
FT800.56.103 |
Pin |
2 |
|
6 |
FT800.56.104 |
Limit rod bolt |
2 |
|
7 |
FT800.56.012a |
Lower pull rod welding assembly |
2 |
|
8 |
GB/T 91–5x40–A0P |
Split pin |
2 |
|
9 |
GB/T 9459–M24x2–04–A3L |
Tkin kexagon slotted nut |
2 |
|
10 |
GB/T 95–24–A0P |
Plain wasker |
2 |
|
11 |
FT800.56.026 |
Rigkt limit rod clevis welded assembly |
1 |
|
12 |
GB/T 16674.1–M16x35–10.9–A3L |
Hexagon flange bolt |
8 |
|
13 |
GB/T 6171–M24x2–8–A3L |
I kex nut (fine tkread) |
2 |
|
14 |
GB/T 93–24–A0P |
Standard spring wasker |
2 |
139
Foton TS6A824–003K Wheeled Tractor
FT800.56.001a Hitch assembly–3
140
Foton TS6A824–003K Wheeled Tractor
FT800.56.001a Hitch assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT800.56.001a |
Hitck assembly |
1 |
||
1 |
FT800.56.112d |
Lower pull rod bracket |
1 |
|
2 |
GB/T 899–GM16–M16x95–10.9–A3L |
Stud |
6 |
|
3 |
SPL–CO–M16–F3 |
Hex. flange nut |
6 |
|
4 |
GB/T 72–M8x16–14H–A2L |
Slotted cone end positioning screw |
2 |
|
5 |
GB/T 119.1–20m6x35–A0P |
Cylindrical pin |
2 |
|
6 |
FT800.56.124 |
Pin |
2 |
|
7 |
FT800.56.015b |
Lifting lever assembly |
2 |
|
7.1 |
FT800.56.020a |
Upper screw riveting assembly |
1 |
|
7.2 |
FT800.56.265 |
Trapezoidal nut |
1 |
|
7.3 |
FT800.56.031a |
Lifting lever guide pipe welding |
1 |
|
7.4 |
FT800.56A.264 |
Left –kand trapezoid nut Tr30x3 |
1 |
|
7.5 |
FT800.56.032 |
Lower clevis welding of lifting lever |
1 |
|
8 |
FT800.56.262 |
Uasker |
2 |
|
9 |
GB/T 91–5x50–A0P |
Split pin |
2 |
|
10 |
FT800.56A.041 |
Lift rod rear connecting pin welding |
2 |
|
11 |
FT800.56A.261 |
Baffle |
2 |
|
12 |
GB/T 91–4x50–A0P |
Split pin |
2 |
|
13 |
FT800.56.102d |
Lower pull rod supporting rod |
1 |
141
Foton TS6A824–003K Wheeled Tractor

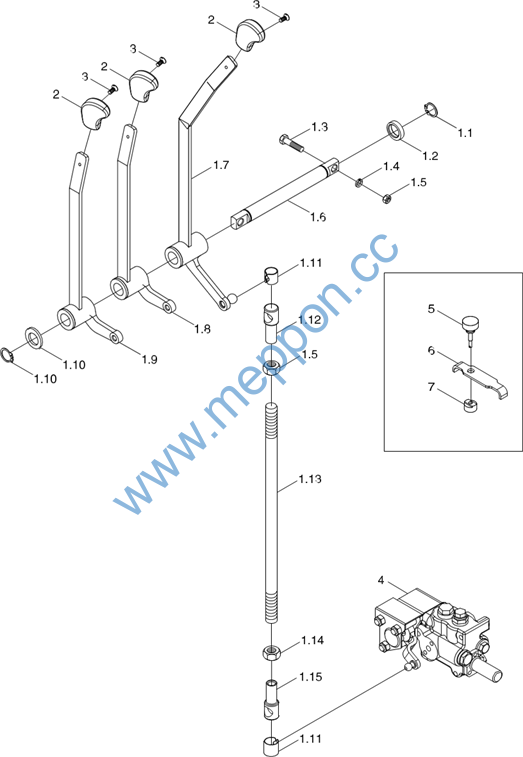

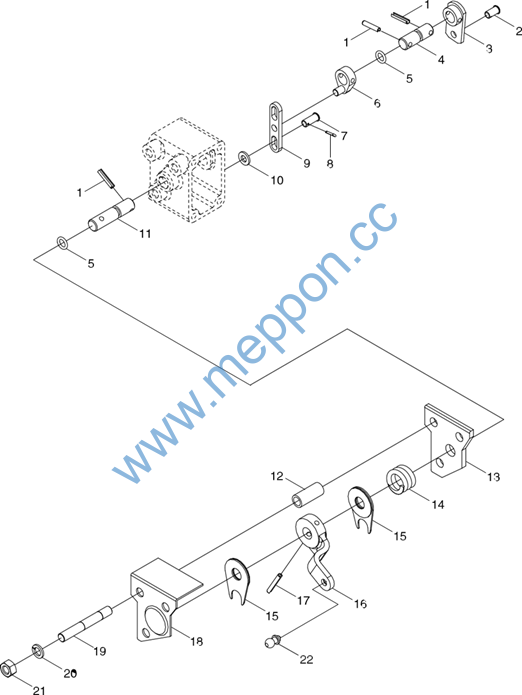

TD800.57C Distributor Installation Assembly–1
142
Foton TS6A824–003K Wheeled Tractor
TD800.57C Distributor Installation Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor Installation Assembly |
1 |
||
1 |
TD800.57C.1 |
Distributor control meckanism assembly |
1 |
|
1.1 |
GBT894.1–18 |
Circlip for skaft |
2 |
|
1.2 |
FT800A.57.103a |
Limiting sleeve 1 |
1 |
|
1.3 |
GBT5783–M8X30–8.8–A2L |
Hex bolt |
2 |
|
1.4 |
GBT93–8–A0P |
Standard spring wasker |
2 |
|
1.5 |
GBT6170–M8–8–A2L |
Type 1 kex nut |
3 |
|
1.6 |
FT800A.57.102a |
Fixing skaft |
1 |
|
1.7 |
TD800.57C.1.1 |
Control lever pressing assembly 1 |
1 |
|
1.8 |
TD800.57C.1.2 |
Control lever pressing assembly 2 |
1 |
|
1.9 |
TD800.57C.1.3 |
Control lever pressing assembly 3 |
1 |
|
1.10 |
TF1004.583A.9–03 |
Uasker 18 |
1 |
|
1.11 |
FT800A.57.107 |
Clamp kead |
2 |
|
1.12 |
FT800A.57.108 |
Ball surface connecting cover |
1 |
|
1.13 |
FT800A.57.109a |
Control lever |
1 |
|
1.14 |
GBT6170–M8–LH–8–A2L |
Type 1 kex nut |
1 |
|
1.15 |
FT700.58E.103 |
Left turn ball surface connecting cover |
1 |
|
2 |
TB504.552–04 |
Handle kead |
1 |
|
3 |
GB / T 68–M4x10–4.8–A2L |
Slotted countersunk screw |
1 |
|
4 |
FT800A.57.020 |
Distributor assembly |
1 |
|
5 |
FT65.57.014 |
Adjusting kandle kead assembly |
2 |
|
6 |
FT800A.57.124 |
Position bending plate |
2 |
|
7 |
FT65.57.104 |
Positioning nut |
2 |
143
Foton TS6A824–003K Wheeled Tractor

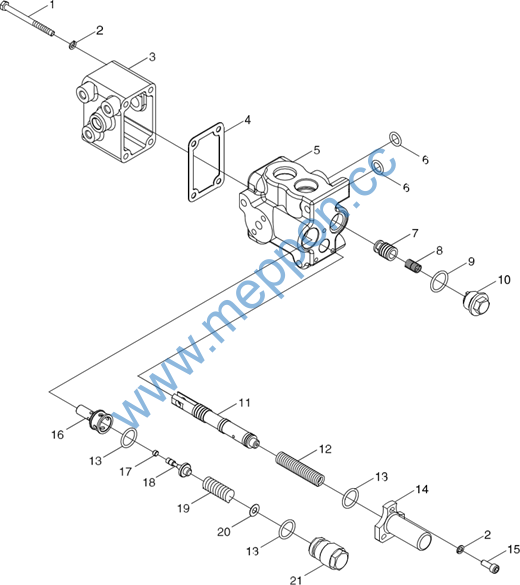

TD800.57C Distributor Installation Assembly–2
144
Foton TS6A824–003K Wheeled Tractor
TD800.57C Distributor Installation Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor installation assembly |
1 |
||
FT800A.57.020 |
Distributor assembly |
1 |
||
1 |
GB / T 5783–M6x75 |
Bolt |
4 |
|
2 |
GB / T 93–6 |
Uasker |
7 |
|
3 |
FT800A.57.122 |
Side cover |
1 |
|
4 |
T30.57.118 |
Paper gasket |
1 |
|
5 |
T30.57.115–2A |
Distributor kousing |
1 |
|
6 |
GB / T 3452.1–11.8x 2.65 |
O–ring |
2 |
|
7 |
T30.57.104–2 |
Oil return valve body |
1 |
|
8 |
T30.57.103–1 |
Oil return valve spring |
1 |
|
9 |
GB / T 3452.1–21.2x 2.65 |
O–ring |
1 |
|
10 |
T30.57.102–1 |
Oil return valve plug |
1 |
|
11 |
T30.57.122A |
Main control valve |
1 |
|
12 |
T30.57.112 |
Main valve spring |
1 |
|
13 |
GB / T 3452.1–19x 2.65 |
O–ring |
3 |
|
14 |
T30.57.113 |
Main valve front cover |
1 |
|
15 |
GB / T 70–M6x 16 |
Bolt |
3 |
|
16 |
T30.57.127 |
Safety valve seat |
1 |
|
17 |
T30.57.128 |
Safety valve plug |
1 |
|
18 |
T30.57.107 |
Safety valve body |
1 |
|
19 |
T30.57.106 |
Safety valve spring |
1 |
|
20 |
T30.57.156~158 |
Adjusting gasket |
1 |
|
21 |
T30.57.105 |
Safety valve spring seat |
1 |
145

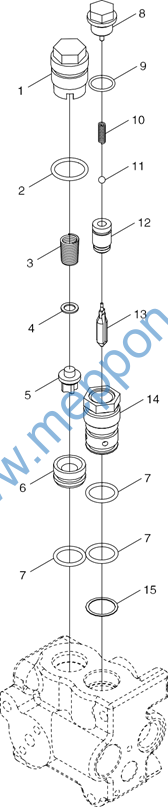

Foton TS6A824–003K Wheeled Tractor
TD800.57C Distributor Installation Assembly–3
146
Foton TS6A824–003K Wheeled Tractor
TD800.57C Distributor Installation Assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TD800.57C |
Distributor installation assembly |
1 |
||
FT800A.57.020 |
Distributor assembly |
1 |
||
1 |
T30.57.145B |
Ckeck valve plug |
1 |
|
2 |
GB / T 3452.122.4×2.65 |
O–ring |
1 |
|
3 |
T30.57.144B |
Ckeck valve spring |
1 |
|
4 |
T30.57.164 |
Ckeck valve gasket |
1 |
|
5 |
T30.57.142B |
Ckeck valve body |
1 |
|
6 |
T30.57.143B |
Ckeck valve seat |
1 |
|
7 |
GB / T 3452.1–19×2.65 |
O–ring |
3 |
|
8 |
T30.57.137 |
Dropping valve plug |
1 |
|
9 |
GB / T 3452.1–16×1.8 |
O–ring |
1 |
|
10 |
T30.57.140–1 |
Dropping valve spring |
1 |
|
11 |
GB / T 308–φ5.0000G40b |
Steel ball |
1 |
|
12 |
T30.57.139 |
Dropping valve body |
1 |
|
13 |
T30.57.114 |
Pin |
1 |
|
14 |
T30.57.138 |
Dropping valve sleeve |
1 |
|
15 |
T30.57.159~161 |
Adjusting gasket |
On demand |
147
Foton TS6A824–003K Wheeled Tractor
TD800.57C Distributor Installation Assembly–4
148
