LOVOL TS4A504-024K Tractor Parts Catalogue 13
Foton TS4A504-024K Wheeled Tractor
FT400.45.001 Floor Mounting Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT400.45.001 |
Floor mounting assembly |
1 |
||
1 |
FT250.47.163 |
Armrest |
2 |
|
2 |
TE250.45E.5 |
Armrest washer cluster |
4 |
|
3 |
FT404.47.034 |
Right fender weldment assembly |
1 |
|
4 |
TB450.45A.2 |
Rear riht lamp baffle weldment |
1 |
|
5 |
GB/T 6170-M12-8-A3L |
Hexagon nut, Style 1 |
4 |
|
6 |
GB/T 97.1-10-A0P |
Flat washer |
8 |
|
7 |
GB/T 93-10-A0P |
Standard spring washer |
8 |
|
8 |
GB/T 96.1-12-A0P |
Big gasket |
4 |
|
9 |
GB/T 93-12-A0P |
Standard spring washer |
4 |
|
10 |
GB/T 5783-M10×25-8.8-A3L |
Hex head bolt |
8 |
|
11 |
TB550.452H-24 |
Rear floor cover |
1 |
|
12 |
FT300.47C.054b |
Seat plate weldment |
1 |
|
13 |
GB/T 5783-M6×16-8.8-A2L |
Hex head bolt |
40 |
|
14 |
GB/T 93-6-A0P |
Standard spring washer |
40 |
|
15 |
GB/T 97.1-6-A0P |
Flat washer |
40 |
|
16 |
FT300.47.055 |
Rear fender welding |
1 |
|
17 |
TB450.452A.2 |
Right floor welding assembly |
1 |
|
18 |
FT404.47.033 |
Left fender weldment assembly |
1 |
|
19 |
TB450.45A.1 |
Rear left lamp baffle weldment |
1 |
|
20 |
TB450.452A.1 |
Left floor welding assembly |
1 |
|
21 |
FT400.45.039 |
Front U-shaped plate weldment |
1 |
|
22 |
TB550.452H-25 |
U cover plate |
1 |
|
23 |
FT300.47.361 |
Control lever dust cover |
1 |
|
24 |
FT300.47.310 |
U-shaped rear plate |
1 |
115
Foton TS4A504-024K Wheeled Tractor
FT400.46.001 Safety Frame Assembly
116
Foton TS4A504-024K Wheeled Tractor
FT400.46.001 Safety Frame Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT400.46.001 |
Safety frame assembly |
1 |
||
1 |
TB400.46C.3 |
Sunshade assembly |
1 |
|
1.1 |
GB/T 5783-M6×25-8.8-A2L |
Hex head bolt |
12 |
|
1.2 |
GB/T 93-6-A0P |
Standard spring washer |
12 |
|
1.3 |
GB/T 97.1-6-A0P |
Flat washer |
12 |
|
1.4 |
TE254.46.2.1-02 |
Rubber washer |
12 |
|
1.5 |
TB400.46C.3.1 |
Sunshade |
1 |
|
1.6 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
4 |
|
1.7 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
1.8 |
FT400.46.021 |
Gasket cluster |
4 |
|
1.9 |
TB400.46C.3.3 |
Sunshade fixed mount weldment |
1 |
|
1.10 |
GB/T 818-M10×30-4.8-A3L |
Cross recessed pan head screw |
4 |
|
1.11 |
TB400.46C.3-01 |
Sunshade fixed mount |
2 |
|
1.12 |
GB/T 6170-M12-10-A3L |
Hexagon nut , Style 1 |
4 |
|
1.13 |
GB/T 93-12-A0P |
Standard spring washer |
4 |
|
1.14 |
GB/T 96.1-12-A3L |
Big gasket |
4 |
|
1.15 |
GB/T 97.1-12-A0P |
Flat washer |
4 |
|
1.16 |
GB/T 5782-M12×110-8.8-A2L |
Hex head bolt |
4 |
|
1.17 |
GB/T 97.1-8-A0P |
Big gasket |
4 |
|
1.18 |
GB/T 93-8-A0P |
Standard spring washer |
4 |
|
1.19 |
GB/T 5783-M8×20-10.9-A2L |
Hex head bolt |
4 |
|
2 |
TB400.46C-01 |
Blanking cap |
8 |
|
3 |
FT400.46.010 |
Supporting beam mounting assembly |
1 |
|
3.1 |
FT400.46.022 |
Top bar weldment |
1 |
|
3.2 |
FT400.46.013 |
Left support beam weldment |
1 |
|
3.3 |
GB/T 5782-M16×90-10.9-A2L |
Hex head bolt |
6 |
|
3.4 |
GB/T 95-16-A0P |
Flat washer |
6 |
|
3.5 |
GB/T 93-16-A0P |
Standard spring washer |
6 |
|
3.6 |
GB/T 802-M16-6 |
Combined cap nut |
6 |
|
3.7 |
FT400.46.014 |
Right support beam weldment |
1 |
|
4 |
GB/T 5783-M14×40-8.8-A3L |
Hex head bolt |
4 |
|
5 |
GB/T 93-14-A0P |
Standard spring washer |
12 |
117
Foton TS4A504-024K Wheeled Tractor
FT400.46.001 Safety Frame Assembly(extension)
118
Foton TS4A504-024K Wheeled Tractor
FT400.46.001 Safety Frame Assembly(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
6 7 8 9 10 |
GB/T 6170-M14-8-A3L GB/T 97.1-14-A0P FT400.46.350 FT400.46.114 GB/T 12618-3×15 |
Hexagon nut , Style 1 Flat washer U-bolt Safety frame signboard Open-type flat head blind rivet |
16 4 4 1 4 |
119
Foton TS4A504-024K Wheeled Tractor

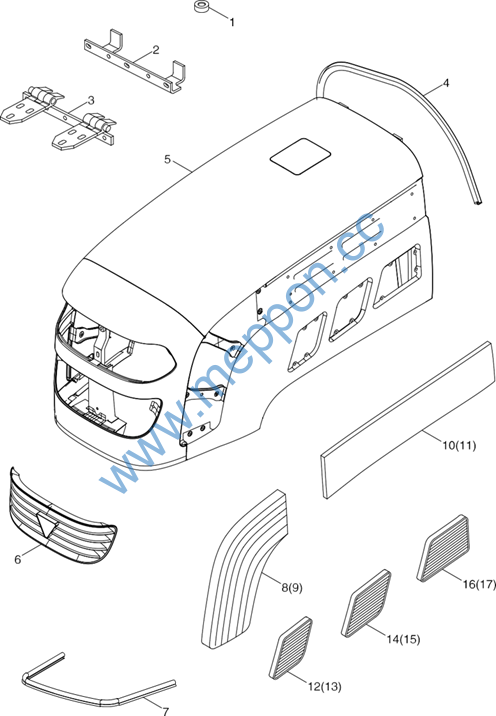

TC02471040000K Bonnet Assembly
120
Foton TS4A504-024K Wheeled Tractor
TC02471040000K Bonnet Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02471040000K |
Bonnet assembly |
1 |
||
1 |
TB400B.471-18 |
Backing block |
24 |
|
2 |
TB400B.471-15 |
Hinge chain upper seat |
2 |
|
3 |
TB400B.471-16 |
Hinge chain lower seat |
1 |
|
4 |
TB400B.471-14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.4 |
Bonnet welding assembly |
1 |
|
6 |
TC02471040001K |
Front grid |
1 |
|
7 |
TB400B.471-17 |
Front lower buffer strip |
1 |
|
8 |
TB400B.471-02 |
Left front grid |
1 |
|
9 |
TB400B.471-03 |
Right front grid |
1 |
|
10 |
TB400B.471-04 |
Left rear decorative parts |
1 |
|
11 |
TB400B.471-05 |
Right rear decorative parts |
1 |
|
12 |
TB400B.471-06 |
Left front lower grid |
1 |
|
13 |
TB400B.471-07 |
Right front lower grid |
1 |
|
14 |
TB400B.471-08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471-09 |
Right middle lower grid |
1 |
|
16 |
TB400B.471-10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471-11 |
Right rear lower grid |
1 |
121
Foton TS4A504-024K Wheeled Tractor

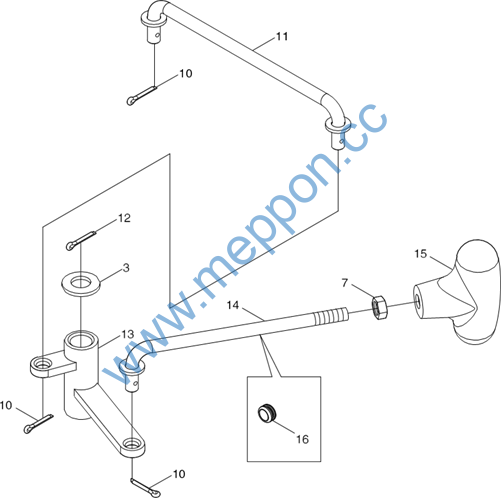

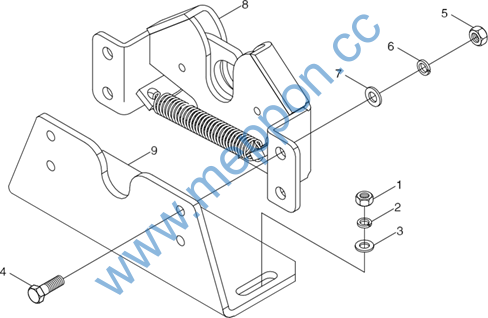

TB400B.473 Bonnet Lock Mechanism Assembly
122
Foton TS4A504-024K Wheeled Tractor
TB400B.473 Bonnet Lock Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock mechanism assembly |
1 |
||
1 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
3 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
3 |
GB/T 97.1-8-A0P |
Flat washer |
3 |
|
4 |
GB/T 5783-M6×20-8.8-A2L |
Hex bolt |
4 |
|
5 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
5 |
|
6 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
7 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
8 |
TG1204.474.4 |
Bonnet lock assembly |
1 |
|
9 |
TB400B.473-01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91-1.6×16-A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91-2.5×25-A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
TB400B.473.4 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473-02 |
Rubber ring |
1 |
123
Foton TS4A504-024K Wheeled Tractor

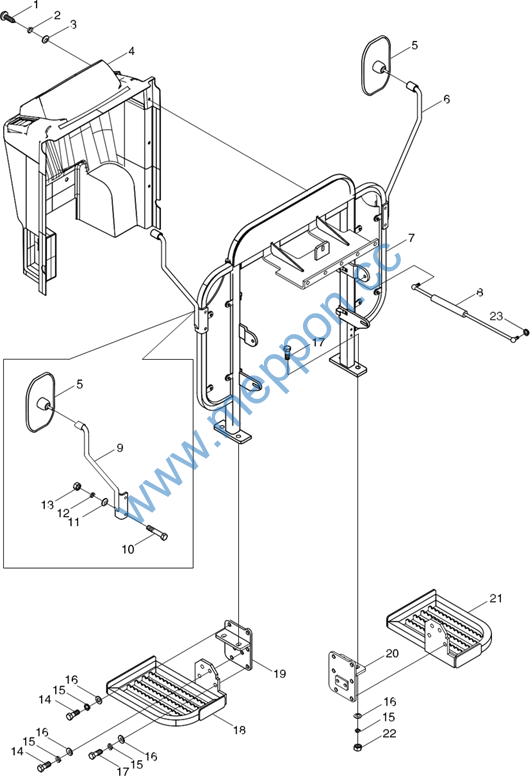

TB400B.474A Front Wall Fender Assembly
