LOVOL TS4A504-024K Tractor Parts Catalogue 08
Foton TS4A504-024K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-2(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
18 19 20 |
TC02311020009 TC02311020002 TC02311020012 |
Left half axle Left side transmission assembly Left side final transmission assembly |
1 1 1 |
65
Foton TS4A504-024K Wheeled Tractor

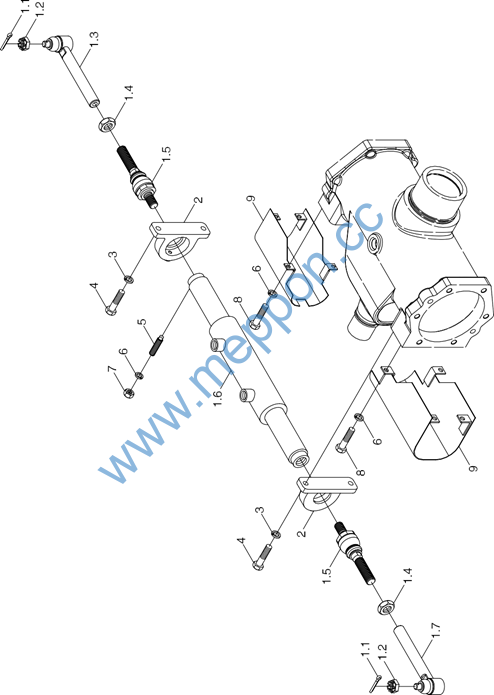

TB504.311 Front Driving Axle Assembly-3
66
Foton TS4A504-024K Wheeled Tractor
TB504.311 Front Driving Axle Assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle assembly |
1 |
||
TC02311020001 |
Front driving axle subassembly |
1 |
||
1 |
TC02311020007 |
Steering cylinder assembly |
1 |
|
1.1 |
GB/T 91-3.2×40-AOP |
Split pin |
2 |
|
1.2 |
TC02311010075 |
Hexagon slotted nut |
2 |
|
1.3 |
TC02311020011 |
Right steering link |
1 |
|
1.4 |
GB/T 6173-M22×15-05-A3L |
Hexagon thin nut |
2 |
|
1.5 |
TC02311010077 |
Connecting ball head |
2 |
|
1.6 |
TC02311010084 |
Steering cylinder |
1 |
|
1.7 |
TC02311020008 |
Left steering link |
1 |
|
2 |
TC02311010085 |
Cylinder bracket |
2 |
|
3 |
GB/T 93-12-A0P |
Standard spring washer |
24 |
|
4 |
GB/T 5783-M12×35-10.9-A3L |
Hexagon head bolt |
4 |
|
5 |
GB/T 75-M8×35-14H-A2L |
Slotted set screws with long dog point |
2 |
|
6 |
GB/T 93-8-A0P |
Standard spring washer |
10 |
|
7 |
GB/T 6170-M8-8-A2L |
Hexagon nut, style 1 |
2 |
|
8 |
GB/T 5783-M8×16-8.8-A2L |
Hexagon head bolt |
8 |
|
9 |
TC02311010015 |
Shield |
2 |
67
Foton TS4A504-024K Wheeled Tractor

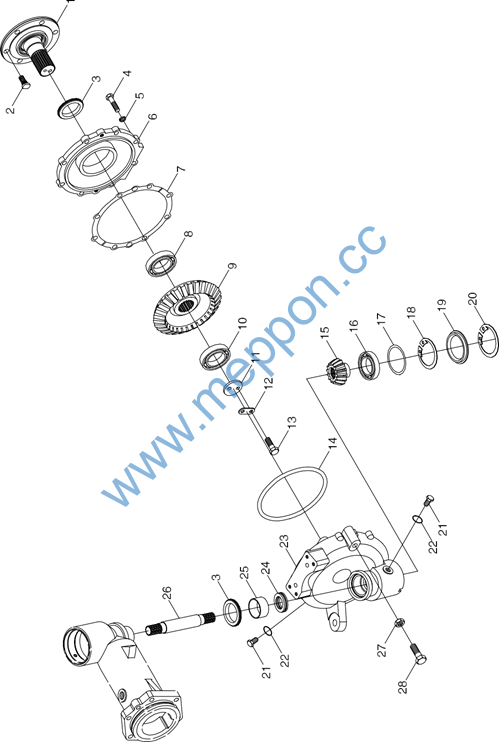

TC02311020000 Front Driving Axle Assembly-4
68
Foton TS4A504-024K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-4
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle ssembly |
1 |
||
TC02311020001 |
Front driving axle subssembly |
1 |
||
TC02311020012 |
Left final transmission assembly |
1 |
||
TC02311020013 |
Right final transmission assembly |
1 |
||
1 |
TC02311020014 |
Front driving shaft |
1 |
|
2 |
TC02311020015 |
Knurled bolt |
6 |
|
3 |
TC02311010032 |
Floating oil seal |
2 |
|
4 |
GB/T 5783-M10×40-10.9-A3L |
Hexagon head bolt |
8 |
|
5 |
GB/T 93-10-A0P |
Standard spring washer |
8 |
|
6 |
TC02311010050 |
End large cover |
1 |
|
7 |
TC02311010060 |
Adjusting gasket Ⅰ |
On demand |
|
8 |
GB/T 276-6410 |
Deep grooved ball bearing |
1 |
|
9 |
TC02311010052 |
End large gear |
1 |
|
10 |
GB/T 276-6310 |
Deep grooved ball bearing |
1 |
|
11 |
TC02311010055 |
Gasket |
1 |
|
12 |
TC02311010054 |
Lock piece |
1 |
|
13 |
GB/T 5783-M8×35-8.8-A2L |
Hexagon head bolt |
2 |
|
14 |
GB/T 3452.1-243×5.30G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
15 |
TC02311010053 |
End small gear |
1 |
|
16 |
GB/T 276-6308 |
Deep grooved ball bearing |
1 |
|
17 |
TC02311010059 |
Adjusting gasket Ⅱ |
On demand |
|
18 |
GB/T 893.1-90 |
Circlip for hole |
1 |
|
19 |
TC02311010058 |
Seal cover |
1 |
|
20 |
GB/T 893.1-102 |
Circlip for hole |
1 |
|
21 |
TD904.311K.1-13 |
Screw plug |
2 |
|
22 |
GB/T 3452.1-21.2×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
2 |
|
23 |
TC02311010047 |
Left final transmission housing |
1 |
|
TC02311010048 |
Right final transmission housing |
1 |
||
24 |
GB/T 301-51107 |
Thrust ball bearing |
1 |
|
25 |
TC02311010057 |
Bushing |
1 |
|
26 |
TC02311010056 |
End spline shaft |
1 |
|
27 |
GB/T 6172.1-M16-04-A3L |
Hexagon thin nut |
1 |
|
28 |
GB/T 5783-M16×40-10.9-A3L |
Hexagon head bolt |
1 |
69
Foton TS4A504-024K Wheeled Tractor

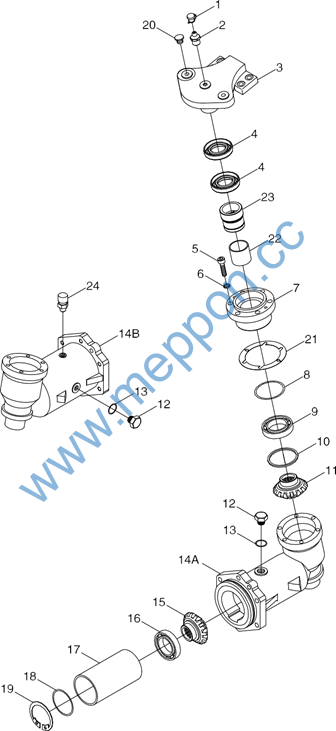

TB504.311 Front Driving Axle Assembly-5
70
Foton TS4A504-024K Wheeled Tractor
TB504.311 Front Driving Axle Assembly-5
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle assembly |
1 |
||
TC02311020001 |
Front driving axle subassembly |
1 |
||
TC02311020002 |
Left side transmission assembly |
1 |
||
TC02311020003 |
Right side transmission assembly |
1 |
||
1 |
TD800.311C.1-01 |
Oil cup dustproof cap |
1 |
|
2 |
JB/T 7940.1-M10×1 |
Straight hydraulic grease nozzle |
1 |
|
3 |
TC02311010041 |
Connecting cover |
1 |
|
4 |
GB/T 9877.1-FB65×85×10D |
Rubber covered rotary shaft lip seal |
2 |
|
5 |
GB/T 70.1-M8×25-8.8 |
Hexagon socket head cap screw |
6 |
|
6 |
GB/T 93-8-A0P |
Standard spring washer |
6 |
|
7 |
TC02311010044 |
Oil seal end cover |
1 |
|
8 |
GB/T 3452.1-92.5×5.30G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
9 |
GB/T 276-6211 |
Deep grooved ball bearing |
1 |
|
10 |
TC02311010039 |
Bearing gasket |
1 |
|
11 |
TC02311020018 |
Driven gear |
1 |
|
12 |
TD904.311K.1-13 |
Screw plug |
1 |
|
13 |
GB/T 3452.1-21.2×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
14A |
TC02311020006 |
Right half axle housing |
1 |
|
14B |
TC02311020004 |
Left half axle housing |
1 |
|
15 |
TC02311020017 |
Driving gear |
1 |
|
16 |
GB/T 276-6309 |
Deep grooved ball bearing |
1 |
|
17 |
TC02311020005 |
Sleeve |
1 |
|
18 |
TC02311010073 |
Adjusting gasket |
On demand |
|
19 |
GB/T 893.1-100 |
Circlip for hole |
1 |
|
20 |
TC02311010074 |
Plug |
2 |
|
21 |
TC02311010040 |
Adjusting gasket |
On demand |
|
22 |
TC02311010043 |
Sliding bearing |
1 |
|
23 |
TC02311010042 |
Bushing |
1 |
|
24 |
TD904.311K.1.6 |
Vent plug |
1 |
71
Foton TS4A504-024K Wheeled Tractor

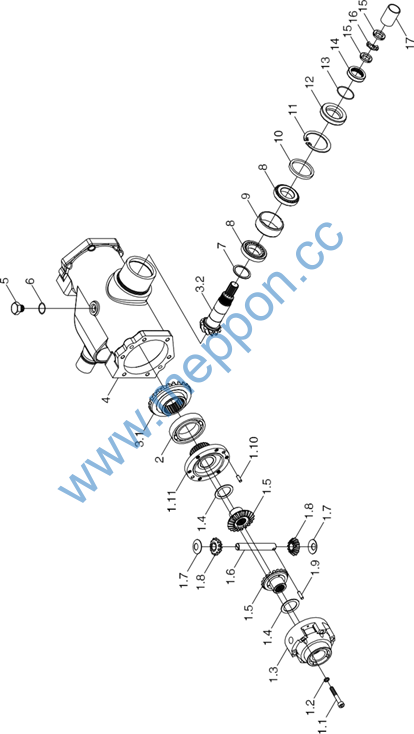

TC02311020000 Front Driving Axle Assembly-6
72
Foton TS4A504-024K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-6
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle assembly |
1 |
||
TC02311020001 |
Front driving axle subssembly |
1 |
||
TC02311010002 |
Main reducer assembly |
1 |
||
1 |
TC02311010018 |
Differential assembly |
1 |
|
1.1 |
GB/T 70.1-M10×70-8.8 |
Hexagon socket head cap screw |
6 |
|
1.2 |
GB/T 93-10 |
Standard spring washer |
6 |
|
1.3 |
TC02311010027 |
Left housing of differential |
1 |
|
1.4 |
TC02311010030 |
Half axle gear gasket |
2 |
|
1.5 |
TC02311010035 |
Half axle gear |
2 |
|
1.6 |
TC02311010033 |
Planetary gear shaft |
1 |
|
1.7 |
TC02311010031 |
Planetary gear gasket |
2 |
|
1.8 |
TC02311010034 |
Planetary gear |
2 |
|
1.9 |
GB/T 119.1-8h8×45-A0P |
Column pin |
1 |
|
1.10 |
GB/T 119.1-8h8×20-A0P |
Column pin |
2 |
|
1.11 |
TC02311010028 |
Right housing of differential |
1 |
|
2 |
GB/T 276-6216 |
Deep grooved ball bearing |
2 |
|
3 |
TC02311010026 |
Main driven bevel gear unit |
1 |
|
3.1 |
TC02311010029 |
Central transmission big bevel gear |
1 |
|
3.2 |
TC02311010020 |
Driving bevel gear shaft |
1 |
|
4 |
TC02311010019 |
Main reducer housing |
1 |
|
5 |
TD904.311K.1-13 |
Screw plug |
1 |
|
6 |
GB/T 3452.1-21.2×2.65G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
7 |
TC02311010083 |
Driving bevel gear shaft adjsuting gasket |
On demand |
|
8 |
GB/T 297-32208 |
Tapered roller bearing |
2 |
|
9 |
TC02311010022 |
Spacing sleeve |
1 |
|
10 |
TC02311010023 |
Adjusting ring |
1 |
|
11 |
GB/T 893.1-80 |
Circlip for hole |
1 |
|
12 |
GB/T 9877.1-FB55×80×8D |
Rubber covered rotary shaft lip seal |
1 |
|
13 |
GB/T 3452.1-41.2×3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
14 |
TC02311010025 |
Oil seal seat |
1 |
|
15 |
GB/T 810-M36×1.5 |
Small round nut |
2 |
|
16 |
GB/T 858-36 |
Thrust washer of round nut |
1 |
|
17 |
TC02311010024 |
Spline protection sleeve |
1 |
73
Foton TS4A504-024K Wheeled Tractor

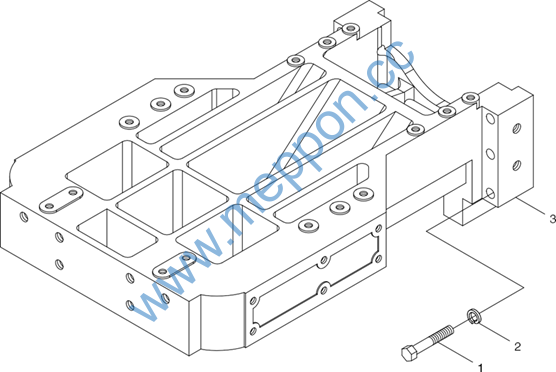

TB554.312 Front Bracket Assembly
