LOVOL TS4A504-024K Tractor Parts Catalogue 05
Foton TS4A504-024K Wheeled Tractor
TB504.382 Rear axle central transmission assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.38.012 |
Differential assembly |
1 |
||
1 |
GB/T 297-2007113 |
Bearing |
1 |
|
2 |
GB/T 6170-M12-A3L |
Nut |
8 |
|
3 |
FT300.38.152 |
Locking washer |
4 |
|
4 |
FT300.38.181 |
Differential cover |
1 |
|
5 |
FT300.38.147 |
Half shaft gear gasket |
2 |
|
6 |
FT300.38.144 |
Right half shaft gear |
1 |
|
7 |
FT300.38.148 |
Planet gear gasket |
4 |
|
8 |
FT300.38.145 |
Planet gear |
4 |
|
9 |
FT300.38.182 |
Long planet gear shaft |
1 |
|
10 |
FT300.38.183 |
Short planet gear shaft |
2 |
|
11 |
FT300.38.184 |
Central ring |
1 |
|
12 |
FT300.38.143 |
Left half shaft gear |
1 |
|
13 |
FT300.38.180 |
Differential housing |
1 |
|
14 |
FT300.38.141 |
Large cone gear |
1 |
|
15 |
FT300.38.185 |
Planet gear shaft thrust bolt |
4 |
|
16 |
FT300.38.019 |
Differential lock assembly |
1 |
|
17 |
GB/T 297-30211 |
Bearing |
1 |
|
18 |
FT300.38.186 |
Large cone gear fixing bolt |
4 |
35
Foton TS4A504-024K Wheeled Tractor
TB554.383 Differential Lock Control Mechanism Assembly
36
Foton TS4A504-024K Wheeled Tractor
TB554.383 Differential Lock Control Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.383 |
Differential Lock Control Mechanism Assembly |
1 |
||
1 |
GB/T 3452.1-15.0×2.65G |
O-ring |
1 |
|
2 |
FT300.38.158a |
Differential lock shift fork shaft |
1 |
|
3 |
FT300.38.160 |
Differential lock retraction spring |
1 |
|
4 |
FT300.38.159a |
Differential lock shift fork |
1 |
|
5 |
FT300.38.190 |
Differential lock shift block |
1 |
|
6 |
GB/T 879.1-6×40 |
Spring column pin |
1 |
|
7 |
GB/T879.2-3.5×40 |
Spring column pin |
1 |
|
8 |
GB/T 5781-M8×65-A2L |
Hex bolt |
1 |
|
9 |
GB/T 6170-M8-A2L |
Hex nut |
2 |
|
10 |
GB/T 879.1-6×35 |
Spring column pin |
1 |
|
11 |
GB/T 879.2-3.5×35 |
Spring column pin |
1 |
|
12 |
FT300.38.015 |
Differential lock pedal weldment |
1 |
|
13 |
Q72220 |
Bowl-shape disc |
1 |
37
Foton TS4A504-024K Wheeled Tractor

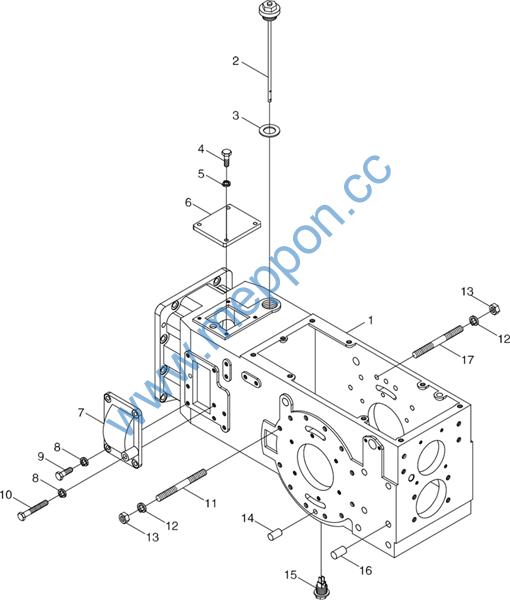

TB504.384 Rear Axle Housing Assembly
38
Foton TS4A504-024K Wheeled Tractor
TB504.384 Rear Axle Housing Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.384 |
Rear axle housing assembly |
1 |
||
1 |
FT300.38J.101a |
Rear axle housing assembly |
1 |
|
2 |
FT300.38.016a |
Oil filling vent plug assembly |
1 |
|
3 |
JB/T 982-36 |
Compound washer |
1 |
|
4 |
GB/T 5783-M8×20-A2L |
Bolt |
4 |
|
5 |
GB/T 93-8-A0P |
Washer |
4 |
|
6 |
FT300.38J.124 |
Upper cover |
1 |
|
7 |
FT300.38J.206 |
Reverse gear side cover |
1 |
|
8 |
GB/T 93-10-A0P |
Washer |
6 |
|
9 |
GB/T 5783-10×25-A3L |
Bolt |
5 |
|
10 |
GB/T 5782-10×60-A3L |
Bolt |
1 |
|
11 |
GB/T 899-AM12-M12×1.25×150-10.9-A2L |
Stud |
22 |
|
12 |
GB/T 93-12-A0P |
Washer |
24 |
|
13 |
GB/T 6171-M12×1.25-10-A2L |
Nut |
24 |
|
14 |
GB/T 119.1-12m6×28 |
Pin |
2 |
|
15 |
FT65.38.026 |
Oil plug assembly |
1 |
|
16 |
TB554.384-02 |
Pin |
4 |
|
17 |
GB/T 899-AM12-M12×1.25×160-10.9-A2L |
Stud |
2 |
39
Foton TS4A504-024K Wheeled Tractor

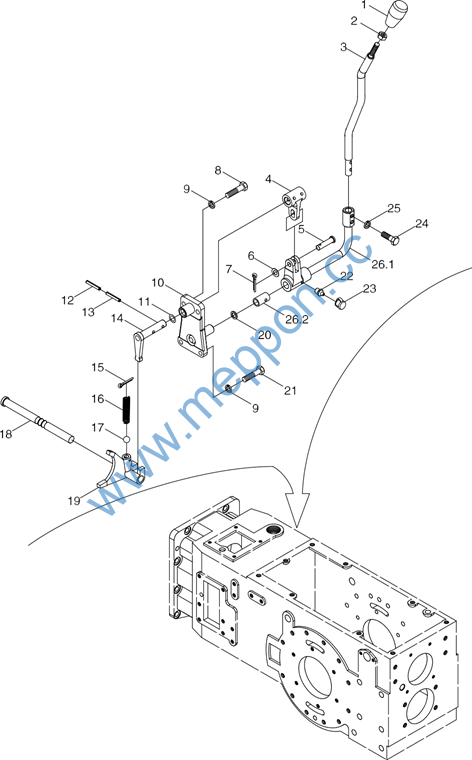

TB554.385 Shuttle Shift Mechanism Assembly
40
Foton TS4A504-024K Wheeled Tractor
TB554.385 Shuttle Shift Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB554.385 |
Shuttle shift mechanism assembly |
1 |
||
1 |
FT300.41.015 |
PTO control handle assembly |
1 |
|
2 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
1 |
|
3 |
TB554.385-04 |
Upside, shuttle shift control lever |
1 |
|
4 |
FT300.38J.231b |
Rocker arm |
1 |
|
5 |
TB554.385-02 |
Axis pin |
1 |
|
6 |
GB/T 848-10-A0P |
Small gasket |
1 |
|
7 |
GB/T 91-3.2×40-A0P |
Split pin |
1 |
|
8 |
TB400.385-09 |
Bolt |
2 |
|
9 |
GB/T 93-10-A0P |
Standard spring washer |
4 |
|
10 |
TB554.385.3a |
Shifting lever shaft sleeve weldment |
1 |
|
11 |
GB/T 3452.1-16.0×2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
12 |
GB/T 879.1-6×28 |
Elastic cylindrical pin |
2 |
|
13 |
GB/T 879.2-3.5×28 |
Elastic cylindrical pin |
2 |
|
14 |
TB554.385-01 |
Shifting lever rocker arm |
1 |
|
15 |
GB/T 91-4×32-A0P |
Split pin |
1 |
|
16 |
FT704.42B.163 |
Retaining spring, fork shaft |
1 |
|
17 |
GB/T 308-9.5-G100-b |
Steel ball |
1 |
|
18 |
FT300.38J.203 |
Fork shaft, reverse gear |
1 |
|
19 |
FT300.38J.218 |
Shift fork, reverse gear |
1 |
|
20 |
TB554.385-03 |
Washer |
1 |
|
21 |
GB/T 5783-M10×30-8.8-A3L |
Hex head bolt |
2 |
|
22 |
JB/T 7940.1-M8×1 |
Straight-through type forced filling oil cup |
1 |
|
23 |
TD800.311C.1-01 |
Dust cap, oil cup |
1 |
|
24 |
GB/T 5783-M6×20-8.8-A2L |
Hex head bolt |
2 |
|
25 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
26 |
TB554.385.1c |
Shuttle shift control lever press-fit |
1 |
|
26.1 |
TB554.385.1c.1 |
Shuttle shift control lever weldment |
1 |
|
26.2 |
TB504.385.1-01b |
Bush |
1 |
41
Foton TS4A504-024K Wheeled Tractor
FT300.39.001 Final Transmission Assembly-1
42
Foton TS4A504-024K Wheeled Tractor
FT300.39.001 Final Transmission Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.39.001 |
Final transmission assembly |
1 |
||
1 |
FT300.39.109 |
Rolling needle outer spacing ring |
6 |
|
2 |
FT300.39.103 |
Planetary gear |
3 |
|
3 |
GB/T 309-P5×23.8-G2 |
Rolling needle |
132 |
|
4 |
FT300.39.105 |
Rolling needle inner spacing ring |
3 |
|
5 |
GB/T 879.1-5×24 |
Pin |
3 |
|
6 |
GB/T 879.1-8×24 |
Pin |
3 |
|
7 |
FT300.39.106 |
Planetary gear shaft |
3 |
|
8 |
FT300.39.107 |
Gear ring |
1 |
|
9 |
FT300.39.101 |
Left half axle |
1 |
|
10 |
FT300.39.110 |
Driving shaft lock piece |
1 |
|
11 |
FT300.39.112 |
Driving shaft lock bolt |
1 |
|
12 |
FT300.39.111 |
Stop block |
1 |
|
13 |
FT300.39.104 |
Planetary bracket |
1 |
|
14 |
FT300.39.123 |
Adjusting gasket |
On demand |
|
15 |
FT300.39.122 |
Adjusting gasket |
On demand |
|
16 |
FT300.39.121 |
Adjusting gasket |
On demand |
|
17 |
FT300.39.113 |
Spacing sleeve |
1 |
|
18 |
GB/T 276-6211 |
Roller bearing |
1 |
|
19 |
FT300.39.115 |
Left driving shaft housing |
1 |
|
20 |
GB/T 276-6212 |
Roller bearing |
1 |
|
21 |
GB/T 9877.1-FB70×95×10D |
Skeleton oil seal |
2 |
|
22 |
GB/T 3452.1-115×3.55G |
O-ring |
1 |
|
23 |
FT300.39.116 |
Oil seal seat |
1 |
|
24 |
GB/T 93-12-AOP |
Washer |
4 |
|
25 |
GB/T 5783-M12×30-A2L |
Bolt |
4 |
|
26 |
FT300.39.136 |
Rear hub bolt (left) |
8 |
|
27 |
FT300.39.118 |
Driving shaft |
1 |
|
28 |
FT300.39.137 |
Washer |
8 |
|
29 |
GB/T 6176-M16×1.5-LH-10-A3L |
Nut |
8 |
43
Foton TS4A504-024K Wheeled Tractor
FT300.39.001 Final Transmission Assembly-2
