LOVOL TS4A504-015C Tractor Parts Catalogue 18
Lovol TS4A504-015C Wheeled Tractor

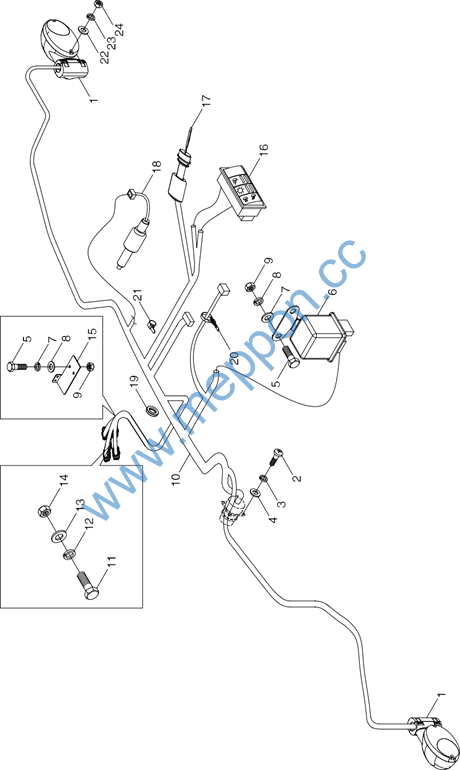

TS04482010000K Harness Installation Assembly,Body (001)
182
Lovol TS4A504-015C Wheeled Tractor
TS04482010000K Harness Installation Assembly,Body (001)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04482010000K |
Harness Installation Assembly, Body |
1 |
||
1 |
TS04482020004 |
Armrest Lamp Assembly |
2 |
|
2 |
GBT818-M3X20-4.8-A2L |
Cross Recessed Pan Head Screw |
4 |
|
3 |
GBT93-3-A0P |
Standard Spring Washer |
4 |
|
4 |
GBT97.1-3-A0P |
Plain Washer |
4 |
|
5 |
GBT5783-M6X20-8.8-A2L |
Hexagon Head Bolt |
4 |
|
6 |
FT300.48.055 |
Starting Relay |
1 |
|
7 |
GBT97.1-6-A0P |
Plain Washer |
4 |
|
8 |
GBT93-6-A0P |
Standard Spring Washer |
4 |
|
9 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
10 |
TS04482010001K |
Body Harness Assembly |
1 |
|
11 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
1 |
|
12 |
GBT93-8-A0P |
Standard Spring Washer |
1 |
|
13 |
GBT97.1-8-A0P |
Plain Washer |
1 |
|
14 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
1 |
|
15 |
TS04482010011 |
Connector Fixing Plate Weldment |
1 |
|
16 |
TS04482010006 |
Two-Function Rocker Switch |
1 |
|
17 |
TB550.482.3 |
Ignition Lock |
1 |
|
18 |
TB550.484.2 |
Brake Lamp Switch |
2 |
|
19 |
TS04482010008 |
Wire Through Ring |
1 |
|
20 |
Q67405200 |
Plastic Fastening Strap |
1 |
|
21 |
3203505D9-L |
Lock Cable Ties |
7 |
|
22 |
GBT97.1-5-A0P |
Plain Washer |
2 |
|
23 |
GBT93-5-A0P |
Standard Spring Washer |
2 |
|
24 |
GBT6170-M5-8-A2L |
Hexagon Nut, Style 1 |
2 |
183
Lovol TS4A504-015C Wheeled Tractor

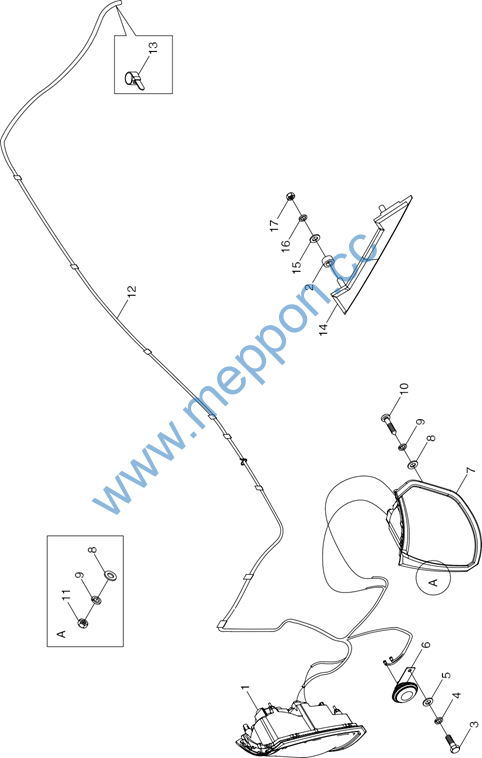

TS04483020000K Harness Installation Assembly, Front Lamp
184
Lovol TS4A504-015C Wheeled Tractor
TS04483020000K Harness Installation Assembly, Front Lamp
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04483020000K |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
TS04483010004 |
Front Headlamp Assembly |
1 |
|
2 |
TS04483010007 |
Washer |
2 |
|
3 |
GBT5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
1 |
|
4 |
GBT93-8-A0P |
Standard Spring Washer |
1 |
|
5 |
GBT97.1-8-A0P |
Plain Washer |
1 |
|
6 |
TD800.483B.3 |
Electric Horn |
1 |
|
7 |
TS04483010003 |
Left Headlamp Assembly |
1 |
|
8 |
GBT97.1-6-A0P |
Plain Washer |
8 |
|
9 |
GBT93-6-A0P |
Standard Spring Washer |
8 |
|
10 |
GBT818-M6X20-4.8-A2L |
Cross Recessed Pan Head Screw |
4 |
|
11 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
4 |
|
12 |
TS04483010001 |
Front Lamp Harness Assembly |
1 |
|
13 |
FT65.48.095 |
Harness Fastening Clip (1) |
7 |
|
14 |
TS04483010005 |
Decoration Strip |
1 |
|
15 |
GBT97.1-5-A0P |
Plain Washer |
2 |
|
16 |
GBT93-5-A0P |
Standard Spring Washer |
2 |
|
17 |
GBT6170-M5-8-A2L |
Hexagon Nut, Style 1 |
2 |
185
Lovol TS4A504-015C Wheeled Tractor

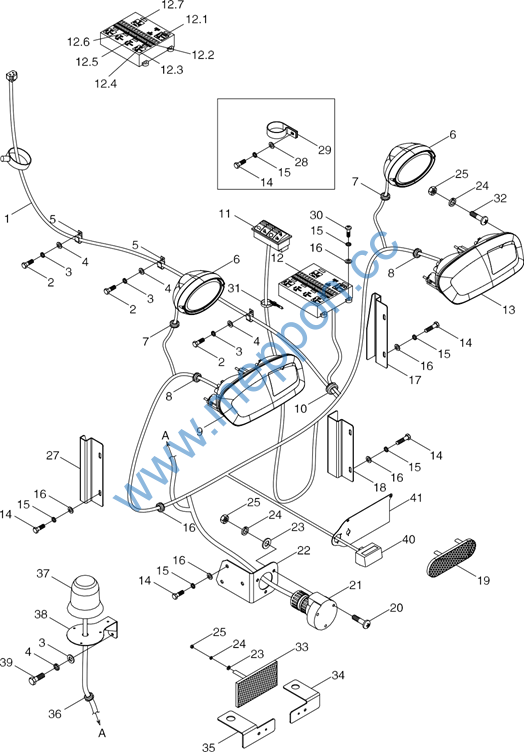

TS04484040000K Harness Installation Assembly, Rear Lamp (002)
186
Lovol TS4A504-015C Wheeled Tractor
TS04484040000K Harness Installation Assembly, Rear Lamp (002)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04484040000K |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
TS04484040001K |
Rear Lamp Harness Assembly |
1 |
|
2 |
GBT5783-M8X20-8.8-A2L |
Hexagon Head Bolt |
3 |
|
3 |
GBT93-8-A0P |
Standard Spring Washer |
5 |
|
4 |
GBT97.1-8-A0P |
Plain Washer |
5 |
|
5 |
TS06482010005 |
Harness Fastener |
5 |
|
6 |
TS06484020006 |
Rear Lamp Assembly |
2 |
|
7 |
TD800.484B-03 |
Wire Through Ring |
4 |
|
8 |
TS04484020003 |
Wire Through Ring |
2 |
|
9 |
TS06484010001 |
Left Rear Taillamp Assembly |
1 |
|
10 |
FT65.48.092 |
Wire Through Ring (3) |
2 |
|
11 |
TS04484040003K |
Five-Function Rocker Switch |
1 |
|
12 |
TS04484040002K |
Central Electric Box Assembly |
1 |
|
12.1 |
GE20H16Y.34.6-04 |
Main Power Source Relay |
1 |
|
12.2 |
TC02482010003K |
Warning Type Fuse (10A) |
5 |
|
12.3 |
FT300.48.513 |
Electronic Flasher |
1 |
|
12.4 |
TC02482010007K |
Warning Type Fuse (7.5A) |
3 |
|
12.5 |
TC02482010002K |
Warning Type Fuse (5A) |
5 |
|
12.6 |
TC02482010004K |
Warning Type Fuse (15A) |
6 |
|
12.7 |
FT300.48D.2.2.2 |
Preheating Relay |
1 |
|
13 |
TS06484010002 |
Right Rear Taillamp Assembly |
1 |
|
14 |
GBT5783-M6X20-8.8-A2L |
Hexagon Head Bolt |
10 |
|
15 |
GBT93-6-A0P |
Standard Spring Washer |
14 |
|
16 |
GBT97.1-6-A0P |
Plain Washer |
13 |
|
17 |
TS04484020007 |
Harness Shield 2 |
1 |
|
18 |
TS04484020008 |
Harness Shield 3 |
1 |
|
19 |
TS06484010005 |
Retro Reflector |
2 |
|
20 |
GBT819.1-M5X35-4.8-A1L |
Cross Recessed Countersunk Head Screw |
3 |
|
21 |
TD900.484.2 |
Rear Trailer Socket |
1 |
|
22 |
TS04484010005 |
Trailer Socket Fixing Plate Weldment |
1 |
|
23 |
GBT97.1-5-A0P |
Plain Washer |
9 |
|
24 |
GBT93-5-A0P |
Standard Spring Washer |
9 |
187
Lovol TS4A504-015C Wheeled Tractor
TS04484040000K Harness Installation Assembly, Rear Lamp (002) (extension)
188
Lovol TS4A504-015C Wheeled Tractor
TS04484040000K Harness Installation Assembly, Rear Lamp (002) (extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
25 |
GBT6170-M5-8-A2L |
Hexagon Nut, Style 1 |
6 |
|
26 |
TS04484020002 |
Wire Through Ring |
1 |
|
27 |
TS04484020006 |
Harness Shield 1 |
1 |
|
28 |
GBT96.1-6-A0P |
Large Washer |
1 |
|
29 |
TS04481010006 |
Harness Fastener |
1 |
|
30 |
GBT818-M6X25-4.8-A2L |
Cross Recessed Pan Head Screw |
4 |
|
31 |
3203505D9-L |
Lock Cable Ties |
14 |
|
32 |
GBT818-M5X12-4.8-A2L |
Cross Recessed Pan Head Screw |
2 |
|
33 |
TD800.484B.5 |
Reflector Assembly |
2 |
|
34 |
TD800.484B-02 |
Reflector Installation Plate (Right) |
1 |
|
35 |
TD800.484B-01 |
Reflector Installation Plate (Left) |
1 |
|
36 |
FT65.48.093 |
Wire Through Ring (1) |
2 |
|
37 |
TS04486010002K |
Rotary Warning Lamp Assembly |
1 |
|
38 |
TS10484010005 |
Warning Lamp Bracket Weldment |
1 |
|
39 |
GBT5783-M8X70-8.8-A2L |
Hexagon Head Bolt |
2 |
|
40 |
TA700.484A.2.1 |
License Lamp |
1 |
|
41 |
TB500.484A.1 |
License Lamp Installation Plate Weldment |
1 |
189
Lovol TS4A504-015C Wheeled Tractor

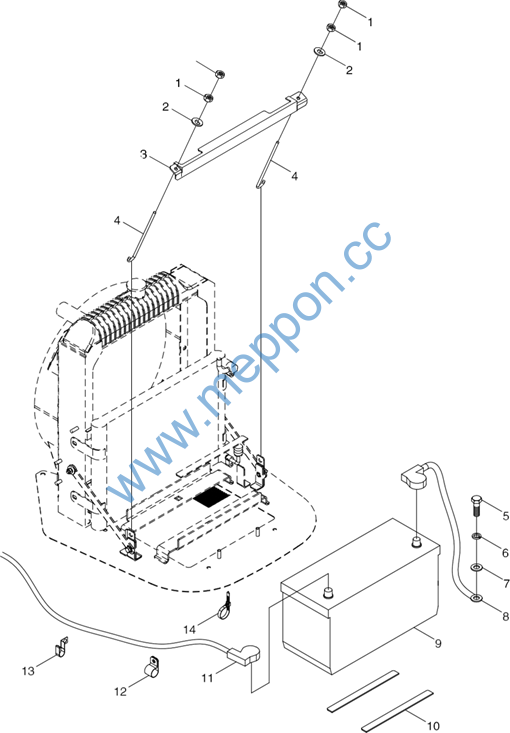

TS04485010000 Battery Installation Assembly
190
Lovol TS4A504-015C Wheeled Tractor
TS04485010000 Battery Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS04485010000 |
Battery Installation Assembly |
1 |
||
1 |
GBT6170-M6-8-A2L |
Hexagon Nut, Style 1 |
4 |
|
2 |
GBT97.1-6-A0P |
Plain Washer |
2 |
|
3 |
TS04485010004 |
Pressure Plate Welding Assembly |
1 |
|
4 |
TS04485010002 |
Pull Rod |
2 |
|
5 |
GBT5783-M8X25-8.8-A2L |
Hexagon Head Bolt |
1 |
|
6 |
GBT93-8-A0P |
Standard Spring Washer |
1 |
|
7 |
GBT97.1-8-A0P |
Plain Washer |
1 |
|
8 |
TB400.485A.2 |
Battery Bonding |
1 |
|
9 |
FT450.48.010 |
Maintenance Free Lead Acid Battery |
1 |
|
10 |
TB450.485.1 |
Battery Shock Absorbing Pad |
2 |
|
11 |
TB400.485A.1 |
Power Source Wire Assembly |
1 |
|
12 |
TS04481010006 |
Harness Fastening Clip |
1 |
|
13 |
TD800.485A-04 |
Harness Fastening Clip |
1 |
|
14 |
Q67405100 |
Plastic Fastening Strap |
1 |
191
Lovol TS4A504-015C Wheeled Tractor

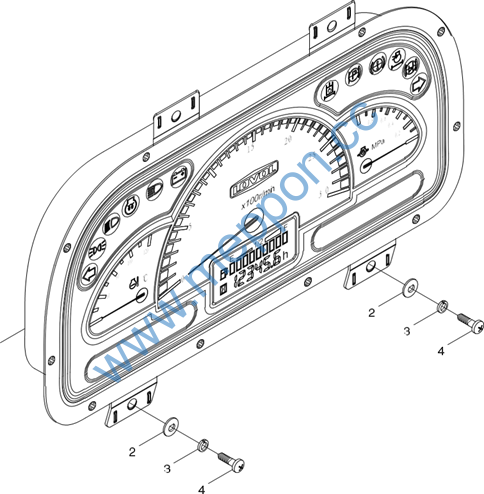

TS04487010000 Compound Instrument Assembly
192
