LOVOL TS4A504-015C Tractor Parts Catalogue 08
Lovol TS4A504-015C Wheeled Tractor

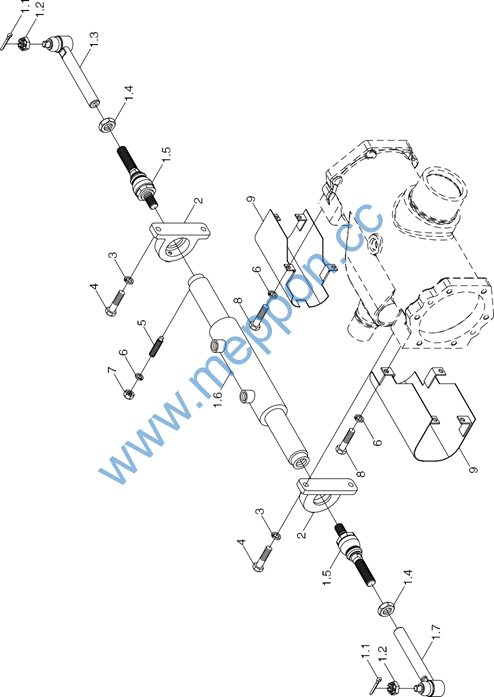

TC02311020000 Front Driving Axle Assembly-3(003)
72
Lovol TS4A504-015C Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-3(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front Driving Axle Assembly |
1 |
||
TC02311020001 |
Front Driving Axle Subassembly |
1 |
||
1 |
TC02311020007 |
Steering Cylinder Assembly |
1 |
|
1.1 |
GBT91-3.2X40-AOP |
Split Pin |
2 |
|
1.2 |
TC02311010075 |
Hexagon Slotted Nut |
2 |
|
1.3 |
TC02311020011 |
Right Steering Link |
1 |
|
1.4 |
GBT6173-M22X15-05-A3L |
Hexagon Thin Nut |
2 |
|
1.5 |
TC02311010077 |
Connecting Ball Head |
2 |
|
1.6 |
TC02311010084 |
Steering Cylinder |
1 |
|
1.7 |
TC02311020008 |
Left Steering Link |
1 |
|
2 |
TC02311010085 |
Cylinder Bracket |
2 |
|
3 |
GBT93-12-A0P |
Standard Spring Washer |
4 |
|
4 |
GBT5783-M12X35-10.9-A3L |
Hexagon Head Bolt |
4 |
|
5 |
GBT75-M8X35-14H-A2L |
Slotted Set Screws With Long Dog Point |
2 |
|
6 |
GBT93-8-A0P |
Standard Spring Washer |
10 |
|
7 |
GBT6170-M8-8-A2L |
Hexagon Nut, Style 1 |
2 |
|
8 |
GBT5783-M8X16-8.8-A2L |
Hexagon Head Bolt |
8 |
|
9 |
TC02311010015 |
Shield |
2 |
73
Lovol TS4A504-015C Wheeled Tractor

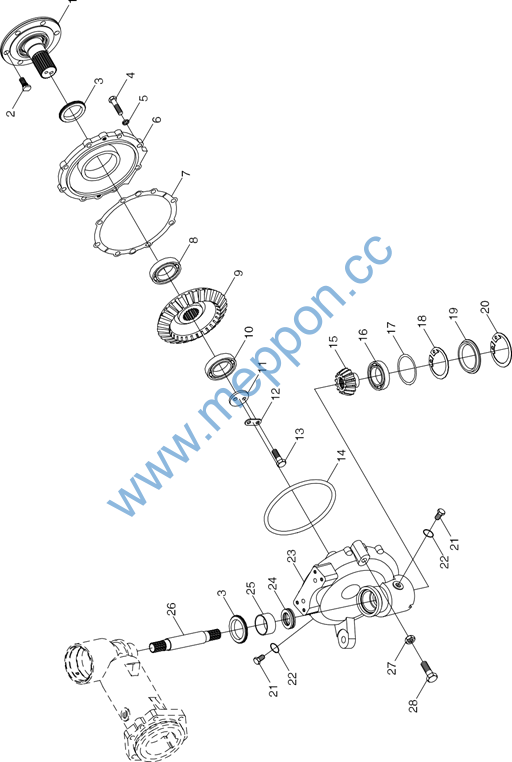

TC02311020000 Front Driving Axle Assembly-4(003)
74
Lovol TS4A504-015C Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-4(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front Driving Axle Ssembly |
1 |
||
TC02311020001 |
Front Driving Axle Subssembly |
1 |
||
TC02311020012 |
Left Final Transmission Assembly |
1 |
||
TC02311020013 |
Right Final Transmission Assembly |
1 |
||
1 |
TC02311020014 |
Front Driving Shaft |
1 |
|
2 |
TC02311020015 |
Knurled Bolt |
6 |
|
3 |
TC02311010032 |
Floating Oil Seal |
2 |
|
4 |
GBT5783-M10X40-10.9-A3L |
Hexagon Head Bolt |
8 |
|
5 |
GBT93-10-A0P |
Standard Spring Washer |
8 |
|
6 |
TC02311010050 |
End Large Cover |
1 |
|
7 |
TC02311010060 |
Adjusting Gasket Ⅰ |
1 |
|
8 |
GBT276-6410 |
Deep Grooved Ball Bearing |
1 |
|
9 |
TC02311020019 |
End Large Gear |
1 |
|
10 |
GBT276-6310 |
Deep Grooved Ball Bearing |
1 |
|
11 |
TC02311010055 |
Gasket |
1 |
|
12 |
TC02311010054 |
Lock Piece |
1 |
|
13 |
GBT5783-M10X30-10.9-A3L |
Hexagon Head Bolt |
2 |
|
14 |
GBT3452.1-243X5.30G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
15 |
TC02311020020 |
End Small Gear |
1 |
|
16 |
GBT276-6308 |
Deep Grooved Ball Bearing |
1 |
|
17 |
TC02311010059 |
Adjusting Gasket Ⅱ |
1 |
|
18 |
GBT893.1-90 |
Circlip For Hole |
1 |
|
19 |
TC02311010058 |
Seal Cover |
1 |
|
20 |
GBT893.1-102 |
Circlip For Hole |
1 |
|
21 |
TD904.311K.1-13 |
Screw Plug |
2 |
|
22 |
GBT3452.1-21.2X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
2 |
|
23 |
TC02311010047 |
Left Final Transmission Housing |
1 |
|
TC02311010048 |
Right Final Transmission Housing |
1 |
||
24 |
GBT301-51107 |
Thrust Ball Bearing |
1 |
|
25 |
TC02311010057 |
Bushing |
1 |
|
26 |
TC02311010056 |
End Spline Shaft |
1 |
|
27 |
GBT6172.1-M16-04-A3L |
Hexagon Thin Nut |
1 |
|
28 |
GBT5783-M16X40-10.9-A3L |
Hexagon Head Bolt |
1 |
75
Lovol TS4A504-015C Wheeled Tractor

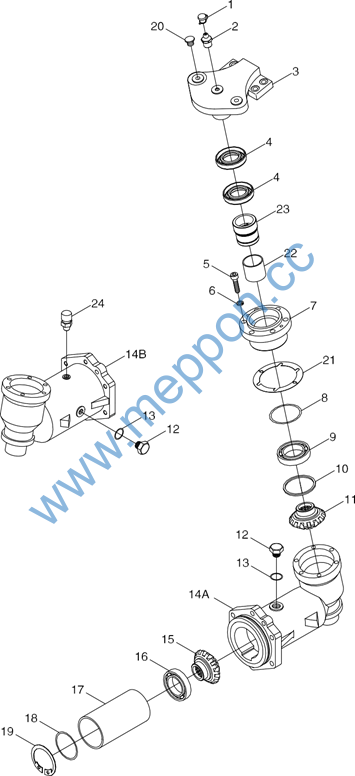

TC02311020000 Front Driving Axle Assembly-5(003)
76
Lovol TS4A504-015C Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-5(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front Driving Axle Assembly |
1 |
||
TC02311020001 |
Front Driving Axle Subassembly |
1 |
||
TC02311020002 |
Left Side Transmission Assembly |
1 |
||
TC02311020003 |
Right Side Transmission Assembly |
1 |
||
1 |
TD800.311C.1-01 |
Oil Cup Dustproof Cap |
1 |
|
2 |
JBT7940.1-M10X1 |
Straight Hydraulic Grease Nozzle |
1 |
|
3 |
TC02311010041 |
Connecting Cover |
1 |
|
4 |
GBT9877.1-FB65X85X10D |
Rubber Covered Rotary Shaft Lip Seal |
2 |
|
5 |
GBT70.1-M8X25-8.8 |
Hexagon Socket Head Cap Screw |
6 |
|
6 |
GBT93-8-A0P |
Standard Spring Washer |
6 |
|
7 |
TC02311010044 |
Oil Seal End Cover |
1 |
|
8 |
GBT3452.1-92.5X5.30G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
9 |
GBT276-6211 |
Deep Grooved Ball Bearing |
1 |
|
10 |
TC02311010039 |
Bearing Gasket |
1 |
|
11 |
TC02311020018 |
Driven Gear |
1 |
|
12 |
TD904.311K.1-13 |
Screw Plug |
1 |
|
13 |
GBT3452.1-21.2X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
14A |
TC02311020006 |
Right Half Axle Housing |
1 |
|
14B |
TC02311020004 |
Left Half Axle Housing |
1 |
|
15 |
TC02311020017 |
Driving Gear |
1 |
|
16 |
GBT276-6309 |
Deep Grooved Ball Bearing |
1 |
|
17 |
TC02311020005 |
Sleeve |
1 |
|
18 |
TC02311010073 |
Adjusting Gasket |
1 |
|
19 |
GBT893.1-100 |
Circlip For Hole |
1 |
|
20 |
TC02311010074 |
Plug |
2 |
|
21 |
TC02311010040 |
Adjusting Gasket |
1 |
|
22 |
TC02311010043 |
Sliding Bearing |
1 |
|
23 |
TC02311010042 |
Bushing |
1 |
|
24 |
TD904.311K.1.6 |
Vent Plug |
1 |
77
Lovol TS4A504-015C Wheeled Tractor

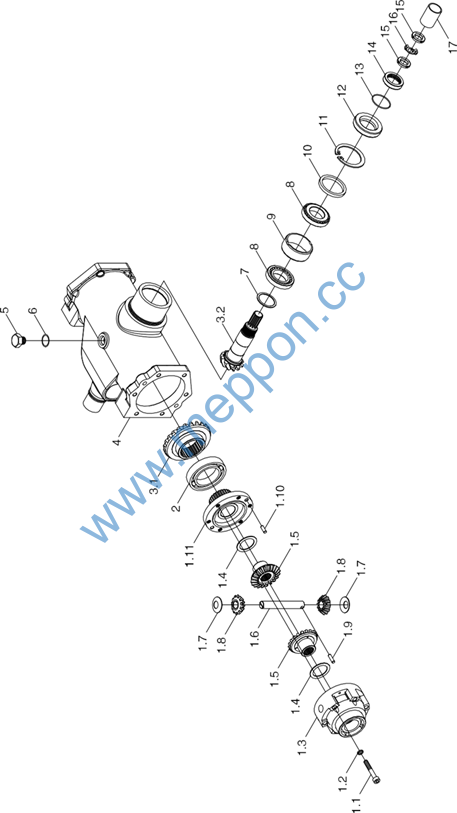

TC02311020000 Front Driving Axle Assembly-6(003)
78
Lovol TS4A504-015C Wheeled Tractor
TC02311020000 Front Driving Axle Assembly-6(003)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02311020000 |
Front Driving Axle Assembly |
1 |
||
TC02311020001 |
Front Driving Axle Subssembly |
1 |
||
TC02311010002 |
Main Reducer Assembly |
1 |
||
1 |
TC02311010018 |
Differential Assembly |
1 |
|
1.1 |
GBT70.1-M10X70-8.8 |
Hexagon Socket Head Cap Screw |
6 |
|
1.2 |
GBT93-10 |
Standard Spring Washer |
6 |
|
1.3 |
TC02311010027 |
Left Housing Of Differential |
1 |
|
1.4 |
TC02311010030 |
Half Axle Gear Gasket |
2 |
|
1.5 |
TC02311010035 |
Half Axle Gear |
2 |
|
1.6 |
TC02311010033 |
Planetary Gear Shaft |
1 |
|
1.7 |
TC02311010031 |
Planetary Gear Gasket |
2 |
|
1.8 |
TC02311010034 |
Planetary Gear |
2 |
|
1.9 |
GBT119.1-8h8X45-A0P |
Column Pin |
1 |
|
1.10 |
GBT119.1-8h8X20-A0P |
Column Pin |
2 |
|
1.11 |
TC02311010028 |
Right Housing Of Differential |
1 |
|
2 |
GBT276-6216 |
Deep Grooved Ball Bearing |
2 |
|
3 |
TC02311010026 |
Main Driven Bevel Gear Unit |
1 |
|
3.1 |
TC02311010029 |
Central Transmission Big Bevel Gear |
1 |
|
3.2 |
TC02311010020 |
Driving Bevel Gear Shaft |
1 |
|
4 |
TC02311010019 |
Main Reducer Housing |
1 |
|
5 |
TD904.311K.1-13 |
Screw Plug |
1 |
|
6 |
GBT3452.1-21.2X2.65G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
7 |
TC02311010083 |
Driving Bevel Gear Shaft Adjsuting Gasket |
1 |
|
8 |
GBT297-32208 |
Tapered Roller Bearing |
2 |
|
9 |
TC02311010022 |
Spacing Sleeve |
1 |
|
10 |
TC02311010023 |
Adjusting Ring |
1 |
|
11 |
GBT893.1-80 |
Circlip For Hole |
1 |
|
12 |
GBT9877.1-FB55X80X8D |
Rubber Covered Rotary Shaft Lip Seal |
1 |
|
13 |
GBT3452.1-41.2X3.55G |
O-Ring Sealant Used For Hydraulic Or Pneumatic Parts |
1 |
|
14 |
TC02311010025 |
Oil Seal Seat |
1 |
|
15 |
GBT810-M36X1.5 |
Small Round Nut |
2 |
|
16 |
GBT858-36 |
Thrust Washer Of Round Nut |
1 |
|
17 |
TC02311010024 |
Spline Protection Sleeve |
1 |
79
Lovol TS4A504-015C Wheeled Tractor

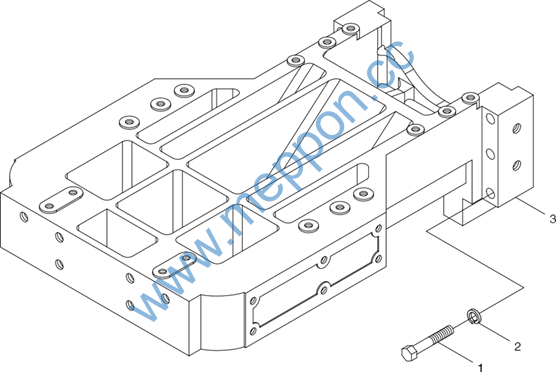

TB554.312 Front Bracket Assembly
80
Lovol TS4A504-015C Wheeled Tractor
TB554.312 Front Bracket Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 |
TB554.312 GBT5782-M16X110-10.9-A2L GB/T93-16-A0P TB554.312-01 |
Front Bracket Assembly Hex Bolt Standard Spring Washer Front Bracket |
1 6 6 1 |
81
Lovol TS4A504-015C Wheeled Tractor

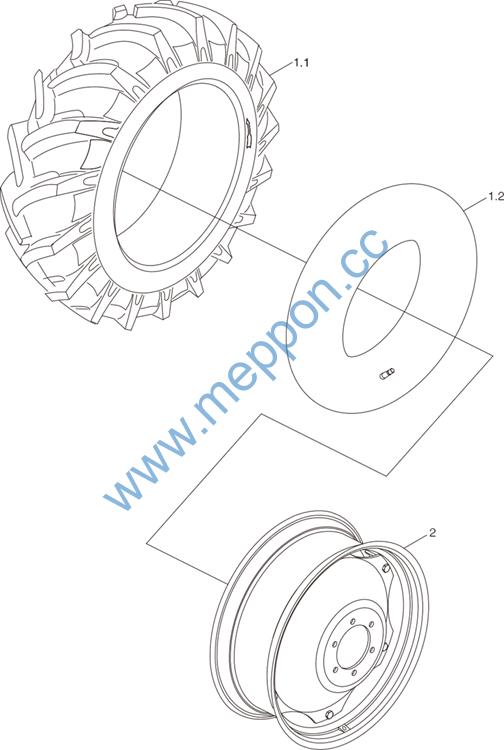

FT404.32F.001 Front Drive Wheel Assembly
