LOVOL TS10A854-004K Tractor Parts Catalogue 07
Foton TS10A854-004K Wheeled Tractor
TS10561030000K Rear Suspension Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10561030000K |
Rear Suspension Assembly |
1 |
||
1 |
TS10561010003 |
Lifting Rod Assembly |
2 |
|
1.1 |
TE250.56.4 |
Lock Pin Assembly |
2 |
|
1.2 |
GBT95-24-A0P |
Flat Washer |
2 |
|
1.3 |
TS10561010028 |
Lifting Rod Upper Connecting Fork Weldment |
1 |
|
1.4 |
TS10561010027 |
Lifting Rod Connecting Pin |
2 |
|
1.5 |
TS10561010029 |
Lifting Rod Adjusting Screw Pipe weldment |
1 |
|
1.6 |
TS10561010030 |
Adjusting Sleeve Weldment |
1 |
|
1.7 |
TS10561010008 |
Hook Link Assembly |
2 |
|
1.8 |
TS10561010031 |
Lower Connecting Fork |
1 |
|
2 |
TS10561010004 |
Limit Rod Assembly |
2 |
|
1.1 |
TE250.56.4 |
Lock Pin Assembly |
1 |
|
2.2 |
TS10561010046 |
Limit Rod Ball head Rivet |
1 |
|
2.3 |
TS10561010041 |
Limit Rod Connecting Pin 1 |
1 |
|
2.4 |
FT300.56A.023 |
Limiting Rod Lock Pin Assembly |
1 |
|
2.5 |
TS10561010045 |
Limit Rod Adjusting Screw Pipe |
1 |
|
2.6 |
TS10561010047 |
Limit Rod Locking Nut Weldment |
1 |
|
2.7 |
TS10561010042 |
Limit Rod Connecting Pin 2 |
1 |
|
2.8 |
GBT95-20-A0P |
Flat Washer |
2 |
|
2.9 |
TS10561010043 |
Limiting Rod Connecting Fork |
1 |
|
2.10 |
GBT91-6.3X36-A0P |
Split Pin |
1 |
|
2.11 |
TS10561010044 |
Limit Rod Connecting Pin 3 |
1 |
|
3 |
TS10561010001 |
Upper Pull Rod Assembly |
1 |
|
3.1 |
TS10561010015 |
Upper Pull Rod Ball Head Rivet 2 |
1 |
|
3.2 |
TS10561010012 |
Locking Nut |
1 |
|
3.3 |
TS10561010014 |
Upper Pull Rod Adjusting Screw Pipe Assembly |
1 |
|
3.4 |
TE250.56.4 |
Lock Pin Assembly |
1 |
|
3.5 |
TS10561010013 |
Upper Pull Rod Ball Head Rivet 1 |
1 |
|
3.6 |
TS10561010011 |
Upper Pull Rod Front Connecting Pin |
1 |
67
Foton TS10A854-004K Wheeled Tractor

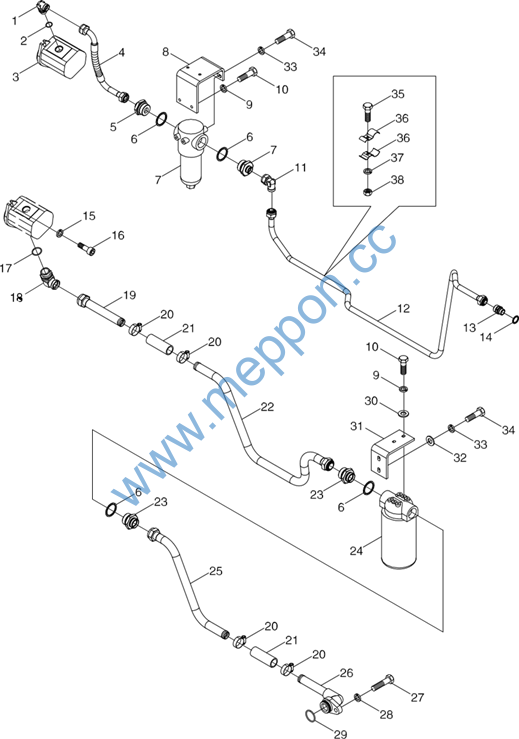

TS10581010000 Oil Pump Pipe Filter Assembly
68
Foton TS10A854-004K Wheeled Tractor
TS10581010000 Oil Pump Pipe Filter Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10581010000 |
Oil pump pipe filter assembly |
1 |
||
1 |
GBT 3738-L18 |
24° cone connectors–Straight thread elbow |
1 |
|
2 |
TS09580010008 |
O-ring 19.3X2.2-M22X1.5 |
1 |
|
3 |
TA700.581.4 |
Lifting pump |
1 |
|
4 |
TS10581010016 |
High-pressure hose assembly |
1 |
|
5 |
TS10581010011 |
High-pressure filter joint |
2 |
|
6 |
JBT 982-42 |
Compound seal washer |
4 |
|
7 |
TS10581010010 |
High-pressure filter |
1 |
|
8 |
TS10581010009 |
High-pressure filter trestle |
1 |
|
9 |
GBT 93-8-A0P |
Standard spring washer |
4 |
|
10 |
GBT 5783-M8X25-8.8-A2L |
Hexagon head bolt |
4 |
|
11 |
GBT 3754-L18 |
24° cone connectors – Adjustable elbow |
1 |
|
12 |
TS10581010014 |
Distributor oil inlet pipe assembly |
1 |
|
13 |
GBT 3733-L18A |
Straight thread connector-body |
1 |
|
14 |
JBT 982-22 |
Compound seal washer |
1 |
|
15 |
GBT 93-10 |
Standard spring washer |
2 |
|
16 |
GBT 70.1-M10X30-8.8-A3L |
Hexagon socket cap head screw |
2 |
|
17 |
TS09580010011 |
O-ring 29.6X2.9-M33X2 |
1 |
|
18 |
GBT 3738-L28 |
24° cone connectors–Straight thread elbow |
1 |
|
19 |
TS10581010017 |
Oil suction steel pipe weldment |
1 |
|
20 |
Q67638 |
B-type worm drive type hose clamp |
4 |
|
21 |
FT650.58.105 |
Rubber pipe |
2 |
|
22 |
TS10581010007 |
Oil suction steel pipe assembly 2 |
1 |
|
23 |
TS10581010004 |
Oil suction filter joint |
2 |
|
24 |
TS10581010005 |
Oil suction filter |
1 |
|
25 |
TS10581010001 |
Oil suction steel pipe assembly |
1 |
|
26 |
TS10581010018 |
Oil suction pipe welding assembly |
1 |
|
27 |
GBT 5783-M12X35-8.8-A3L |
Hexagon head bolt |
1 |
|
28 |
GBT 93-12-A0P |
Standard spring washer |
1 |
|
29 |
GBT 3452.1-38.7X3.55G |
O-ring sealant used for hydraulic or pneumatic parts |
1 |
|
30 |
GBT 97.1-8-A0P |
Plain washer |
4 |
|
31 |
TS10581010006 |
Oil suction filter trestle |
1 |
69
Foton TS10A854-004K Wheeled Tractor
TS10581010000 Oil Pump Pipe Filter Assembly(extension)
70
Foton TS10A854-004K Wheeled Tractor
TS10581010000 Oil Pump Pipe Filter Assembly(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
32 |
GBT 97.1-10 |
Plain washer |
1 |
|
33 |
GBT 93-10-A0P |
Standard spring washer |
4 |
|
34 |
GBT 5783-M10X25-8.8-A3L |
Hexagon head bolt |
4 |
|
35 |
GBT 5783-M6X30-8.8-A2L |
Hexagon head bolt |
2 |
|
36 |
FT650.58.060 |
Oil pipe clip and rubber pad paste |
4 |
|
37 |
GBT 93-6-A0P |
Standard spring washer |
2 |
|
38 |
GBT 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
71
Foton TS10A854-004K Wheeled Tractor

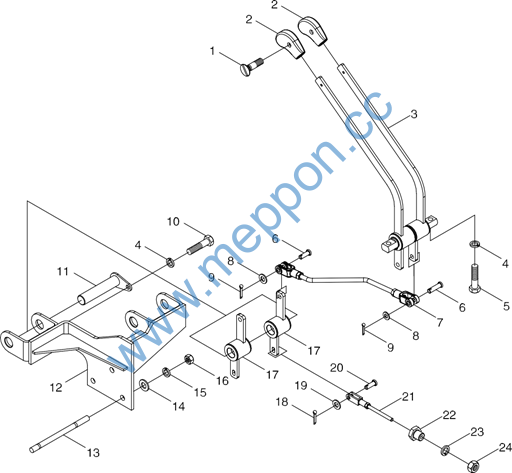

TS10582010000 Multi-way Valve Oil Pipe Assembly
72
Foton TS10A854-004K Wheeled Tractor
TS10582010000 Multi-way Valve Oil Pipe Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10582010000 |
Multi-way valve oil pipe assembly |
1 |
||
1 |
GBT 68-M4X10-4.8-A2L |
Slotted countersunk head screw |
2 |
|
2 |
TB504.552-04 |
Handle head |
2 |
|
3 |
TS10582010022 |
Multi-way valve control assembly |
1 |
|
4 |
GBT 93-8-A0P |
Standard spring washer |
3 |
|
5 |
GBT 5783-M8X30-8.8-A2L |
Hexagon head bolt |
2 |
|
6 |
GBT 882-B8X30-A0P |
Pin |
4 |
|
7 |
TS10582010032 |
Connecting pull rod assembly 1 |
2 |
|
8 |
GBT 97.1-8-A0P |
Plain washer |
4 |
|
9 |
GBT 91-3.2X16-A0P |
Split pin |
4 |
|
10 |
GBT 5783-M8X20-8.8-A2L |
Hexagon head bolt |
1 |
|
11 |
TS10582010048 |
Rotary shaft weldment |
1 |
|
12 |
TS10582010009 |
Control trestle weldment |
1 |
|
13 |
GBT 900-M10X130-8.8-A3L |
Double-ended stud |
3 |
|
14 |
GBT 97.1-10-A0P |
Plain washer |
3 |
|
15 |
GBT 93-10-A0P |
Standard spring washer |
5 |
|
16 |
GBT 6170-M10-8-A3L |
Hexagon nut, style 1 |
3 |
|
17 |
TS10582010040 |
Multi-way valve control pressing unit 3 |
2 |
|
18 |
GBT 91-2X12-A0P |
Split pin |
2 |
|
19 |
GBT 97.1-6-A0P |
Plain washer |
2 |
|
20 |
GBT 882-B6X18-A0P |
Pin |
2 |
|
21 |
TS10582010043 |
Connecting pull rod assembly 3 |
2 |
|
22 |
TS10582010045 |
Joint |
2 |
|
23 |
GBT 93-16-A0P |
Standard spring washer |
2 |
|
24 |
GBT 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
25 |
TS10582010005 |
Output oil pipe weldment 3 |
1 |
|
26 |
TS10582010001 |
Output oil pipe weldment 1 |
1 |
|
27 |
TS10582010003 |
Output oil pipe weldment 2 |
1 |
|
28 |
TS10582010007 |
Output oil pipe weldment 4 |
1 |
|
29 |
JBT 982-22 |
Compound seal washer |
4 |
|
30 |
TS10582010047 |
Straight thread connector-body |
4 |
|
31 |
GBT 6173-M27X2-05-A3L |
Hexagon thin nut |
4 |
73
Foton TS10A854-004K Wheeled Tractor

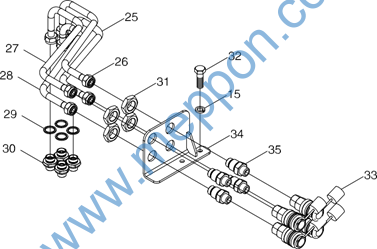

TS10582010000 Multi-way Valve Oil Pipe Assembly(extension)
74
Foton TS10A854-004K Wheeled Tractor
TS10582010000 Multi-way Valve Oil Pipe Assembly(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
32 33 34 35 |
GBT 5783-M10X20-8.8-A3L FT354.58A.030 TS10582010018 TA700.582-01 |
Hexagon head bolt Quick change connector Connecting plate weldment Transit joint |
2 4 1 4 |
75
Foton TS10A854-004K Wheeled Tractor

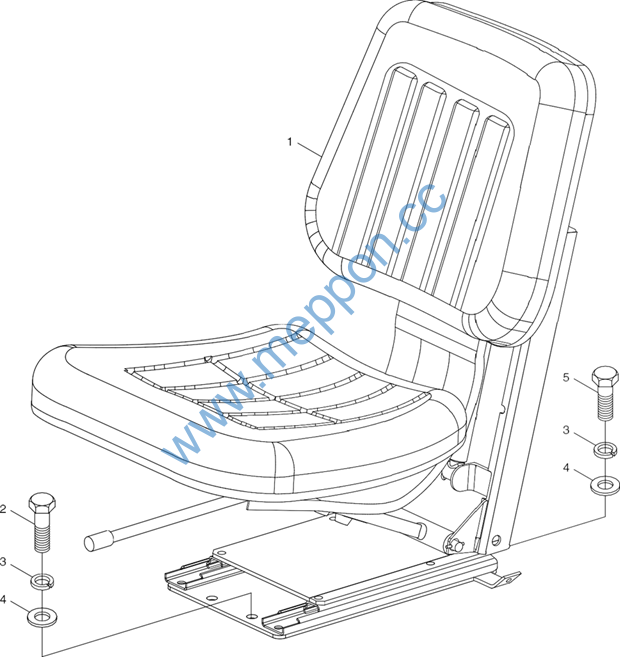

TD800.44 Seat Installation Assembly
76
Foton TS10A854-004K Wheeled Tractor
TD800.44 Seat Installation Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TD800.44 TD800.44.1 GB/T 5783-M12×35-A3L GB/T 93-12-A0P GB/T 97.1-12-A0P
GB/T 5783-M12×25-A3L |
Seat Installation Assembly Seat Assembly Bolt Washer Washer
Bolt |
1 1 2 4 4
2 |
77
Foton TS10A854-004K Wheeled Tractor

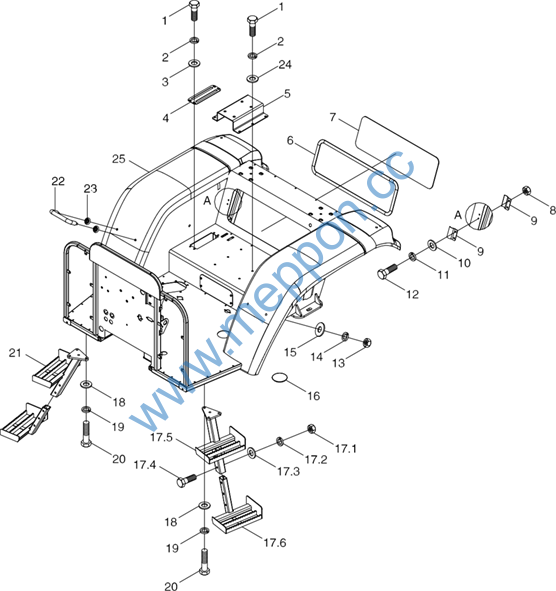

TS10452010000K Floor Assembly-1
