LOVOL TS10A854-004K Tractor Parts Catalogue 05
Foton TS10A854-004K Wheeled Tractor
TS10320030000K Front Drive Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10320030000K |
Front wheel assembly |
1 |
||
1 |
TS10320030001K |
Front wheel subassembly |
1 |
|
1.1 |
TS10320010001 |
Rim spoke unit |
1 |
|
1.1.1 |
GB/T 6171-M14×1.5-10-A3L |
Hexagon nut, style 1 |
6 |
|
1.1.2 |
FT804.32.104 |
Washer |
6 |
|
1.1.3 |
FT804.32B.103 |
Front wheel spoke |
1 |
|
1.1.4 |
GB/T 5785-M14×1.5×70-10.9-A3L |
Hexagon head bolt |
6 |
|
1.1.5 |
FT804.32F.011 |
W10×24 Rim weldment assembly |
1 |
|
1.2 |
TD824.32F-01 |
Inner tube/tyre assembly 12.4-24 |
1 |
|
1.2.1 |
GB/T 2979-12.4-24-8PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2.2 |
GB/T 2979-12.4-24-R |
Tractor driving wheel inner tube |
1 |
|
2 |
GB/T 6176-M18×1.5-10 |
Hexagon nut, style 2 |
8 |
|
3 |
TS10320010003 |
Washer |
8 |
43
Foton TS10A854-004K Wheeled Tractor

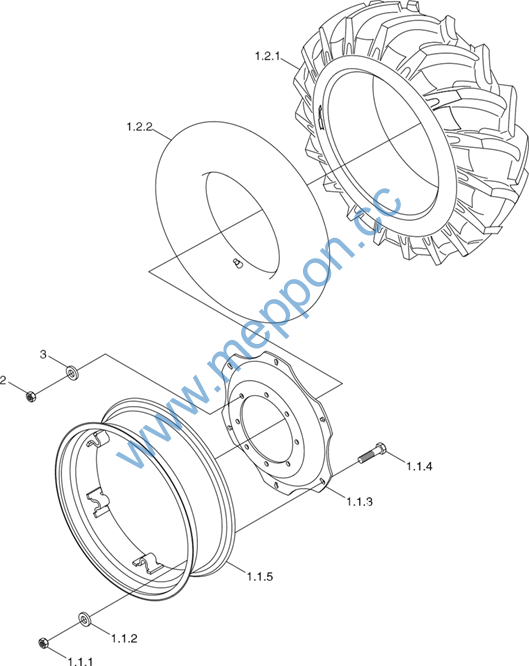

TS10340030000K Rear Driving Wheel Assembly
44
Foton TS10A854-004K Wheeled Tractor
TS10340030000K Rear Driving Wheel Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10340030000K |
Rear driving wheel assembly |
1 |
||
1 |
TS10340030003K |
Rear driving wheel subassembly |
1 |
|
1.1 |
TS10340030001K |
Rim spoke assembly |
1 |
|
1.1.1 |
GB/T 6171-M16×1.5-10-A3L |
Hexagon nut, style 1 |
8 |
|
1.1.2 |
FT800.34.108 |
Plain washer |
8 |
|
1.1.3 |
FT800.34B.013 |
Spoke weldment |
1 |
|
1.1.4 |
FT804.34.107 |
Rim bolt |
8 |
|
1.1.5 |
TS10340030002K |
Rim weldment |
1 |
|
1.2 |
FT800.34B.014 |
Inner/outer tube assembly 18.4-30 |
1 |
|
1.2.1 |
GB/T 2979-18.4-30-10PR-R |
General section bias tyre of tractor drive wheel |
1 |
|
1.2.2 |
GB/T 2979-18.4-30-R |
Tractor driving wheel inner tube |
1 |
|
2 |
GB/T 6176-M18×1.5-10 |
Hexagon nut, style 2 |
8 |
|
3 |
TS10320010003 |
Washer |
8 |
45
Foton TS10A854-004K Wheeled Tractor

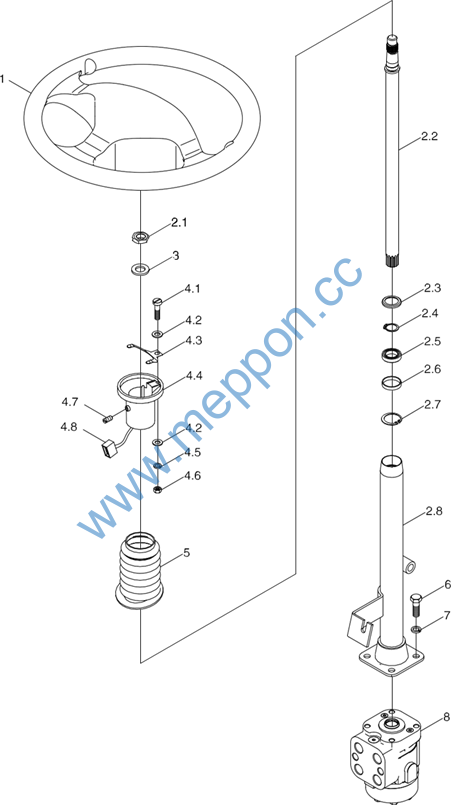

TS10401010000 Steering Wheel and Steering Column Assembly
46
Foton TS10A854-004K Wheeled Tractor
TS10401010000 Steering Wheel and Steering Column Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10401010000 |
Steering gear and steering column assembly |
1 |
||
1 |
TD1000.40A.1.1 |
Steering wheel assembly |
1 |
|
2 |
TD904.401.1 |
Steering column assembly |
1 |
|
2.1 |
GBT 6173-M16X1.5-05-A3L |
Hexagon thin nut |
1 |
|
2.2 |
FT800A.40L.109 |
Steering rod |
1 |
|
2.3 |
FT650.40.172 |
Bearing circlip |
1 |
|
2.4 |
GBT 894.1-20 |
Circlip for shaft |
1 |
|
2.5 |
GBT 276-61804-2LS |
Deep grooved ball bearing |
1 |
|
2.6 |
FT650.40.173 |
Bearing circlip 2 |
1 |
|
2.7 |
GBT 893.1-32 |
Circlip for hole |
1 |
|
2.8 |
TD904.401.1.1 |
Steering sleeve weldment |
1 |
|
3 |
GBT 97.1-16-A0P |
Plain washer |
1 |
|
4 |
FT650.40.014 |
Horn brush seat assembly |
1 |
|
4.1 |
GBT 67-M5X12-ZnD |
Screw |
1 |
|
4.2 |
GBT 848-5-ZnD |
Washer |
2 |
|
4.3 |
FT650.40.170 |
Copper brush |
1 |
|
4.4 |
FT650.40.169 |
Horn brush seat |
1 |
|
4.5 |
GBT 93-5-AOP |
Washer |
1 |
|
4.6 |
GBT 6170-M5-ZnD |
Nut |
1 |
|
4.7 |
GBT 73-M5X8-ZnD |
Screw |
1 |
|
4.8 |
FT650.40.034 |
Horn wire combination |
1 |
|
5 |
TA700.40Q.1-01 |
Steering rod shield |
1 |
|
6 |
GBT 5783-M10X25-8.8-A3L |
Hexagon head bolt |
4 |
|
7 |
GBT 93-10-A0P |
Standard spring washer |
4 |
|
8 |
TS10401010001 |
Steering gear and valve block assembly |
1 |
47
Foton TS10A854-004K Wheeled Tractor

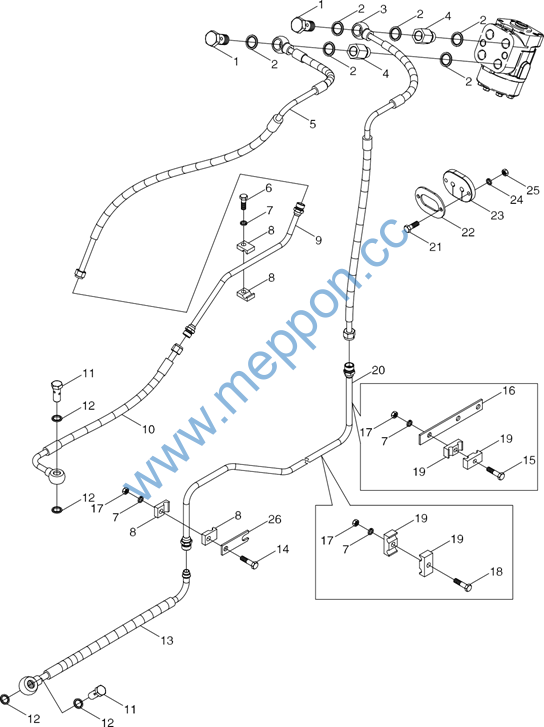

TS10402020000K Fully Hydraulic Steering Pipeline Assembly-1
48
Foton TS10A854-004K Wheeled Tractor
TS10402020000K Fully Hydraulic Steering Pipeline Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10402020000K |
Fully hydraulic steering pipeline assembly |
1 |
||
1 |
FT650.40.102 |
Hollow bolt M20×1.5 |
2 |
|
2 |
JB/T 982-20 |
Compound seal washer |
6 |
|
3 |
TS10402010008 |
Left oil outlet pipe assembly of steering gear |
1 |
|
4 |
TS10402010002 |
Steering gear joint |
2 |
|
5 |
TS10402010007 |
Right oil outlet pipe assembly of steering gear |
1 |
|
6 |
GB/T 5781-M8×25-4.8-A2L |
Hexagon head bolt |
2 |
|
7 |
GB/T 93-8-A0P |
Standard spring washer |
5 |
|
8 |
TB454.40X-01 |
Single-hole pipe clip |
6 |
|
9 |
TS10402010003 |
Steering high-pressure oil pipe assembly 2 |
1 |
|
10 |
TS10402010001 |
Steering oil cylinder inlet hose |
1 |
|
11 |
TG1204.402D-01 |
Hollow bolt |
2 |
|
12 |
JB/T 982-14 |
Compound seal washer |
4 |
|
13 |
TS10402020002K |
Steering cylinder oil inlet hose assembly |
1 |
|
14 |
GB/T 5783-M8×35-8.8-A2L |
Hexagon head bolt |
1 |
|
15 |
GB/T 5782-M8×40-8.8-A2L |
Hexagon head bolt |
1 |
|
16 |
TS10402020005K |
Pipe clip trestle |
1 |
|
17 |
GB/T 6170-M8-8-A2L |
Hexagon nut, style 1 |
3 |
|
18 |
GB/T 5782-M8×35-8.8-A2L |
Hexagon head bolt |
1 |
|
19 |
FT354.40C.121 |
Double-pipe clip |
4 |
|
20 |
TS10402020003K |
Left steering steel pipe assembly |
1 |
|
21 |
GB/T 5783-M6×25-8.8-A2L |
Hexagon head bolt |
2 |
|
22 |
TD904.402X-01 |
Clamping plate-01 |
1 |
|
23 |
TD904.402X-03 |
Shock absorbing pad-01 |
1 |
|
24 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
25 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
|
26 |
TS10402020006K |
Pipe clip trestle |
1 |
49
Foton TS10A854-004K Wheeled Tractor

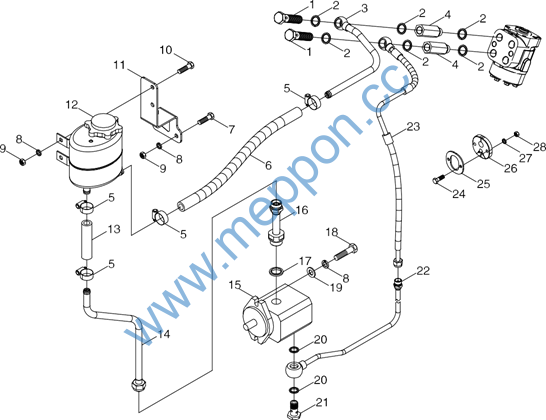

TS10402020000K Fully Hydraulic Steering Pipeline Assembly-2
50
Foton TS10A854-004K Wheeled Tractor
TS10402020000K Fully Hydraulic Steering Pipeline Assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10402020000K |
Fully hydraulic steering pipeline assembly |
1 |
||
1 |
FT650.40.102 |
Hollow bolt M20×1.5 |
2 |
|
2 |
JB/T 982-20 |
Compound seal washer |
6 |
|
3 |
TS10402010006 |
Steering gear oil return pipe assembly |
1 |
|
4 |
TS10402010014 |
Steering gear joint |
2 |
|
5 |
Q67632 |
B-type worm drive type hose clamp |
4 |
|
6 |
TS10402010016 |
Oil return hose |
1 |
|
7 |
GB/T 5783-M10×25-8.8-A3L |
Hexagon head bolt |
2 |
|
8 |
GB/T 93-10-A0P |
Standard spring washer |
6 |
|
9 |
GB/T 6170-M10-8-A3L |
Hexagon nut, style 1 |
4 |
|
10 |
GB/T 5783-M10×20-8.8-A3L |
Hexagon head bolt |
2 |
|
11 |
TS10402010015 |
Oil can trestle welding assembly |
1 |
|
12 |
TA824.40G.2 |
Steering oil tank assembly |
1 |
|
13 |
FT800A.40L.101 |
Oil inlet hose |
1 |
|
14 |
TS10402020001K |
Oil suction steel pipe assembly |
1 |
|
15 |
FT800A.40A.028 |
Steering pump assembly |
1 |
|
16 |
TD900.402A.6 |
Connecting oil pipe assembly |
1 |
|
17 |
JB/T 982-27 |
Compound seal washer |
1 |
|
18 |
GB/T 5783-M10×30-10.9-A3L |
Hexagon head bolt |
2 |
|
19 |
GB/T 97.1-10-A0P |
Plain washer |
2 |
|
20 |
JB/T 982-18 |
Compound seal washer |
2 |
|
21 |
FT650.40.105 |
Hollow bolt M18×1.5 |
1 |
|
22 |
TS10402020004K |
Oil pump outlet steel pipe assembly |
1 |
|
23 |
TS10402010005 |
Steering cylinder oil inlet hose assembly |
1 |
|
24 |
GB/T 5783-M6×25-8.8-A2L |
Hexagon head bolt |
2 |
|
25 |
TD904.402X-02 |
Clamping plate-02 |
1 |
|
26 |
TD904.402X-04 |
Shock absorbing pad-02 |
1 |
|
27 |
GB/T 93-6-A0P |
Standard spring washer |
2 |
|
28 |
GB/T 6170-M6-8-A2L |
Hexagon nut, style 1 |
2 |
51
Foton TS10A854-004K Wheeled Tractor

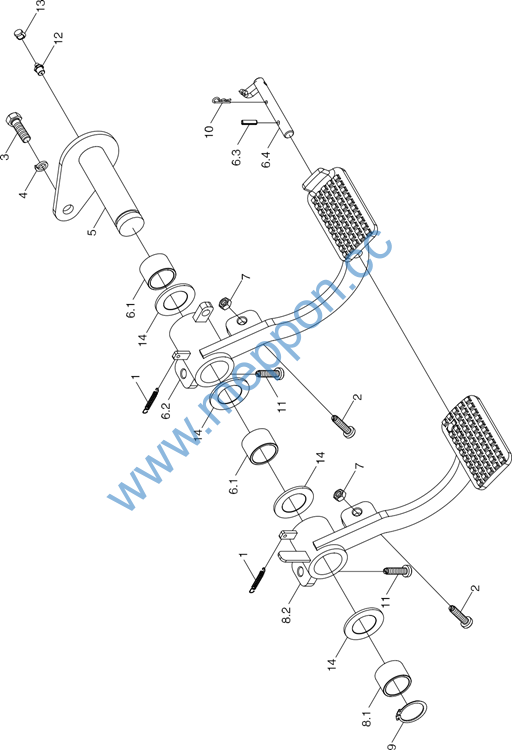

TS10433010000 Braking System Control Assembly-1
52
Foton TS10A854-004K Wheeled Tractor
TS10433010000 Braking System Control Assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TS10433010000 |
Braking system control assembly |
1 |
||
1 |
TD800.43-01 |
Pedal retraction spring |
2 |
|
2 |
FT800.43.103 |
Adjusting screw |
2 |
|
3 |
GBT 5783-M8X20-8.8-A2L |
Bolt |
1 |
|
4 |
GBT 93-8-A0P |
Washer |
1 |
|
5 |
FT800A.43.053 |
Brake pedal support shaft weldment |
1 |
|
6 |
TS10433010006 |
Right brake rocker arm unit |
1 |
|
6.1 |
TG1654.212B.1-01 |
Liner |
2 |
|
6.2 |
TS10433010005 |
Right brake rocker arm weldment |
1 |
|
6.3 |
GBT 879.1-5X16 |
Pin |
1 |
|
6.4 |
FT800A.43.065 |
Brake link lock lever weldment |
1 |
|
7 |
GBT 6170-M10-8-A3L |
Nut |
2 |
|
8 |
TS10433010004 |
Left brake rocker arm unit |
1 |
|
8.1 |
TG1654.212B.1-01 |
Liner |
1 |
|
8.2 |
TS10433010003 |
Left brake rocker arm weldment |
1 |
|
9 |
GBT 894.1-30 |
Circlip |
1 |
|
10 |
FT800A.43.401 |
Lock pin |
1 |
|
11 |
FT800.43.030 |
Adjusting screw unit |
2 |
|
12 |
JBT 7940.1-M8X1 |
Straight hydraulic grease nozzle |
1 |
|
13 |
TD800.311C.1-01 |
Oil cup dustproof cap |
1 |
|
14 |
TF1004.433-01 |
Nylon spacing sleeve |
4 |
53
Foton TS10A854-004K Wheeled Tractor

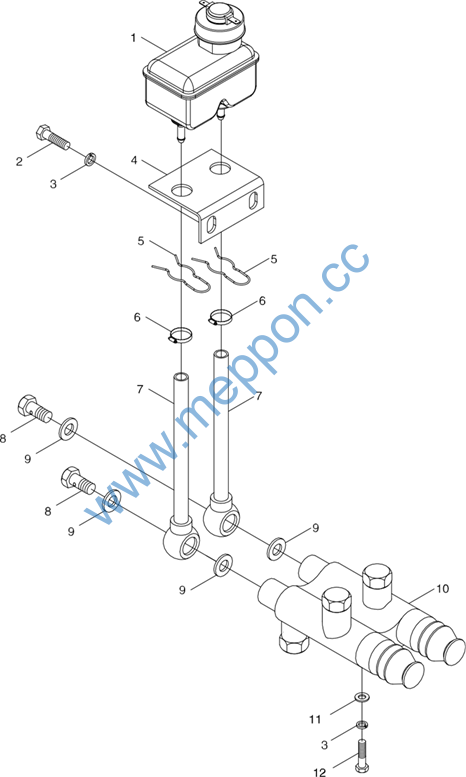

TS10433010000 Braking System Control Assembly-2
54
