LOVOL TG1854-F466K12 Tractor Parts Catalogue 13

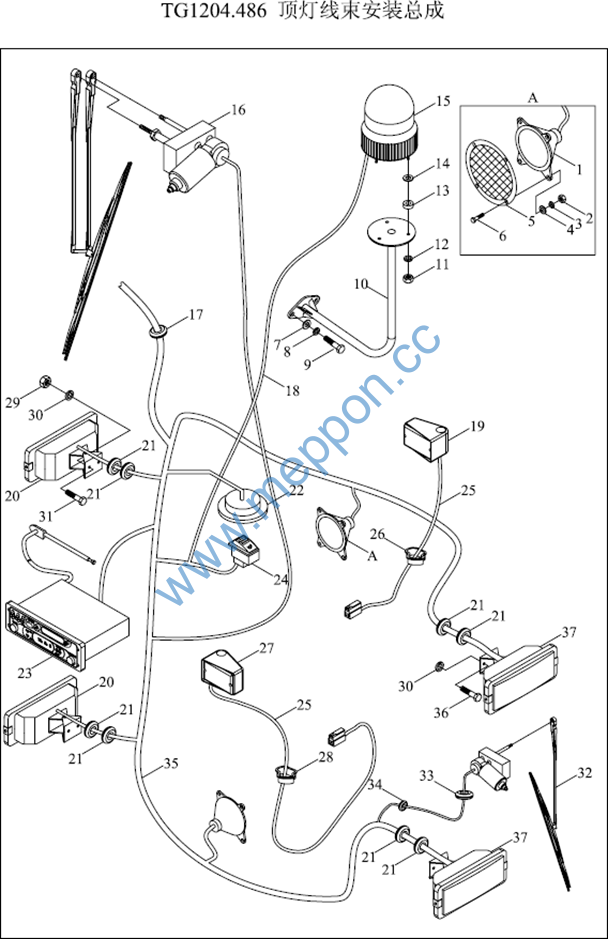

TG1204.486 48.6-顶灯线束安装总成 48.6-TOP LIGHT HARNESS INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 |
TG1204.486.7 |
LOUDHAILER ASSEMBLY |
2 |
2011-11_ |
|
10 |
TG1204.486.12 |
ALARM LAMP BRACKET |
1 |
2011-11_ |
|
11 |
GBT6170-M5-A2L |
NUT |
3 |
2011-11_ |
|
12 |
GBT93-5-A0P |
WASHER |
3 |
2011-11_ |
|
13 |
TG1204.486-01 |
RUBBER PAD |
3 |
2011-11_ |
|
14 |
GBT96.1-5-A0P |
WASHER |
3 |
2011-11_ |
|
15 |
TG1204.486.11 |
ROTATING ALARM LAMP |
1 |
2011-11_ |
|
16 |
TG1204.486.2 |
FRONT WIPER ASSEMBLY |
1 |
2011-11_ |
|
17 |
FT65.48.093 |
RUBBER RING (ONE) |
1 |
2011-11_ |
|
18 |
TG1204.486.14 |
ALARM LAMP HARNESS ASSEMBLY |
1 |
2011-11_ |
|
19 |
TG1204.486.5 |
RIGHT RAIL LIGHT ASSEMBLY |
1 |
2011-11_ |
|
2 |
GBT6170-M4-A2L |
NUT |
8 |
2011-11_ |
|
2 |
GBT6170-M4-A2L |
NUT |
8 |
2011-11_ |
|
20 |
TG1204.486.10 |
TOP LIGHT ASSEMBLY |
2 |
2011-11_ |
|
21 |
FT65.48.101 |
THROUGH HARNESS WASHER (4) |
8 |
2011-11_ |
|
22 |
TG1204.486.8 |
INNER TOP LIGHT ASSEMBLY |
1 |
2011-11_ |
|
23 |
TG1204.486.6 |
RADIOGRAM ASSEMBLY |
1 |
2011-11_ |
|
24 |
TG1204.486.13 |
ALARM LAMP SWITCH |
1 |
2011-11_ |
|
25 |
FT65.48.027 |
RIGHT ARMREST LIGHT WIRE |
2 |
2004-01_ |
|
25 |
TG1204.486.9 |
RIGHT ARMREST LIGHT WIRE |
2 |
2007-03_ |
|
25 |
TG1254.486.3 |
RIGHT ARMREST LIGHT WIRE |
2 |
2011-11_ |
|
25 |
TG1254.486.3 |
RIGHT ARMREST LIGHT WIRE |
2 |
2011-11_ |
|
26 |
FT65.48.103 |
RIGHT RUBBER SLEEVE |
1 |
2011-11_ |
|
27 |
TG1204.486.4 |
LEFT RAIL LAMP ASSEMBLY |
1 |
2011-11_ |
|
28 |
FT65.48.104 |
LEFT RUBBER SLEEVE |
1 |
2011-11_ |
|
29 |
GBT6170-M6-A2L |
NUT |
4 |
2011-11_ |
|
3 |
GBT93-4-A0P |
WASHER |
8 |
2011-11_ |
|
30 |
GBT93-6-A0P |
SPRING WASHER |
8 |
2011-11_ |
|
31 |
GBT5783-M6x16-A2L |
BOLT |
4 |
2011-11_ |
|
32 |
TG1204.486.3 |
REAR SCRAPER ASSEMBLY |
1 |
2011-11_ |
|
33 |
FT800A.48L.101 |
RUBBER RING (1) |
1 |
2011-11_ |
|
34 |
FT65.48.094 |
RUBBER RING (2) |
1 |
2011-11_ |
|
35 |
TG1204.486.1 |
TOP LIGHT HARNESS ASSEMBLY |
1 |
2011-11_ |
|
36 |
GBT5783-M6X25-A2L |
BOLT |
4 |
2011-11_ |
|
36 |
GBT5783-M6X25-A2L |
BOLT |
4 |
2011-11_ |
|
37 |
TG1204.486.15 |
REAR TOP LIGHT ASSEMBLY |
2 |
2011-11_ |
|
4 |
GBT97.1-4-A0P |
WASHER |
8 |
2011-11_ |
|
5 |
FT800.48B.067 |
LOUDHAILER COVER |
2 |
2011-11_ |
|
5 |
FT800.48B.067 |
LOUDHAILER COVER |
2 |
2011-11_ |
|
6 |
GBT818-M4X16-A2L |
SCREW |
8 |
2011-11_ 140 |
TG1204.486 48.6-顶灯线束安装总成(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
7 8 9 |
GBT97.1-10-A0P GBT93-10-A0P GBT5783-M10X20-A3L |
WASHER WASHER BOLT |
2 2 2 |
2011-11_ 2011-11_ 2011-11_ |
142

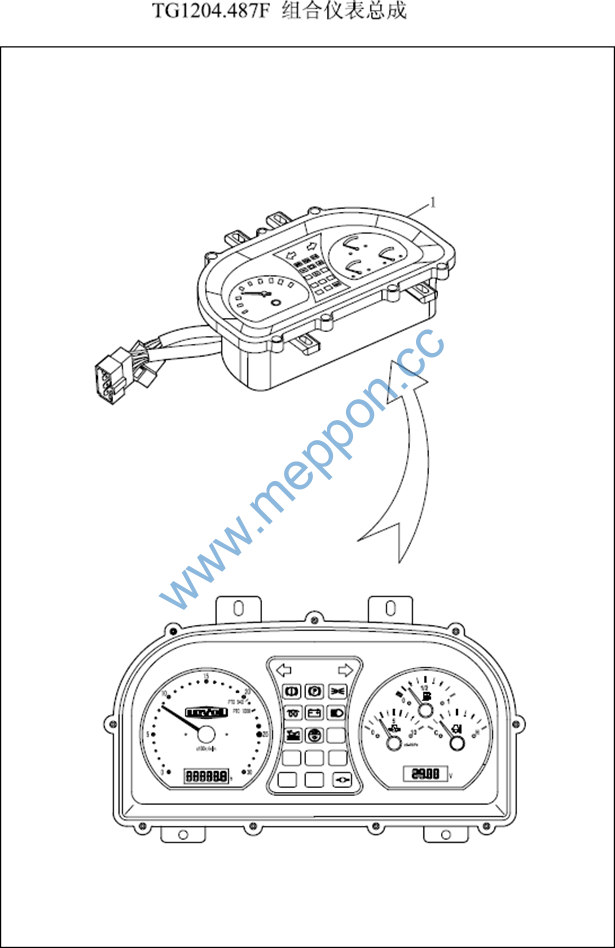

TG1204.487F 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 |
TG1204.487F.1 |
COMBINED INSTRUMENT ASSEMBLY |
1 |
2011-11_
144 |

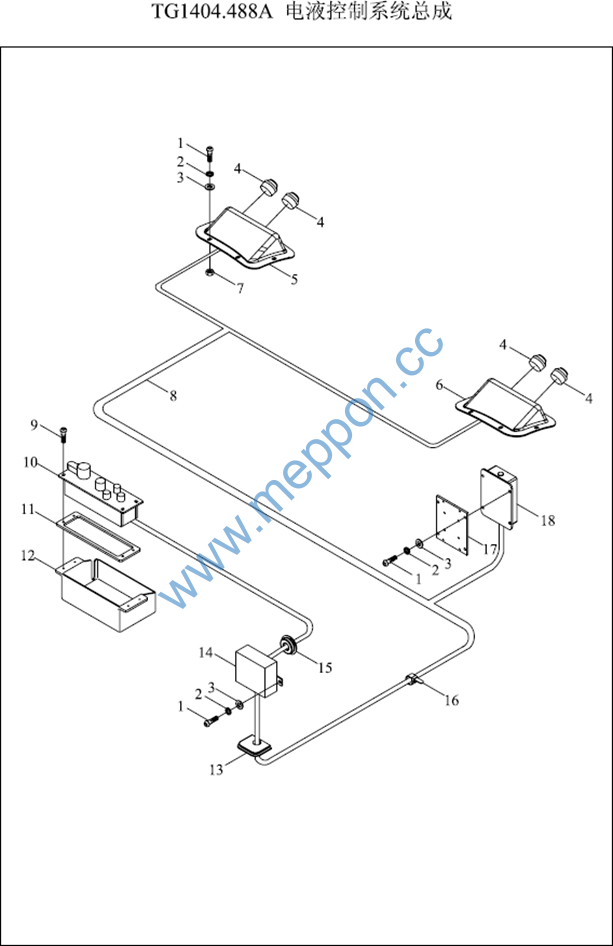

TG1404.488A 48.8-电液控制系统总成 48.8-ELECTRO-HYDRAULIC CONTROL SYSTEM ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 |
GBT818-M6X20-A2L |
SCREW |
18 |
2011-11_ |
|
1 |
GBT818-M6X20-A2L |
SCREW |
18 |
2011-11_ |
|
10 |
TG1404.488.2 |
CONTROL PANEL ASSEMBLY |
1 |
2011-11_ |
|
11 |
TG1404.488-01 |
SHOCK ABSORBER |
1 |
2011-11_ |
|
12 |
TG1404.488A-01 |
CONTROL PANEL BONNET |
1 |
2011-11_ |
|
13 |
TG1404.488A-02 |
RUBBER RING |
1 |
2011-11_ |
|
14 |
TG1404.488.4 |
CENTRAL CONTROL UNIT |
1 |
2011-11_ |
|
14 |
TG1404.488.4 |
CENTRAL CONTROL UNIT |
1 |
2011-11_ |
|
15 |
TF1004.482-01 |
RUBBER RING |
1 |
2011-11_ |
|
15 |
TF1004.482-01 |
RUBBER RING |
1 |
2011-11_ |
|
16 |
3203505D9-L |
TIE |
4 |
2011-11_ |
|
17 |
TG1404.488-07 |
SHOCK ABSORBER |
1 |
2011-11_ |
|
18 |
TG1404.488.3 |
STABILIZER POWER |
1 |
2011-11_ |
|
2 |
GBT93-6-A0P |
SPRING WASHER |
18 |
2011-11_ |
|
3 |
GBT97.1-6-A0P |
WASHER |
18 |
2011-11_ |
|
4 |
TG1404.488.5 |
CONTROL SWITCH |
4 |
2011-11_ |
|
5 |
TG1404.488-04 |
RIGHT SWITCH SUPPORT SEAT |
1 |
2011-11_ |
|
5 |
TG1404.488-04 |
RIGHT SWITCH SUPPORT SEAT |
1 |
2011-11_ |
|
6 |
TG1404.488-03 |
LEFT SWITCH SUPPORT SEAT |
1 |
2011-11_ |
|
7 |
GBT6170-M6-A2L |
NUT |
12 |
2011-11_ |
|
8 |
TG1404.488A.1 |
CONTROL HARNESS ASSEMBLY |
1 |
2011-11_ |
|
8 |
TG1404.488A.1 |
CONTROL HARNESS ASSEMBLY |
1 |
2011-11_ |
|
9 |
GBT68-M4X10-A2L |
4 |
2011-11_ |
|
|
146 |

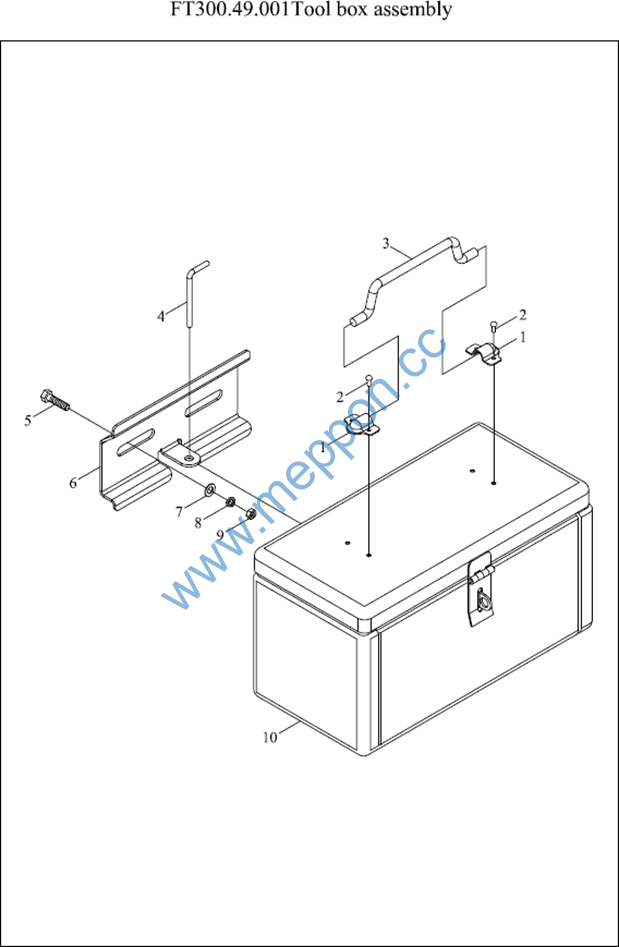

FT300.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
1 |
GBT5783-M12X25-A3L |
BOLT |
2 |
2011-11_ |
|
1 |
FT65.49.101 |
HANDLE SEAT |
2 |
2003-11_ |
|
10 |
FT300.49.012 |
TOOL BOX WELDMENT ASSEMBLY |
1 |
2003-11_ |
|
2 |
GBT 867-4X8 |
RIVET |
2 |
2003-11_ |
|
3 |
FT65.49.115 |
HANDLE |
1 |
2003-11_ |
|
4 |
FT65.49.102 |
CROSS PIN |
1 |
2003-11_ |
|
5 |
GBT5783-M12X35-A3L |
BOLT |
2 |
2003-11_ |
|
5 |
GBT5783-M12X35-A3L |
BOLT |
2 |
2003-11_ |
|
6 |
FT65.49.103 |
FIXING SUPPORT PLATE |
1 |
2003-11_ |
|
7 |
GBT97.1-12-A0P |
WASHER |
2 |
2003-11_ |
|
8 |
GBT93-12-A0P |
SPRING WASHER |
2 |
2003-11_ |
|
9 |
GBT6170-M12-A3L |
NUT |
2 |
2003-11_ |
148

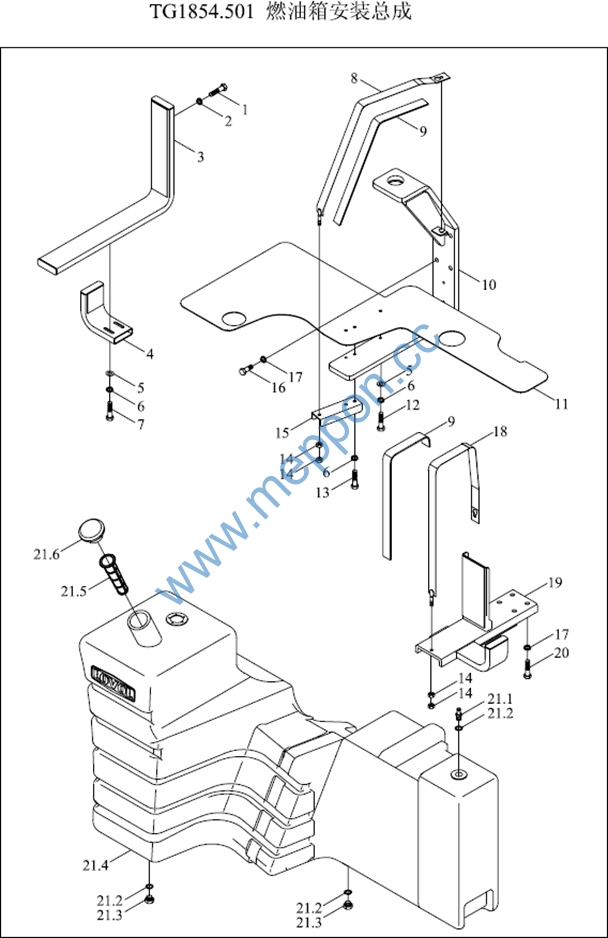

TG1854.501 50.1-燃油箱安装总成 50.1-FUEL TANK INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
10 |
TG1854.501.3 |
MAIN OIL TANK BRACKET |
1 |
2011-11_ |
|
11 |
TG1854.501-01 |
WELDMENT |
1 |
2011-11_ |
|
12 |
GBT5783-M10X25-8.8-A3L |
GUARD PLATE |
1 |
2011-11_ |
|
13 |
GBT5783-M10X30-8.8-A3L |
BOLT |
2 |
2011-11_ |
|
14 |
GBT6170-M10-8-A3L |
BOLT |
4 |
2011-11_ |
|
NUT |
||||
|
15 |
TG1854.501-02 |
1 |
2011-11_ |
|
|
17 |
GBT93-16-A0P |
FASTENING TIE BRACKET |
8 |
2011-11_ |
|
18 |
TG1854.501.6 |
SPRING WASHER |
1 |
2011-11_ |
|
19 |
TG1854.501.2 |
REAR FASTENING TIE WELDMENT |
1 |
2011-11_ |
|
2 |
GBT93-14-A0P |
REAR BRACKET WELDMENT |
2 |
2011-11_ |
|
SPRING WASHER |
||||
|
2 |
GBT93-14-A0P |
2 |
2011-11_ |
|
|
20 |
GBT5783-M16X35-8.8-A3L |
SPRING WASHER |
4 |
2011-11_ |
|
21 |
TG1854.501.1 |
BOLT |
1 |
2011-11_ |
|
21.1 |
TG1854.501.1-02 |
OIL TANK ASSEMBLY |
1 |
2011-11_ |
|
21.2 |
JBT982-20 |
STRAIGHT PIPE JOINT |
3 |
2011-11_ |
|
COMBINED SEAL GASKET |
||||
|
21.3 |
Q617B20 |
2 |
2011-11_ |
|
|
21.4 |
TG1854.501.1-01 |
SCREW PLUG |
1 |
2011-11_ |
|
21.5 |
TF1004.501.1-02 |
OIL TANK HOUSING |
1 |
2011-11_ |
|
21.6 |
TD800.501A.1.1 |
SCREEN |
1 |
2011-11_ |
|
3 |
TG1854.501.7 |
OIL TANK COVER |
1 |
2011-11_ |
|
OIL TANK FRONT BRACKET |
||||
|
4 |
TG1854.501.4 |
WELDMENT |
1 |
2011-11_ |
|
5 |
GBT95-10-A0P |
3 |
2011-11_ |
|
|
6 |
GBT93-10-A0P |
FRONT LIMIT PLACE PIPE WELDMENT |
5 |
2011-11_ |
|
7 |
GBT5783-M10X55-8.8-A2L |
WASHER |
2 |
2011-11_ |
|
8 |
TG1854.501.5 |
WASHER |
1 |
2011-11_ |
|
BOLT |
||||
|
8 |
TG1854.501.5 |
FRONT BAND WELDMENT |
1 |
2011-11_ |
|
9 |
FT800A.50.209 |
2 |
2011-11_ |
|
|
FRONT BAND WELDMENT |
||||
|
MAIN OIL TANK BELT RUBBER STRIP |
||||
|
150 |
