LOVOL TF1254-F153F1K Tractor Parts Catalogue 09

TF1004.212-3 21.3-离合器操纵总成-3(续)

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
29	GBT93-10-A0P	标准型弹簧垫圈	WASHER	2	2011-11_
3	FT800.21.209	防尘盖	DUSTPROOF COVER	1	2011-11_
30	GBT5781-M10X60-A2L	六角头螺栓	BOLT	1	2011-11_
31	GBT6170-M10-A3L	螺母	NUT	1	2011-11_
32	FT800.21.212	限位座	LIMITING SEAT	1	2011-11_
4	TA820.213-10	分离轴承	BEARING	1	2009-04_
5	FT800.21C.202	副离合轴承座	AUXILIARY CLUTCH BEARING SEAT	1	2004-01_
5	FT800.21C.202a	副离合轴承座	AUXILIARY CLUTCH BEARING SEAT	1	2009-04_
6	FT800.21.215	副离合回位弹簧	AUXILIARY CLUTCH RETURN SPRING	2	2010-03_
6	TD800.43-01	踏板回位弹簧	PEDAL RETURN SPRING	2	2010-03_
7	FT800.21C.205	主离合分离轴承座	MAIN CLUTCH RELEASE BEARING SEAT	1	2011-11_
8	FT800.21.213	圆柱销	PIN	2	2011-11_
9	FT800.21.204	主离合拨叉	MAIN CLUTCH FORK	1	2011-11_

TF1004.22A 22-排气系总成 22-EXHAUST SYSTEM ASSEMBLY

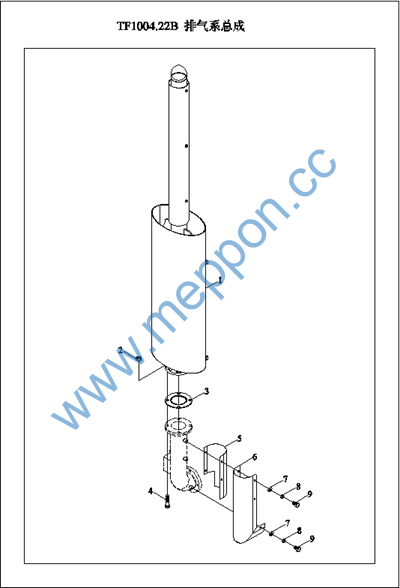

TF1004.22B 22-排气系总成 22-EXHAUST SYSTEM ASSEMBLY

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	TF1004.22-10	消声器总成	MUFFLER ASSEMBLY	1	2012-05_
2	SPL6175PT-M10X1.5-8F3	施必牢2型六角自锁防脱螺母	HEXAGON SELF-LOCKING NUT、 STYLE 2	4	2012-05_
3	TG1204.22A.1	密封垫合件	SEAL GASKET UNIT	1	2012-05_
4	GBT5783-M10X40-8.8-A3L	螺栓	BOLT	4	2012-05_
5	TG1204.22A-04	护网2	GUARD NET 2	1	2012-05_
6	TG1204.22A-03	护网1	GUARD NET 1	1	2012-05_
7	GBT97.1-6-A0P	平垫圈	WASHER	6	2012-05_
8	GBT93-6-A0P	垫圈	WASHER	6	2012-05_
9	GBT5783-M6X12-8.8-A2L	六角头螺栓	BOLT	6	2012-05_

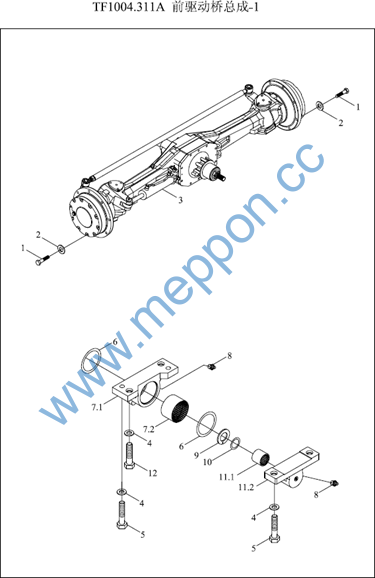

TF1004.311A-1 31.1-前驱动桥总成-1 FRONT DRIVING AXLE ASSEMBLY-1

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
1	GBT5786-M16X1.5X40-12.9-A3L	六角头螺栓	BOLT	16	2011-11_
10	GBT3452.1-53X3.55G	液压气动用O形橡胶密封圈	O-SEAL RING	1	2011-11_
11	TG1204.311C.3	前支座总成	FRONT SUPPORT SEAT ASSEMBLY	1	2011-11_
11.1	FT804.31.109	前驱动桥前座衬套	FRONT DRIVING AXLE FRONT SEAT BUSH	1	2011-11_
11.2	TG1204.311C.3-01	前支座	FRONT SUPPORT SEAT	1	2011-11_
12	GBT5783-M20X70-12.9-A3L	六角头螺栓	BOLT	2	2011-11_
2	FT654.32.104	垫圈	WASHER	16	2011-11_
2	FT654.32.104	垫圈	WASHER	16	2011-11_
3	TG1204.311C.1	前桥总成	FRONT AXLE ASSEMBLY	1	2011-11_
4	TG1204.34-01	垫圈	WASHER	6	2011-11_
5	GBT5782-M20X80-12.9-A3L	六角头螺栓	BOLT	4	2011-11_
6	GBT3452.1-100X5.3G	液压气动用O形橡胶密封圈	O-SEAL RING	2	2011-11_
7	TG1204.311C.2	后支座总成	REAR SUPPORT SEAT ASSEMBLY	1	2011-11_
7.1	TG1204.311C.2-01	后支座	BACK SUPPORT SEAT	1	2011-11_
7.2	FT804.31.103	前驱动桥后座衬套	FRONT DRIVING AXLE REAR SEAT BUSH	1	2011-11_
8	JBT7940.1-M10X1	直通式压注油杯	STRAIGHT PRESSURE FILLING OIL CUP	2	2011-11_
9	FT804.31.110	垫环	PAD RING	1	2011-11_
9	FT804.31.110	垫环	PAD RING	1	2011-11_

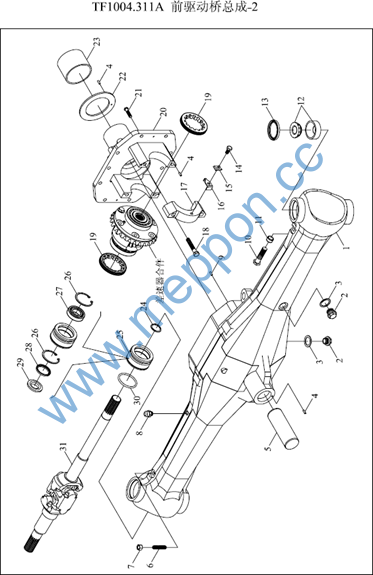

TF1004.311A-2 31.2-前驱动桥总成-2 FRONT DRIVING AXLE ASSEMBLY-2

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
0	TG1204.311C.1	前桥总成	FRONT AXLE ASSEMBLY	1	2011-11_
1	5144523/11	前桥壳体	FRONT AXLE HOUSING	1	2011-11_
10	1.40.211/5126628-FT	限位螺栓	LIMIT BOLT	2
11	12/5148495-FT	隔套	SPACER BUSH	999	2011-11_
12	5119699/1.40.240	主销球铰副	MAIN PIN SPHERICAL HINGE SET	4	2011-11_
13	5121471/1.40.232	密封圈	SEAL RING	4	2011-11_
14	GBT5786-M10X1.25X20	六角头螺栓	BOLT	2	2011-11_
15	562659/1.41.032	调整螺母锁片	ADJUSTING NUT LOCK	2	2011-11_
16	4996751/1.41.015	调整螺母止动片	ADJUSTING NUT THRUST PIECE	2	2011-11_
17	4996748/1.41.005	锥传动支座瓦盖	TAPER TRANSSMISSION SEAT COVER	2	2011-11_
18	14275334/10357/04	锁紧螺栓	LOCK BOLT	4
19	4996750/1.41.008	调整螺母	ADJUSTING NUT	2
2	10305114/14530	螺塞	SCREW PLUG	2
20	5144525/15	锥传动支座	TAPER TRANSMISSION SEAT	1	2011-11_
21	14274634/10357/04	锁紧螺栓	LOCK BOLT	10
22	5136119/15	后减摩环	REAR WEARING WASHER	1	2011-11_
23	5136120/15	锥传动支座轴套	TAPER TRANSMISSION SEAT SHAFT SLEEVE	1	2011-11_
24	11068376/12245	挡圈	RETAINER RING	2
25	4996755/1.40.038	半轴轴承座	HALF SHAFT BEARING SEAT	2	2011-11_
26	11061076/12246	挡圈	RETAINER RING	4
27	GBT307-6007	轴承	BEARING	2	2011-11_
28	5136002/1.41.538	油封	OIL SEAL	2
29	4996762/1.41.537	半轴油封挡圈	HALF SHAFT OIL SEAL RETAINER RING	2	2011-11_
3	JBT982-22	组合密封垫圈	COMBINED SEAL GASKET	2	2011-11_
30	4966231/1.40.023	O形密封圈	O RING	2

TF1004.311A-2 31.2-前驱动桥总成-2(续)

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
31	8A5142250/20	右万向传动轴	RIGHT UNIVERSAL TRANSMISSION SHAFT	1	2011-11_
31.1	8A5142053/20	左万向传动轴	LEFT UNIVERSAL TRANSMISSION SHAFT	1	2011-11_
4	4966244/1.41.016	定位销	THIMBLE	6
5	5140017/11	前桥摆销	FRONT AXLE SWING PIN	1	2011-11_
6	5100194/1.40.045	限位螺钉	LIMIT SCREW	2
7	14048814/10128	螺母	NUT	2
8	13413290/24628	通气塞总成	VENT PLUG ASSEMBLY	1	2011-11_
9	4988170/1.40.021	定位销	THIMBLE	2

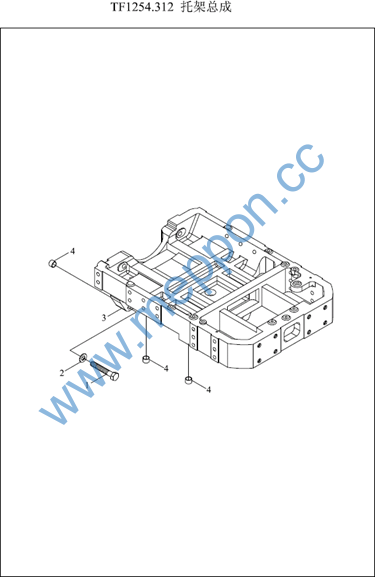

TF1254.312 31.2-托架总成 31.2-BRACKET ASSEMBLY

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

GBT5782-M20X120-10.9-A3L TG1204.34-01

TG1204.312F-01 TG1204.312C-02

六角头螺栓垫圈

托架定位套

BOLT WASHER BRACKET

LOCATING SLEEVE

2011-11_

TF1004.311A-3 31.3-前驱动桥总成-3 FRONT DRIVING AXLE ASSEMBLY-3

标号 No.	代号 Code	名称 Description		数量 Quantity	备注 Remark
0	TG1204.311C.1	前桥总成	FRONT AXLE ASSEMBLY	1	2011-11_
1	8A5133799/1.41.539-42×62×17	驱动叉轴油封	DRIVING FORK SHAFT OIL SEAL	1	2011-11_
10	14274534/10352/04	螺栓	BOLT	12	2011-11_
11	GBT1152-M10X1	油杯	OIL CUP	4	2011-11_
12	5140018/20-30	轴用挡圈30	SHAFT RETAINING RING	4	2011-11_
13	5137107/20	太阳轮	SUN GEAR	4	2011-11_
14	4997571/1.41.549	齿圈挡环	GEAR RETAINER RING	2	2011-11_
15	5142047/20	齿圈支座	GEAR RING SUPPORT SEAT	2	2011-11_
16	5108749/1.41.543	齿圈	GEAR RING	2	2011-11_
17	5142020/12	锁紧螺母	LOCKING NUT	2	2011-11_
18	5137689/20	行星架	PLANET CARRIER	2	2011-11_
19	JBT982-22	组合密封垫圈	COMBINED SEAL GASKET	2	2011-11_
2	5104199/1.40.228	转向节衬套	STEERING BURL BUSH	2	2011-11_
20	10305114/14530	螺塞	SCREW PLUG	2	2011-11_
21	14233634/10357/04	螺栓	BOLT	24	2011-11_
22	4997509/1.41.547	行星齿轮轴	PLANET GEAR SHAFT	6	2011-11_
22	4997509/1.41.547	行星齿轮轴	PLANET GEAR SHAFT	6	2011-11_
23	4997510/1.41.552	行星齿轮轴承挡圈	PLANET GEAR BEARING RETAINER RING	12	2011-11_
24	5101693/1.41.546	滚针	NEEDLE	19	2011-11_
25	5108747/1.41.545	行星齿轮	PLANETARY GEAR	6	2011-11_
3	5142002-FT/12	左转向节	LEFT STEERING BURL	1	2011-11_
3	5142002-FT/12	左转向节	LEFT STEERING BURL	1	2011-11_
3.1	5142001-FT/12	右转向节	RIGHT STEERING BURL	1	2011-11_
3.1	5142001-FT/12	右转向节	RIGHT STEERING BURL	1	2011-11_
4	8A5137109/12	轮毂油封	HUB OIL SEAL	2	2011-11_
