No.

Part No.

Description

Version

QTY.

Remark

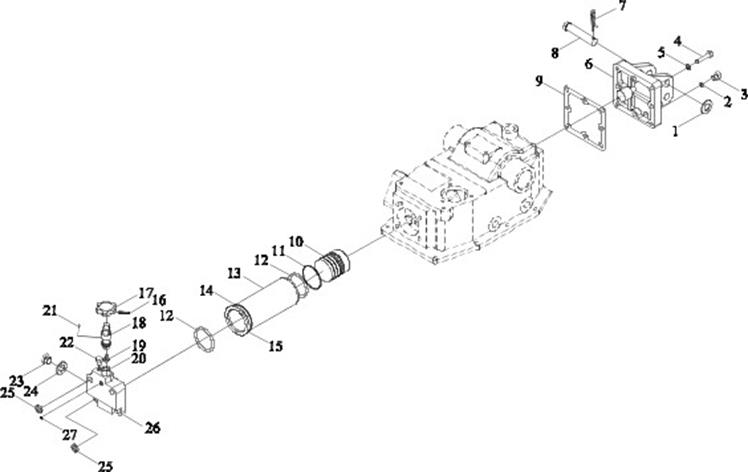

TE300.55(2)

LIFTER INSTALLATION ASSEMBLY

1

TE300.55.1(3)

LIFTER ASSEMBLY

1

1

GBT97.1-20-A0P

FLAT WASHER

1

2

JBT982-12(2)

COMBINED SEAL GASKET

1

3

18.55.108

OIL DISCHARGING PLUG

1

4

GBT5782-M10X45-8.8-A3L

HEXAGON BOLT

1

5

GBT93-10-A0P(2)

STANDARD SPRING WASHER

1

6

FT250.55.015

REAR END COVER ASSEMBLY

1

7

FT800.55A.237

ELASTIC PIN

1

8

18.55.107

UPPER PULL ROD FRONT CONNECTING PIN

1

9

18.55.159

REAR END COVER PAPER GASKET

1

10

DF250.55.013

PISTON ASSEMBLY

1

11

DF250.55.161

RETAINER RING

1

12

GBT3452.1-65.0X5.30G

RUBBER O-SEAL RING

1

13

TE300.55.102

CYLINDER TRUNK

1

14

DF250.55.121

RECTANGULAR RETAINER RING

1

15

DF250.55.120

O RING 86.5X2.4

1

16

GBT879.1-4X22

SPRING COLUMN PIN

1

17

E300.55.140A

SPEED DROP VALVE HAND WHEEL

1

18

FT250.55.128A

ADJUSTING VALVE ROD

1

19

YT18.55.129

ADJUSTING VALVE

1

20

GBT1235-22X2.4

RUBBER O-SEAL RING

1

21

300.55.138

PIN

1

No.

Part No.

Description

Version

QTY.

Remark

22

25.55.169

PLUG

1

23

25.55.109A

HEXAGON SCREW PLUG

1

24

JBT982-18

COMBINED SEAL GASKET

1

25

GBT93-14-A0P

STANDARD SPRING WASHER

1

26

TE300.55.126

CYLINDER HEAD

1

27

GBT97.1-5-A0P

FLAT WASHER

1

No.

Part No.

Description

Version

QTY.

Remark

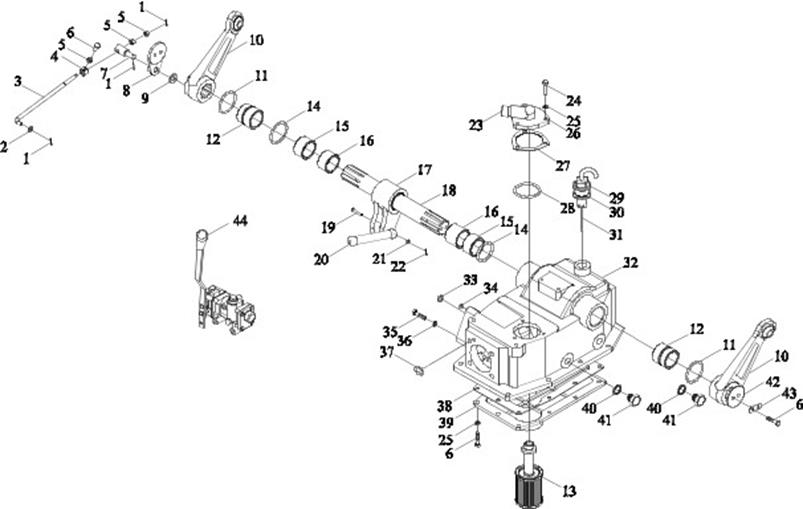

TE300.55(3)

LIFTER INSTALLATION ASSEMBLY

1

TE300.55.1(2)

LIFTER ASSEMBLY

1

1

GBT91-2X16-A0P

SPLIT PIN

1

2

GBT97.1-8-A0P

FLAT WASHER

1

3

DF400.55.108

LIFTING ADJUSTING ROD

1

4

18.55.110

LIFTINGARM

1

5

GBT6170-M8-8-A2L(2)

HEXAGON NUT, TYPE-1

1

6

GBT5783-M8X20-8.8-A2L

HEXAGON BOLT

1

7

14.55.107

LIMITING PIN SHAFT

1

8

18.55.145

RETURN RETAINER PLATE

1

9

GBT97.1-12-A0P

FLAT WASHER

1

10

TE300.55.013

LIFTING ARM ASSEMBLY

2

11

GBT3452.1-48.7X1.80G

RUBBER O-SEAL RING

2

12

TE250.55.132

SEAL SLEEVE

1

13

TE300.55.014

OIL SUCTION FILTER

1

14

TE250.55.110

O-RING 43.3X4.7

1

15

TS300B.55.105C

LIFTING SHAFT SLEEVE

2

16

TE250.55.114

SHAFT SLEEVE

1

17

18.55.133-1

INNER LIFTING ARM

1

18

TE300.55.103

LIFTING SHAFT

1

19

GBT882-B6X50-A0P

PIN SHAFT

1

20

TE300.55.132

TOP ROD

1

21

GBT97.1-6-A0P

FLAT WASHER

1

No.

Part No.

Description

Version

QTY.

Remark

22

GBT91-2X12-A0P

SPLIT PIN

1

23

FT254.58.140

OIL PIPE CLAMP

1

24

GBT5783-M8X25-8.8-A2L(2)

HEXAGON BOLT

1

25

GBT93-8-A0P(2)

STANDARD SPRING WASHER

1

26

FT254.58.138

OIL FILTER COVER

1

27

YT18.54.125

OIL SUCTION PIPE JOINT PAPER WASHER

1

28

GBT3452.1-20.0X2.65G

RUBBER O-SEAL RING

1

29

150.55.022

VENTILATION PLUG

1

30

18.55.104

WASHER

1

31

18.55.021

OIL METER ASSEMBLY

1

32

TE300.55.101

LIFTER HOUSING

1

33

GBT3452.1-19.0X2.65G

RUBBER O-SEAL RING

1

34

GBT3452.1-13.2X2.65G

RUBBER O-SEAL RING

1

35

GBT5782-M10X80-8.8-A3L

HEXAGON BOLT

1

36

GBT93-10-A0P(3)

STANDARD SPRING WASHER

1

37

GBT1235-18X2.4

RUBBER O-SEAL RING

1

38

TE300.55.116

BOTTOM PLATE PAPER GASKET

1

39

TE300.55.115

BOTTOM PLATE

1

40

JBT982-20

COMBINED SEAL GASKET

1

41

FT65.55.117

OIL DISCHARGING SCREW PLUG

1

42

18.55.109

LIFTING SHAFT

1

No.

Part No.

Description

Version

QTY.

Remark

43

44

18.55.111

FT250.57.001

THRUST WASHER

DISTRIBUTOR ASSEMBLY

1

1

No.

Part No.

Description

Version

QTY.

Remark

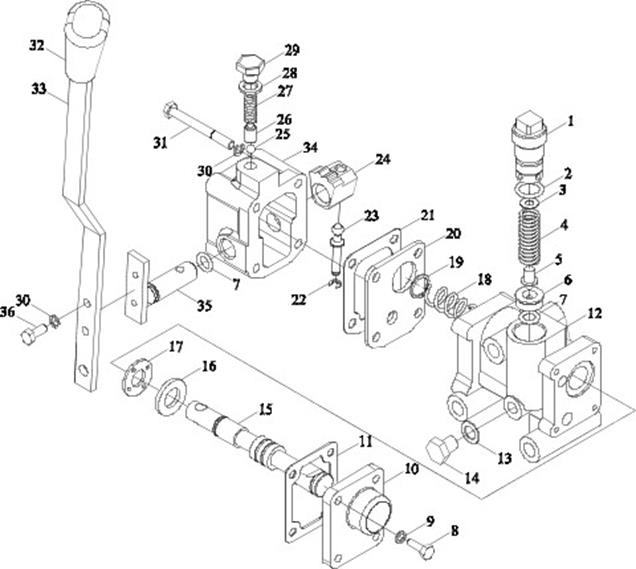

TE300.55(4)

LIFTER INSTALLATION ASSEMBLY

1

TE300.55.1(4)

LIFTER ASSEMBLY

1

FT250.57.001(2)

DISTRIBUTOR ASSEMBLY

1

1

18FP.57.110

PRESSURE PLUG

1

2

GBT3452.1-15.0X2.65G

RUBBER O-SEAL RING

1

3

18FP.57.111

ADJUSTING WASHER

999

4

18FP.57.112

SAFETY VALVE SPRING

1

5

18FP.57.119

SAFETY VALVE CORE

1

6

18FP.57.101

SAFETY VALVE SEAT

1

7

GBT3452.1-9.50X2.65A

RUBBER O-SEAL RING

2

8

GBT5783-M5X18

HEXAGON BOLT

4

9

GBT93-5-A0P

STANDARD SPRING WASHER

4

10

18FP.57.102

FRONT COVER

1

11

18FP.57.103

FRONT COVER PAPER GASKET

1

12

18FP.57.104A

DISTRIBUTOR HOUSING

1

13

150D.55.227-2

SEAL RING

1

14

JBT1000-M10X1

SCREW PLUG

1

15

18FP.57.113

SLIDING VALVE

1

16

GBT97.1-14

WASHER

1

17

18FP.57.115

WASHER

1

18

18FP.57.114

SLIDING VALVE RETURN SPRING

1

19

GBT894.1-15

RETAINER RING

1

20

18FP.57.106

RETAINER PLATE

1

No.

Part No.

Description

Version

QTY.

Remark

21

18FP.57.107

REAR COVER PAPER GASKET

2

22

GBT896-4

RETAINER RING

1

23

14FP.57.105

DIAL PIN

1

24

14FP.57.104

LOCATING BLOCK

1

25

GBT308-5-G100-b

STEEL BALL

1

26

14FP.57.118

LOCATING SPRING SEAT

1

27

14FP.57.119

LOCATING SPRING

1

28

14FP.57.121

MAT

1

29

14FP.57.120

SCREW PLUG

1

30

GBT93-6-A0P

STANDARD SPRING WASHER

6

31

GBT5782-M6X60

HEXAGON BOLT

4

32

FT65.57.013

HANDLE HEAD ASSEMBLY

1

33

TE300.57.101

HANDLE

1

34

18FP.57.108

REAR COVER

1

35

18FP.57.109

HANDLE SHAFT

1

36

GBT5783-M6X14

BOLT

2
