TE250.483A 48.3-前灯线束安装总成 48.3-FRONT LAMP HARNESS INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

3724D01-201

可松式扎带

RELEASABLE TIE

1

2011-11_

10

GBT96-6-A0P

垫圈6-A0P

WASHER

2

2011-11_

11

TE250.483A.1

前大灯总成

FRONT BIG LAMP ASSEMBLY

1

2011-11_

2

TE250.483A.1

前大灯总成

FRONT BIG LAMP ASSEMBLY

1

2011-11_

3

GBT818-M8X16-A2L

十字槽盘头螺钉

SCREW

3

2011-11_

4

TD800.483B.3

电喇叭

ELECTRIC HORN

1

2011-11_

5

GBT97.1-8-A0P

平垫圈

WASHER

3

2011-11_

6

GBT93-8-A0P

垫圈

WASHER

3

2011-11_

7

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

8

GBT6170-M6-A2L

螺母

NUT

2

2011-11_

9

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_


TE250.483-01

垫板

PAD BOARD

2

2011-01_

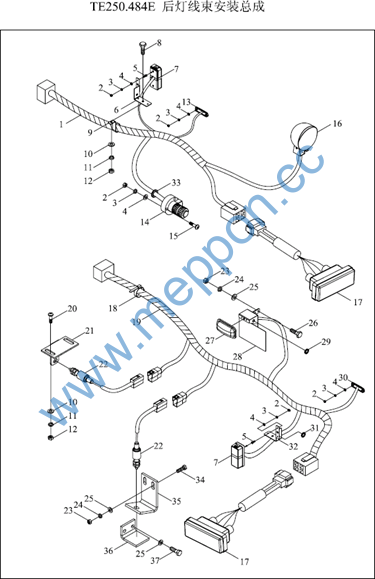

TE250.484E 48.4-后灯线束安装总成 48.4-REAR LAMP HARNESS INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE250.484E.2

右后灯线束总成

RIGHT REAR LAMP HARNESS ASSEMBLY

1

2011-11_

10

GBT97.1-8-A0P

平垫圈

WASHER

6

2011-11_

11

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

12

GBT6170-M8-A2L

螺母

NUT

6

2011-11_

13

TE250.484E.5

右反射器

RIGHT REFLECTOR

1

2011-11_

14

TD800.484B.6

后挂车插座总成

REAR TRAILER SOCKET ASSEMBLY

1

2011-11_

15

GBT818-M5X35-A1L

十字槽盘头螺钉

SCREW

3

2011-11_

16

FT250.48.025

后工作灯总成

REAR WORKING LIGHT ASSEMBLY

1

2011-11_

17

TB404.484.3

后尾灯总成

TAIL LAMP ASSEMBLY

2

2011-11_

18

3724D01-201

可松式扎带

RELEASABLE TIE

1

2011-11_

19

TE250.484E.1

左后灯线束总成

LEFT REAR LAMP HARNESS ASSEMBLY

1

2011-11_

19

TE250.484E.1

左后灯线束总成

LEFT REAR LAMP HARNESS ASSEMBLY

1

2011-11_

2

GBT6170-M5-A2L

1型六角螺母

NUT

11

2011-11_

20

GBT68-M8X20-A2L

开槽沉头螺钉

SCREW

2

2011-11_

21

FT250.48.134

刹车开关固定架

BRAKE SWITCH FIXING BRACKET

1

2011-11_

22

FT300.48.033

制动灯开关

BRAKE LIGHT SWITCH

2

2011-11_

23

GBT6170-M6-A2L

螺母

NUT

4

2011-11_

24

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

6

2011-11_

25

GBT97.1-6-A0P

平垫圈

WASHER

4

2011-11_

26

GBT5783-M6X60-A1L

六角头螺栓

BOLT

4

2011-11_

27

TD800.484B.3

牌照灯总成

NAMEPLATE LAMP ASSEMBLY

1

2011-11_

28

TE250.484E.6

牌照灯支架焊合

NAMEPLATE LAMP BRACKET WELDMENT

1

2011-11_

29

TD800.484B-03

过线胶圈

RUBBER RING

1

2011-11_

3

GBT93-5-A0P

标准型弹簧垫圈

WASHER

11

2011-11_

30

TE250.484E.4

左反射器

LEFT REFLECTOR

1

2011-11_








TE250.484E 48.4-后灯线束安装总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

31

FT65.48.094

穿线胶圈(二)

RUBBER RING (2)

3

2011-11_

32

TE250.484E.8

左单面灯支架焊合

LEFT SINGLE LAMP BRACKET WELDMENT

1

2011-11_

33

FT65.48.093

穿线胶圈(一)

RUBBER RING (ONE)

2

2011-11_

34

GBT5783-M6X20-A2L

螺栓

BOLT

2

2011-11_

35

FT250.48F.135

安全启动开关安装板

MOUNTING PLATE OF SAFE START SWITCH

1

2011-11_

36

FT250.48F.136

挡板

RETAINER PLATE

1

2011-11_

37

GBT5783-M6X12-A2L

六角头螺栓

BOLT

2

2011-11_

4

GBT97.1-5-A0P

垫圈

WASHER

11

2011-11_

5

GBT818-M5X20-A2L

十字槽盘头螺钉

SCREW

4

2011-11_

6

TE250.484E.7

右单面灯支架焊合

RIGHT SINGLE SIDE LAMP BRACKET

1

2011-11_


WELDMENT



7

TE250.484E.3

单面灯总成



2

2011-11_

8

GBT5783-M8X20-A2L

螺栓

SINGLE-SIDE LAMP ASSEMBLY

4

2011-11_

9

FT65.48.095

线束紧固夹（一）

BOLT

6

2011-11_


HARNESS TIGHTEN CLIP (1)










TE250.485C 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

Q67405200

塑料紧箍带

PLASTIC FASTEN STRIP

1

2011-11_

10

TE250.24B.1L

蓄电池

BATTERY

1

2011-11_

11

FT250.24B.103

橡胶皮

RUBBER SKIN

1

2011-11_

2

FT65.48.095

线束紧固夹（一）

HARNESS TIGHTEN CLIP (1)

1

2011-11_

3

FT250.48.027

蓄电池正极电缆总成

BATTERY POSITIVE CABLE ASSEMBLY

1

2011-11_

4

GBT5783-M8X80-8.8-A2L

六角头螺栓

BOLT

2

2014-06_

4

GBT5783-M8X25-A2L

螺栓

BOLT

2

2011-11_

5

TE250.485A-01

压板

PRESSURE PLATE

2

2011-11_

6

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

7

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

8

GBT6170-M8-A2L

螺母

NUT

2

2011-11_

9

TE300.485.3

蓄电池负极电缆总成

BATTERY CATHODE CABLE ASSEMBLY

1

2011-11_








TE250.487ZC 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

TE250.487 TE250.487

组合仪表总成组合仪表总成

COMBINED INSTRUMENT ASSEMBLY COMBINED INSTRUMENT ASSEMBLY

1

1










FT250.49.001 49-工具箱总成 49-TOOL BOX ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

GBT5781-M8X20-Zn.D FT250.49.010

GBT97.1-8 GBT93-8-Zn.D

GBT6170-M8-Zn.D

六角头螺栓工具箱总成垫圈

标准型弹簧垫圈 1型六角螺母

BOLT

TOOL BOX ASSEMBLY WASHER

WASHER NUT

2

1

2

2

2

2011-11_

2011-11_

2011-11_

2004-01_

2011-11_

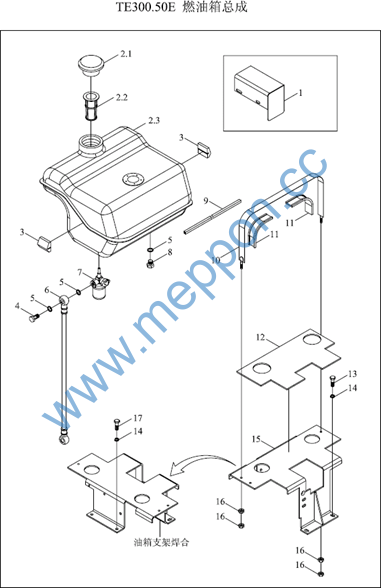

TE300.50E 50-燃油箱装配总成 50-FUEL TANK INSTAllation assembly



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TE300.50.5

隔热板焊合

HEAT INSULATION BOARD WELDMENT

1

2011-11_

1

TE300.50.5

隔热板焊合

HEAT INSULATION BOARD WELDMENT

1

2011-11_

10

TE300.50.4

钢带焊合件

STEEL BAND WELDMENT

1

2011-11_

10

TE300.50.4

钢带焊合件

STEEL BAND WELDMENT

1

2011-11_

11

FT65.50.209a

油箱上橡胶条

OIL TANK UPPER RUBBER STRIP

2

2009-04_

11

FT65.50.209

油箱上胶条

UPPER RUBBER STRIP OF OIL TANK

2

2009-04_

11

FT250.50.102

钢带胶垫

STEEL BAND RUBBER WASHER

2

2004-01_

12

TE300.50-02

油箱胶垫

OIL TANK RUBBER WASHER

1

2011-11_

13

GBT5783-M10X25-A3L

螺栓

BOLT

2

2011-11_

14

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

15

TE300.50.2

油箱支架焊合

OIL TANK BRACKET WELDMENT

1

2011-11_

16

GBT6170-M10-A3L

螺母

NUT

4

2011-11_

17

GBT5783-M10X20-A3L

螺栓

BOLT

2

2011-11_

2

TE300.50E.1

油箱总成

OIL TANK ASSEMBLY

1

2011-11_

2.1

TD800.501A.1.1

油箱盖

OIL TANK COVER

1

2011-11_

2.2

FT250.50.015a

滤网总成

FILTER MESH ASSEMBLY

1

2011-11_

2.3

TE300.50E.1.1

油箱焊合

FUEL TANK WELDMENT

1

2011-11_

3

FT300.50.112

橡胶垫块

RUBBER PAD BLOCK

2

2011-11_

4

FT65.50.106

空心螺栓

HOLLOW BOLT

1

2011-11_

5

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

5

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

6

FT250.50.023

输油管总成

OIL CONVEYING PIPE ASSEMBLY

1

2011-11_

7

TE300.50A.3

沉淀杯总成

SEDIMENT CUP ASSEMBLY

1

2011-11_

8

FT250.50.107

放油塞

OIL DISCHARGING PLUG

1

2011-11_

9

FT300.45.809

顶盖压条

UPPER COVER PRESS STRIP

1

2011-11_
