LOVOL TE254-L161Q102K Tractor Parts Catalogue 02

Meppon Parts Posted on by

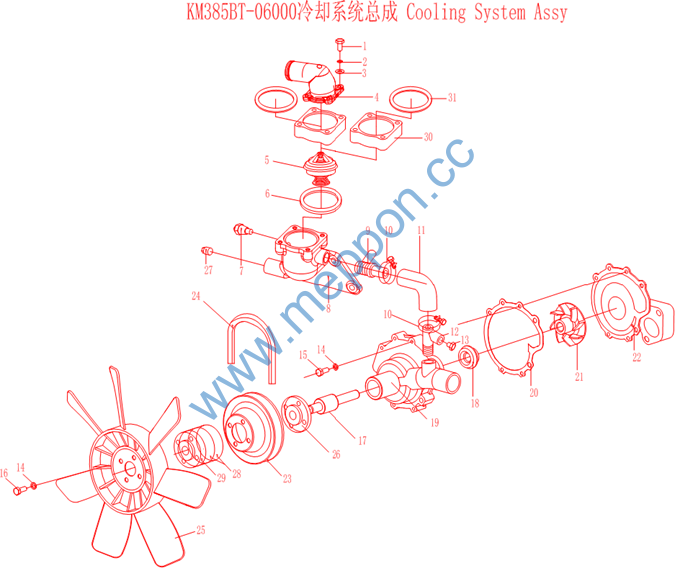

KM385BT-1E-10 10.10-冷却系统-10(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

KM385T-06208

节温器垫块（40）

THERMOSTAT MAT BLOCK

2

2011-11_

31

KM385T-06209

节温器盖垫片

THERMOSTAT COVER GASKET

2

2011-11_

4

LL380-06201-1

节温器盖

THERMOSTAT COVER

1

2011-11_

5

L375-06203

节温器

THERMOSTAT

1

2011-11_

6

L375-06202

节温器盖垫片

THERMOSTAT COVER GASKET

1

2011-11_

7

L375-06206

水温感应塞

WATER THERMO-SENSING PLUG

1

2011-11_

8

L375-06204

节温器壳

THERMOSTAT HOUSING

1

2011-11_

9

LL480-06303

小循环接管

SMALL CIRCULATING PIPE

1

2011-11_

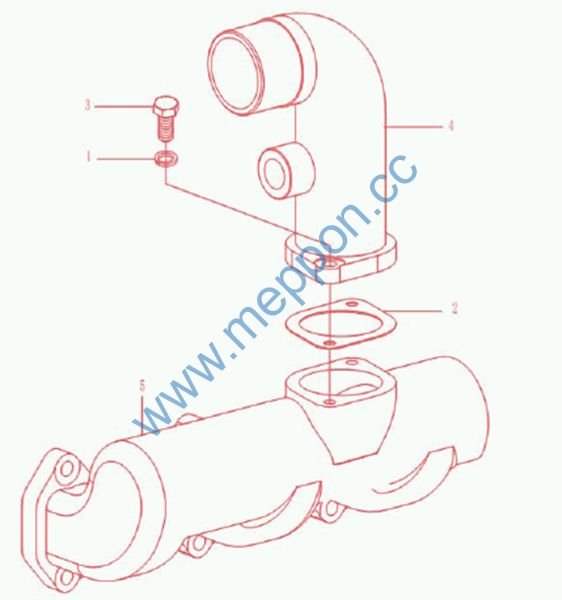

KM385BT-1E-11 10.11-进气管总成-11 AIR INLET PIPE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

GBT93-10 L375Y3-07003 GBT5783-M10X30 KM385T-07004-6

KM385BT-07001-2

垫圈10

进气管端盖垫片六角头螺栓

进气管接头进气管

WASHER 10

AIR INLET PIPE END COVER GASKET BOLT

AIR INLET PIPE JOINT AIR INLET PIPE

2

1

2

1

1

2012-06_

2011-11_

2013-08_

2011-11_

2008-02_

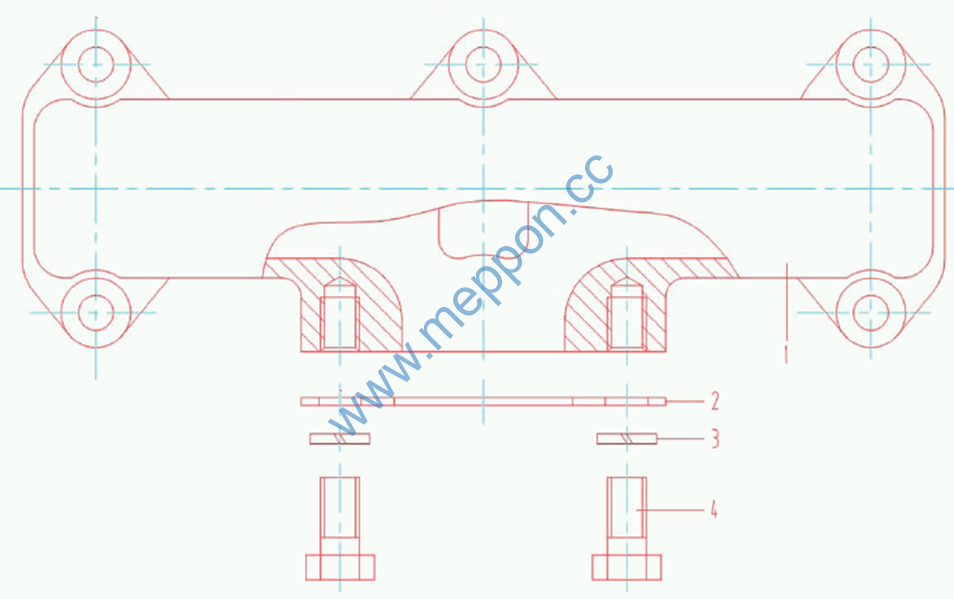

KM385BT-1E-12 10.12-排气管总成-12 EXHAUST MANIFOLD ASSY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

KM385-08001 LL480-08002 GBT93-10

排气管

排气总管垫片垫圈10

EXHAUST PIPE EXHAUST PIPE GASKET WASHER 10

1

1

2

2011-11_

2011-11_

2012-06_

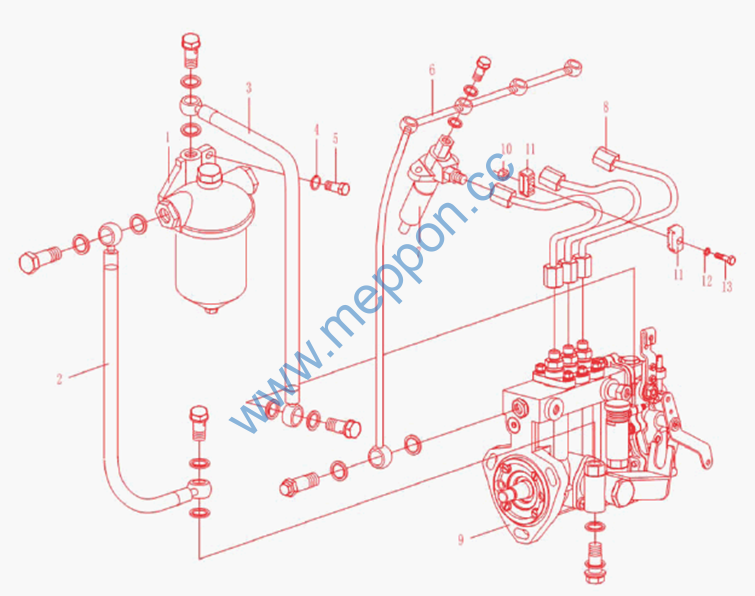

KM385BT-1E-14 10.14-燃油系统总成-14 FUEL SYSTEM ASSY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

L375-10500-1

燃油滤清器总成

CX0708TFUELFILTERASSEMBLYCX0708T

1

2011-11_

1.1

CX0706

柴滤芯

FUEL FILTER ELEMENT

1

2011-11_

1.1

KM385T-10501

柴滤芯

FUEL FILTER ELEMENT

1

2013-07_

10

GBT6170-M6

螺母

NUT

1



11

D495QB-10600

高压油管锁夹合件

HIGH PRESSURE OIL PIPE LOCK CLIP UNIT

4

2011-11_

2

KM385T-10700

输油泵至然油滤清器油管

PIPE FROM OIL CONVEYING PUMP TO FUEL OIL

1

2011-11_

2

KM385T-10700

输油泵至然油滤清器油管

FILTER

1

2011-11_

3

KM385T-10600

燃油滤清器至喷油泵油管

PIPE FROM OIL CONVEYING PUMP TO FUEL OIL

1

2011-11_

4

GBT93-8

垫圈8

FILTER

1



5

GBT5783-M8X25

螺栓

OIL PIPE FROM FILTER TO INJECTION PUMP

1




PIPE



6

KM385T-10400-3

回油管部件

WASHER 8

1

2011-11_

7

KM385TA-10300

喷油器总成

BOLT

3

2011-11_

8

KM385T-10200

高压油管部件



1

2011-11_

9

KM385BT-10100-3I344

三缸BQ喷油泵总成

OIL RETURN PIPE PARTS

1




INJEKTOR ASSEMBLY




HIGH PRESSURE OIL PIPE PARTS




THREE CYLINDER BQ TYPE INJECTION PUMP




ASSEMBLY










KM385BT-1E-15 10.15-电器系统总成 FUEL SYSTEM ASSY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

KM485QB-12603

铰接螺栓

JOINT BOLT

1

2011-11_

10

GB93-87

标准型弹簧垫圈

WASHER

1

2012-06_

11

L375-01031

发电机支架垫套

GENERATOR BRACKET BUSH

1

2011-11_

11

KM385T-01028

发电机固定支架

GENERATOR FASTEN BRACKET

1

2011-11_

13

GBT5782-M10X100

六角头螺栓

BOLT

1

2013-08_

14

KM385T-12110

发电机安全护罩

GENERATOR SAFTY COVER

1

2011-11_

2

L375-03017

防漏垫圈

ANTILEAK WASHER

2

2011-11_

3

KM485QB-12602

铰接螺栓

JOINT BOLT

1

2011-11_

4

KM485QB-12607

组合垫圈

COMBINED GASKET

1

2011-11_

5

KM485QB-12604-1

预热塞输油管

PREHEATING PLUG OIL PIPE

1

2011-11_

6

KM485QB-12600-3

预热塞

PREHEATING PLUG

1

2011-11_

7

KM385T-12300JC-QDJ1332A

起动电机

Motor Starter

1

2004-01_

8

KM385T-12100-1

发电机

GENERATOR

1

2011-11_

9

GB6170-86

螺母

NUT

1

2012-06_








KM385BT-1E-16 10.16-润滑系统-16 LUBRICATION SYSTEM



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GB6170-M10

螺母

NUT

1

2012-06_

10

4L22-09101

外转子

OUTER ROTOR

1

2011-11_

11

4L22-09105

机油泵垫片

OIL PUMP GASKET

1

2011-11_

12

4L22-09104-1

机油泵盖

OIL PUMP COVER

1

2011-11_

12

4L22-09104-1

机油泵盖

OIL PUMP COVER

1

2011-11_

13

L375-09001

出油管法兰垫片

OIL OUTLET PIPE FLANGE GASKET

1

2011-11_

13

L375-09001

出油管法兰垫片

OIL OUTLET PIPE FLANGE GASKET

1

2011-11_

14

LL480T-09200

机油管路部件

OIL PIPELINE UNIT

1

2011-11_

15

4L22-09103

滤网体

FILTER MESH BODY

1

2011-11_

16

GBT93-6

垫圈

WASHER

8



17

GB5783-M8×20

六角头螺栓螺纹M10×25

BOLT SOCKET THROUGHSCREWM10    25

4

2011-11_

18

4L22-09130

滤网焊合件

FILTER MESH WELDMENT

1

2011-11_

19

4L22-09108

滤油网撑

OIL FILTER MESH SUPPORT

1

2011-11_

2

GB93-10

弹簧垫圈

SPRING WASHER

1

2012-06_

20

GBT5782-M8X45

六角头螺栓

BOLT

1

2012-06_

21

KM385T-09300

机油滤清器总成

OIL FILTER ASSEMBLY

1

2011-11_

21.1

WB178

机滤芯

FILTER CORE

1

2011-11_

21.1

KM385T-09305

机滤芯

FILTER CORE

1

2013-07_

22

4L22-09001

出油管法兰垫片

OIL OUTLET PIPE FLANGE GASKET

1

2011-11_

3

LL480-09107

机油泵传动齿轮

OIL PUMP DRIVING GEAR

1

2011-11_

4

4L22-09121

机油泵体衬套

OIL PUMP BODY BUSH

1

2011-11_

5

4L22-09122

机油泵体

OIL PUMP BODY

1

2011-11_

6

GBT1099-3X5X13

键

KEY

1

2013-08_

7

4L22-09111

机油泵轴

OIL PUMP SHAFT

1

2011-11_

8

4L22-09112

内转子

INNER ROTOR

1

2011-11_
